Power Window Main Switch Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove the driver-side front door trim. (See FRONT DOOR TRIM REMOVAL/INSTALLATION .)
  3. Push out the clip from the reverse side of the trim, and remove the switch panel.
  4. Remove the screw, and remove the power window main switch.

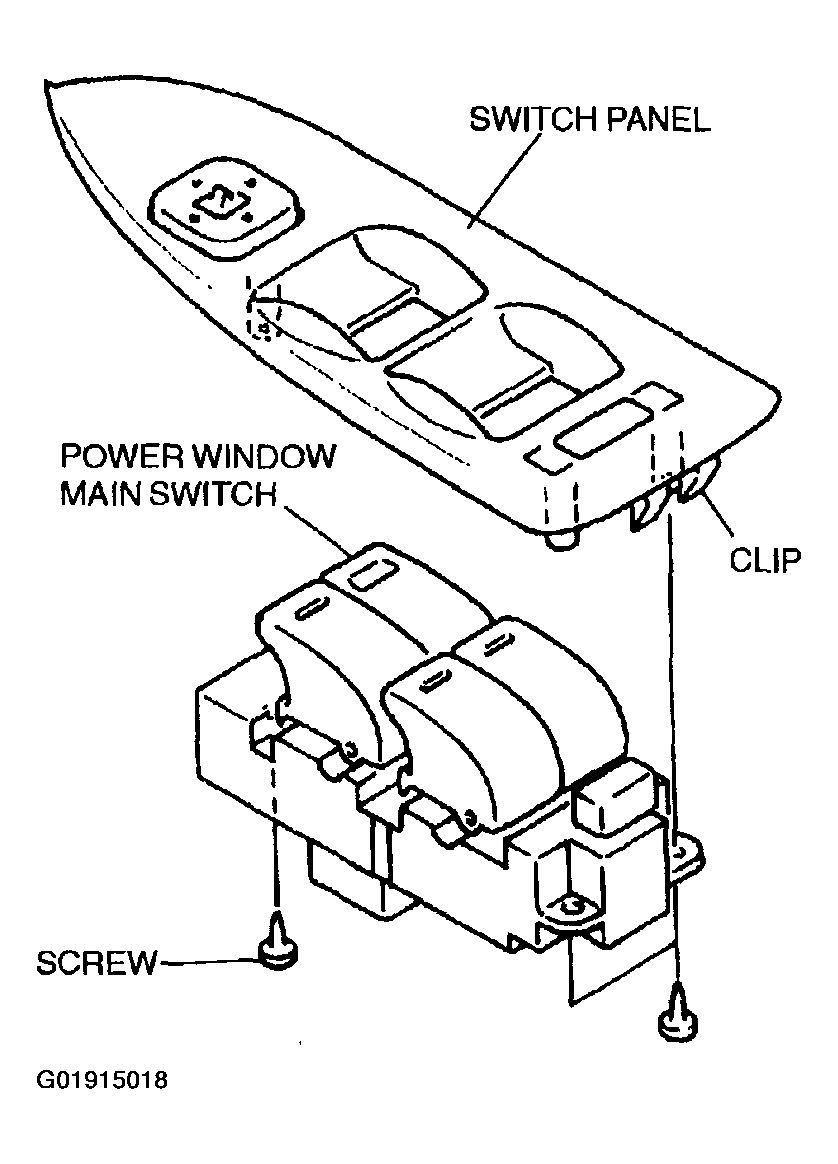

    Fig 1: Identifying Components Of Power Window Main Switch
    G01915018Courtesy of MAZDA MOTORS CORP.
  5. Install in the reverse order of removal.
