Abs Hydraulic Unit (HU)/Control Module (Cm) Inspection: Notes

  1. Disconnect the negative battery cable.
  2. Connect the SST  between the ABS HU/CM and harness connector with the ignition switch off.

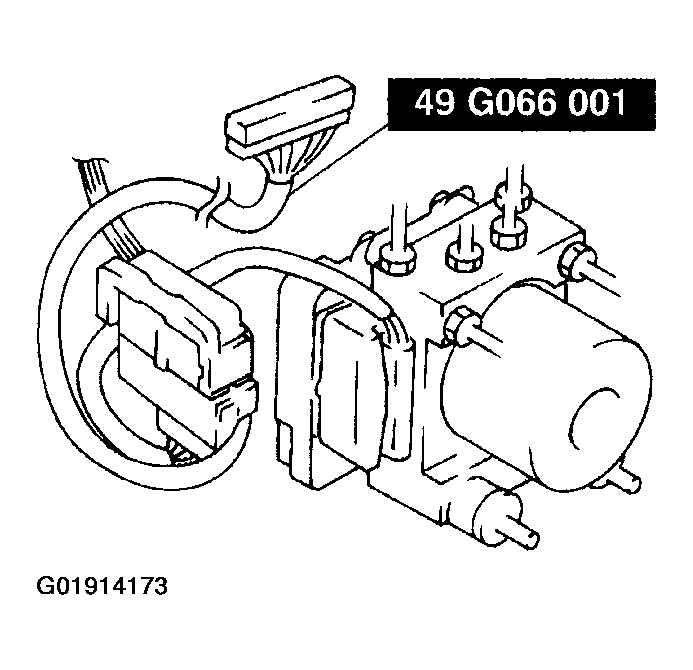

    Fig 1: Identifying ABS Hydraulic Unit Control Module
    G01914173Courtesy of MAZDA MOTORS CORP.
  3. Attach the tester leads to the SST  and inspect voltage. Refer to TERMINAL VOLTAGE TABLE (REFERENCE)  .
