Abs Hydraulic Unit (HU)/Control Module (Cm) Removal/Installation: Notes

CAUTION:
  • Do not drop the ABS hydraulic unit (HU)/control module (CM). Replace it if it is subjected to an impact.
  1. Remove the battery and battery tray.
  2. Remove in the order indicated in the figure.

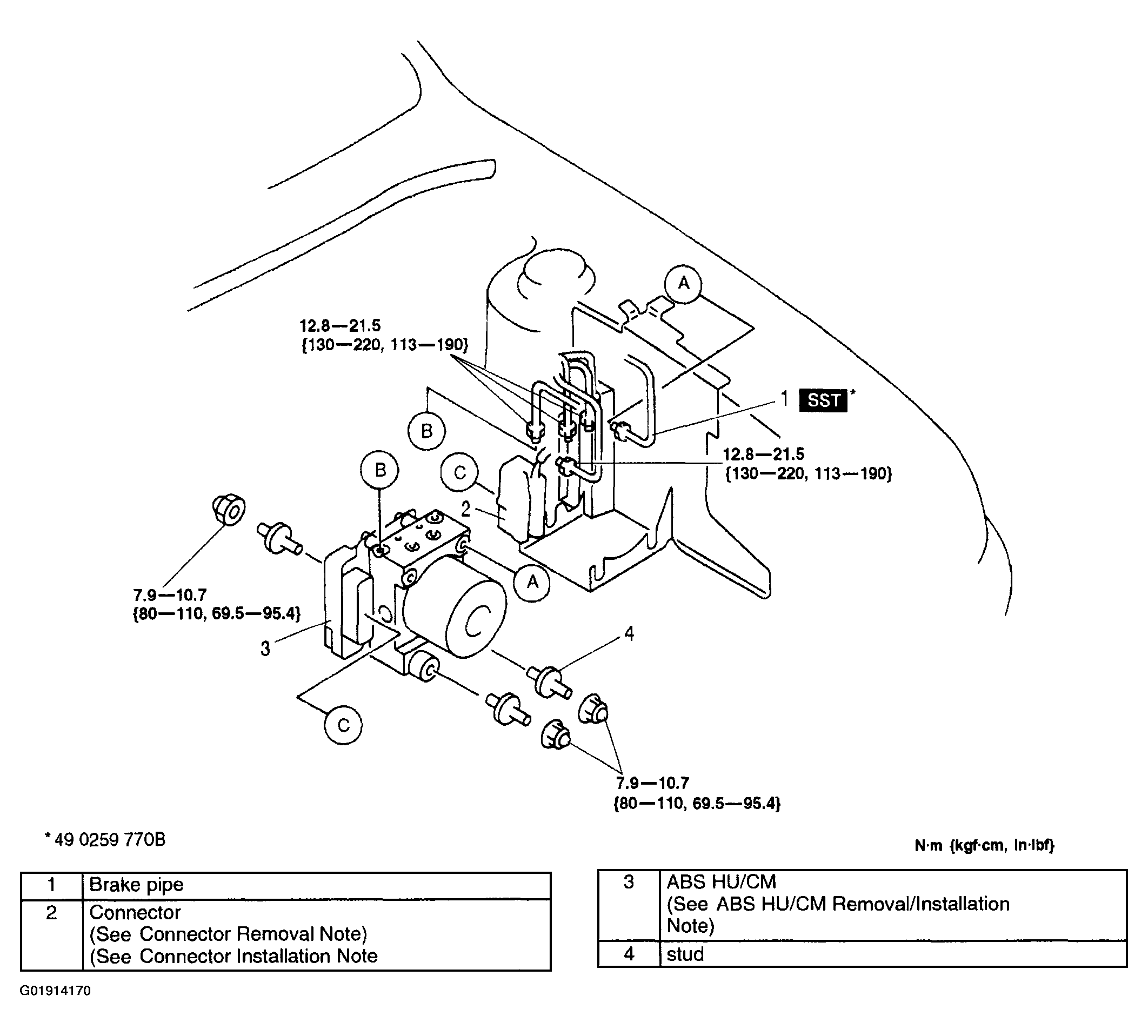

    Fig 1: Identifying ABS Hydraulic Unit Control Module
    G01914170Courtesy of MAZDA MOTORS CORP.
  3. Install in the reverse order of removal.
