DTC Chart

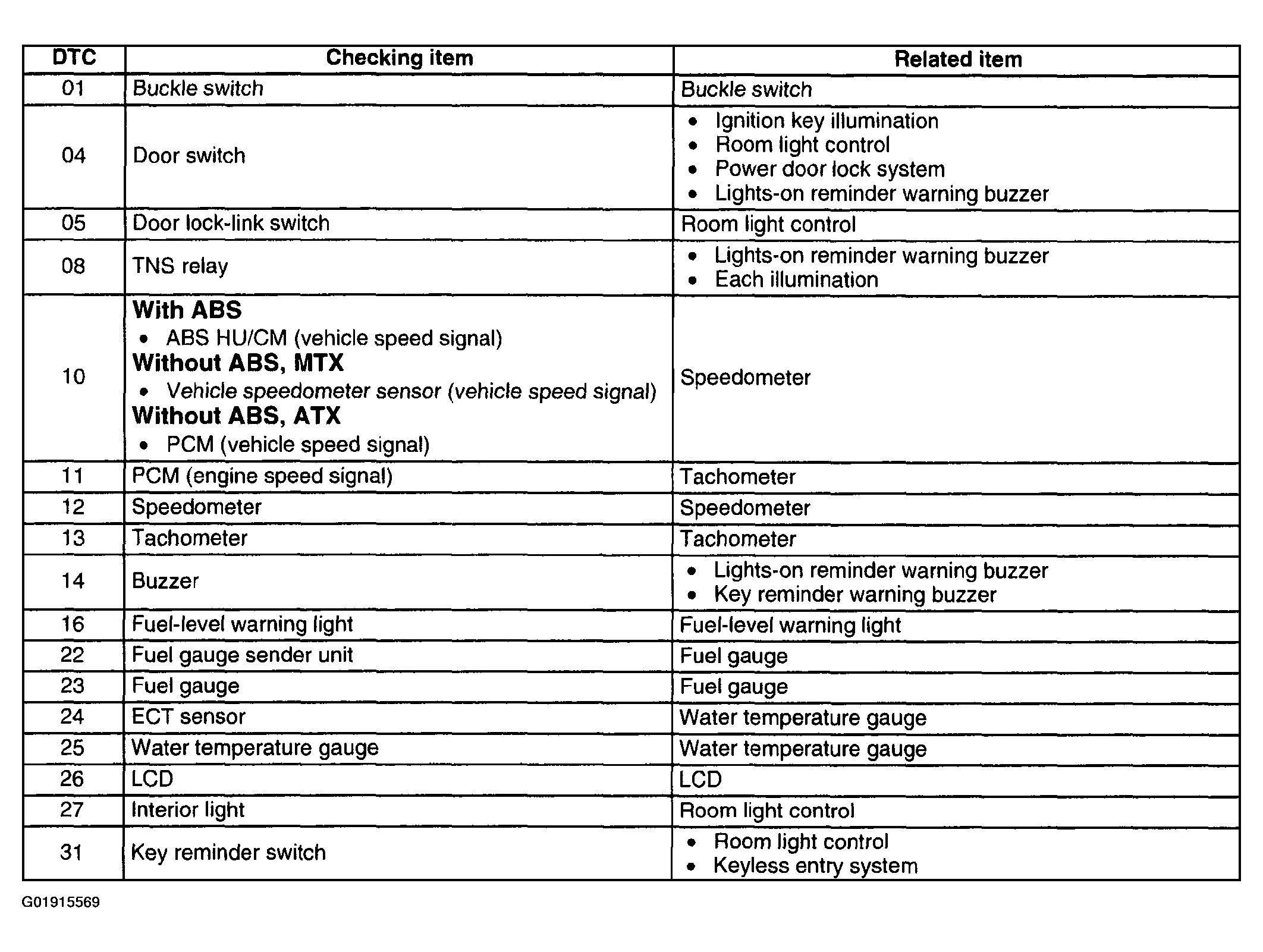

Fig 1: DTC's 01, 04, 05, 08, 10, 11, 12, 13, 14, 16, 22, 23, 24, 25, 26, 27 & 31

Courtesy of MAZDA MOTORS CORP.

NOTE:

The diagnostic trouble codes are displayed in numerical order. (While performing the inspection, if you want to inspect a diagnostic trouble code number which is smaller than the code number you are currently inspecting, terminate the check mode then repeat the inspection from the beginning.)
If the speed signal is put into the instrument cluster (the front wheels are rotated) while a code other than DTC 10 is displayed, the input/output check mode will be cancelled.
The diagnostic trouble codes can be fast-forwarded by pushing and holding the odometer/tripmeter switch for 1 second or more.
