Engine Technical Data

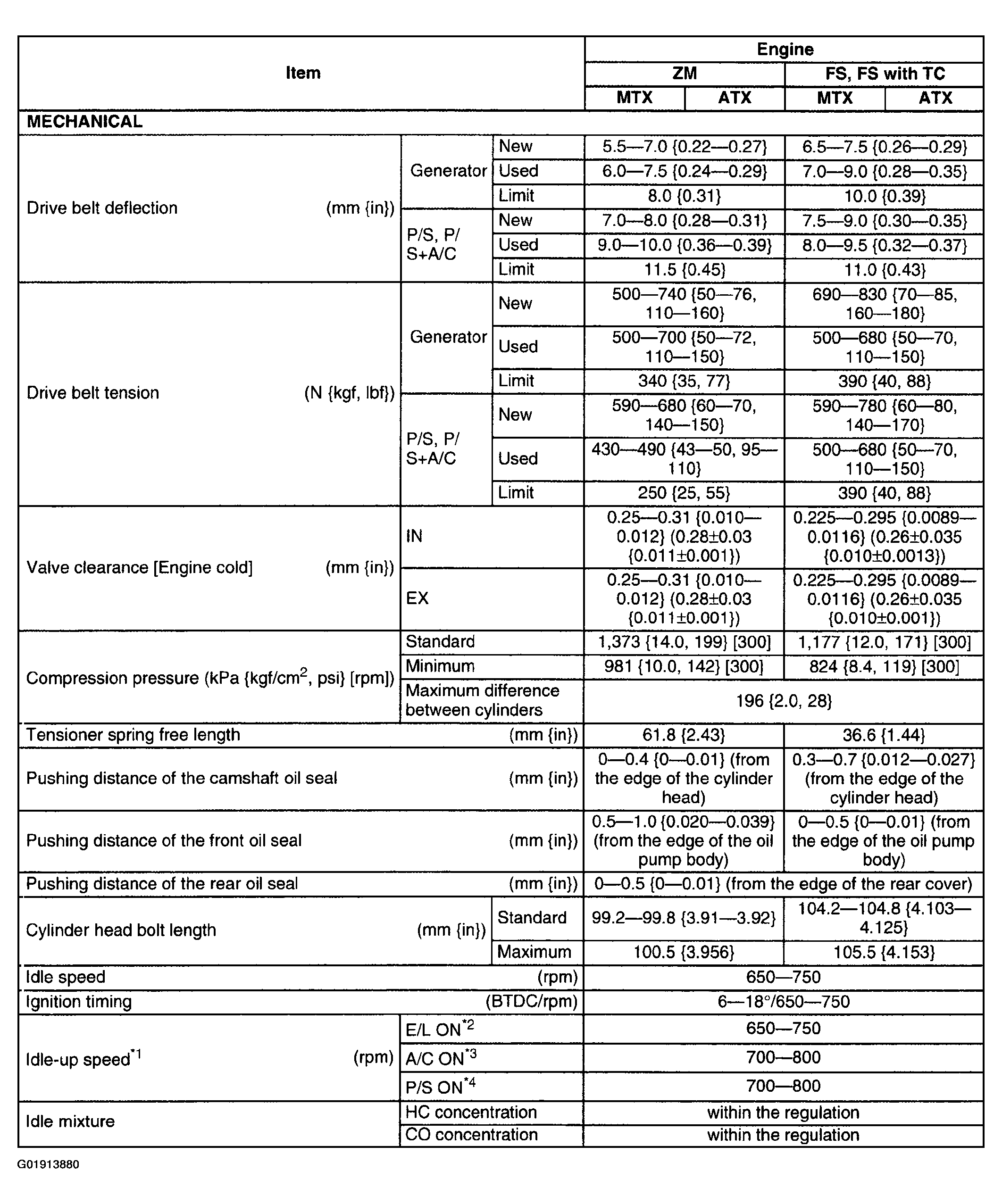

Fig 1: Engine Technical Data Specifications (1 Of 4)
G01913880Courtesy of MAZDA MOTORS CORP.

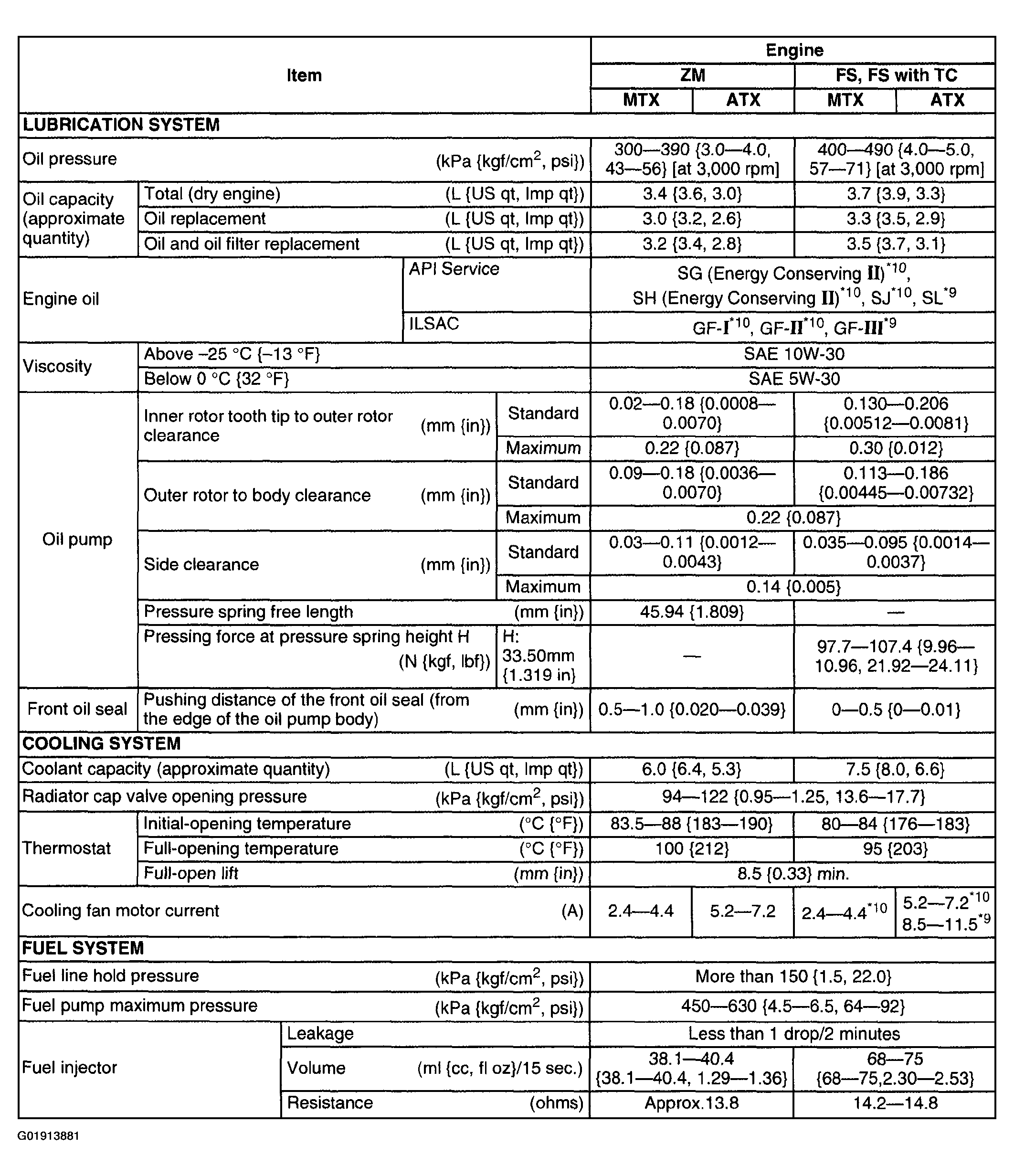

Fig 2: Engine Technical Data Specifications (2 Of 4)
G01913881Courtesy of MAZDA MOTORS CORP.

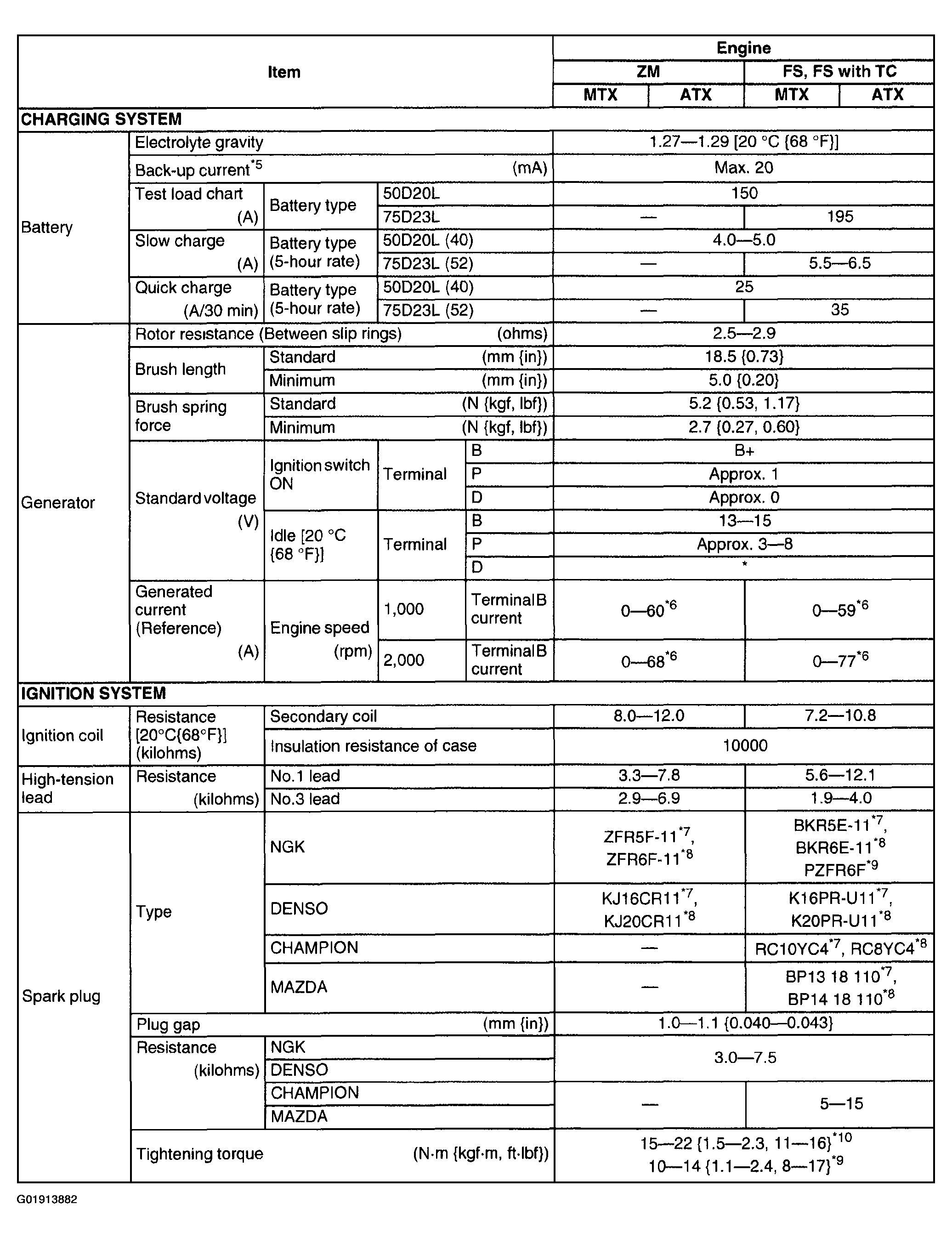

Fig 3: Engine Technical Data Specifications (3 Of 4)
G01913882Courtesy of MAZDA MOTORS CORP.

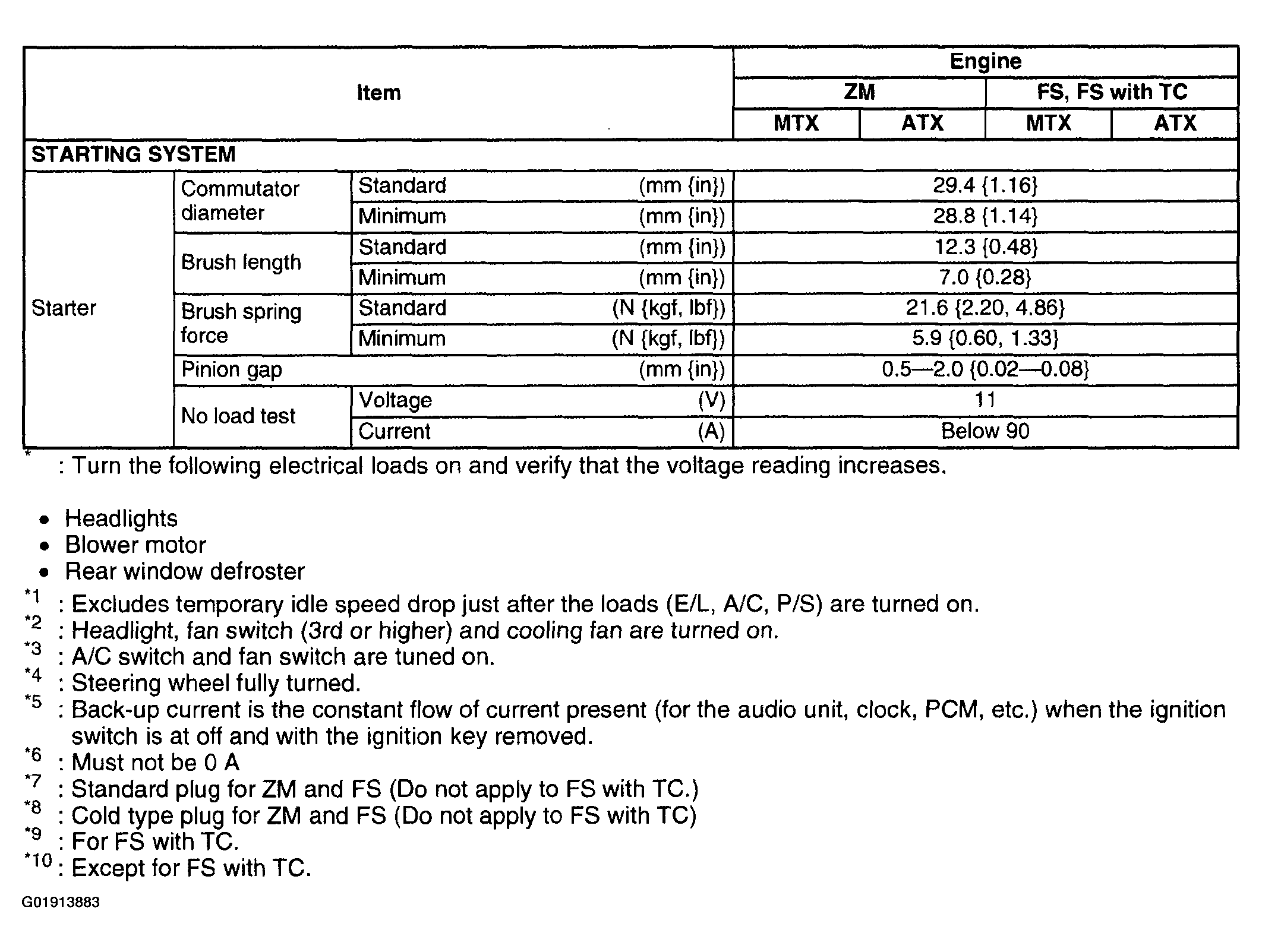

Fig 4: Engine Technical Data Specifications (4 Of 4)
G01913883Courtesy of MAZDA MOTORS CORP.
