Connector Disassembly Note

  1. Insert a thin piece of metal from the terminal side of the connector, and press down the terminal locking tab.
  2. Pull the terminal out of the connector.

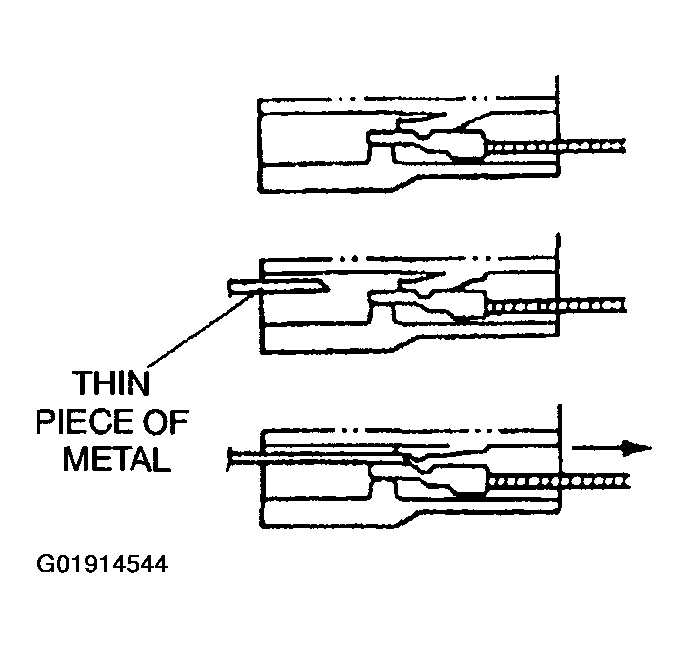

    Fig 1: Inserting Thin Piece Of Metal
    G01914544Courtesy of MAZDA MOTORS CORP.
