Selector Lever Removal/Installation: Notes

1. Disconnect the negative battery cable.
2. Remove the center console.
3. Disconnect the brake switch connector.
4. Remove in the order indicated in the figure.
5. Install in the reverse order of removal.

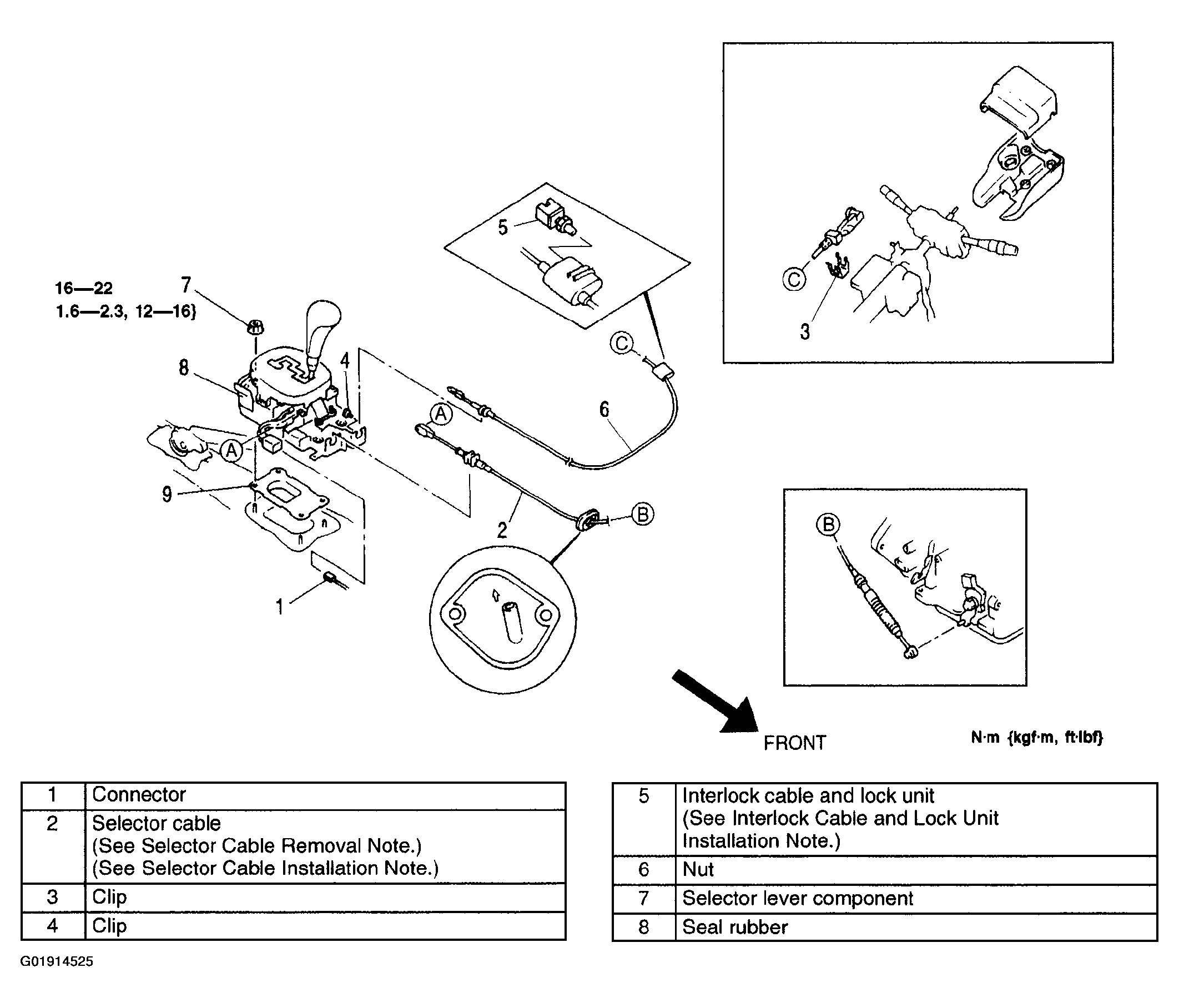

Fig 1: Removing Procedure Selector Lever - 4AT

Courtesy of MAZDA MOTORS CORP.

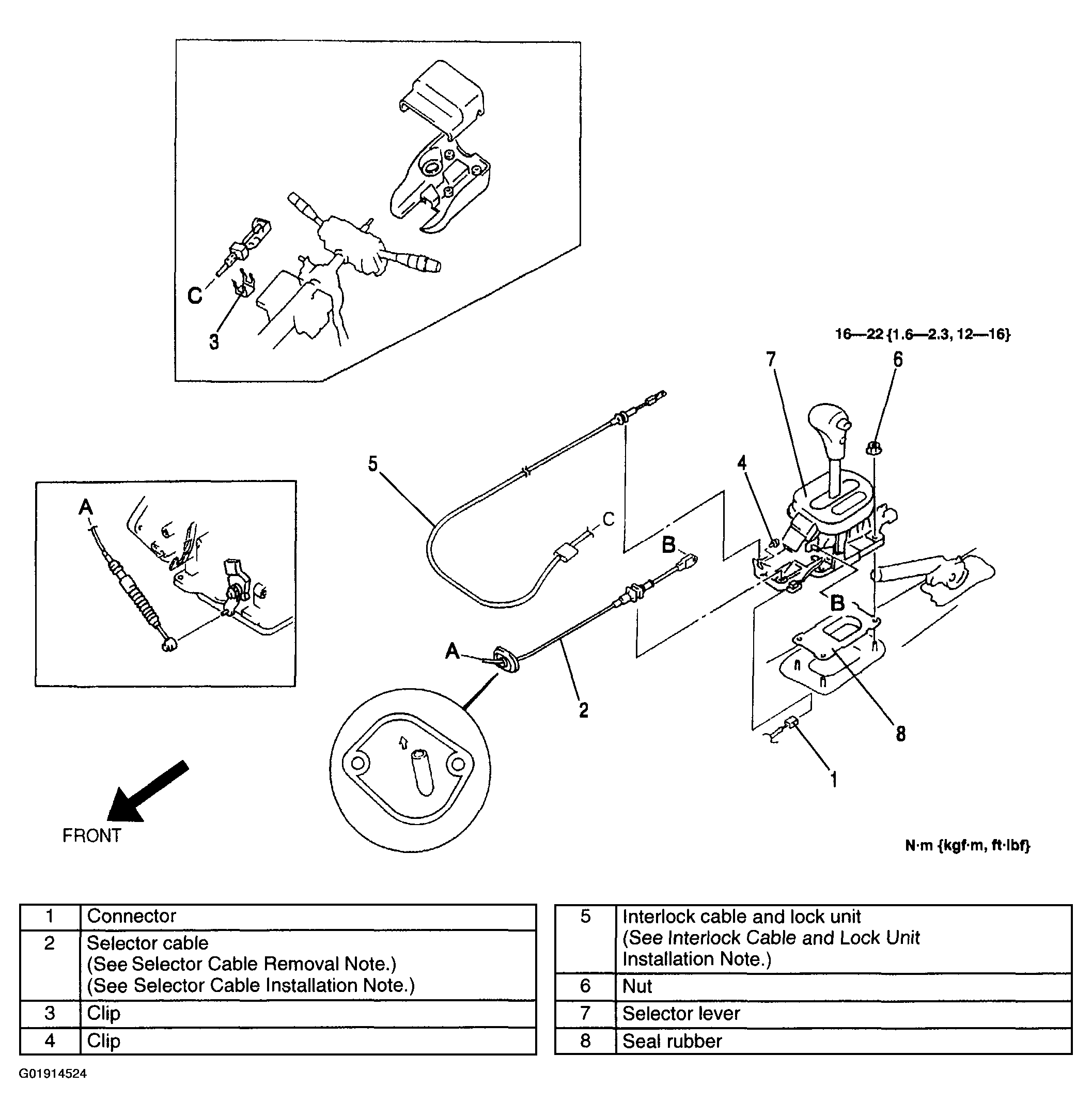

Fig 2: Removing Procedure Selector Lever - Sport AT

Courtesy of MAZDA MOTORS CORP.
