Automatic Transaxle Shift Mechanism
>>
Selector Lever Removal/Installation
>>
Selector Cable Removal Note
Selector Cable Removal Note
NOTE:
Remove the clip shown in the figure before removing the selector cable from manual shaft lever.

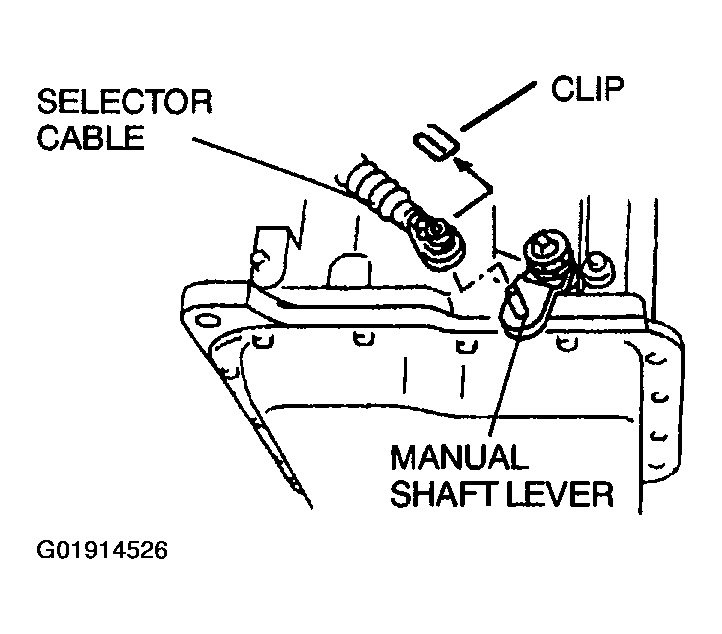

Fig 1: Removing Selector Cable
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
