Regulator Handle Installation

  1. Fully raise the door glass.
  2. Install the clip to the regulator handle.
  3. Install the regulator handle while tilting it as shown in the figure and press it onto the shaft.

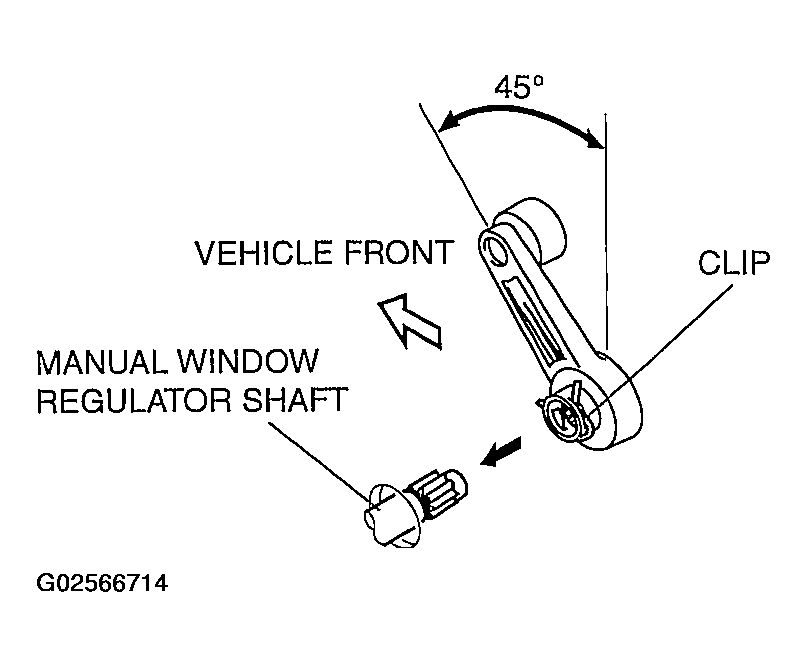

    Fig 1: Installing Regulator Handle
    G02566714Courtesy of MAZDA MOTORS CORP.
