Abs HU/Cm Removal/Installation: Notes
CAUTION:
- Do not separate the ABS HU and ABS CM unless replacing them, otherwise the ABS HU/CM may not function properly. When replacing them with new ones, always perform procedures according to the instructions included with the new parts.
- The internal parts of the ABS HU/CM could be damaged if dropped. Be careful not to drop the ABS HU/CM. Replace the ABS HU/CM if it is subjected to an impact.
- Remove the battery and battery tray.
- Remove the reserve hose. (MTX) (See CLUTCH PIPE AND CLUTCH RESERVE HOSE REMOVAL NOTE .) (See CLUTCH PIPE AND CLUTCH RESERVE HOSE INSTALLATION NOTE .)

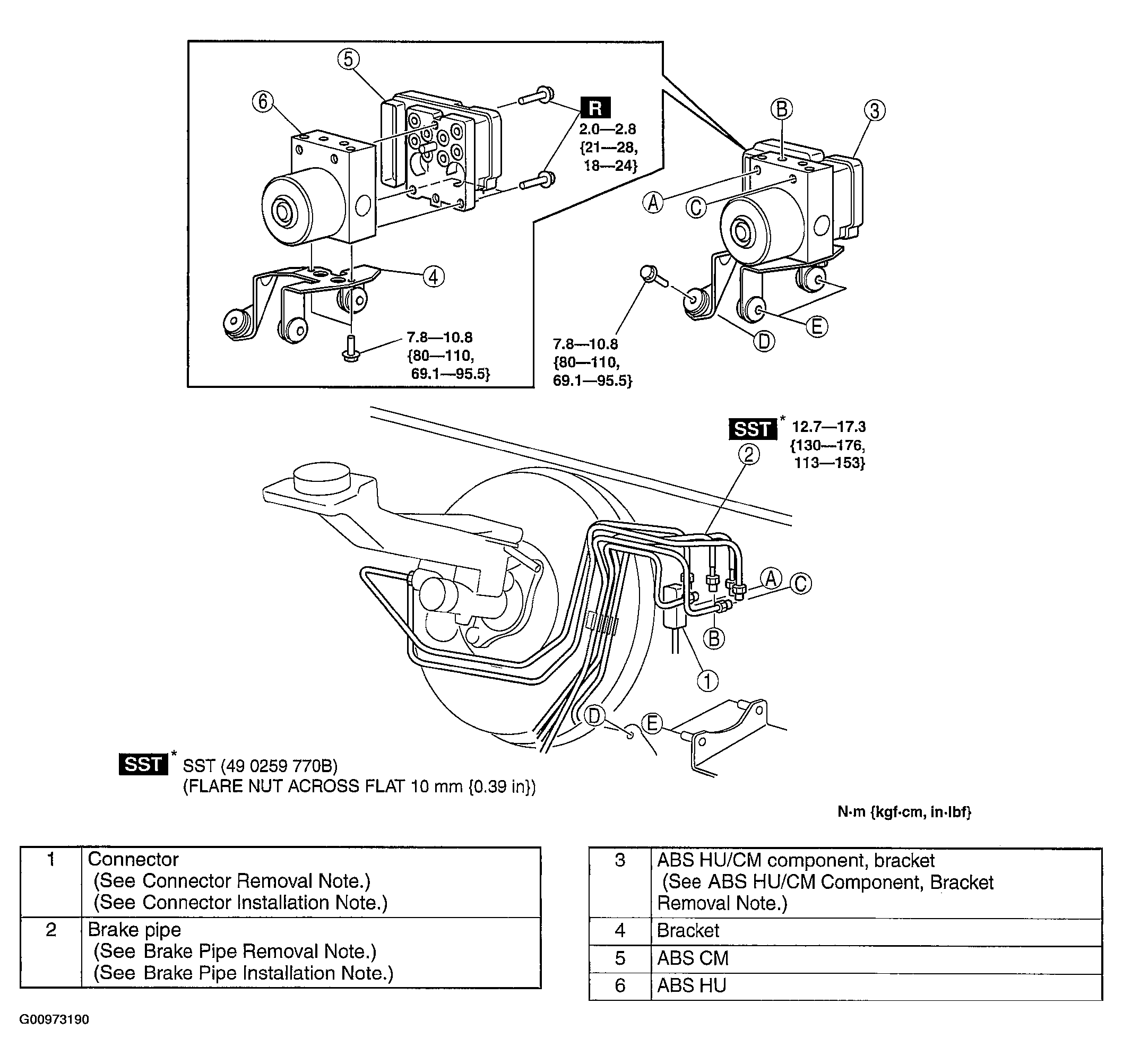

- Remove in the order indicated in the illustration.
- Install in the reverse order of removal.
