Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

Fig 1: Horn

G00270944

Courtesy of MAZDA MOTORS CORP.

Fig 2: Instrument Cluster

G00270945

Courtesy of MAZDA MOTORS CORP.

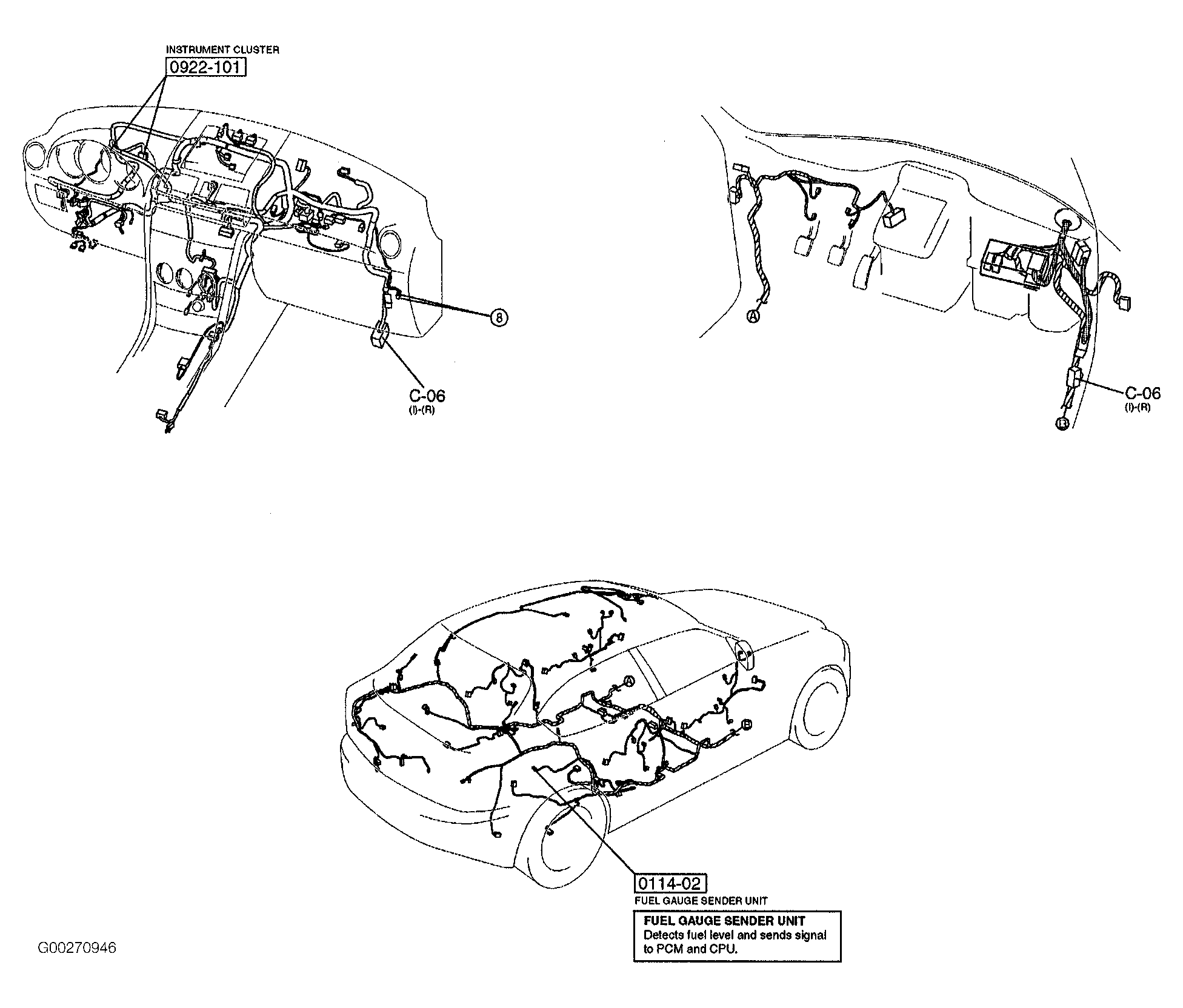

Fig 3: Instrument Cluster

G00270946

Courtesy of MAZDA MOTORS CORP.

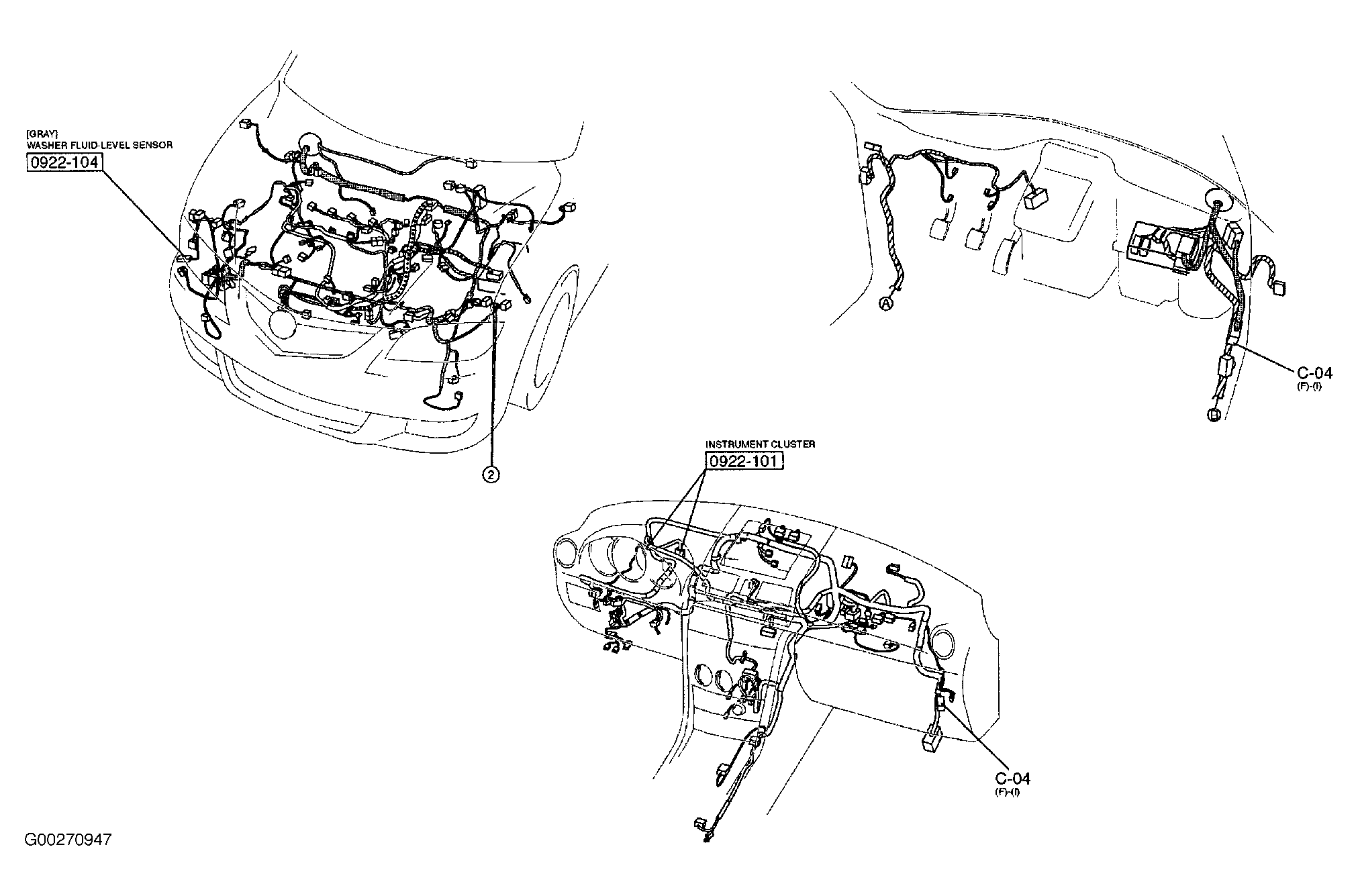

Fig 4: Instrument Cluster

G00270947

Courtesy of MAZDA MOTORS CORP.

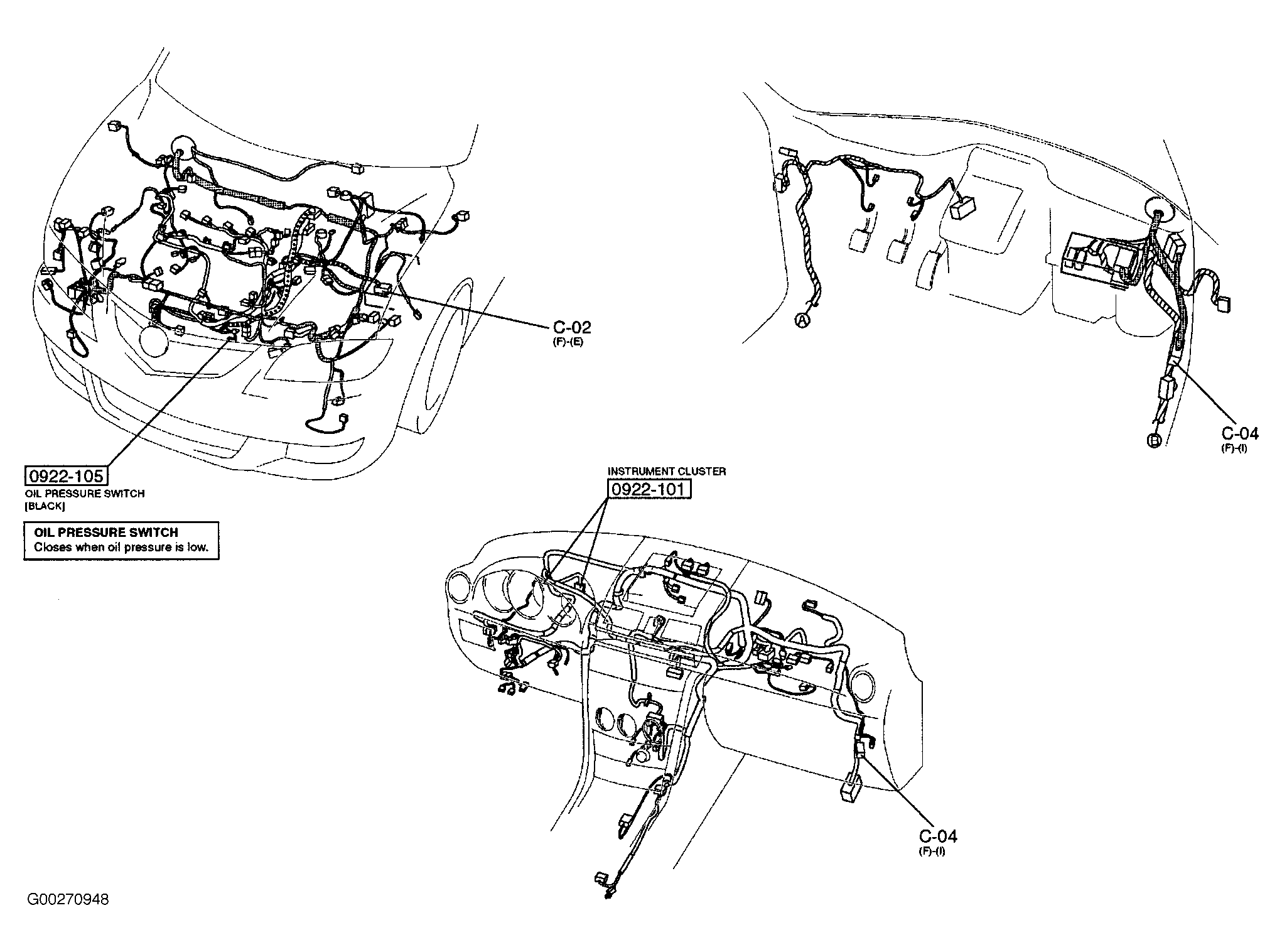

Fig 5: Instrument Cluster

G00270948

Courtesy of MAZDA MOTORS CORP.

Fig 6: Navigation

G00270949

Courtesy of MAZDA MOTORS CORP.

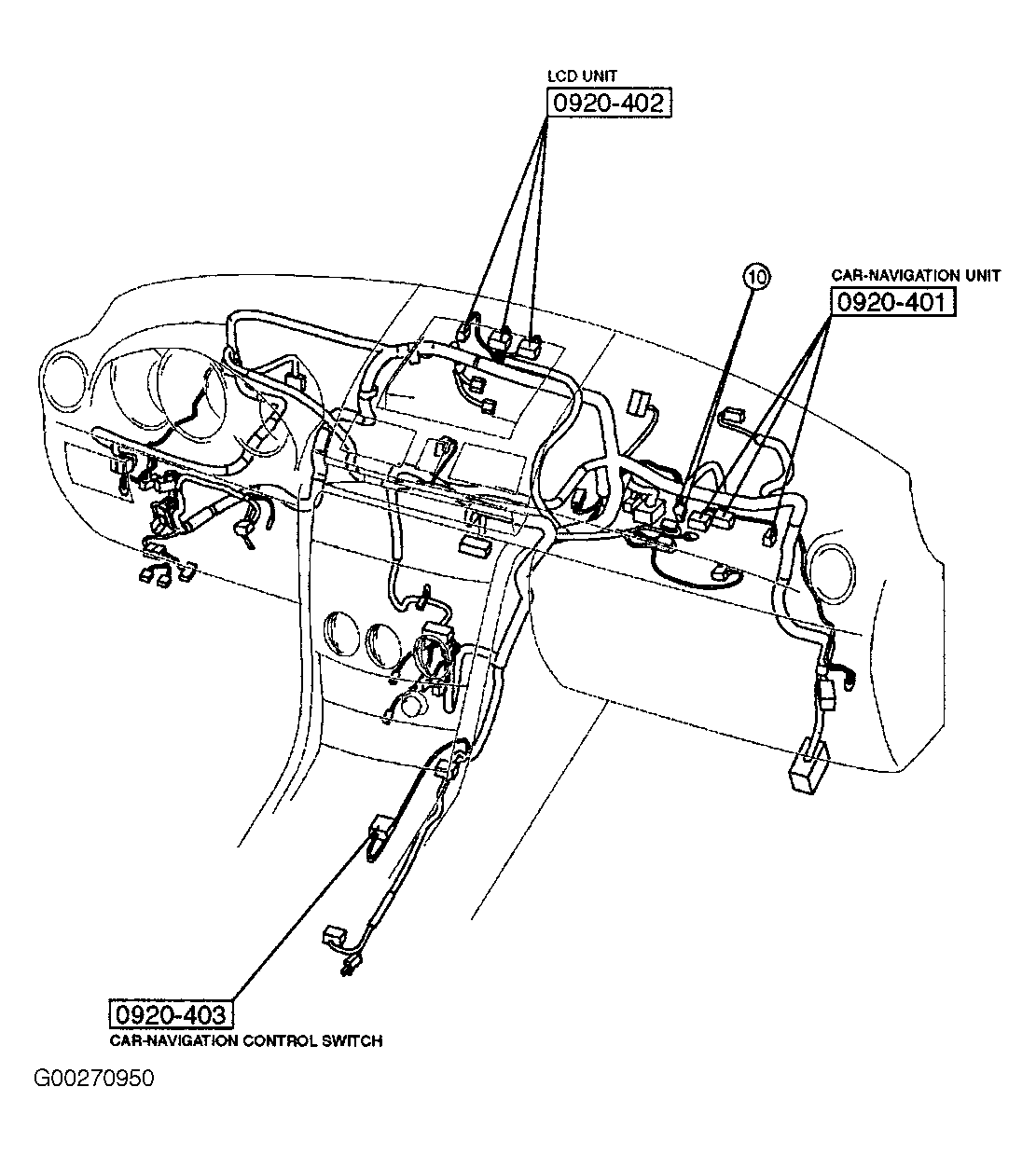

Fig 7: Navigation

G00270950

Courtesy of MAZDA MOTORS CORP.

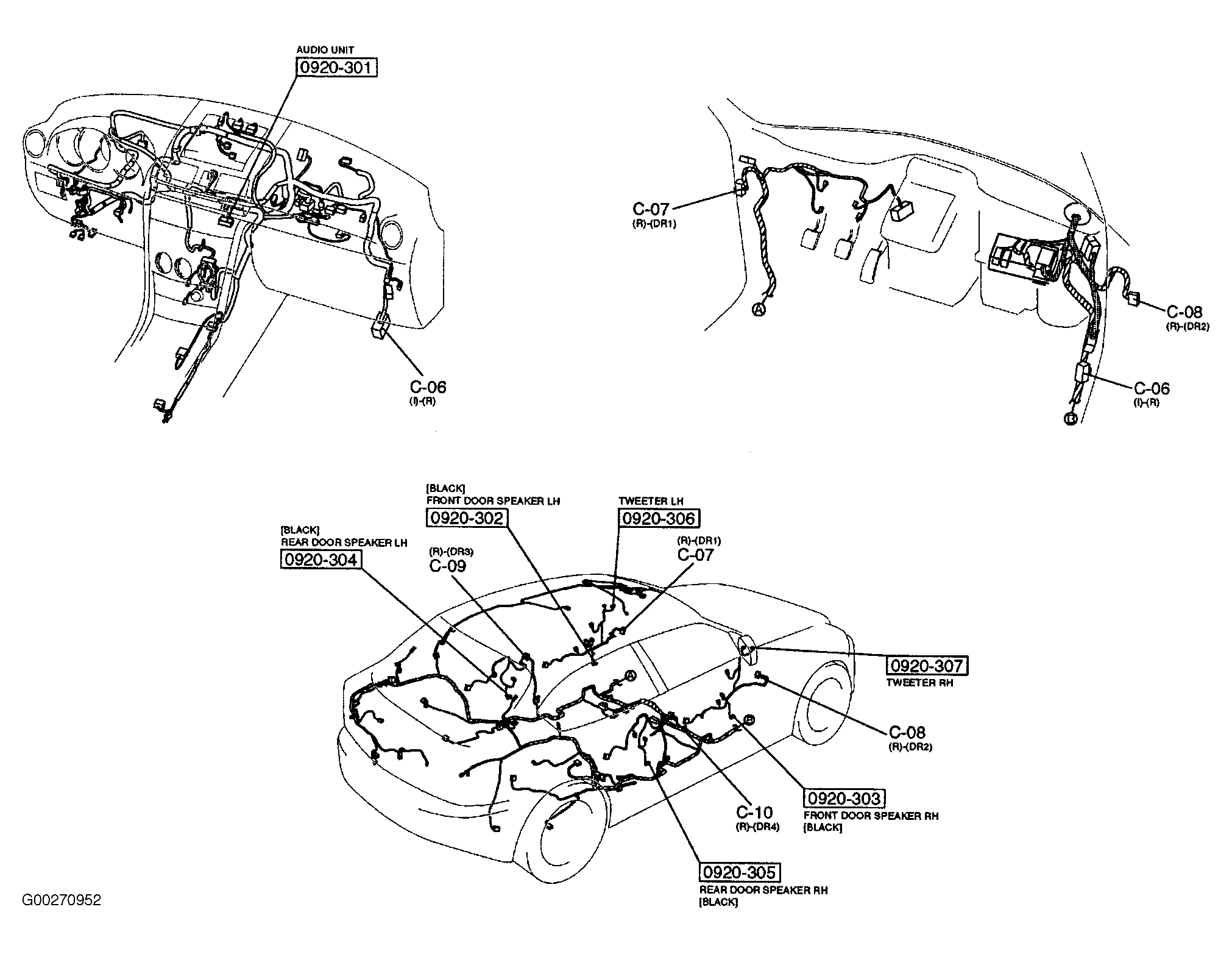

Fig 8: Audio W/Navigation

G00270952

Courtesy of MAZDA MOTORS CORP.

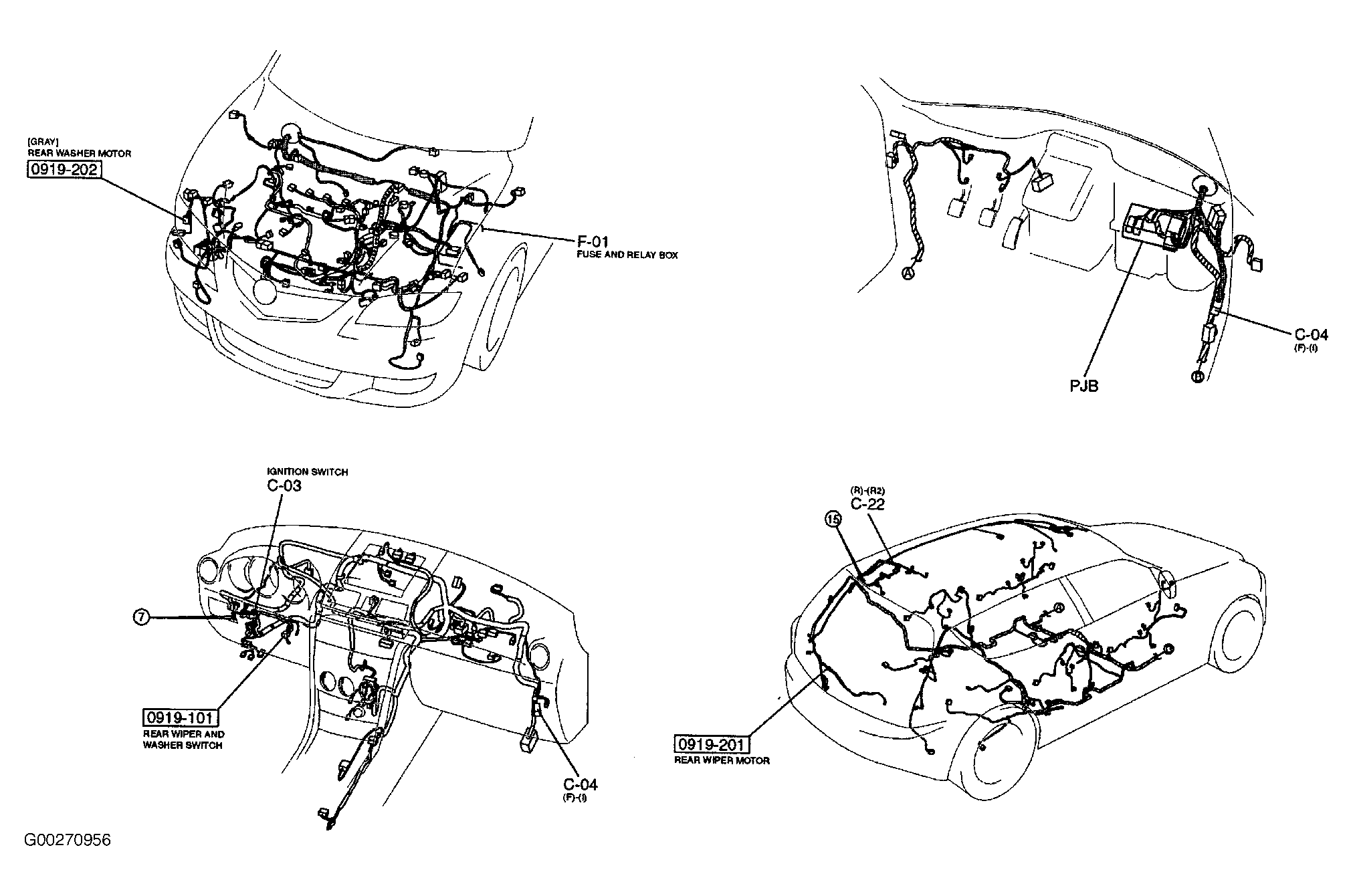

Fig 9: Rear Washer Motor

G00270956

Courtesy of MAZDA MOTORS CORP.

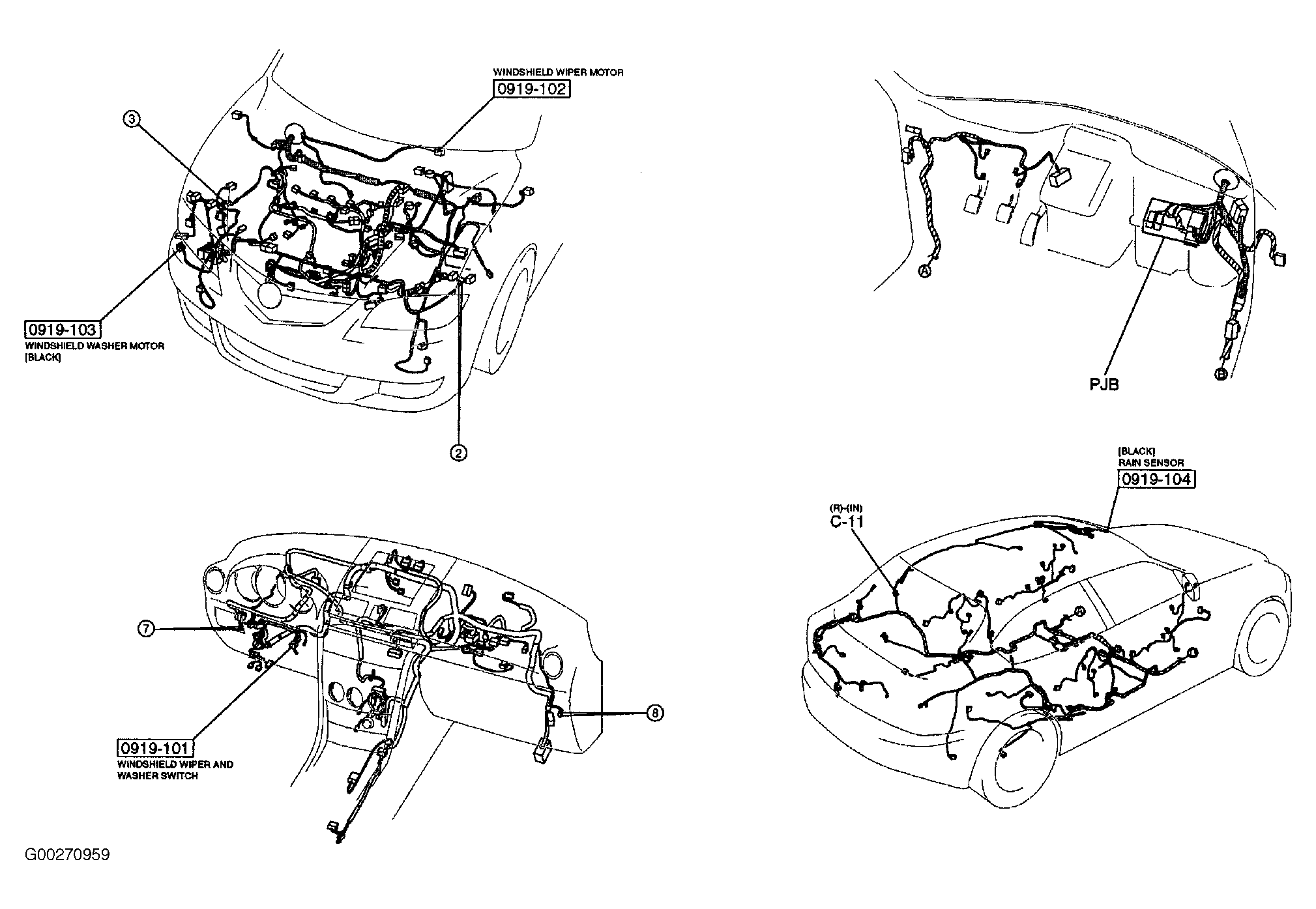

Fig 10: Wiper Washer

G00270959

Courtesy of MAZDA MOTORS CORP.

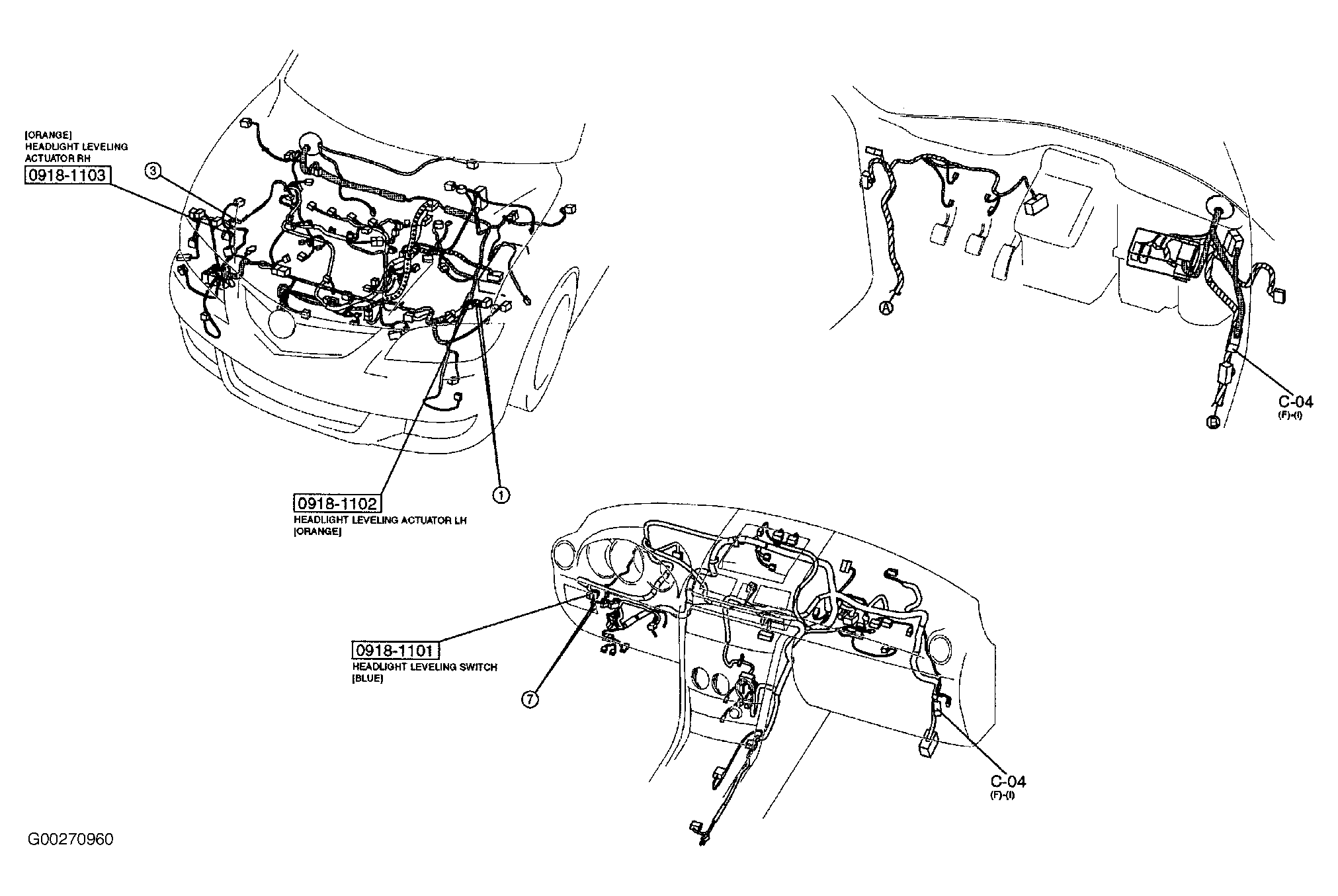

Fig 11: Headlight Leveling

G00270960

Courtesy of MAZDA MOTORS CORP.

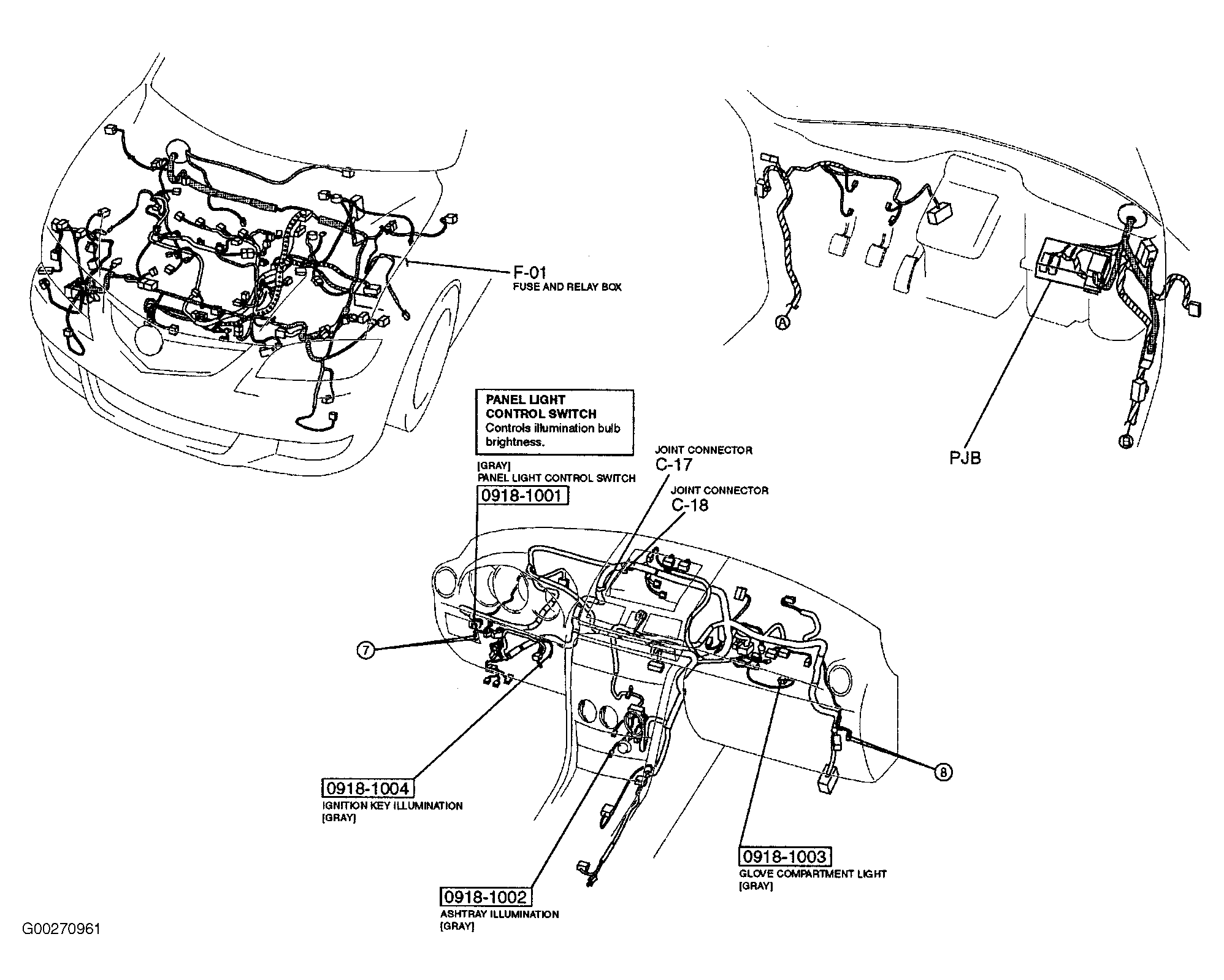

Fig 12: Illumination

G00270961

Courtesy of MAZDA MOTORS CORP.

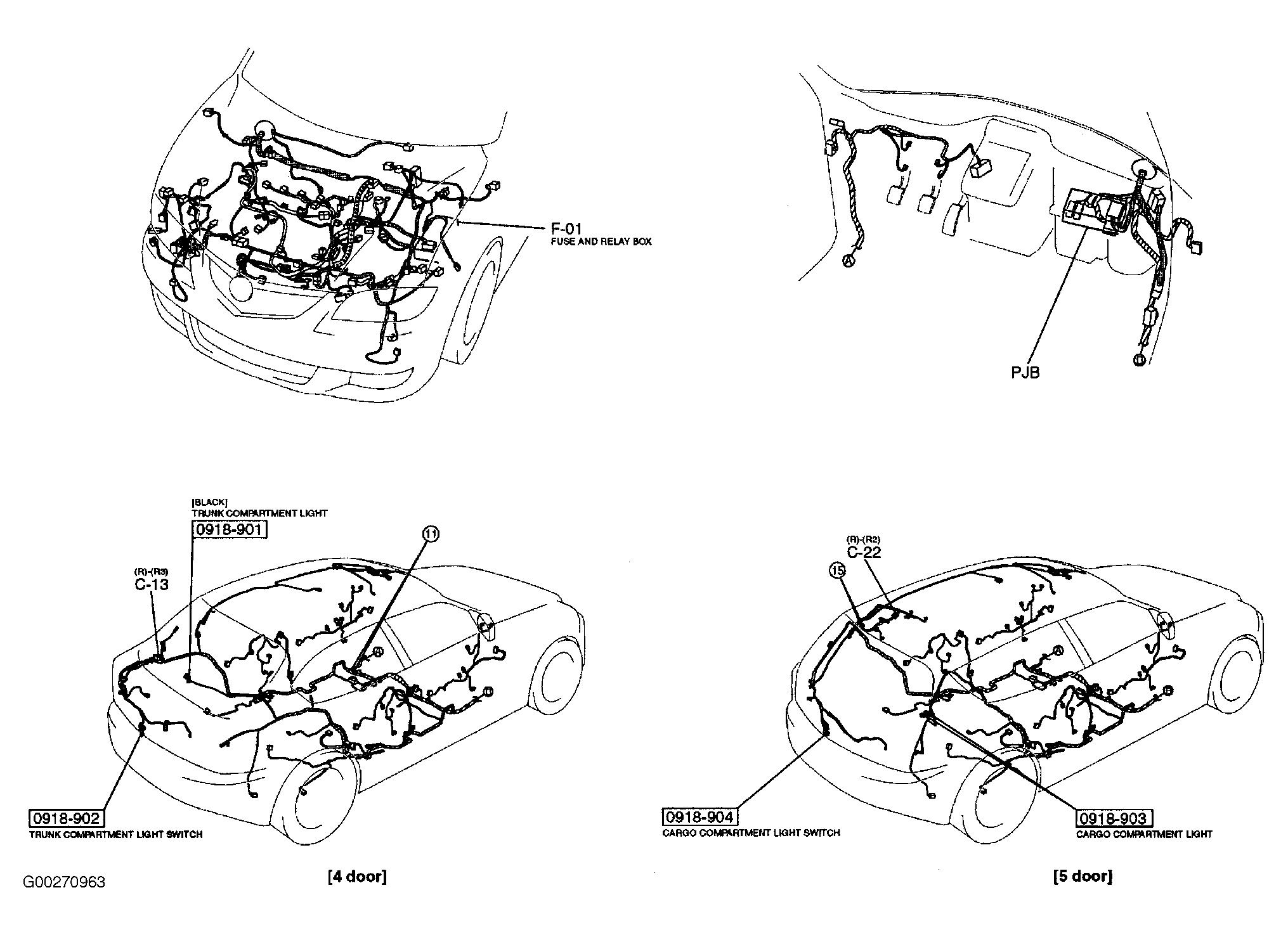

Fig 13: Interior Lights

G00270963

Courtesy of MAZDA MOTORS CORP.

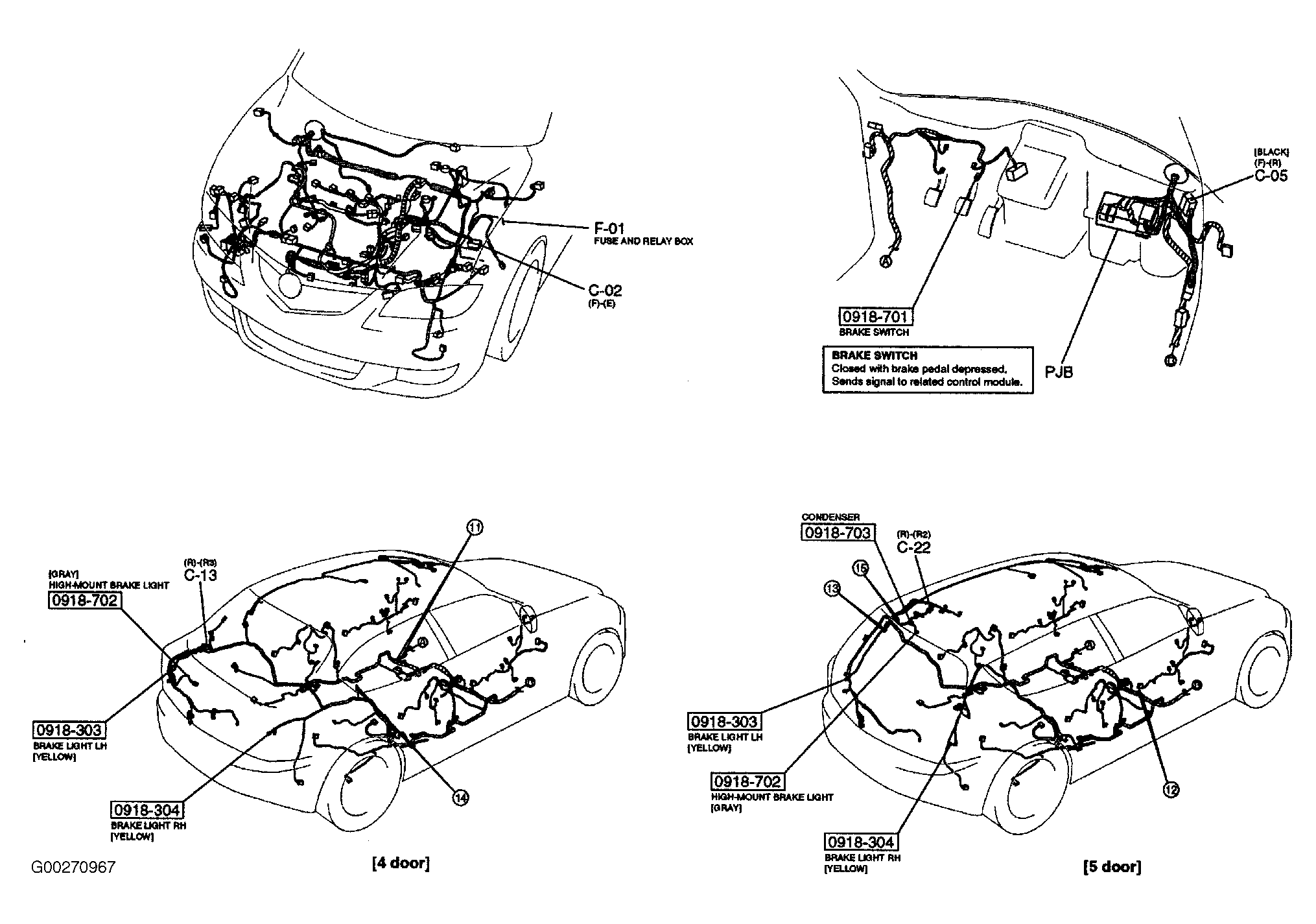

Fig 14: Brake Lights

G00270967

Courtesy of MAZDA MOTORS CORP.

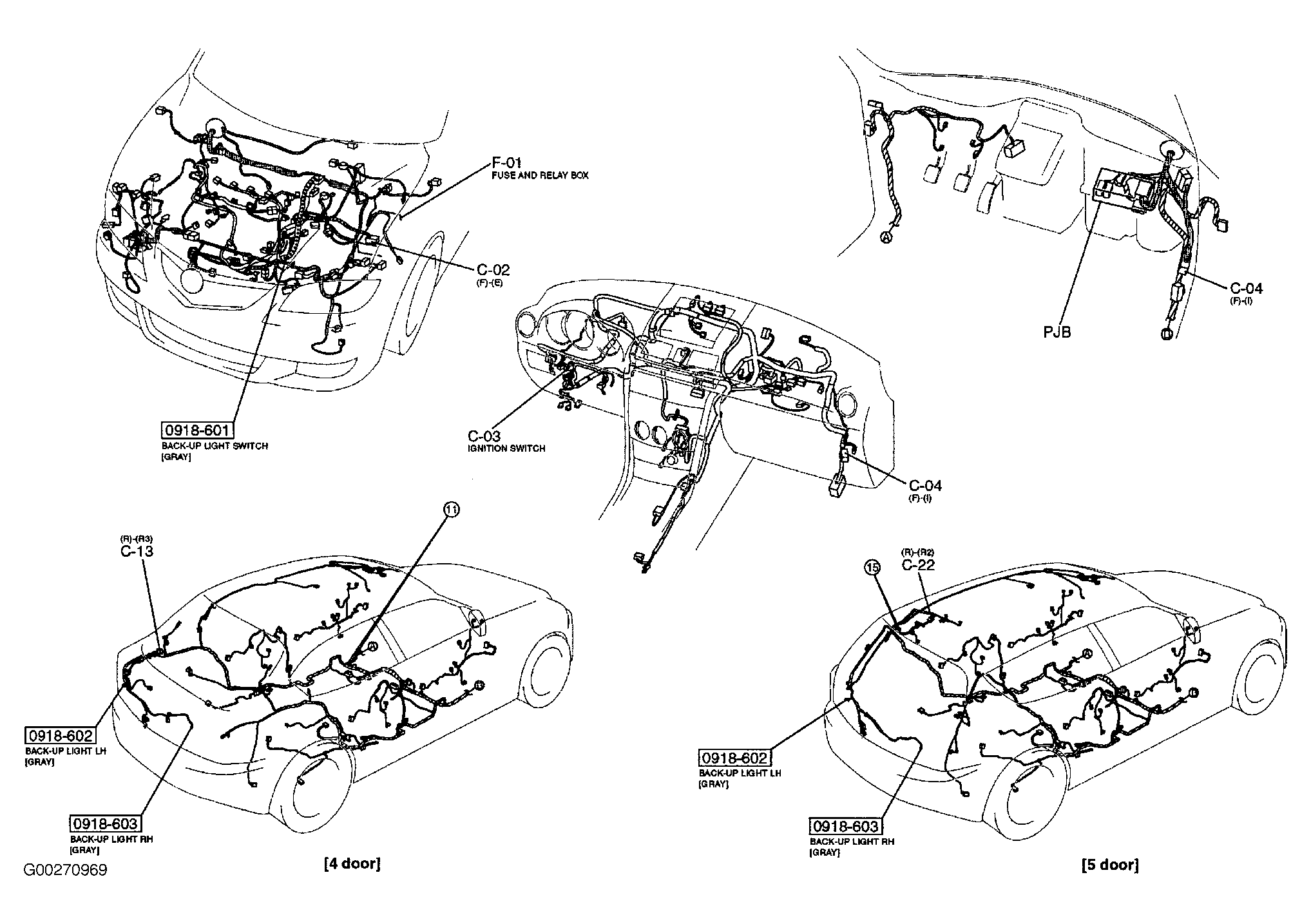

Fig 15: Back-Up Lights

G00270969

Courtesy of MAZDA MOTORS CORP.

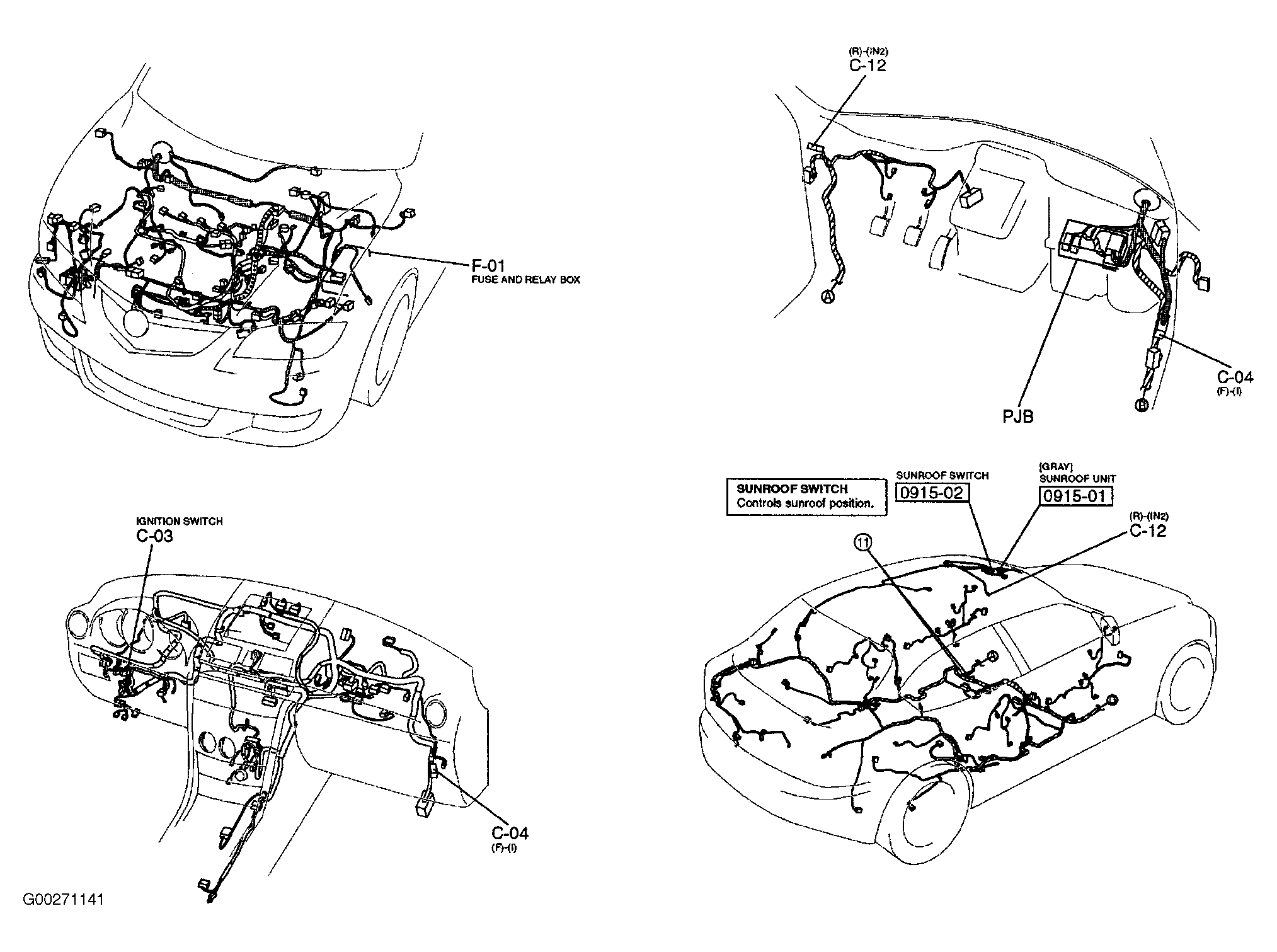

Fig 16: Sunroof

G00271141

Courtesy of MAZDA MOTORS CORP.

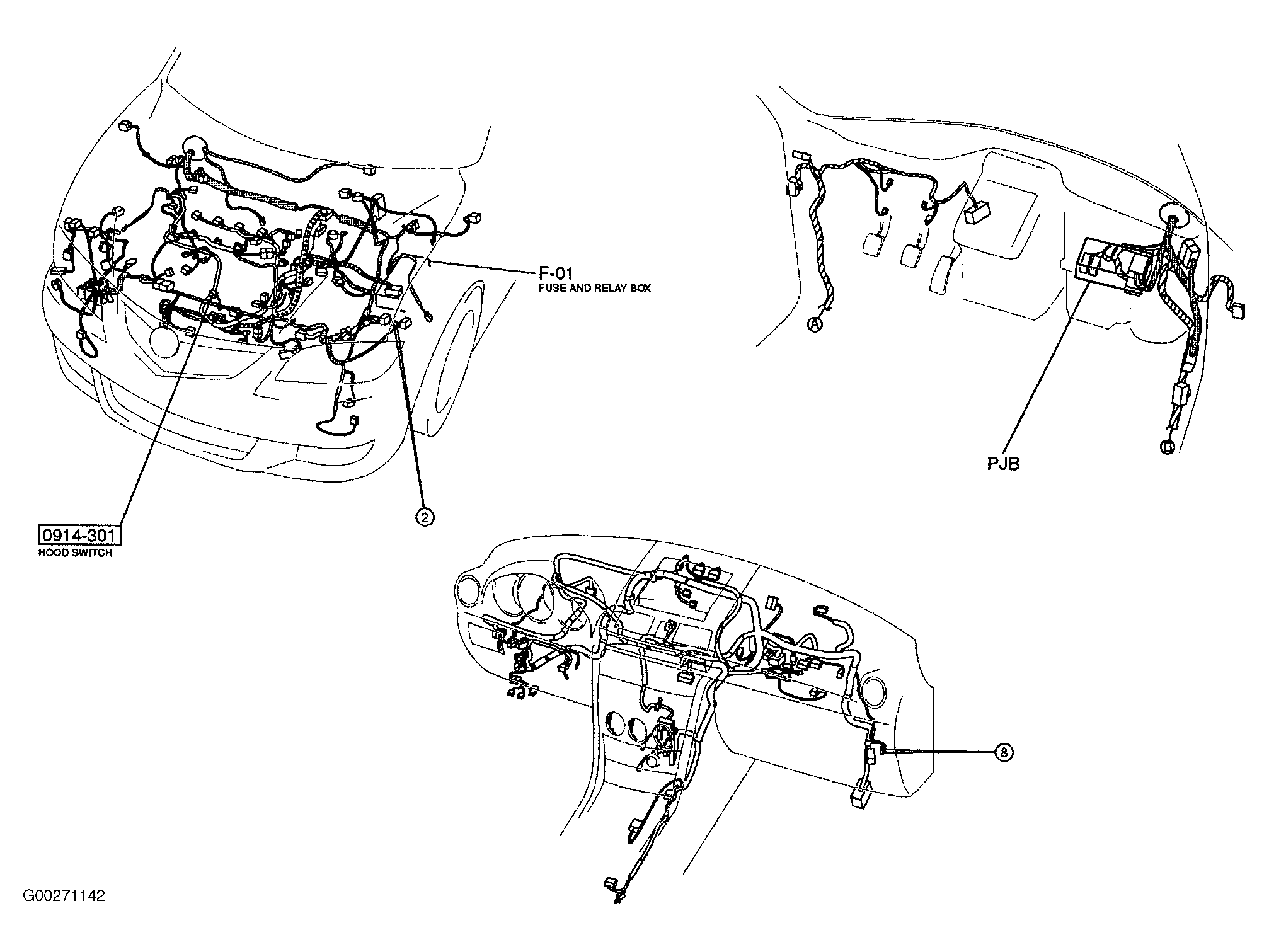

Fig 17: Theft Deterrent

G00271142

Courtesy of MAZDA MOTORS CORP.

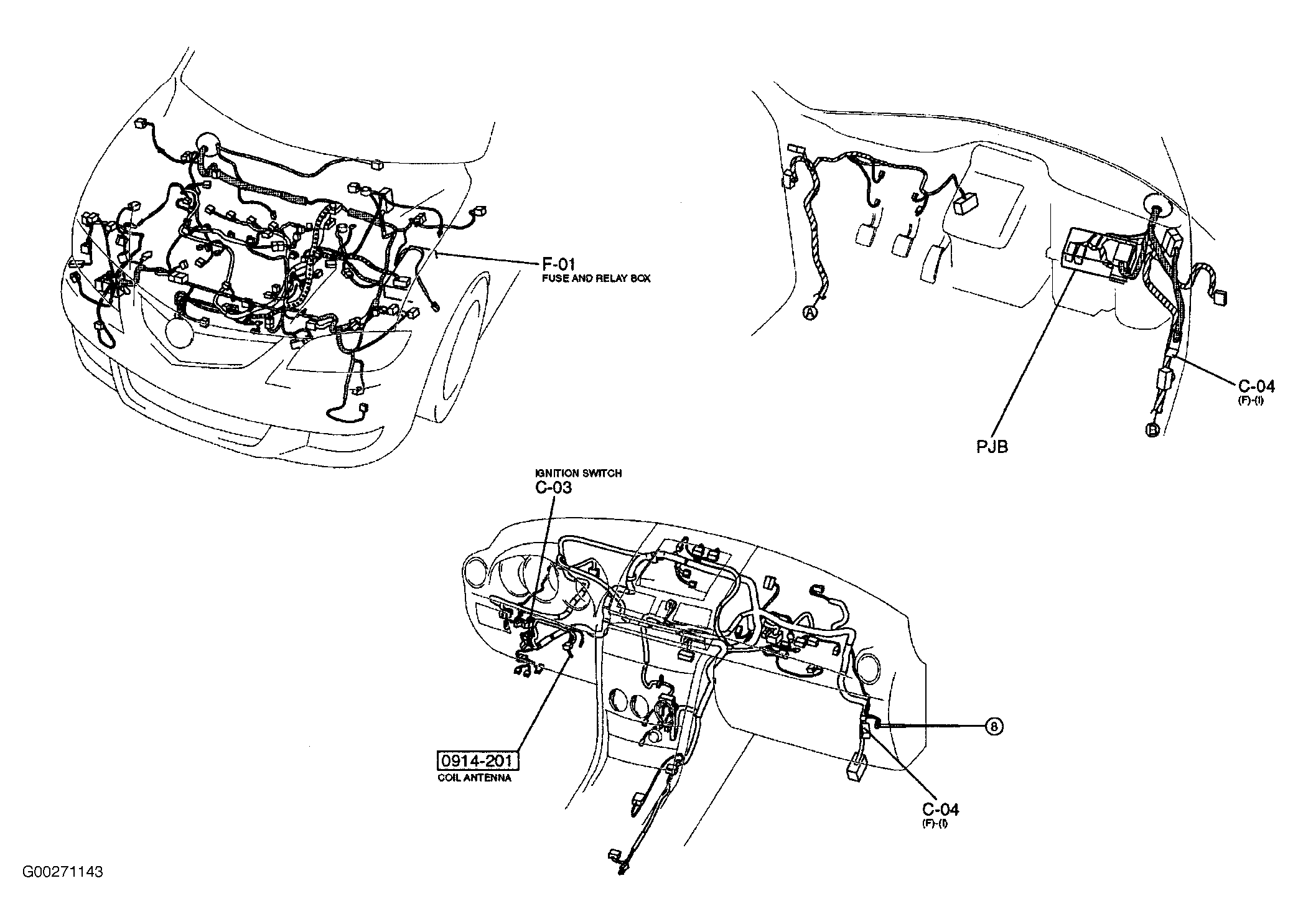

Fig 18: Immobilizer System

G00271143

Courtesy of MAZDA MOTORS CORP.

Fig 19: Power Door Lock System

G00271144

Courtesy of MAZDA MOTORS CORP.

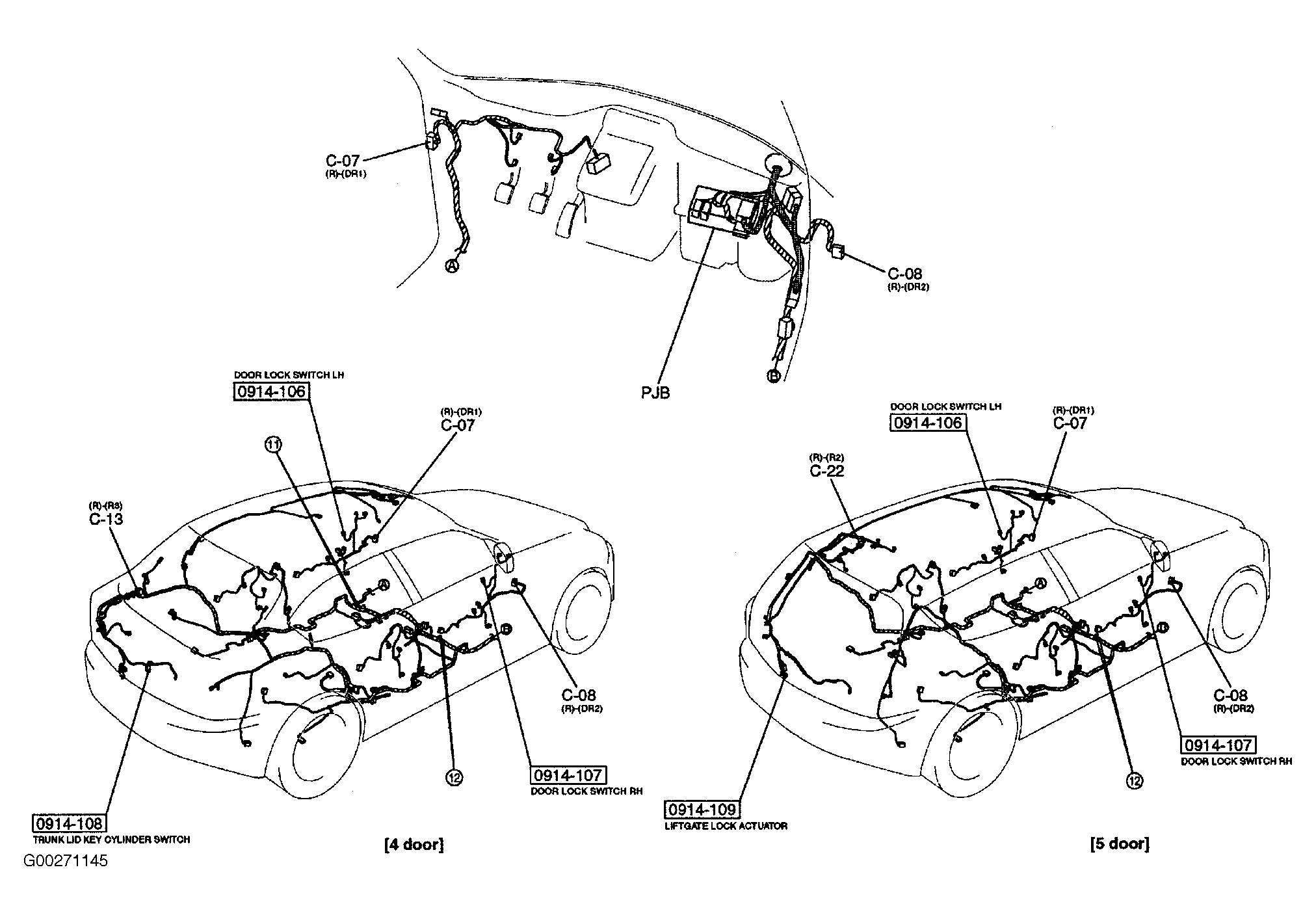

Fig 20: Power Door Lock System

G00271145

Courtesy of MAZDA MOTORS CORP.

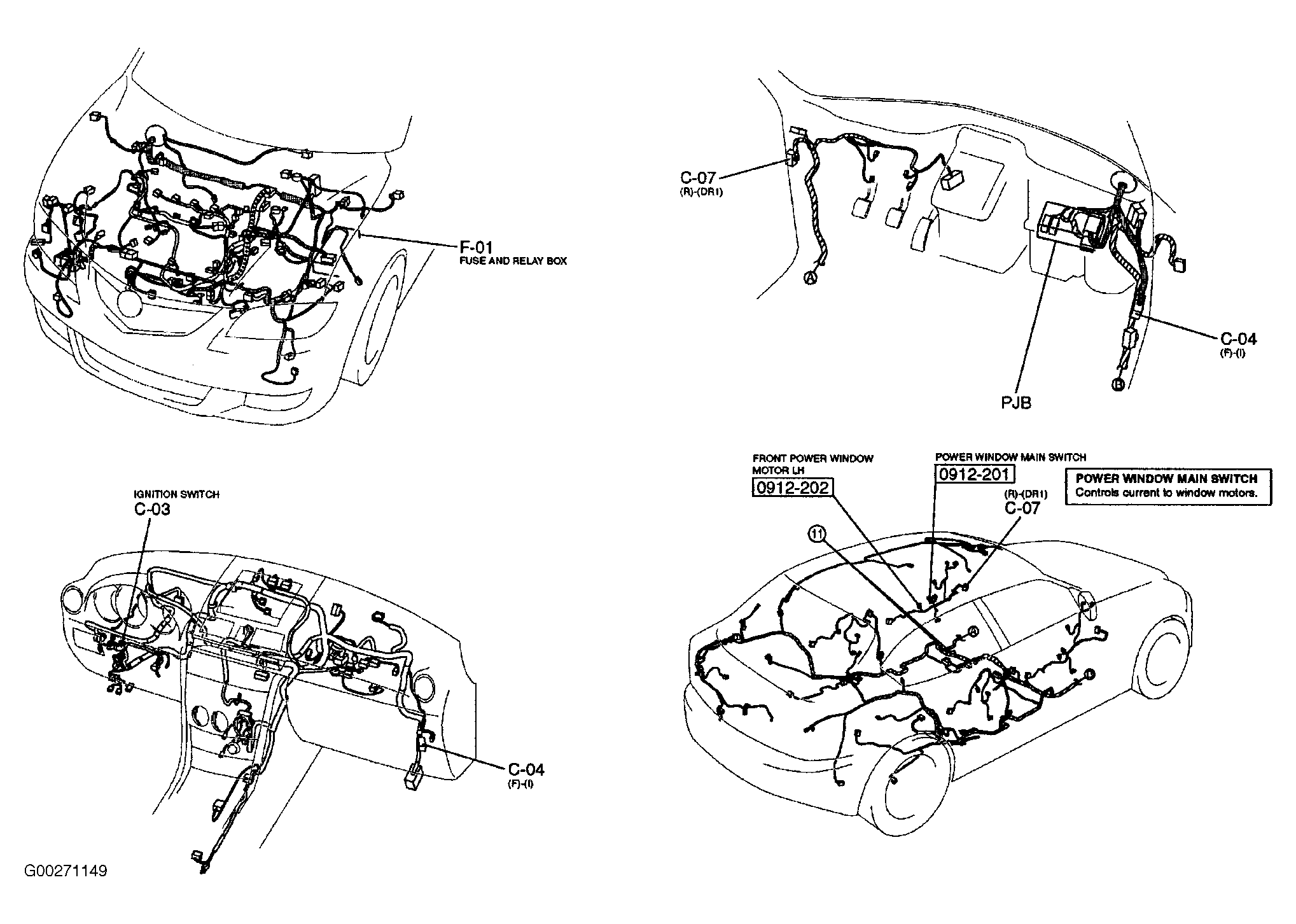

Fig 21: Power Window System

G00271149

Courtesy of MAZDA MOTORS CORP.

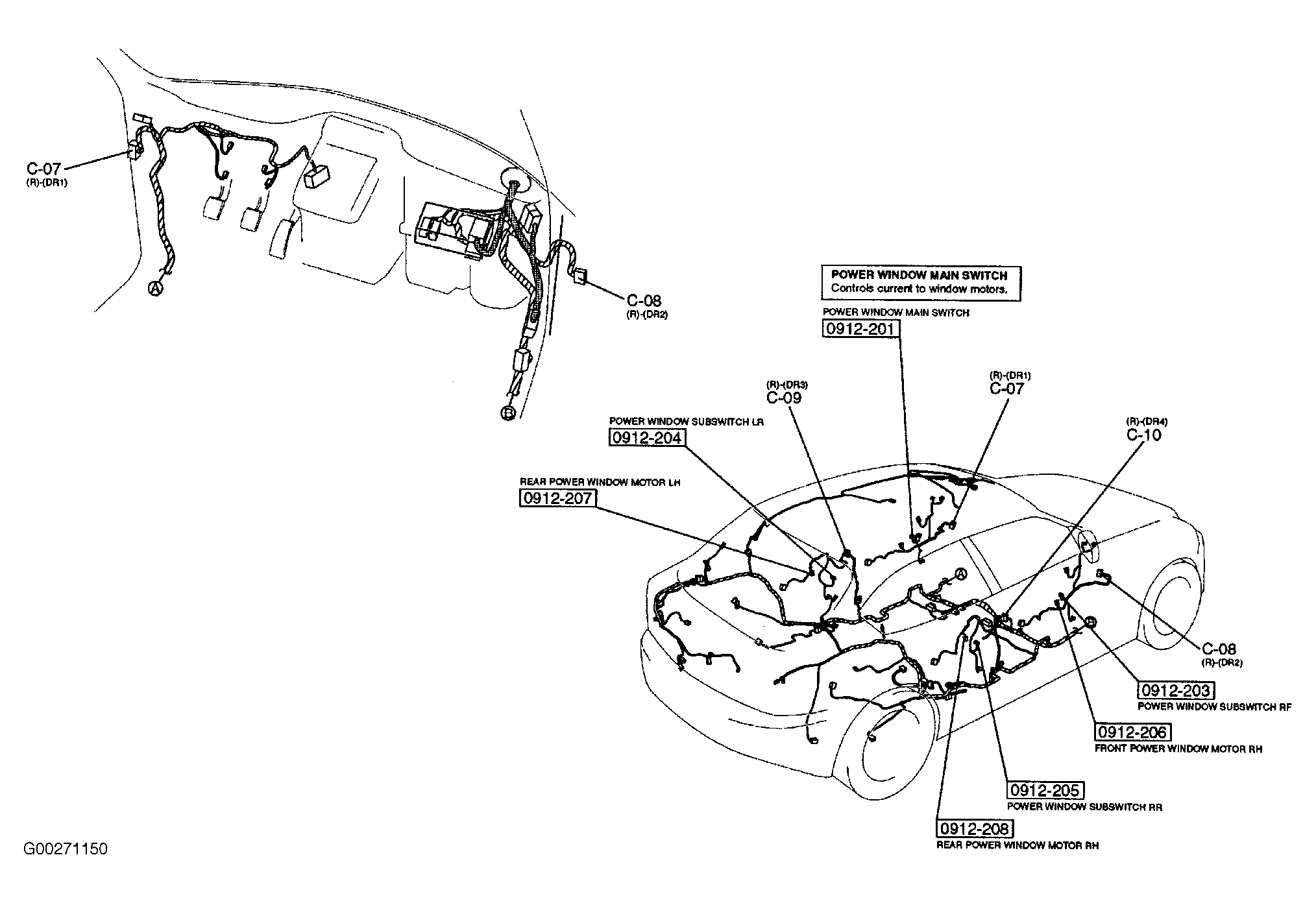

Fig 22: Power Window System

G00271150

Courtesy of MAZDA MOTORS CORP.

Fig 23: Air Bag System

G00271152

Courtesy of MAZDA MOTORS CORP.

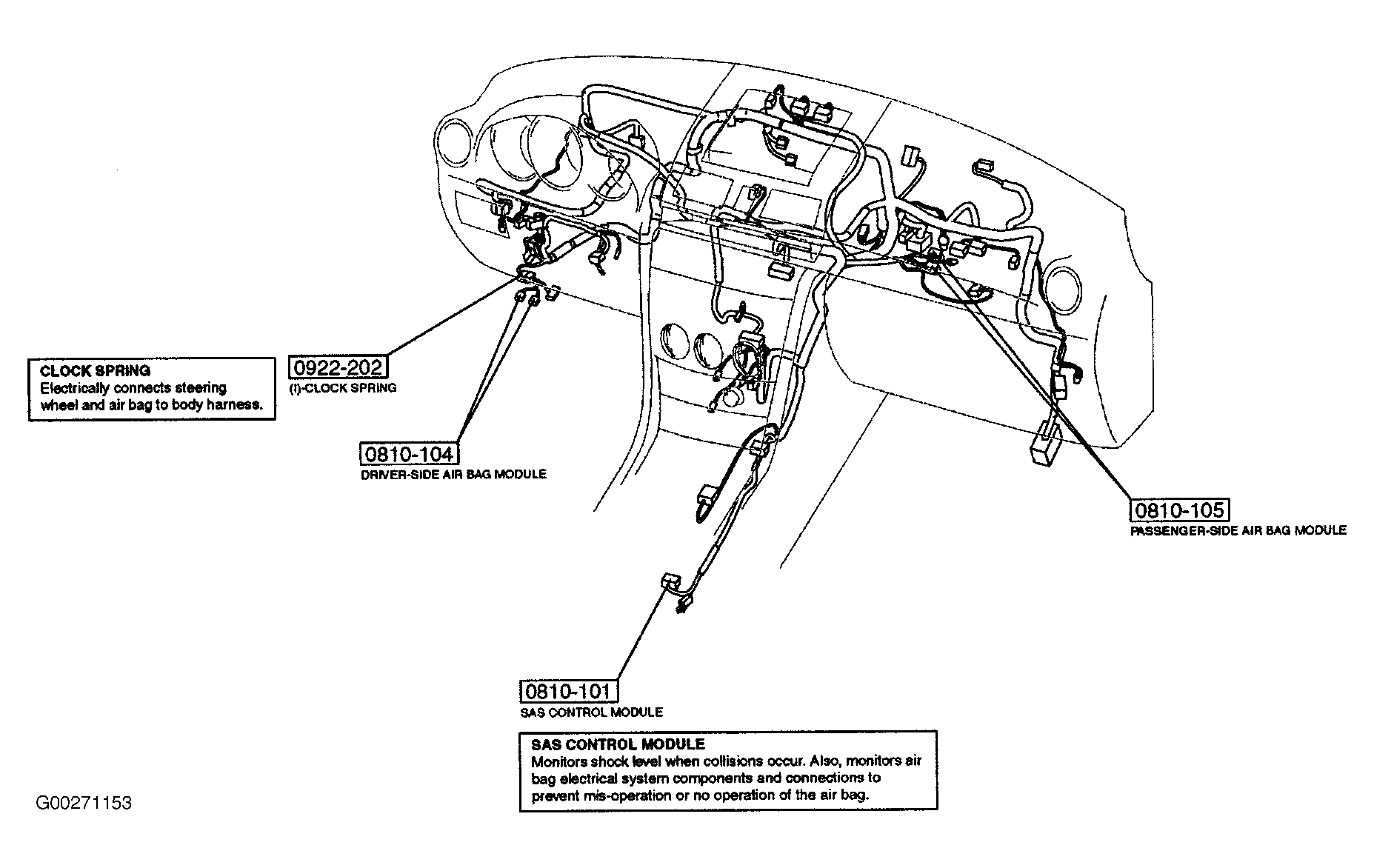

Fig 24: Air Bag System

G00271153

Courtesy of MAZDA MOTORS CORP.

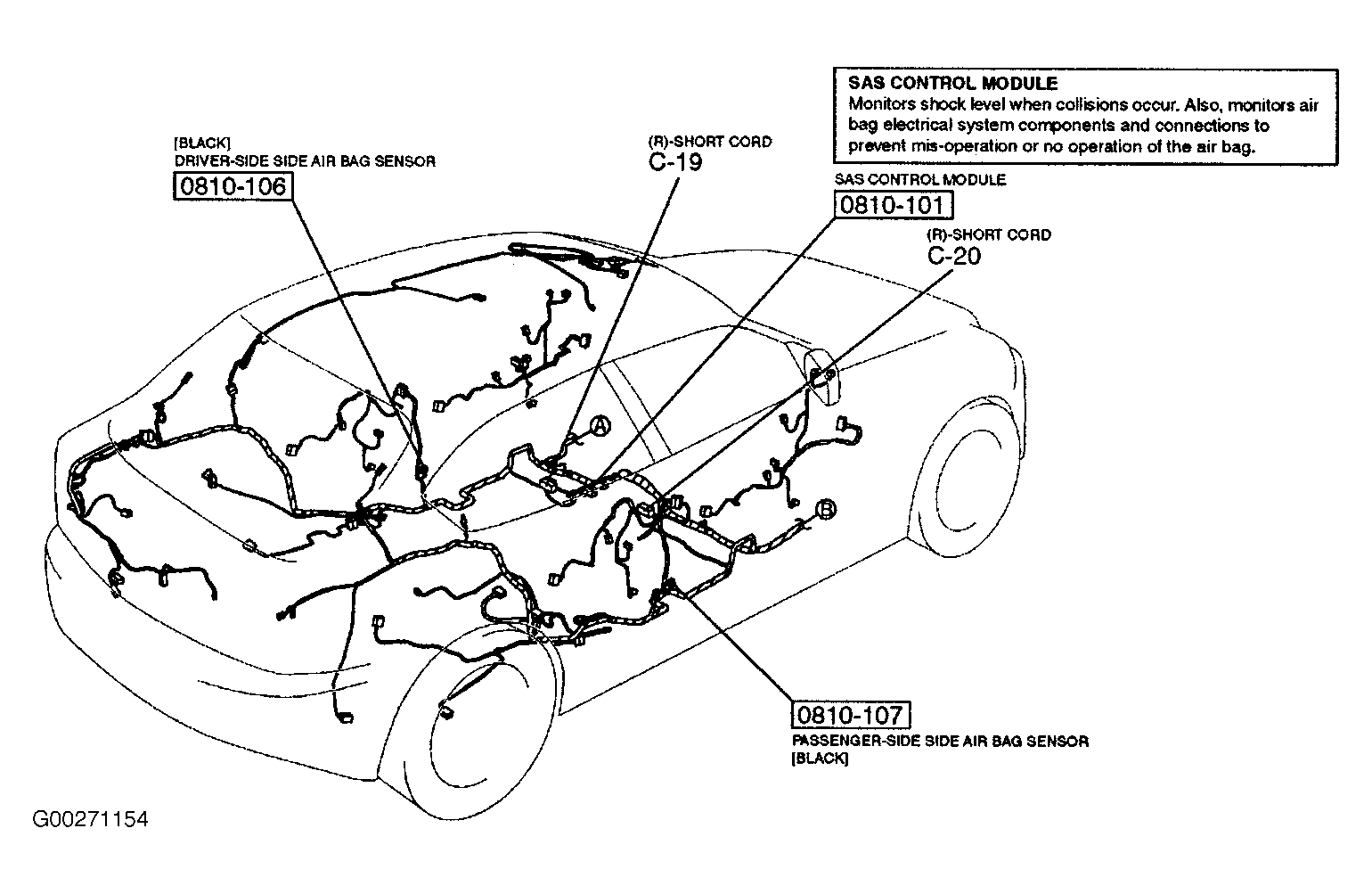

Fig 25: Air Bag System

G00271154

Courtesy of MAZDA MOTORS CORP.

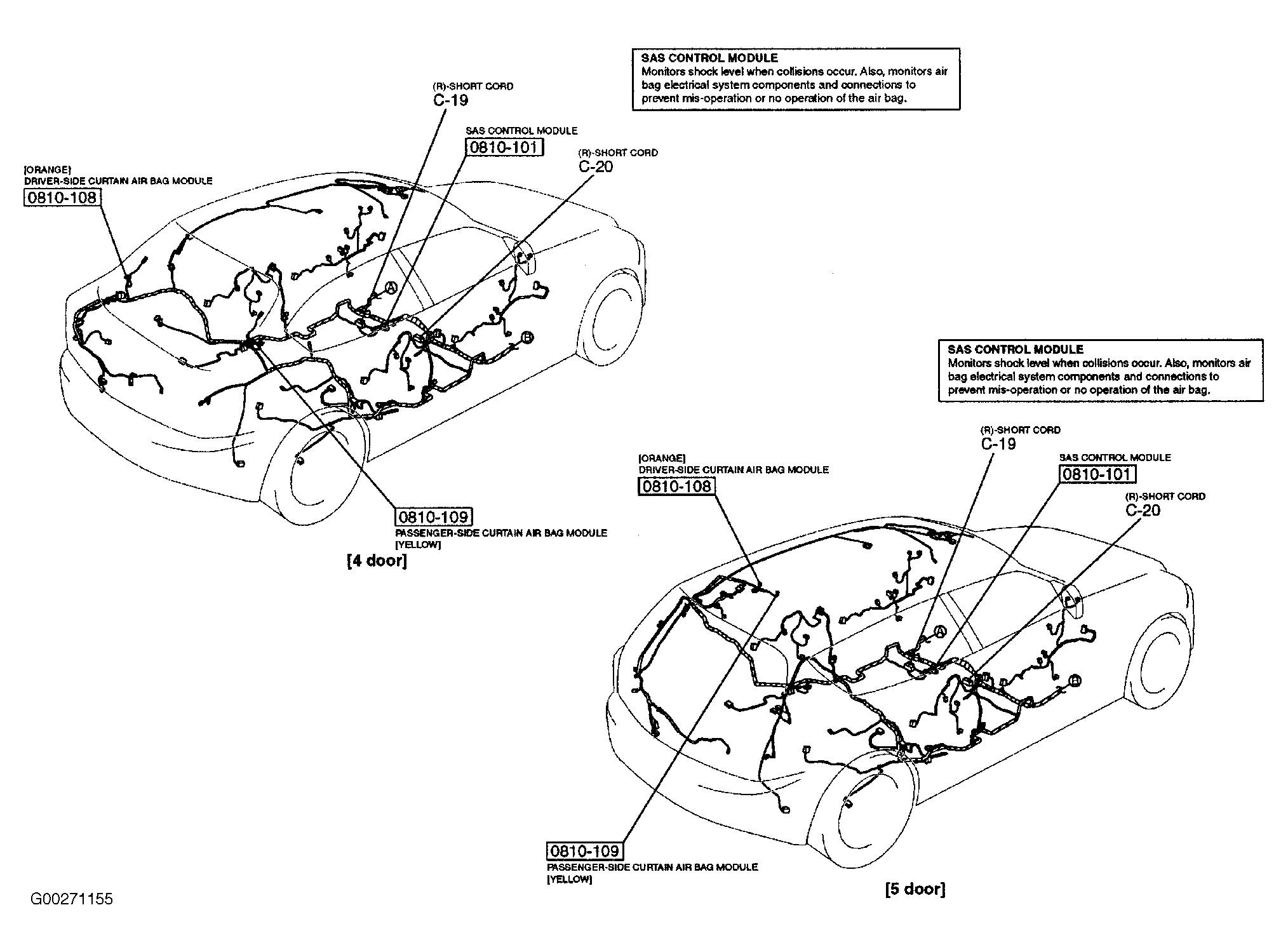

Fig 26: Air Bag System

G00271155

Courtesy of MAZDA MOTORS CORP.

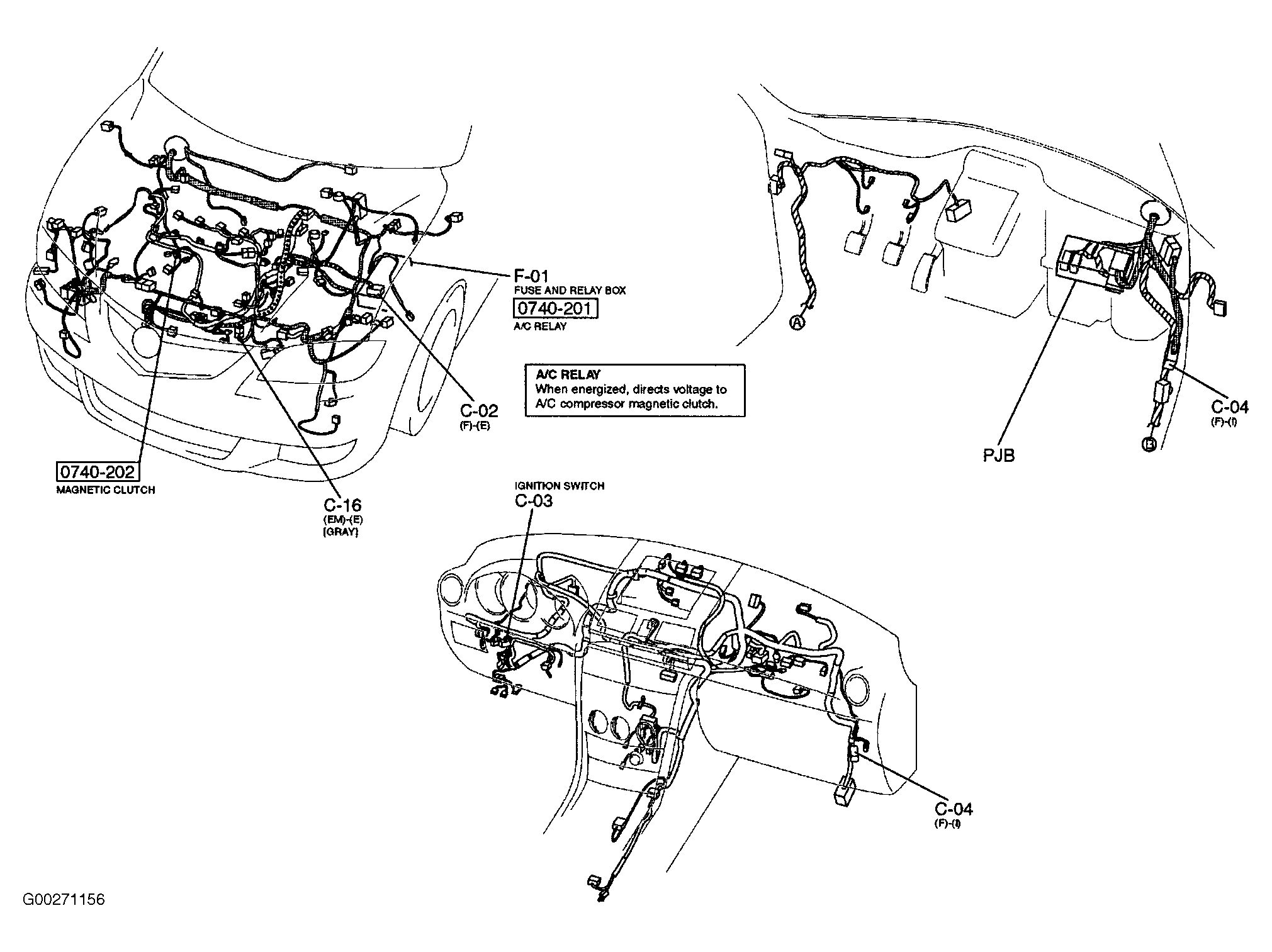

Fig 27: A/C Compressor Control

G00271156

Courtesy of MAZDA MOTORS CORP.

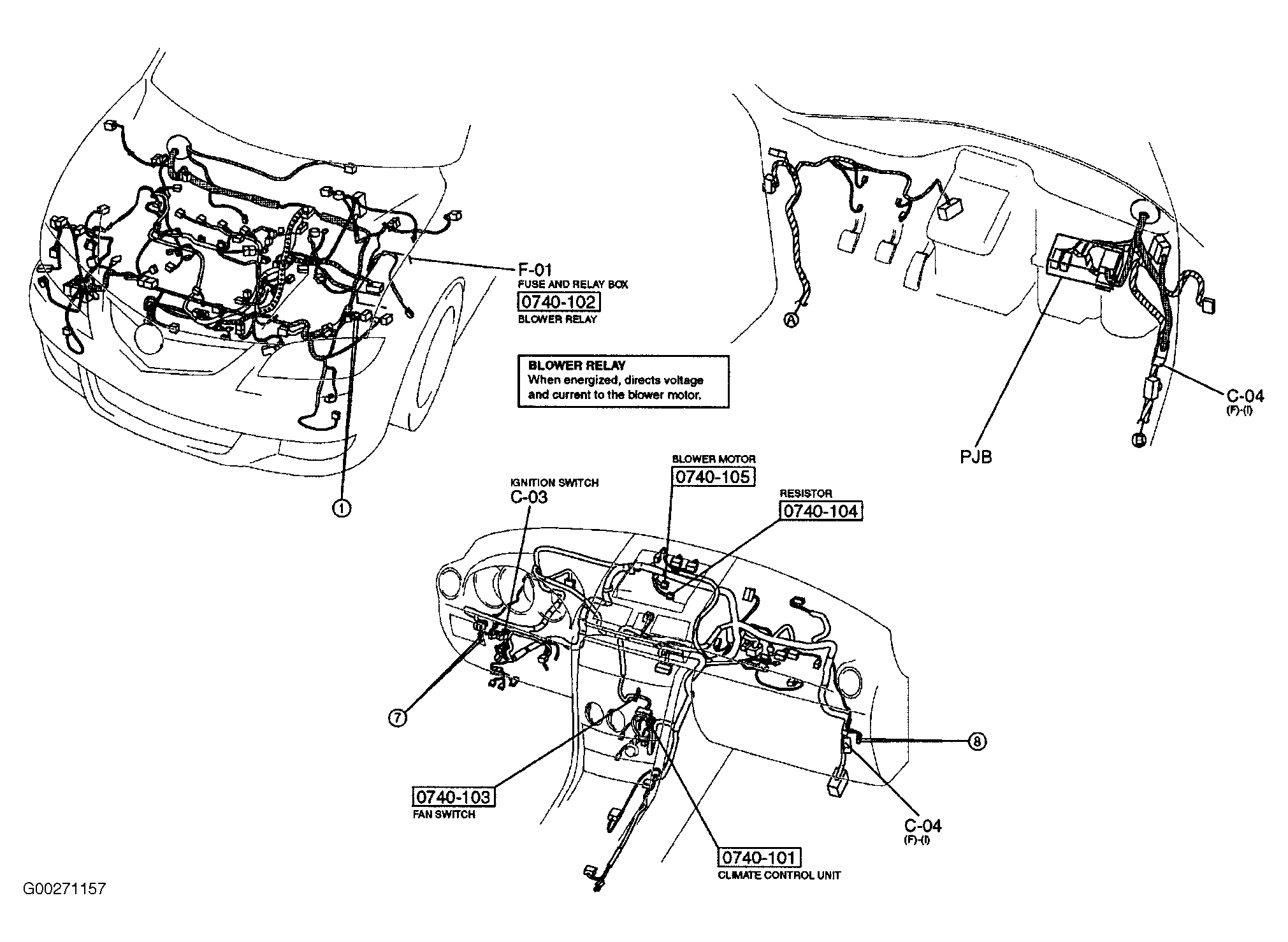

Fig 28: Heater & Manual A/C System

G00271157

Courtesy of MAZDA MOTORS CORP.

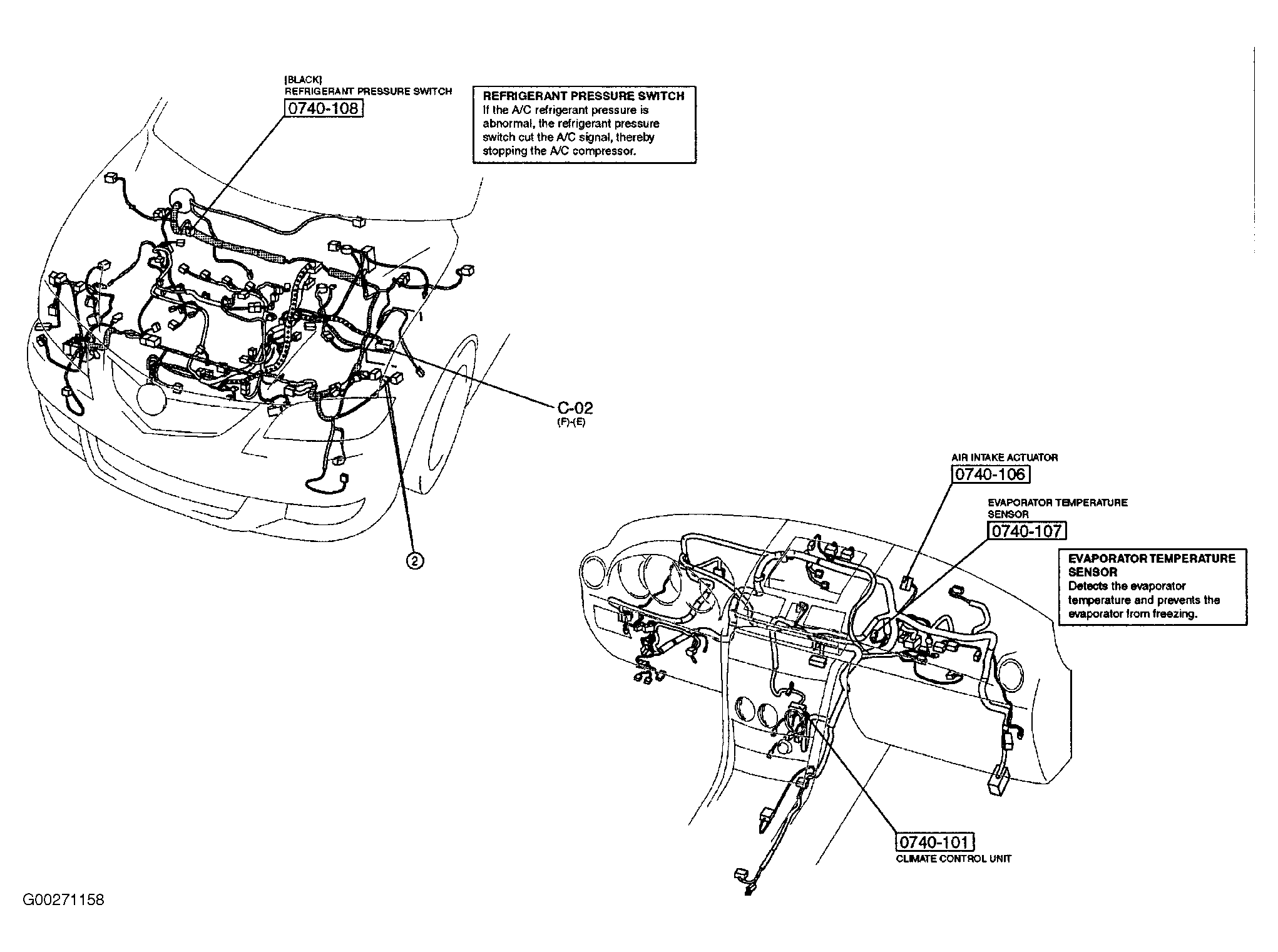

Fig 29: Heater & Manual A/C System

G00271158

Courtesy of MAZDA MOTORS CORP.

Fig 30: Electro Hydraulic Power Steering

G00271159

Courtesy of MAZDA MOTORS CORP.

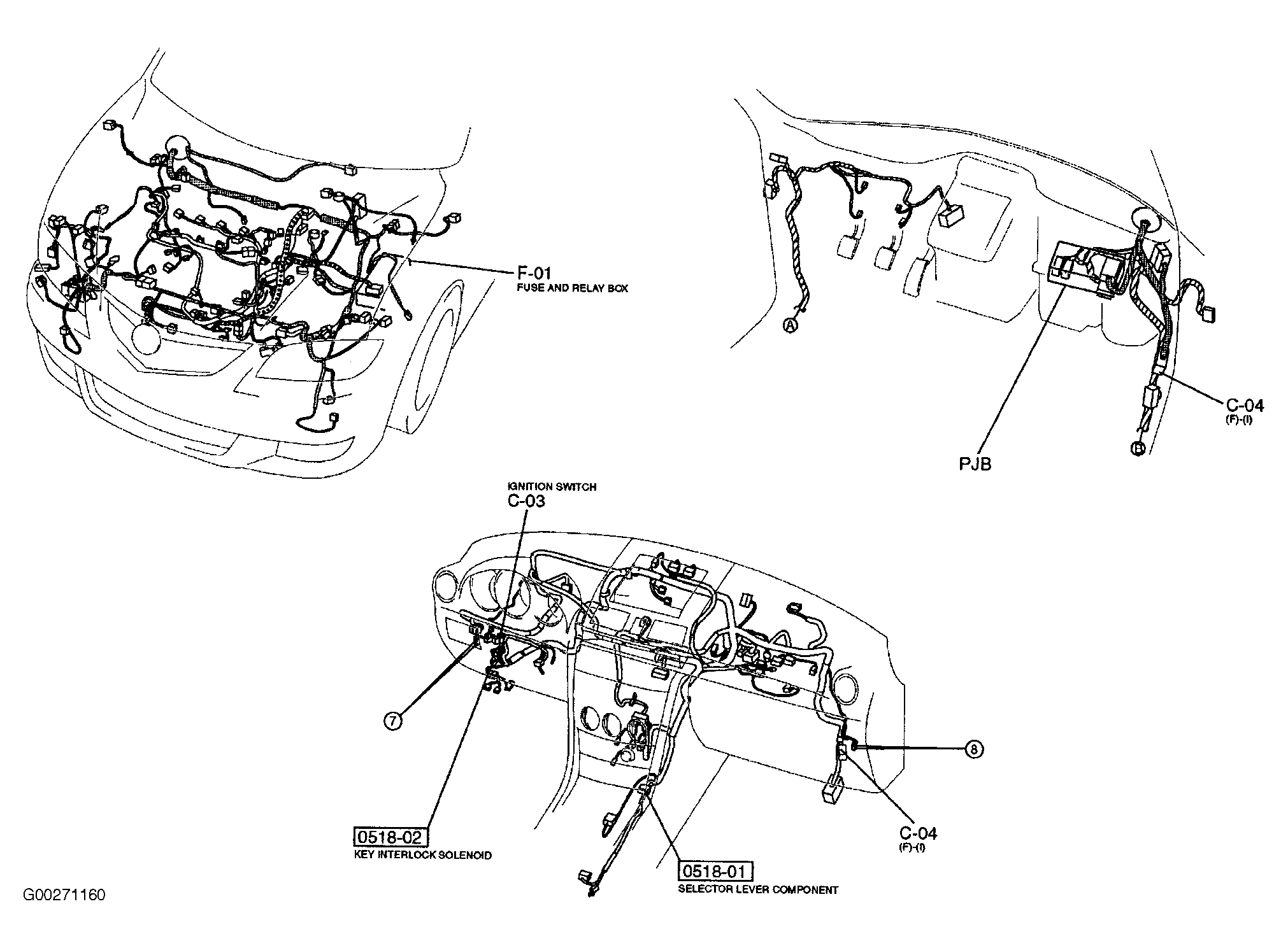

Fig 31: Key Interlock/Shift Lock System

G00271160

Courtesy of MAZDA MOTORS CORP.

Fig 32: ABS System

G00271161

Courtesy of MAZDA MOTORS CORP.

Fig 33: Tire Pressure System

G00271162

Courtesy of MAZDA MOTORS CORP.

Fig 34: Emission Controls System

G00271163

Courtesy of MAZDA MOTORS CORP.

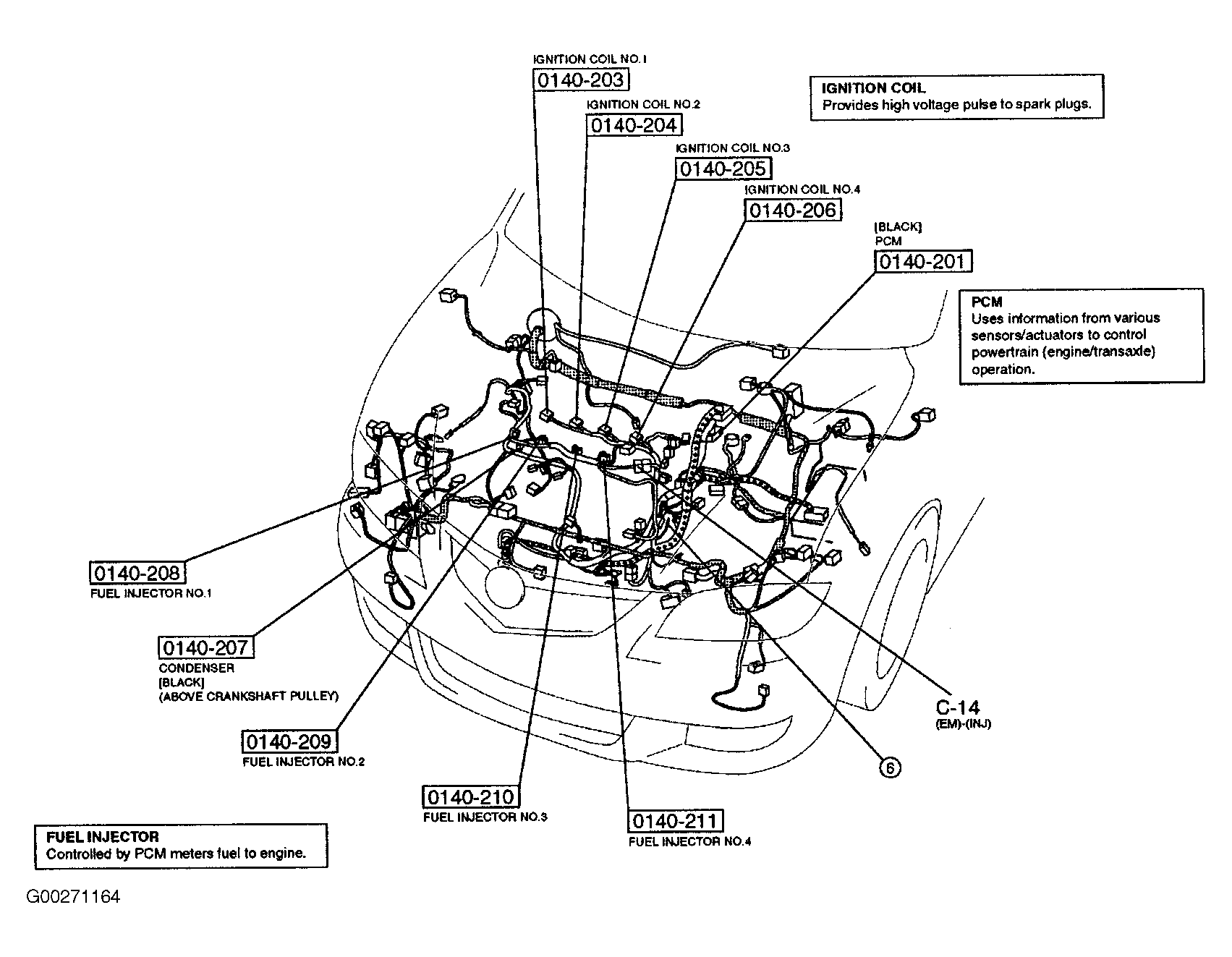

Fig 35: Emission Controls System

G00271164

Courtesy of MAZDA MOTORS CORP.

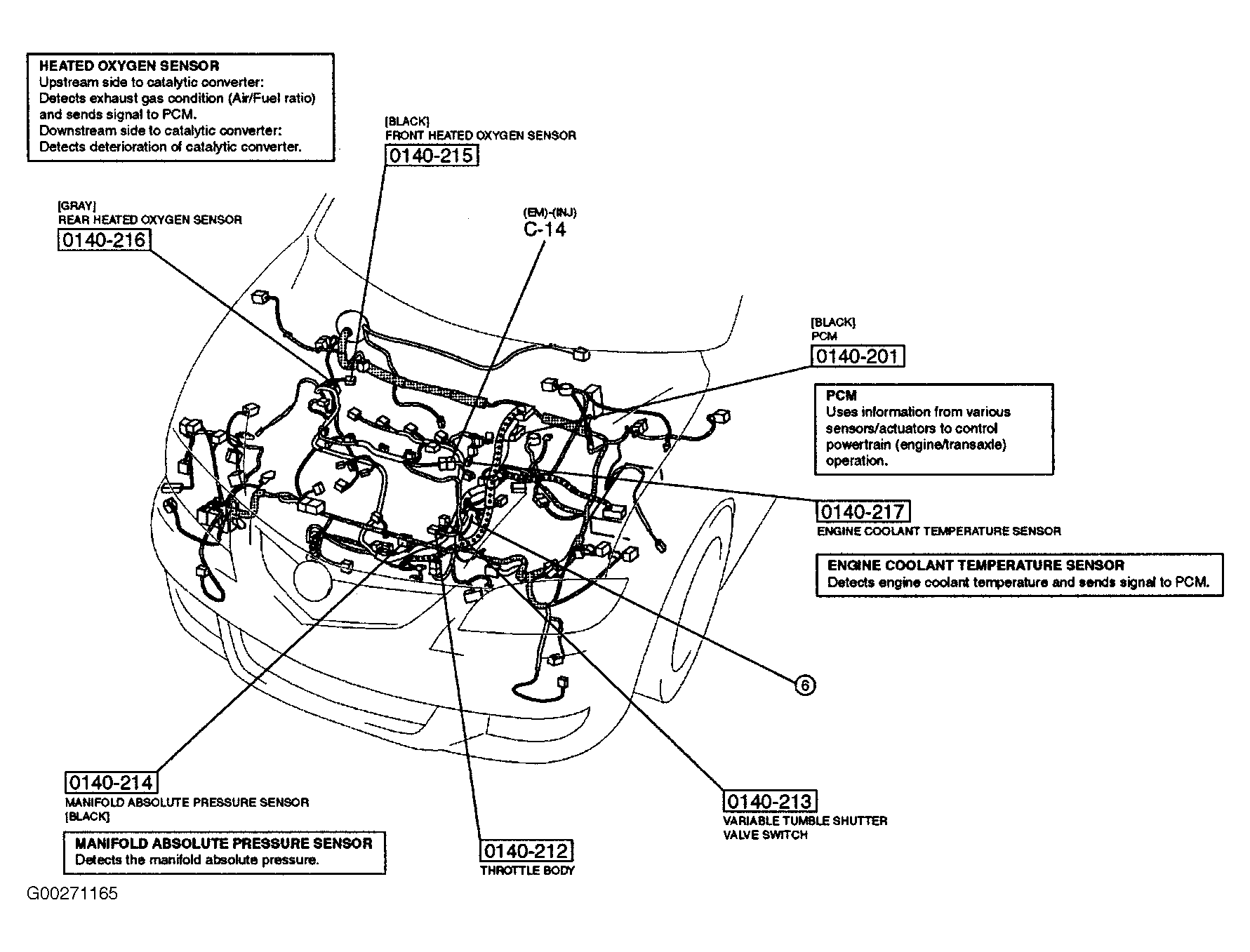

Fig 36: Emission Controls System

G00271165

Courtesy of MAZDA MOTORS CORP.

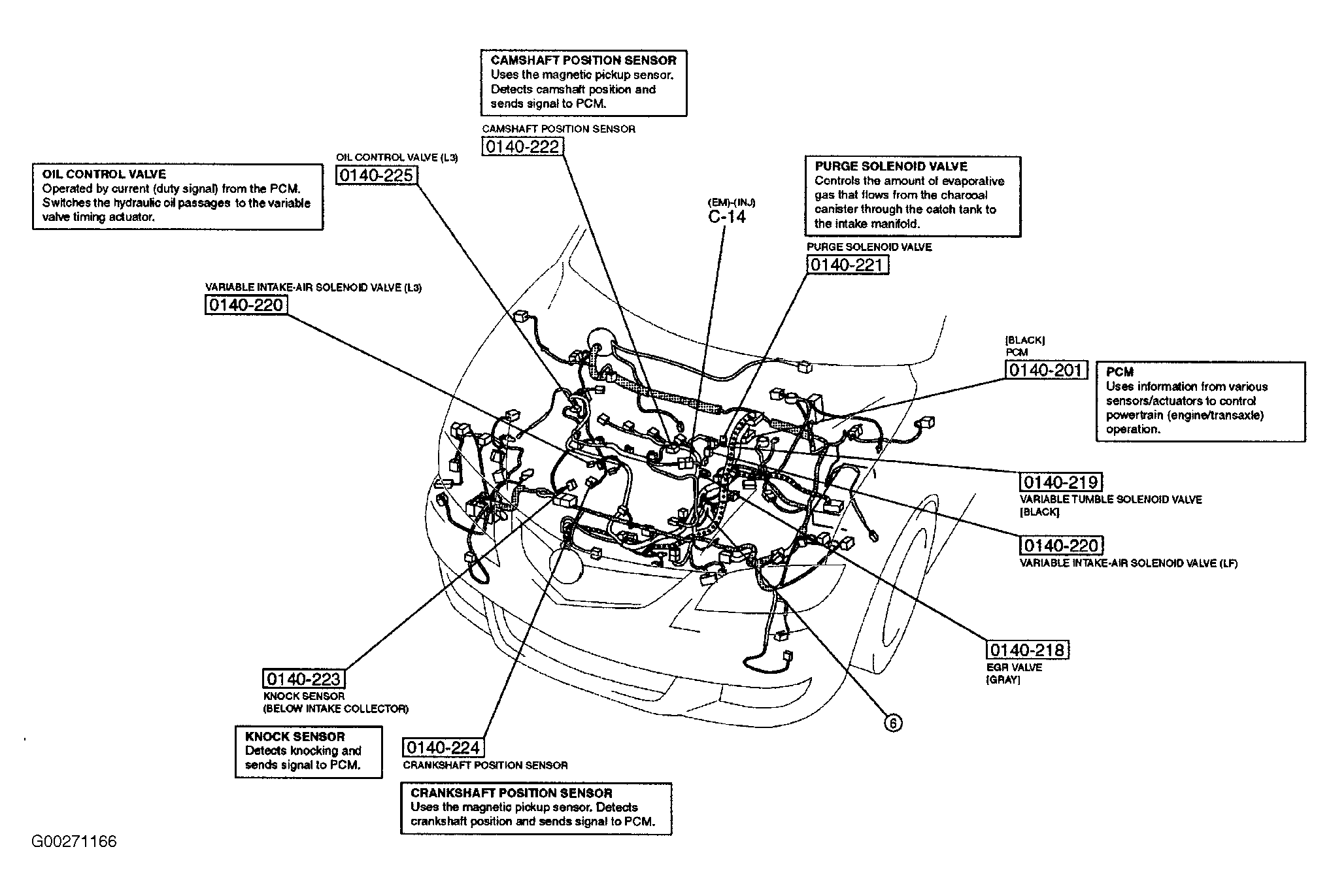

Fig 37: Emission Controls System

G00271166

Courtesy of MAZDA MOTORS CORP.

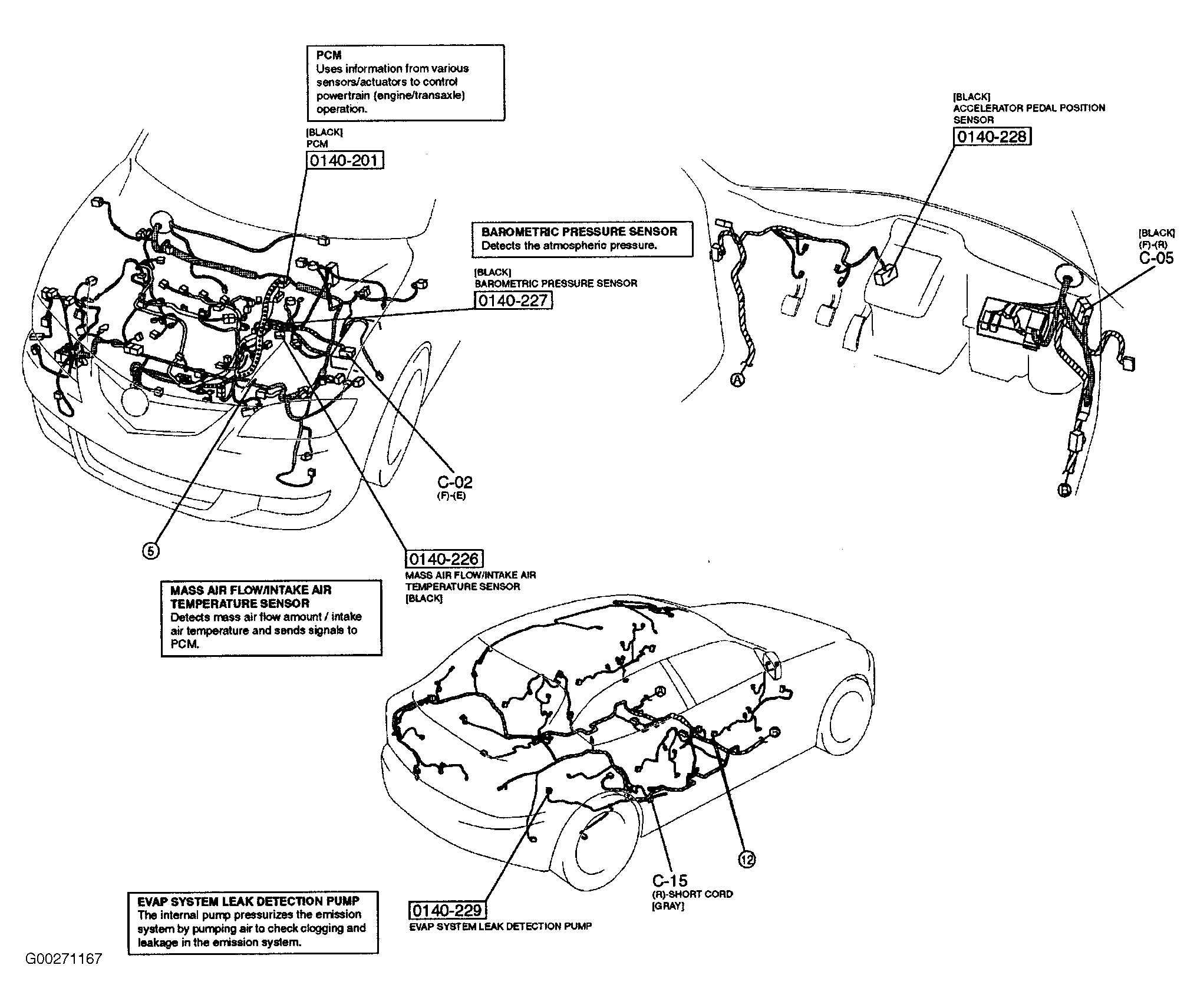

Fig 38: Emission Controls System

G00271167

Courtesy of MAZDA MOTORS CORP.

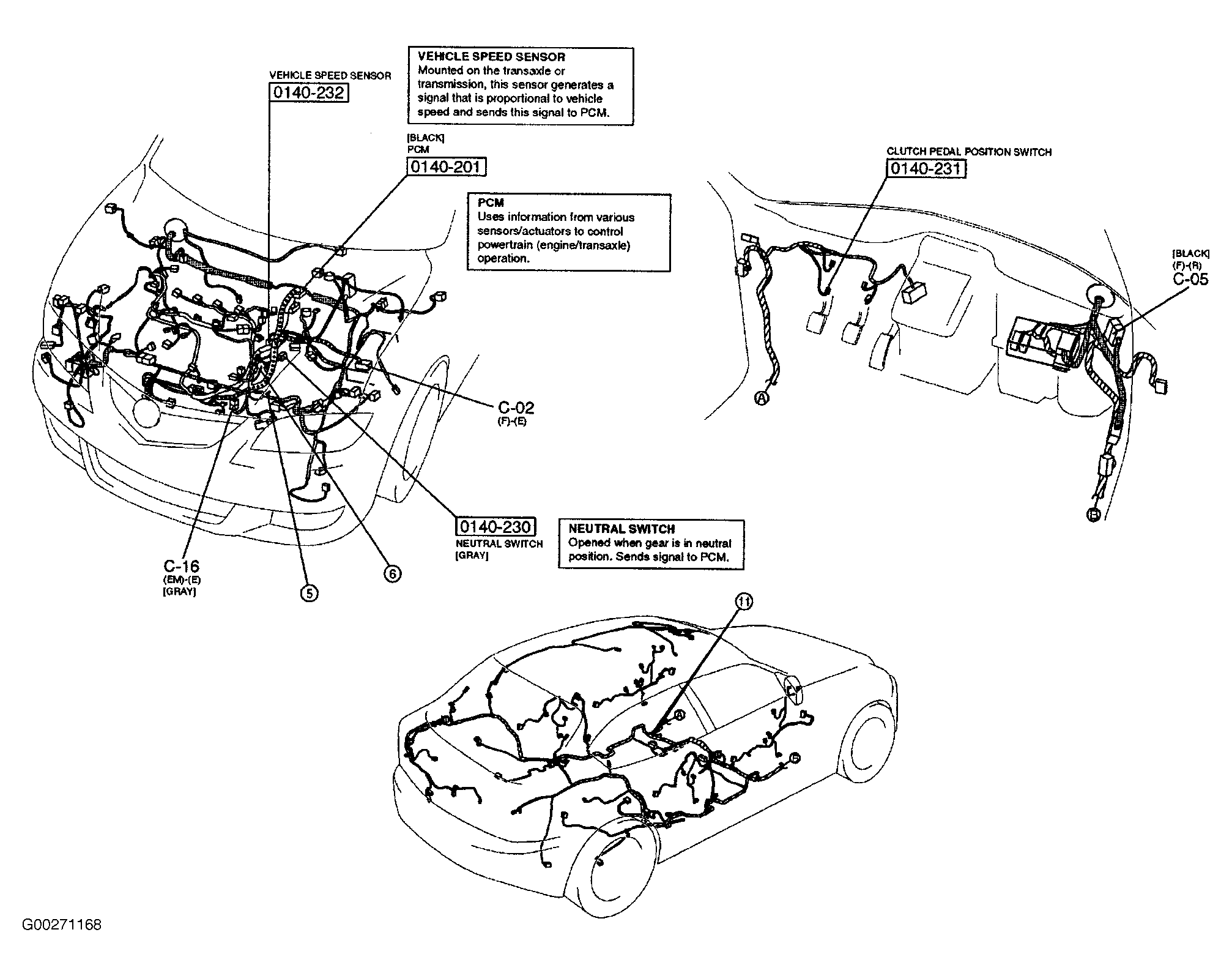

Fig 39: Emission Controls System

G00271168

Courtesy of MAZDA MOTORS CORP.

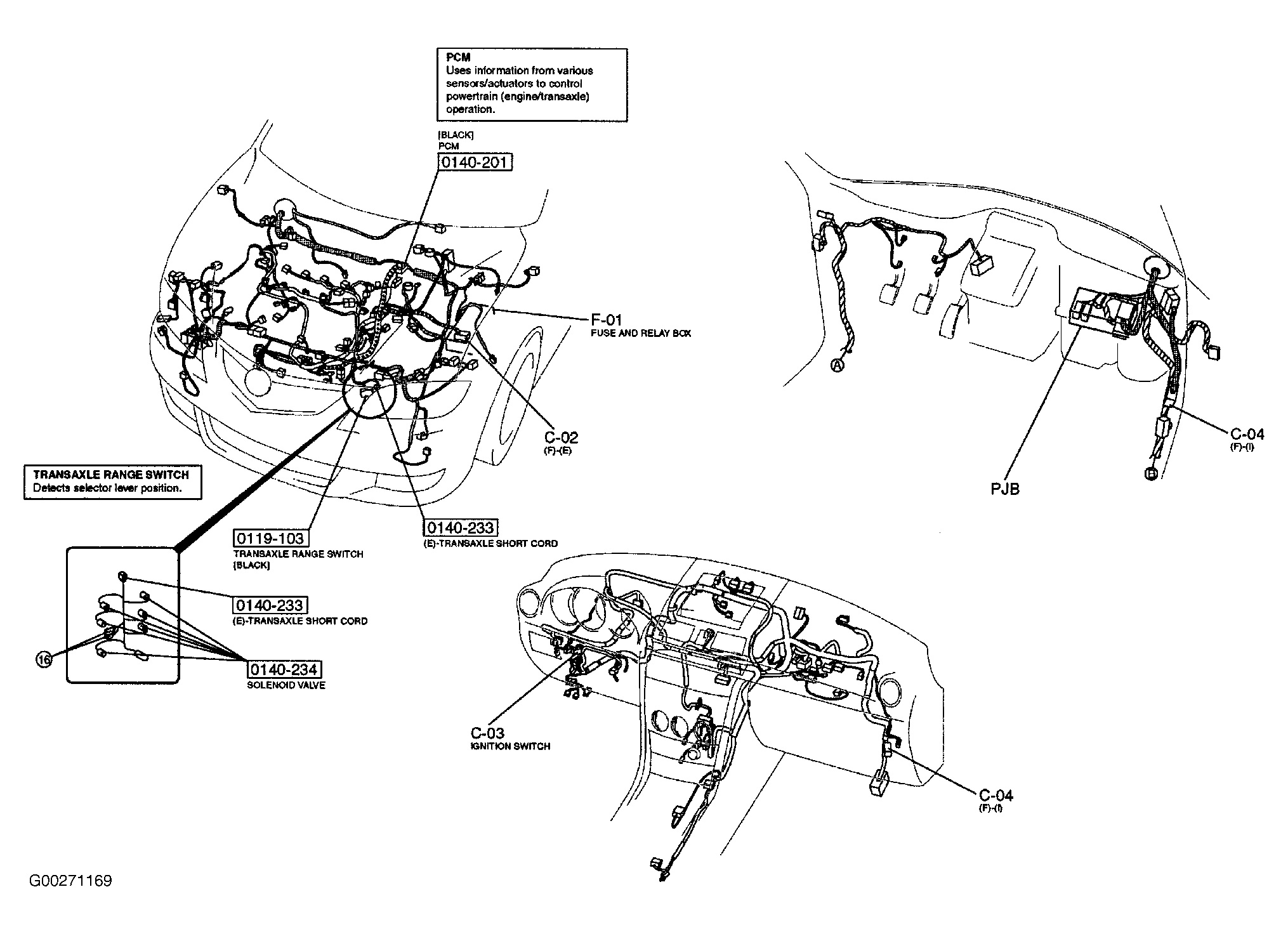

Fig 40: Emission Controls System

G00271169

Courtesy of MAZDA MOTORS CORP.

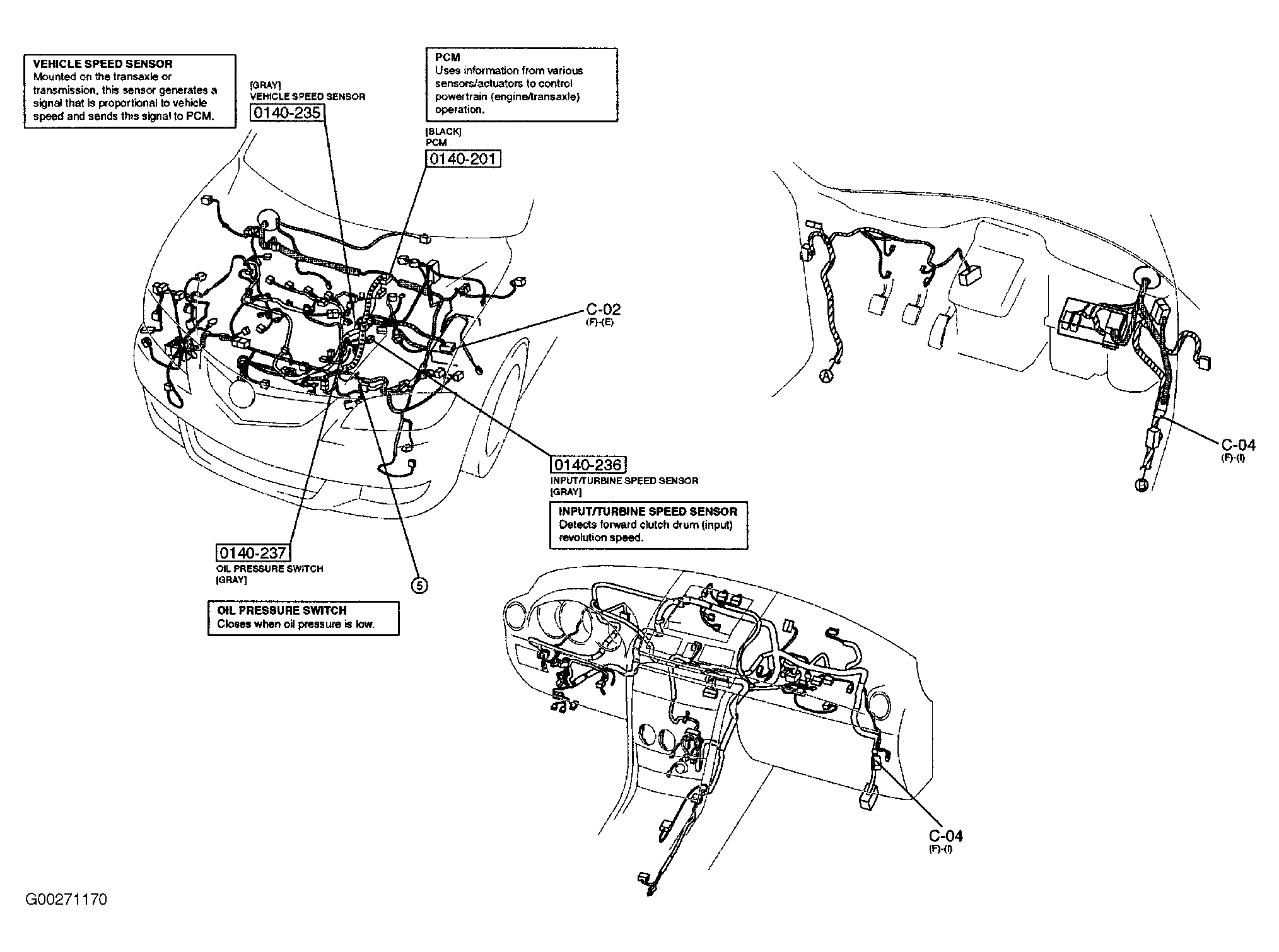

Fig 41: Emission Controls System

G00271170

Courtesy of MAZDA MOTORS CORP.

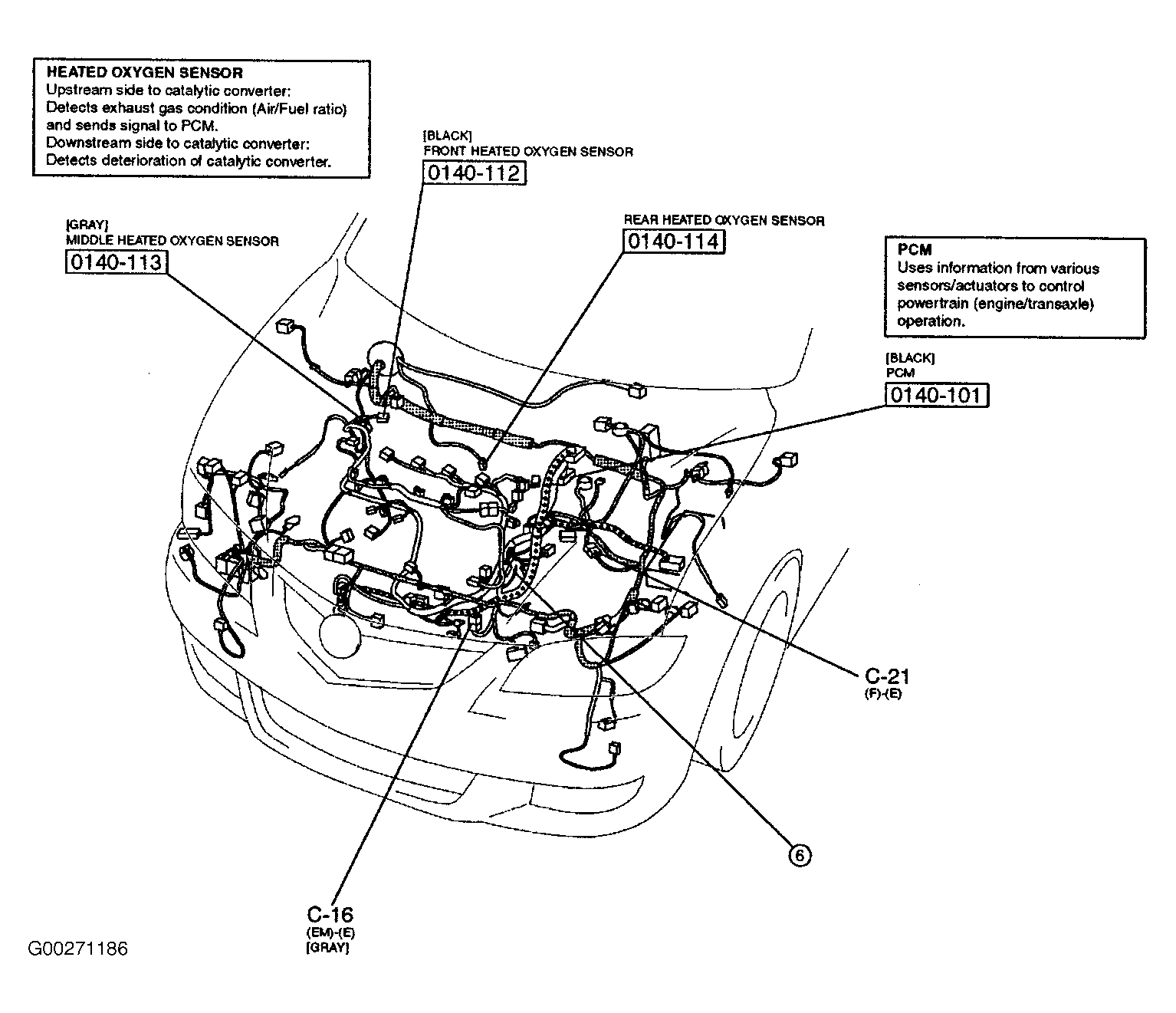

Fig 42: California Emission Controls System

G00271186

Courtesy of MAZDA MOTORS CORP.

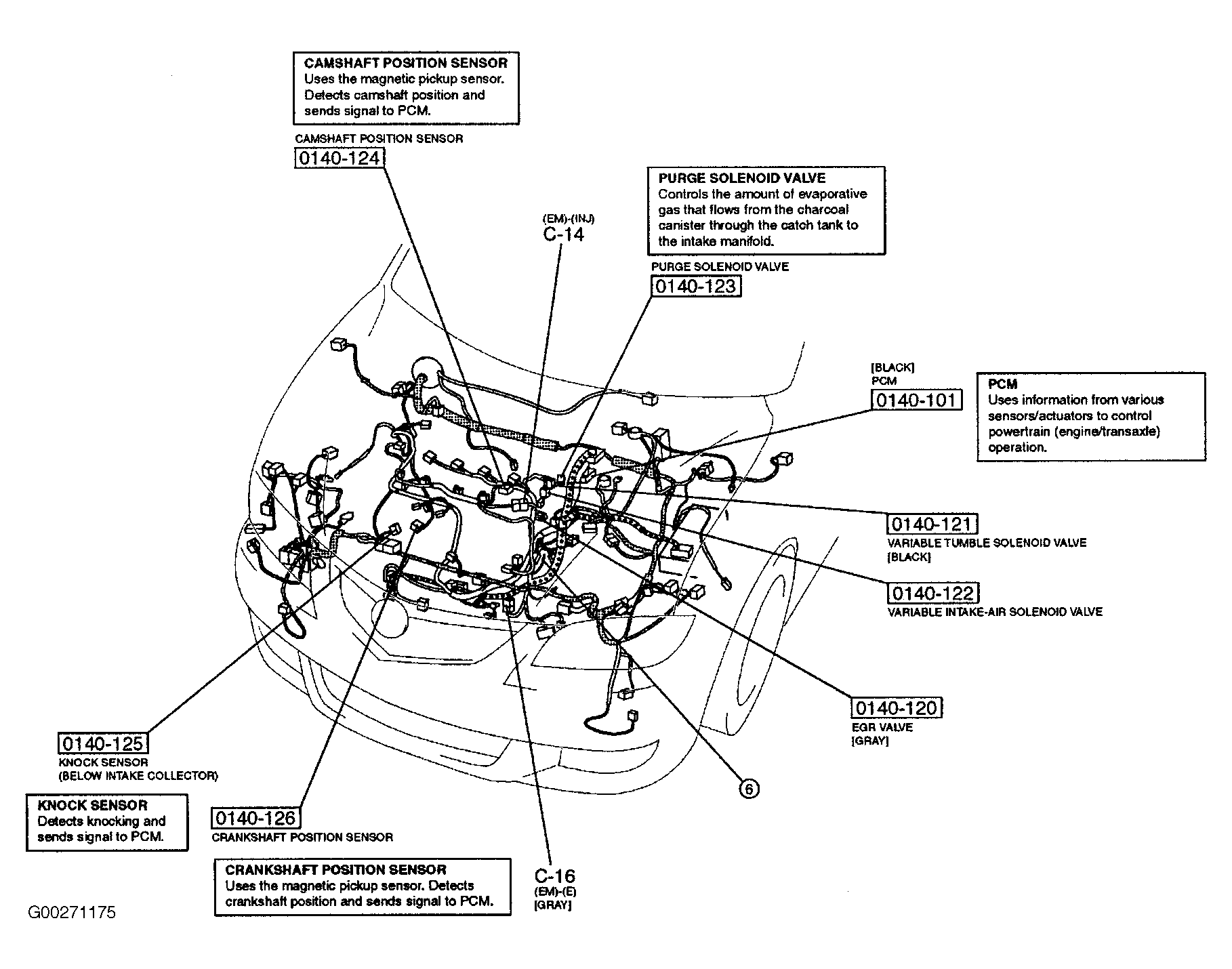

Fig 43: California Emission Controls System

G00271175

Courtesy of MAZDA MOTORS CORP.

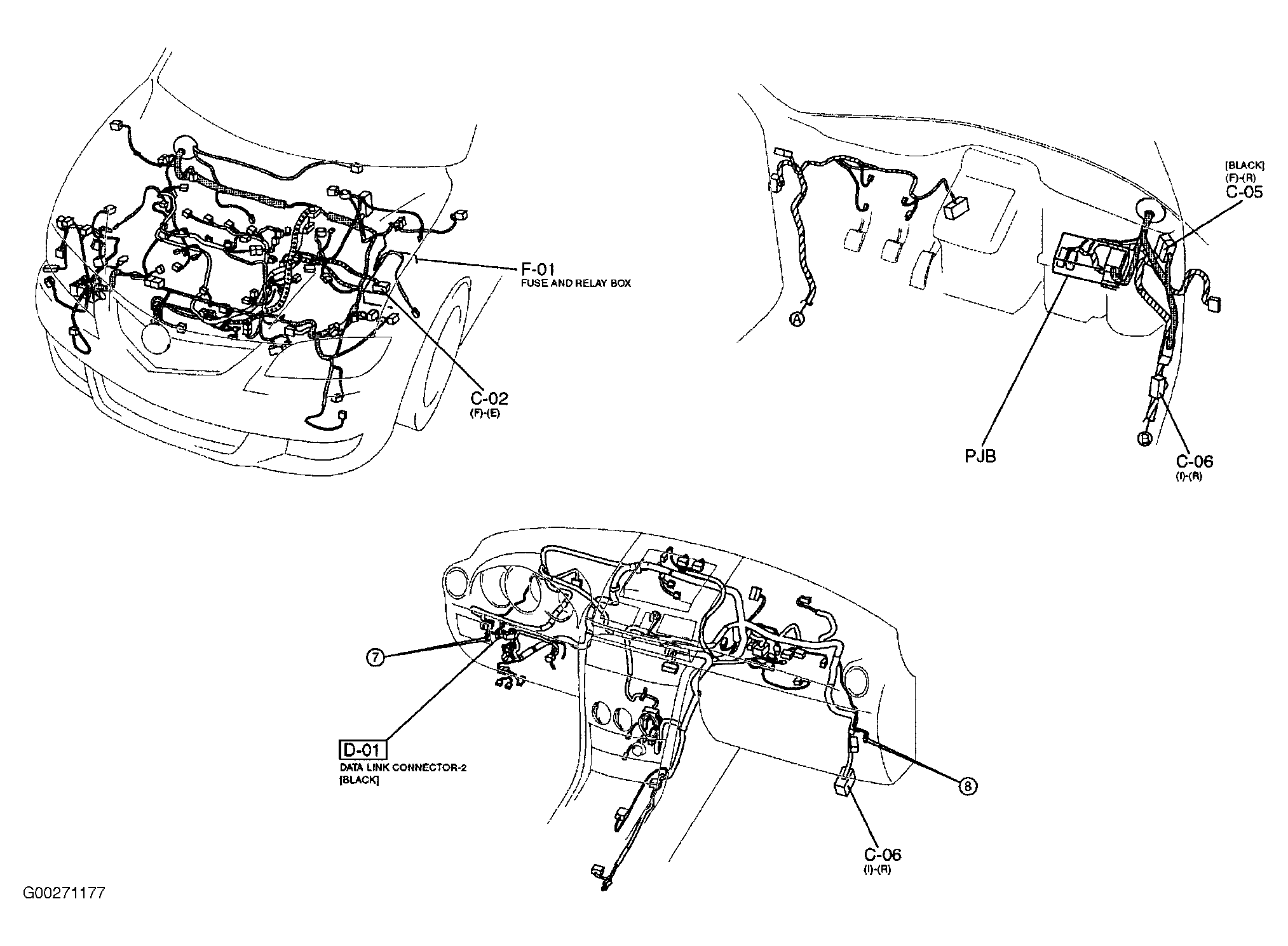

Fig 44: Data Link Connector

G00271177

Courtesy of MAZDA MOTORS CORP.

Fig 45: Cooling System

G00271178

Courtesy of MAZDA MOTORS CORP.

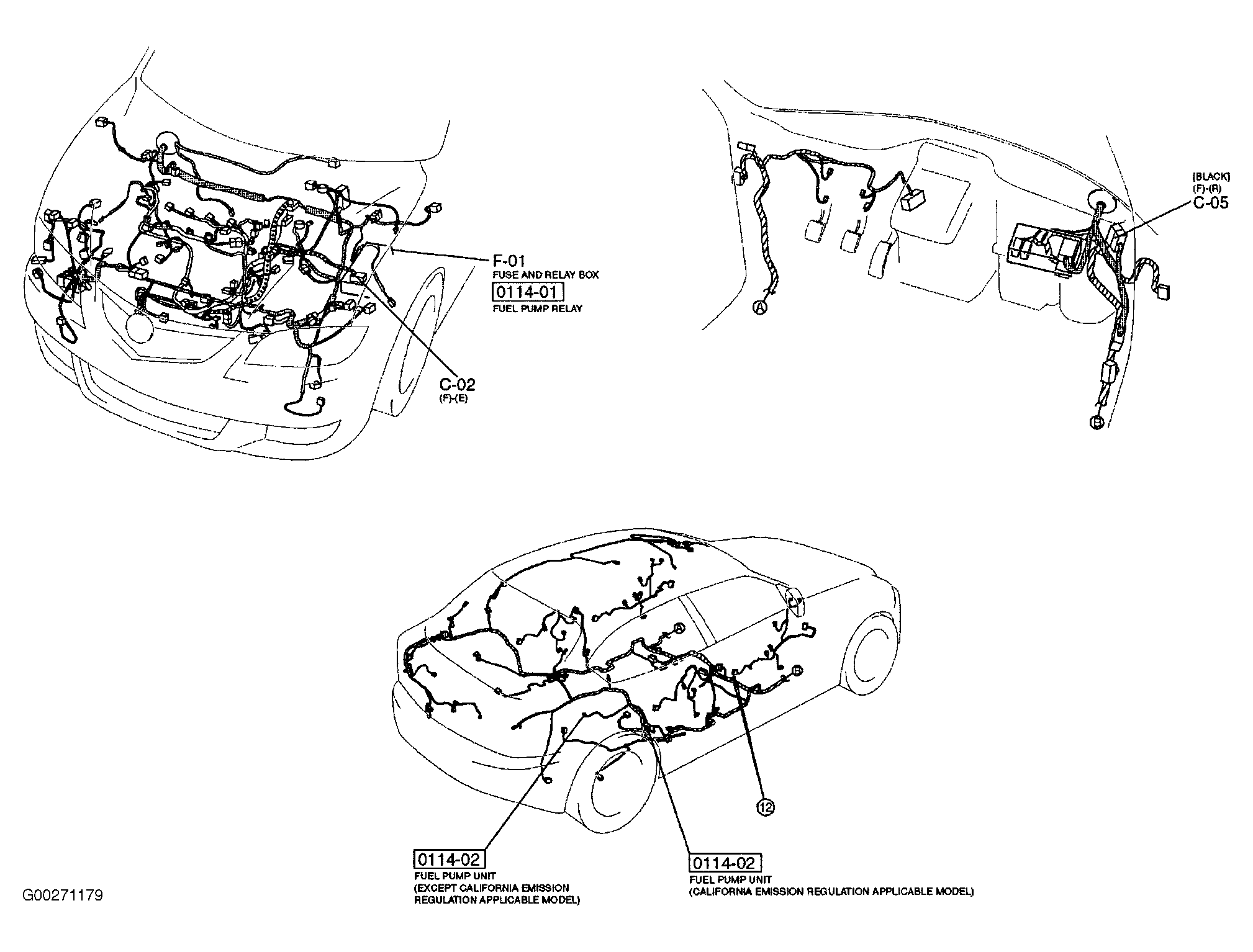

Fig 46: Fuel System

G00271179

Courtesy of MAZDA MOTORS CORP.

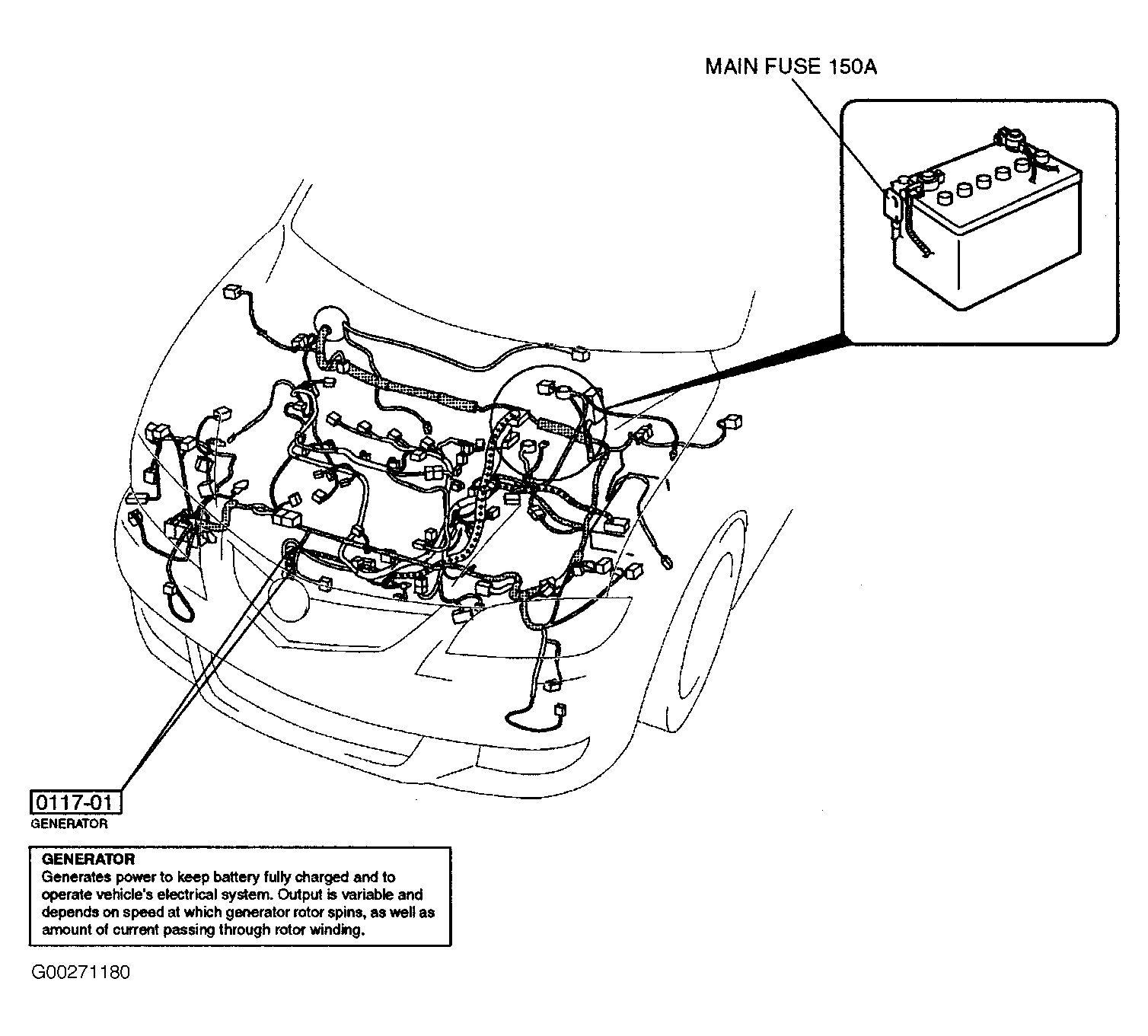

Fig 47: Charging System

G00271180

Courtesy of MAZDA MOTORS CORP.

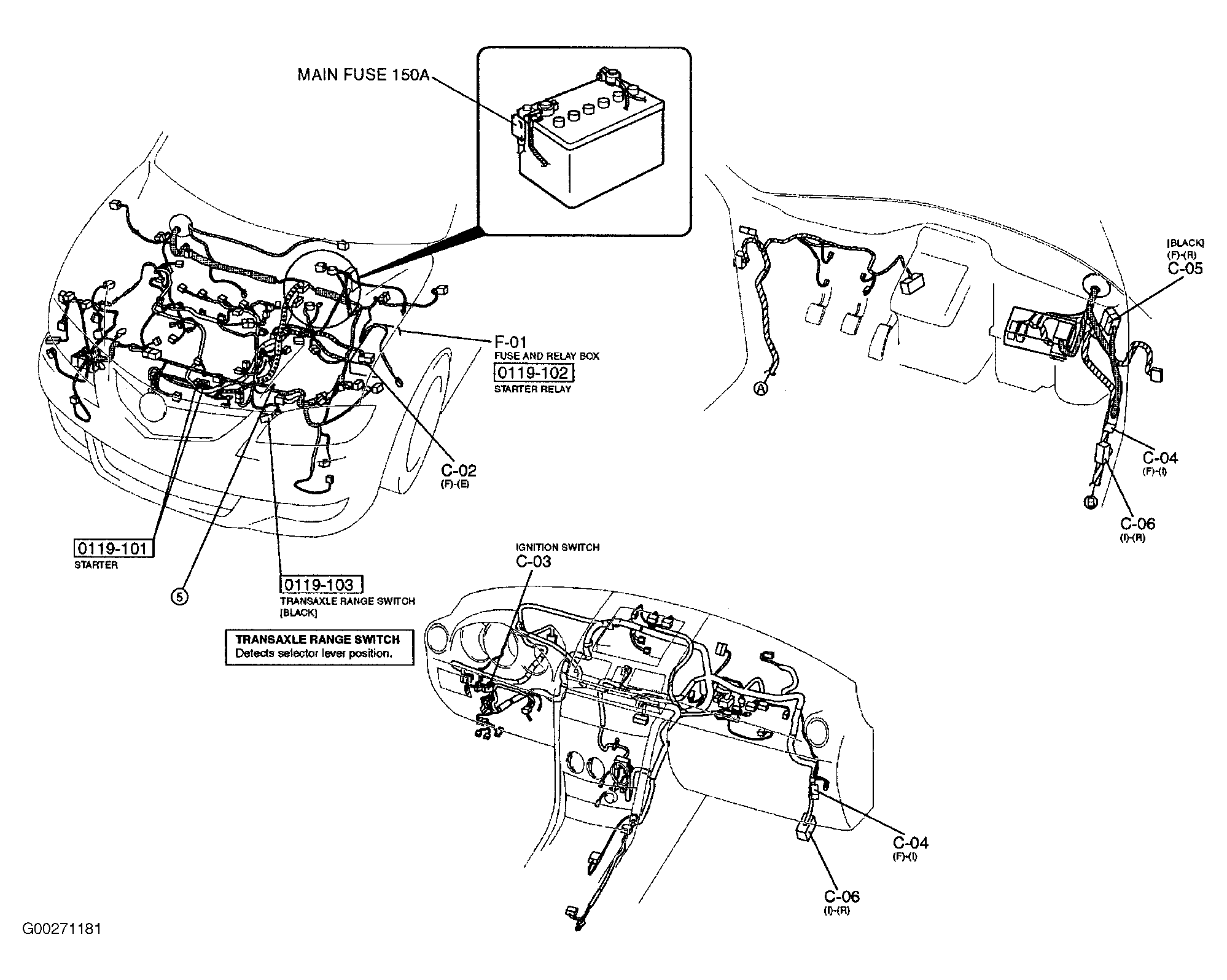

Fig 48: Starting System (A/T)

G00271181

Courtesy of MAZDA MOTORS CORP.

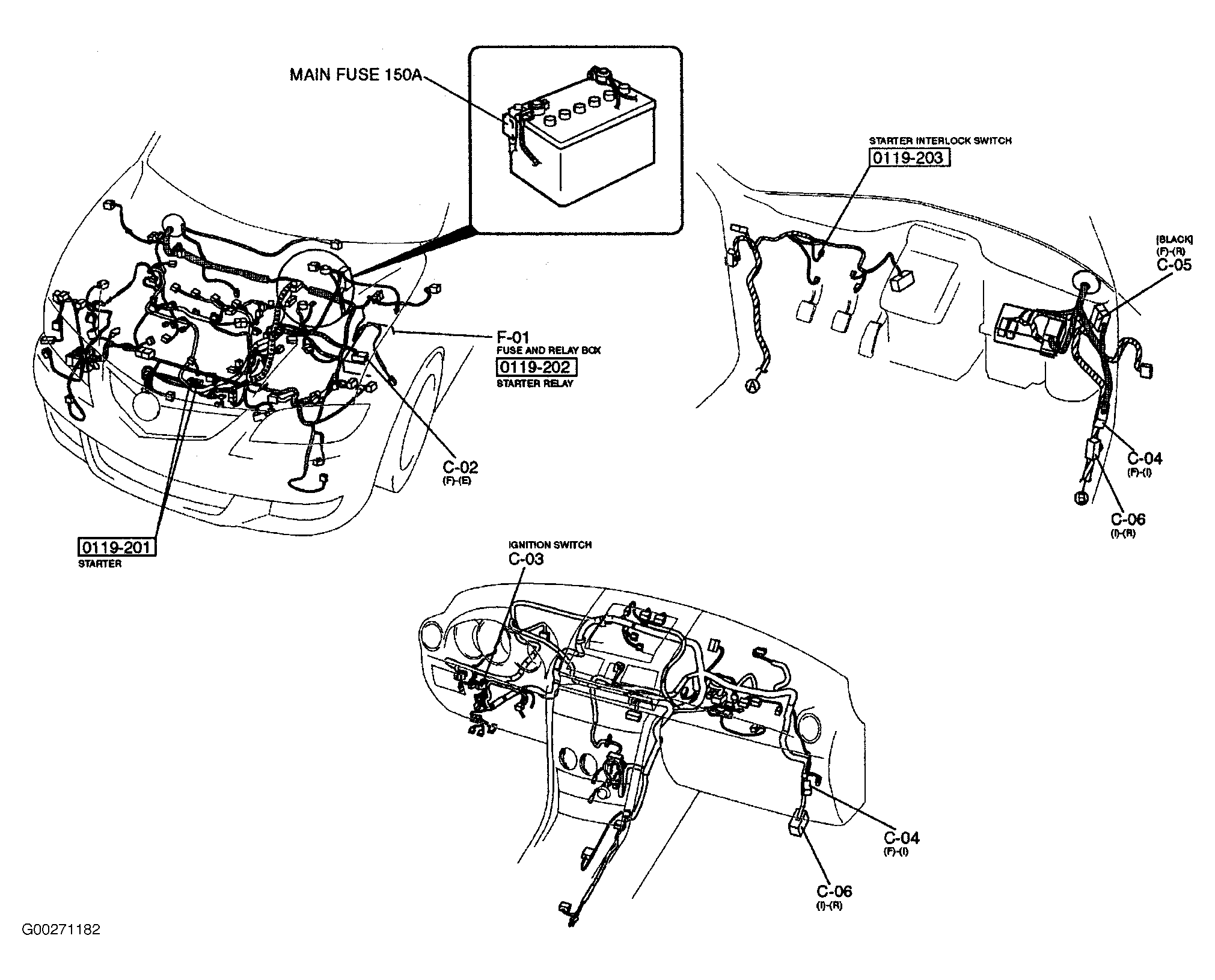

Fig 49: Starting System (M/T)

G00271182

Courtesy of MAZDA MOTORS CORP.

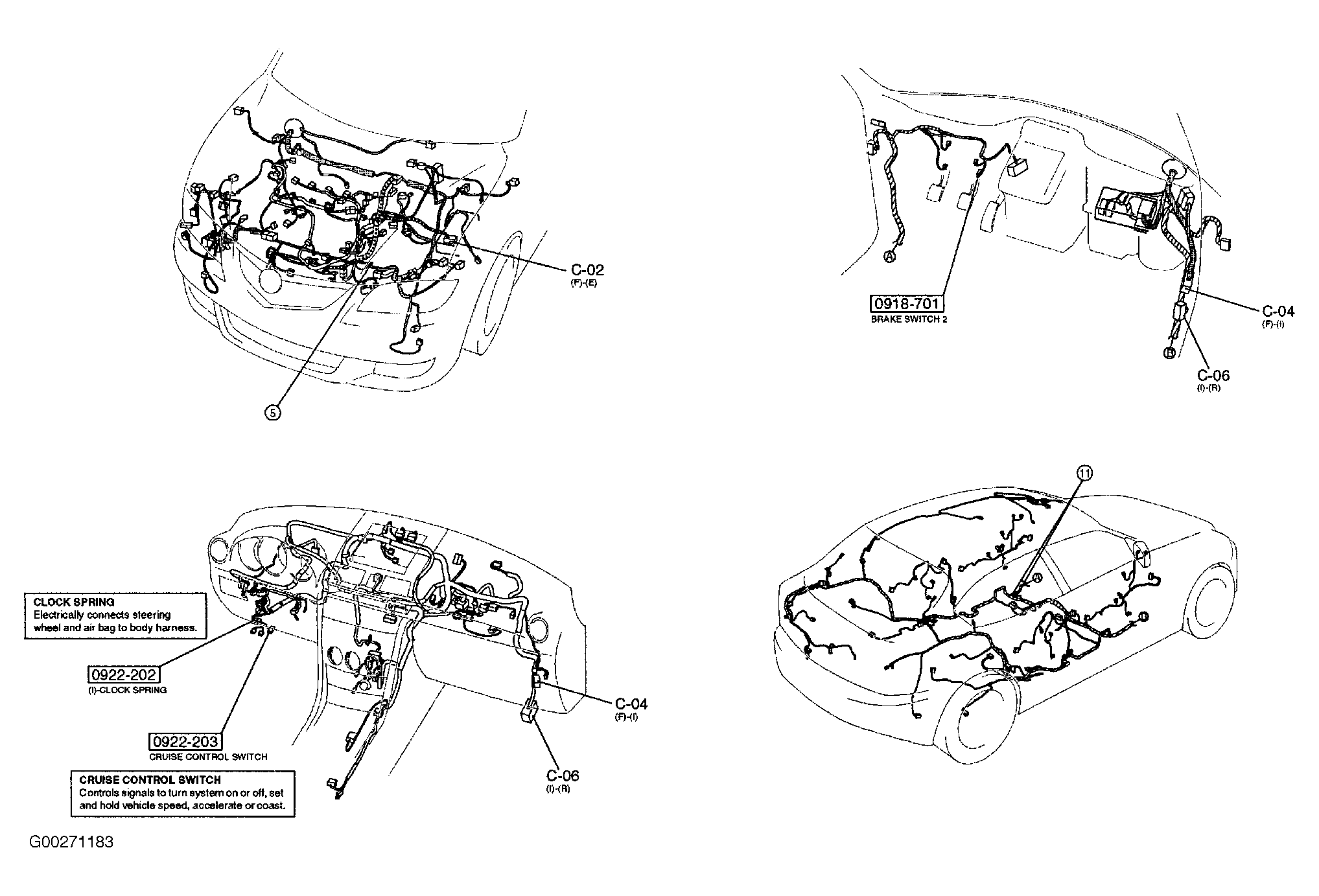

Fig 50: Cruise Control

G00271183

Courtesy of MAZDA MOTORS CORP.

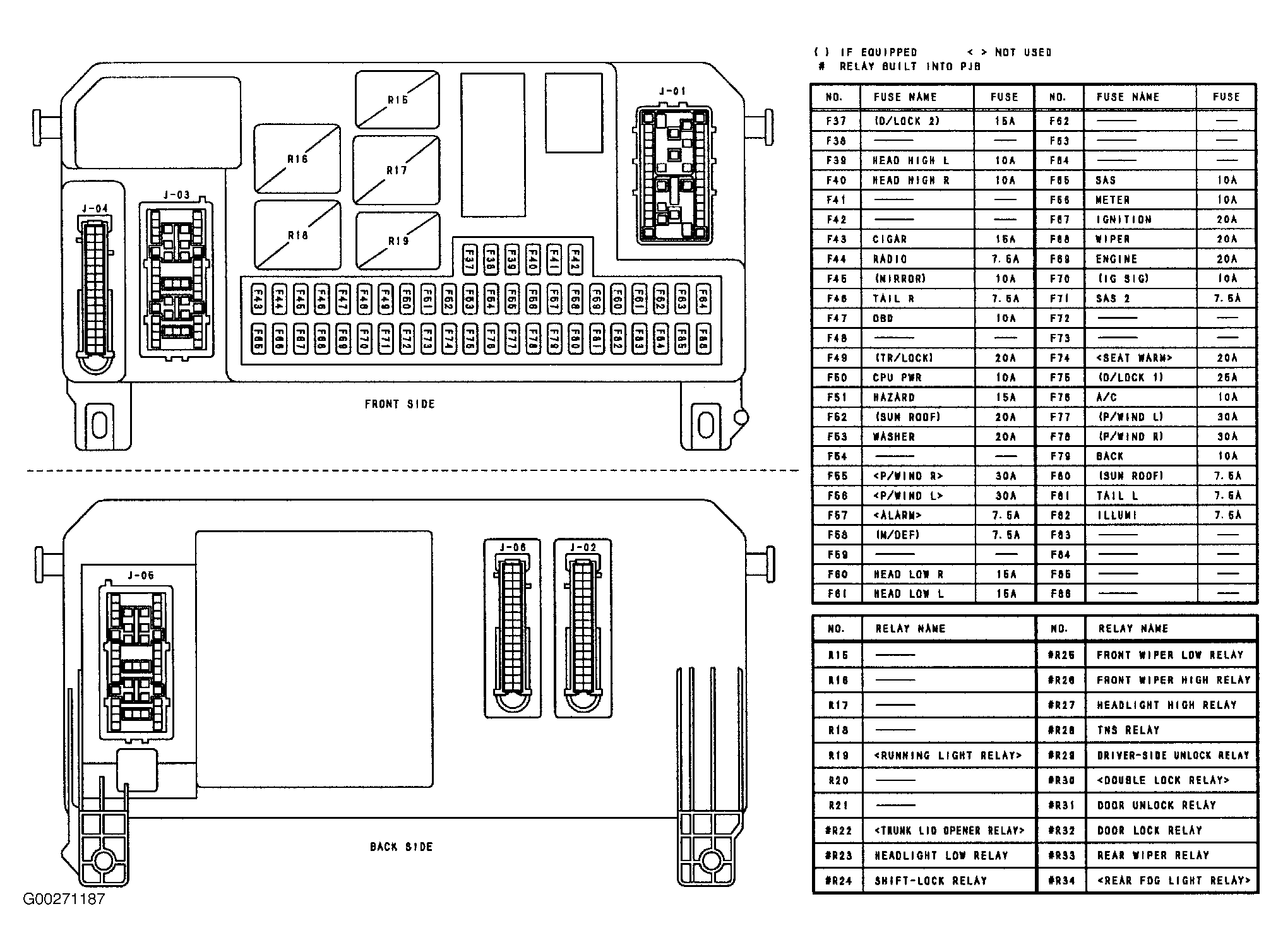

Fig 51: Passenger Junction Box (PJB)

G00271187

Courtesy of MAZDA MOTORS CORP.

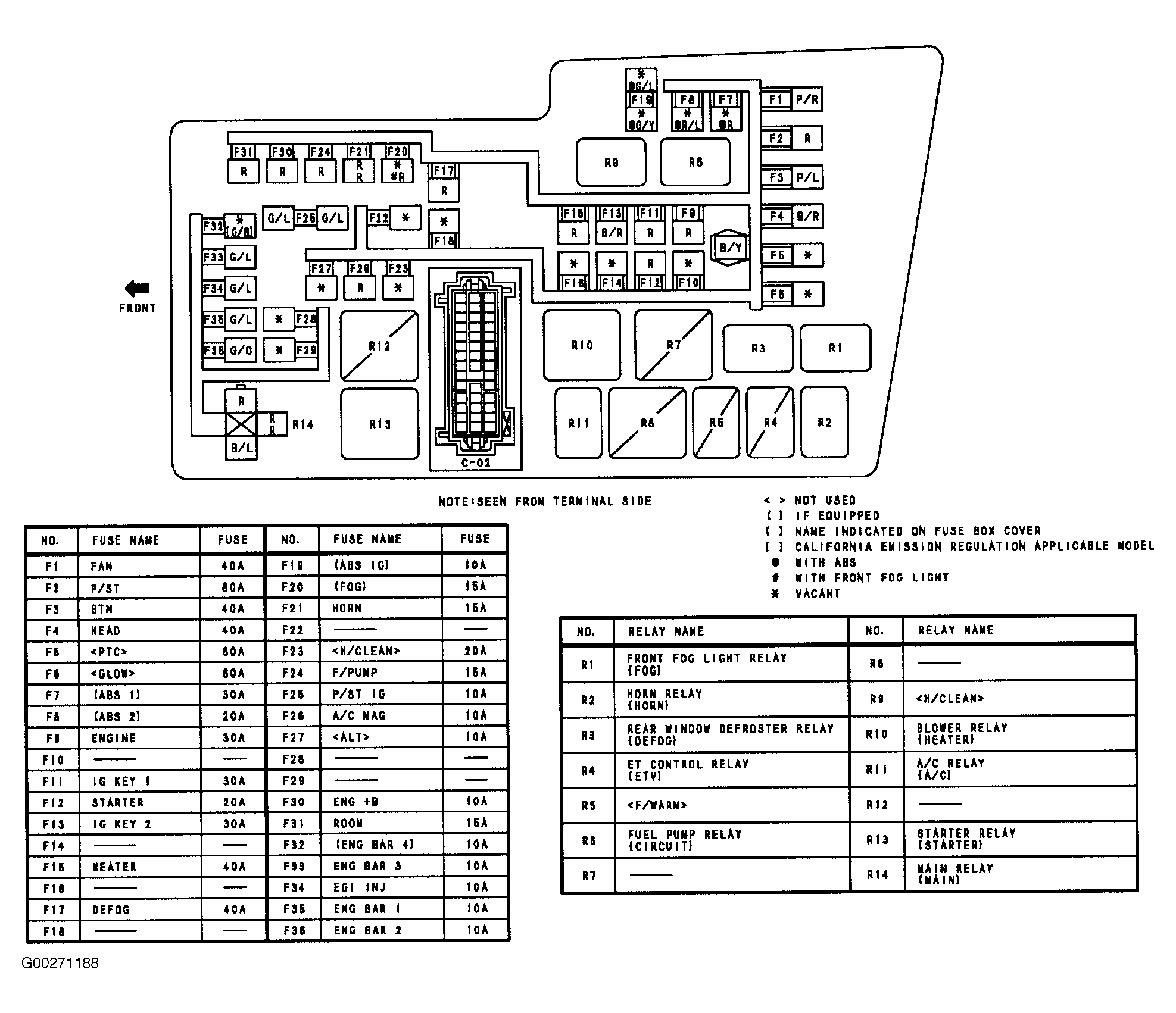

Fig 52: Fuse & Relay Box

G00271188

Courtesy of MAZDA MOTORS CORP.
