Retainer ring removal note

  1. Remove the retainer ring by tapping a retainer ring projection using a flathead screwdriver as shown in the figure.

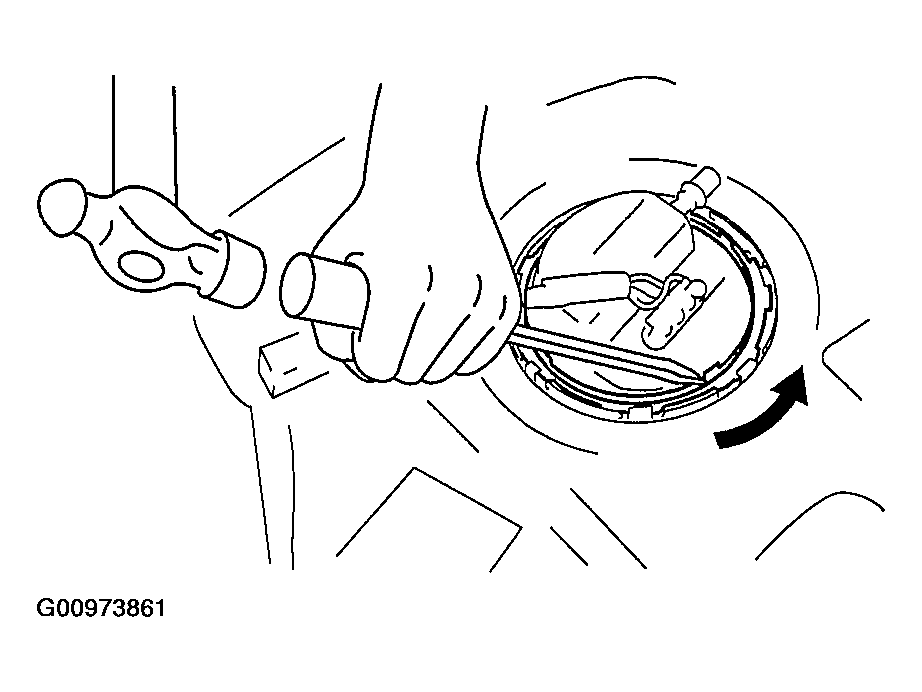

    Fig 1: Removing Retainer Ring
    G00973861Courtesy of MAZDA MOTORS CORP.
