Joint Hose Installation Note

  1. Install the joint hose and clamp as shown in the figure.

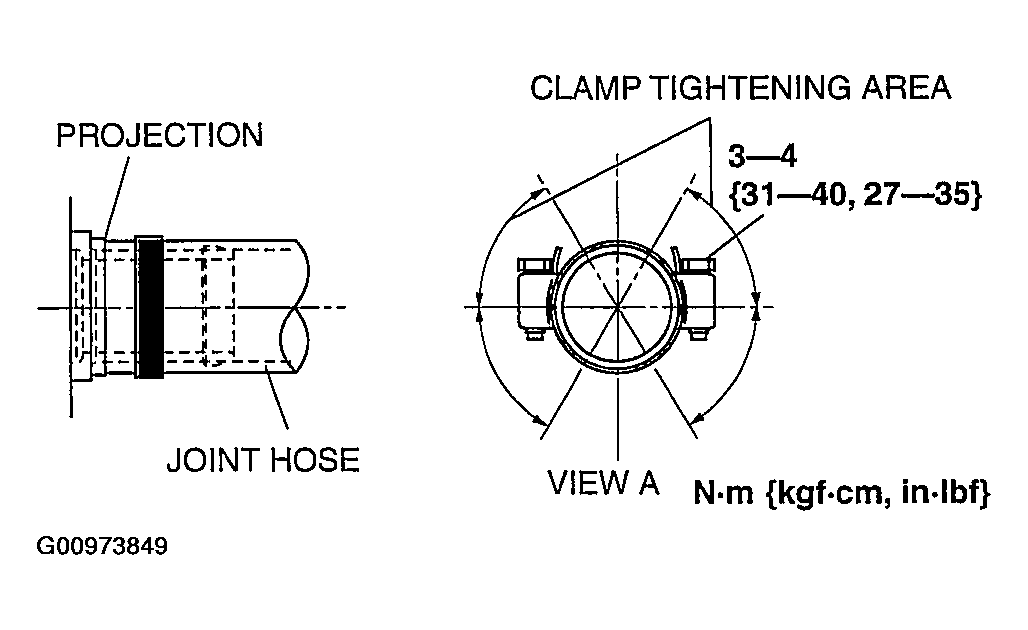

    Fig 1: Installing Joint Hose And Clamp
    G00973849Courtesy of MAZDA MOTORS CORP.
