Engine Technical Data

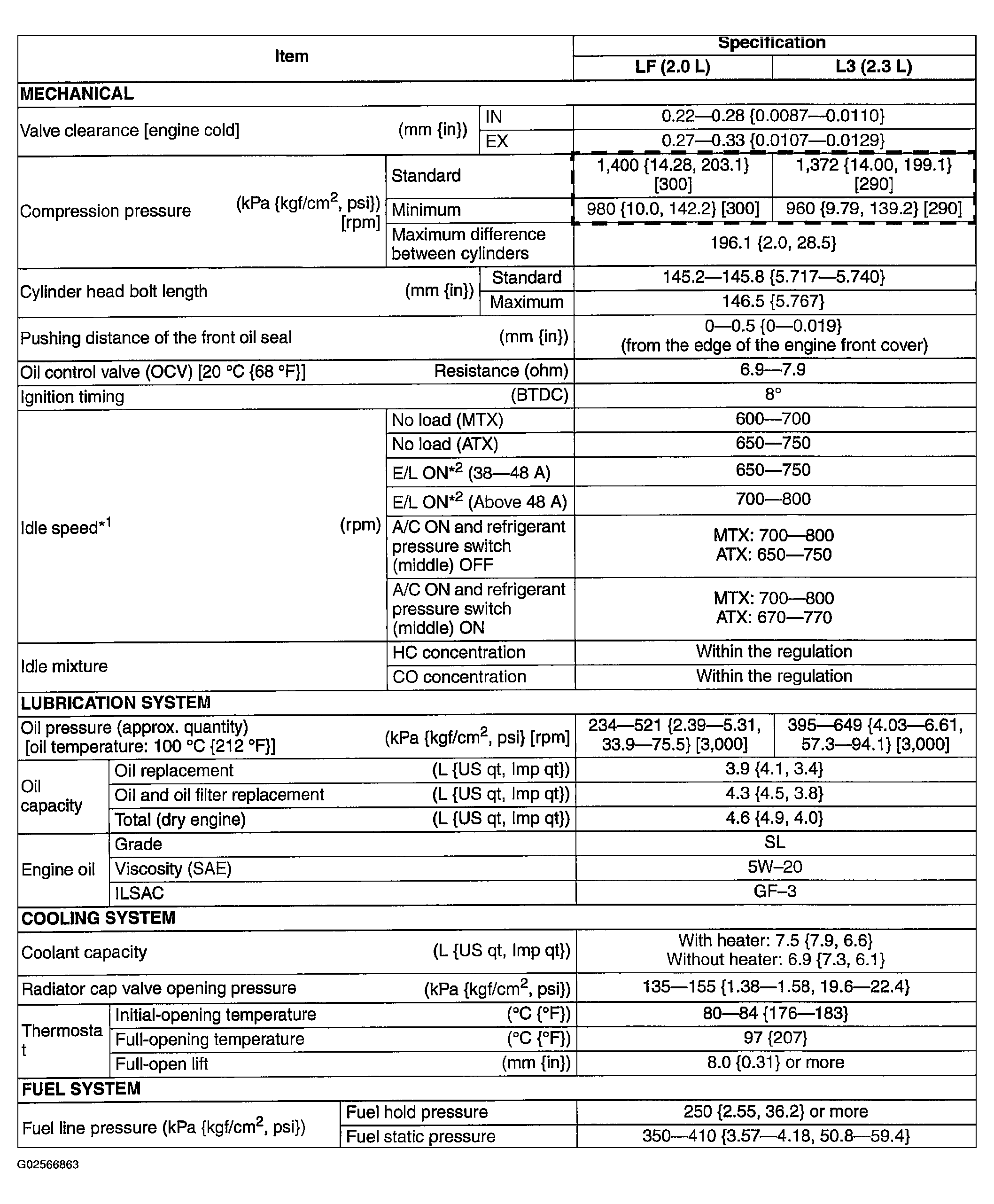

Fig 1: Engine Technical Data (1 Of 3)
G02566863Courtesy of MAZDA MOTORS CORP.

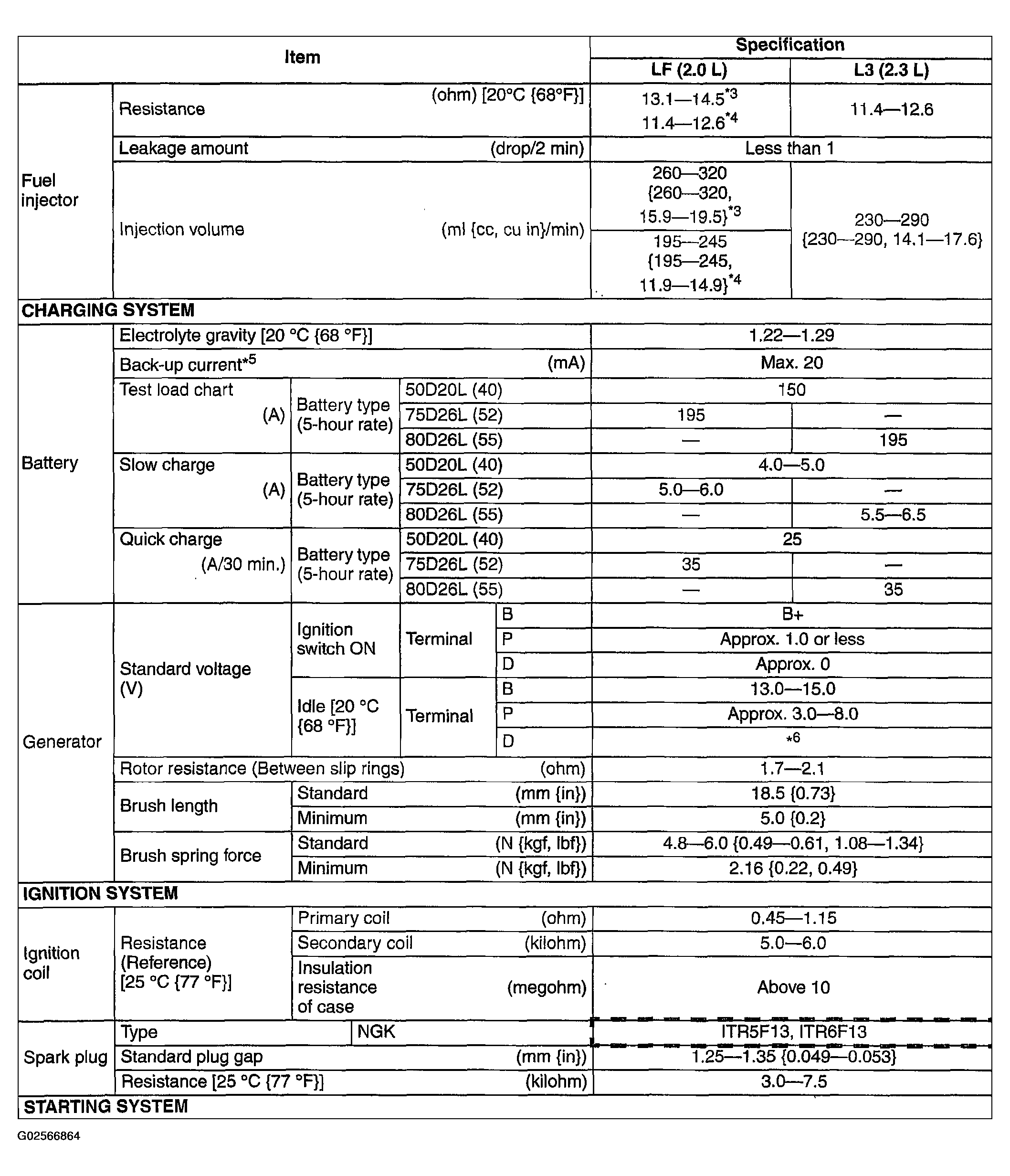

Fig 2: Engine Technical Data (2 Of 3)
G02566864Courtesy of MAZDA MOTORS CORP.

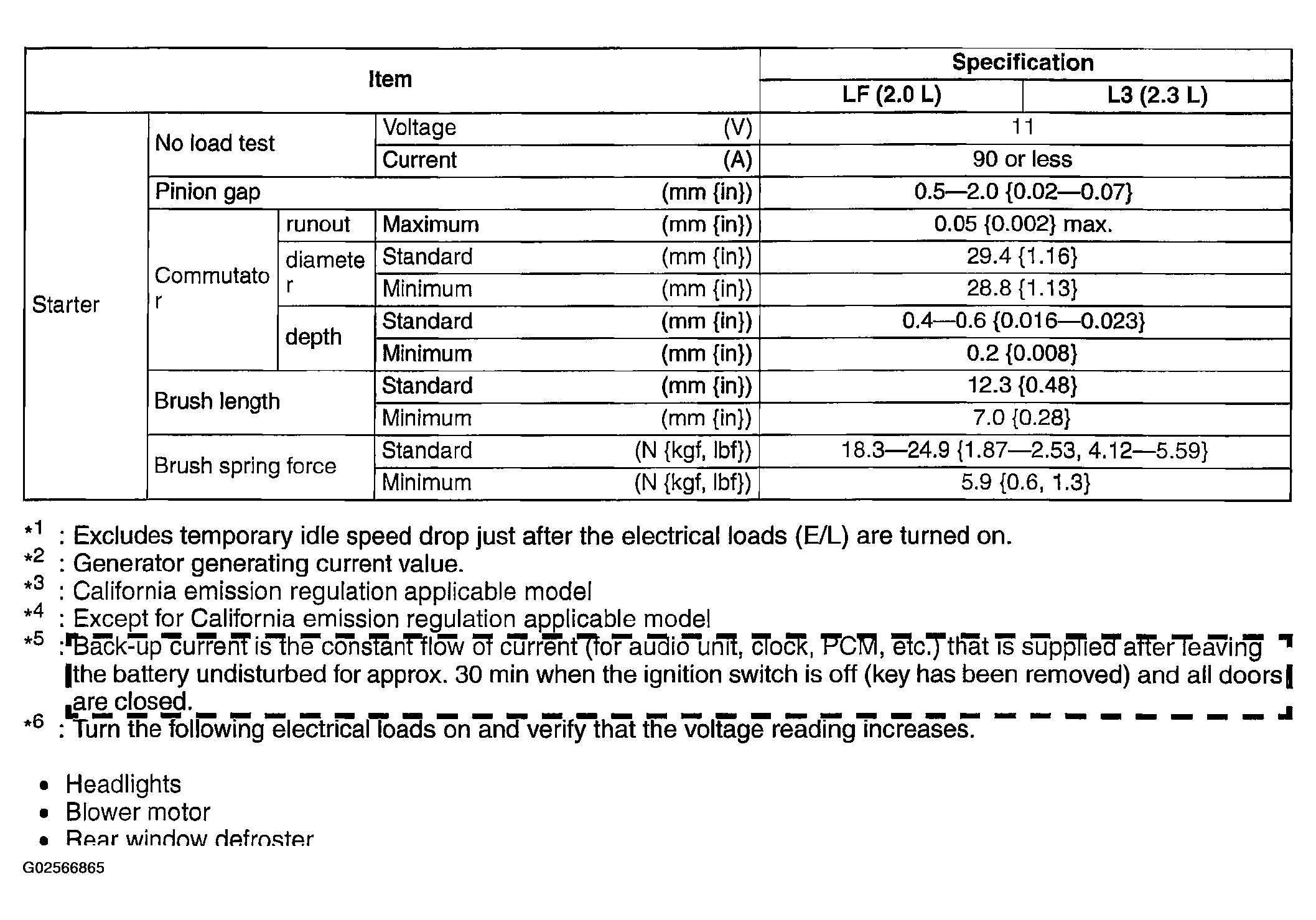

Fig 3: Engine Technical Data (3 Of 3)
G02566865Courtesy of MAZDA MOTORS CORP.
