Home >> Mazda >> 2004 >> 3 i, Automatic >> Repair and Diagnosis >> Engine Performance >> System >> On-Board Diagnostic [Engine Control System] >> DTC P0480: Fan Control Circuit Problem >> Notes

DTC P0480: Fan Control Circuit Problem: Notes

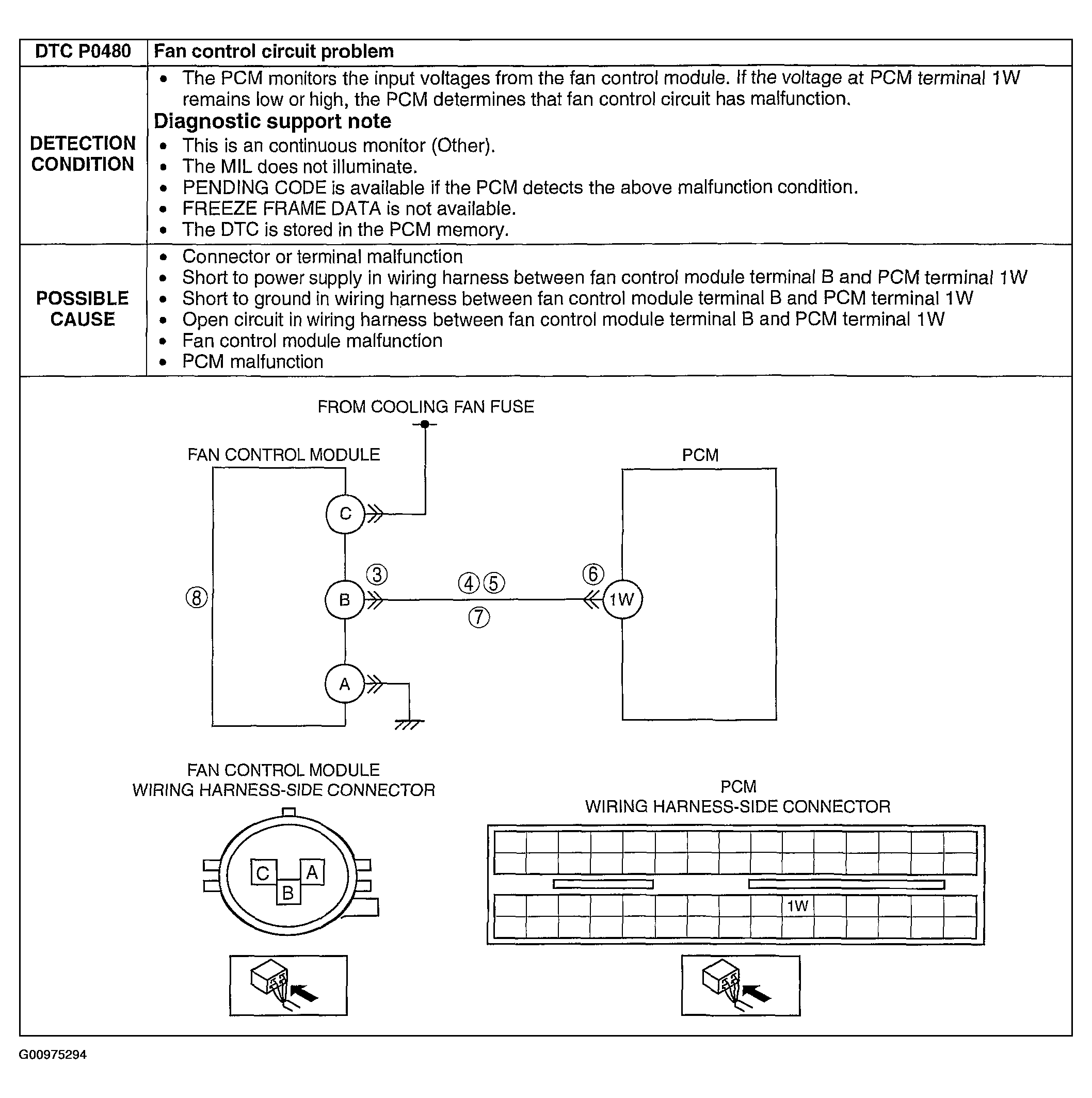

Fig 1: DTC P0480: Detection Condition & Possible Causes Chart

G00975294

Courtesy of MAZDA MOTORS CORP.
