Home >> Mazda >> 2004 >> 3 i, Automatic >> Repair and Diagnosis >> Engine Performance >> System >> On-Board Diagnostic [Engine Control System] >> DTC P2109: TP Sensor Minimum Stop/Performance Problem >> Notes

DTC P2109: TP Sensor Minimum Stop/Performance Problem: Notes

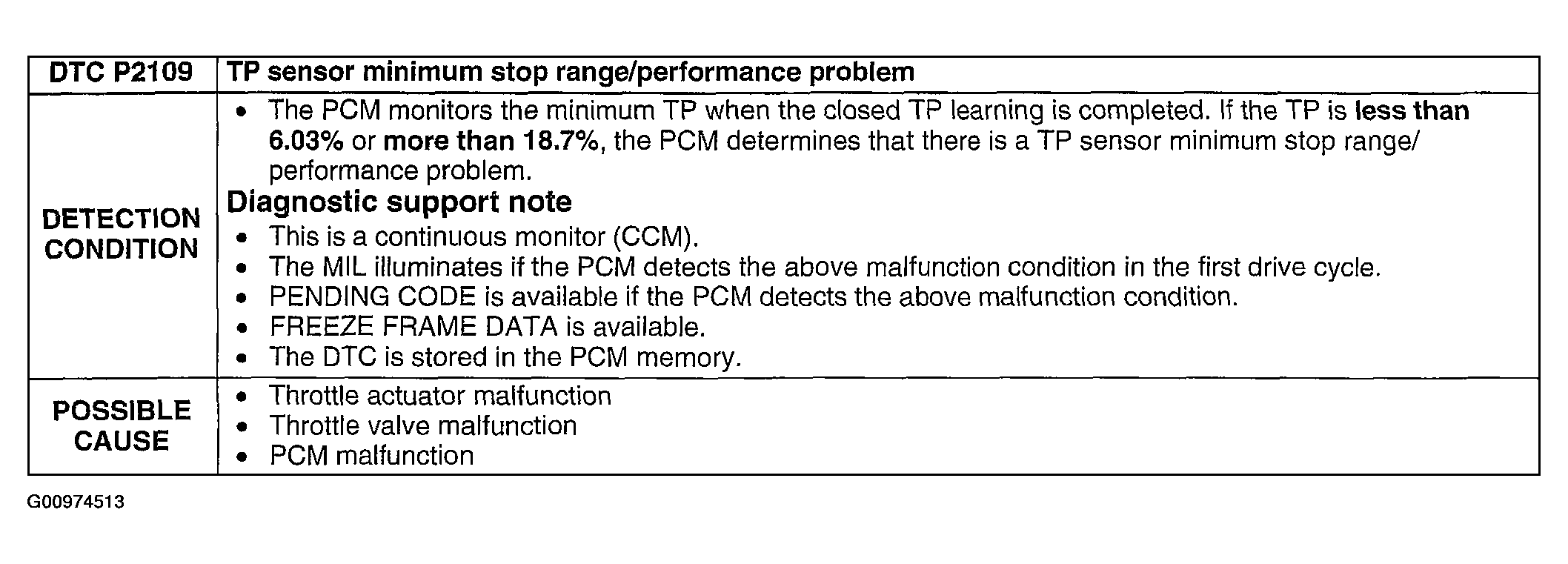

Fig 1: DTC P2109: Detection Condition & Possible Causes Chart

G00974513

Courtesy of MAZDA MOTORS CORP.
