Monitoring System And Control System Device Relationship Chart

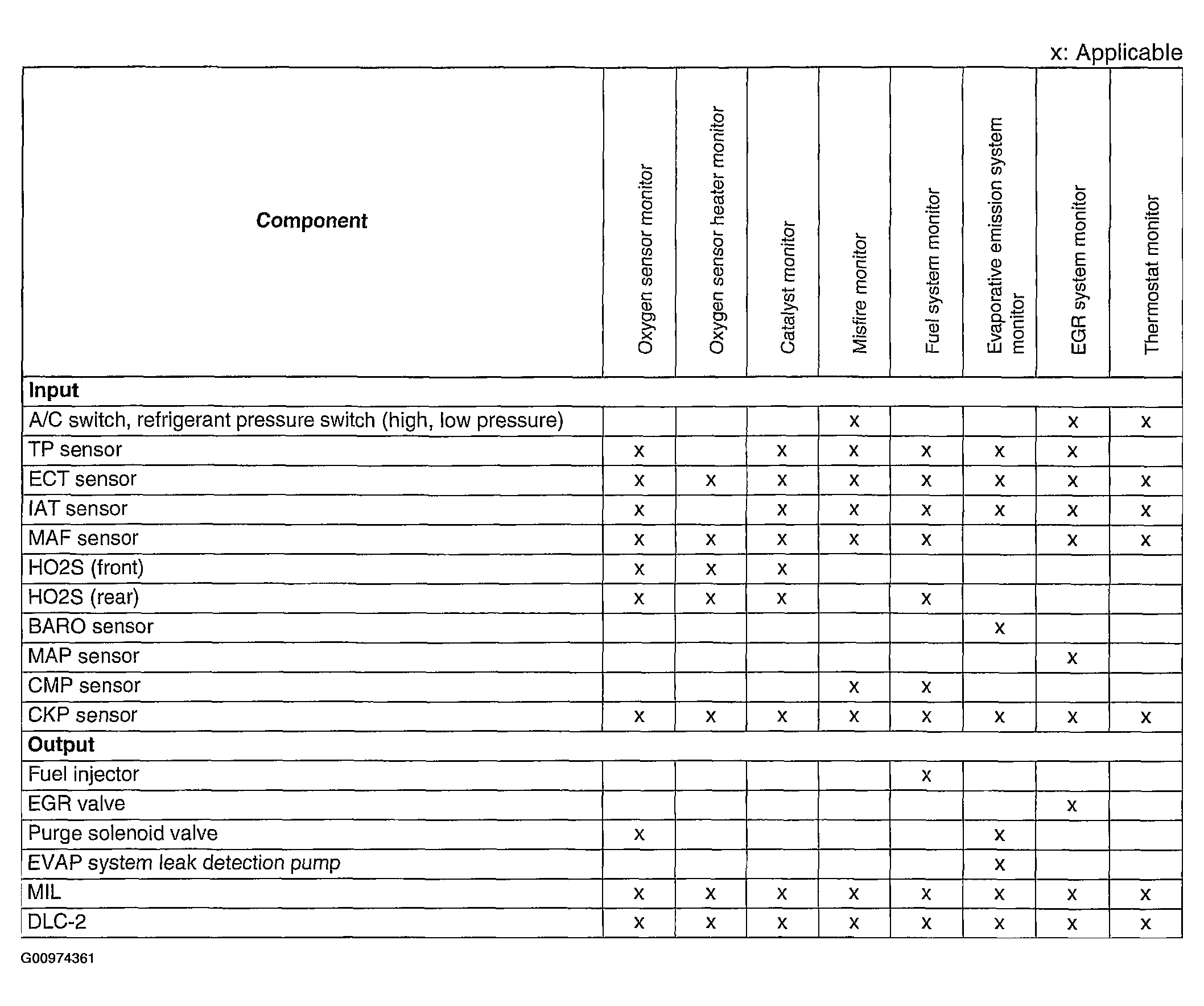

Fig 1: Monitoring System & Control System Device Relationship Chart

G00974361

Courtesy of MAZDA MOTORS CORP.
