Visual inspection

  1. Inspect the following items:
    • If there is any malfunction, replace the spark plug.
      • Insulator breakage
      • Worn electrode
      • Damaged gasket
      • Badly burned insulator (sparking side)

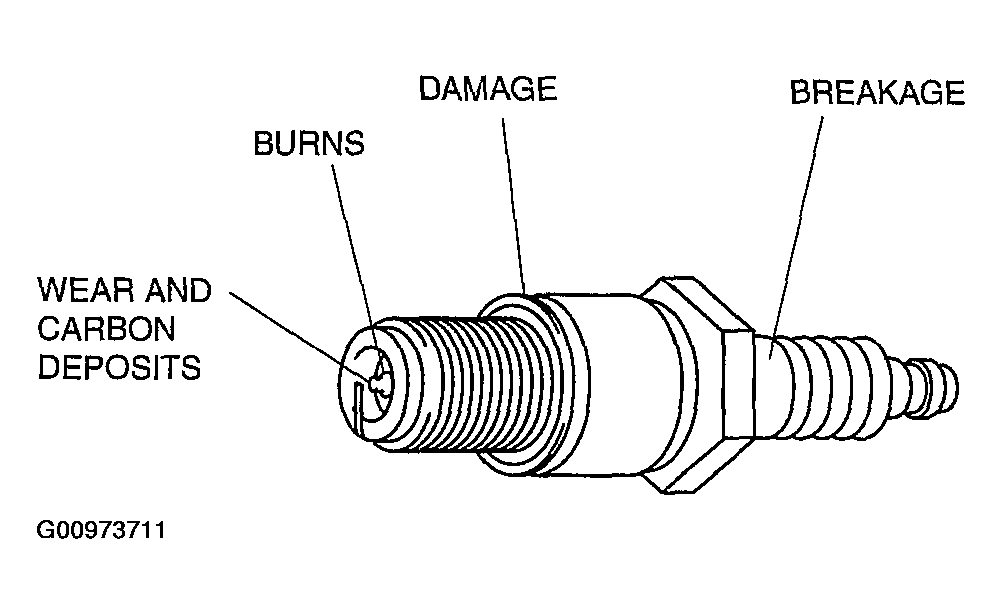

        Fig 1: Inspecting Spark Plug For Damage
        G00973711Courtesy of MAZDA MOTORS CORP.
