Data Monitoring And Recording Procedure: Notes

WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the WDS or equivalent to the diagnostic connector 2 (16-pin).
  2. Verify the data monitor items.

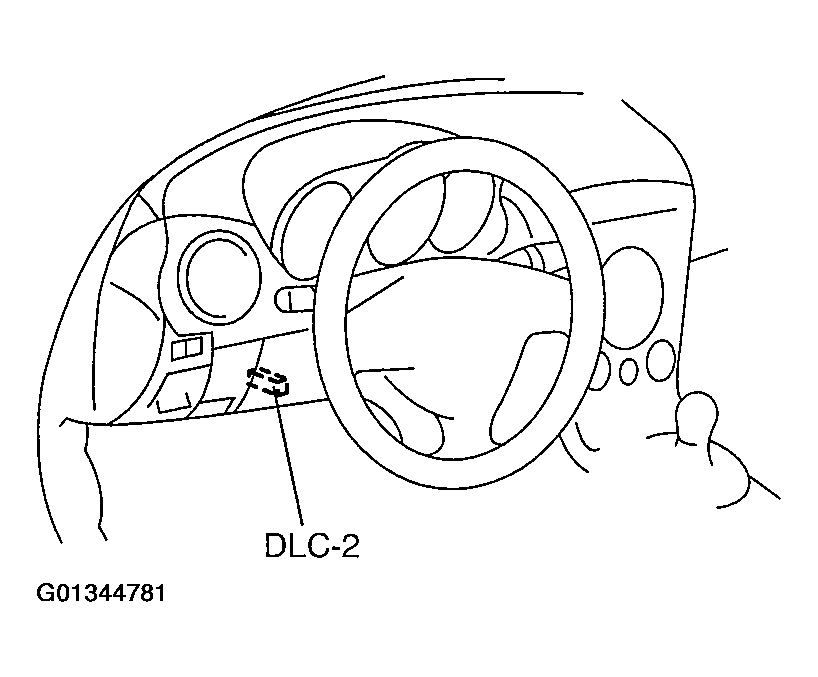

    Fig 1: Locating Data Link Connector
    G01344781Courtesy of MAZDA MOTORS CORP.
