Instrument Cluster Configuration

WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

Connect the WDS or equivalent to the DLC-2 (16-pin).
Input vehicle information following the directions on the screen.
Select "Module programming" from the menu.
Select "Programmable Module Installation".
Select the item below, and follow the directions on the screen.
Item

"IC"

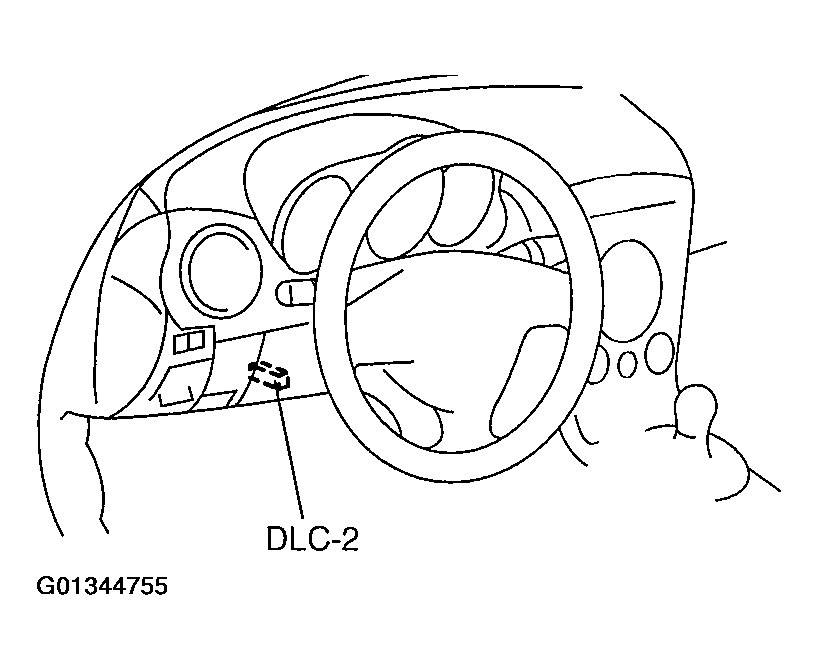

Fig 1: Locating Data Link Connector
Courtesy of MAZDA MOTORS CORP.
