Instrument Cluster Disassembly/Assembly

WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

Do not drop the instrument cluster or damage the printed board. This will lead to a system malfunction.

Disassemble in the order indicated in the figure. See Fig 1.

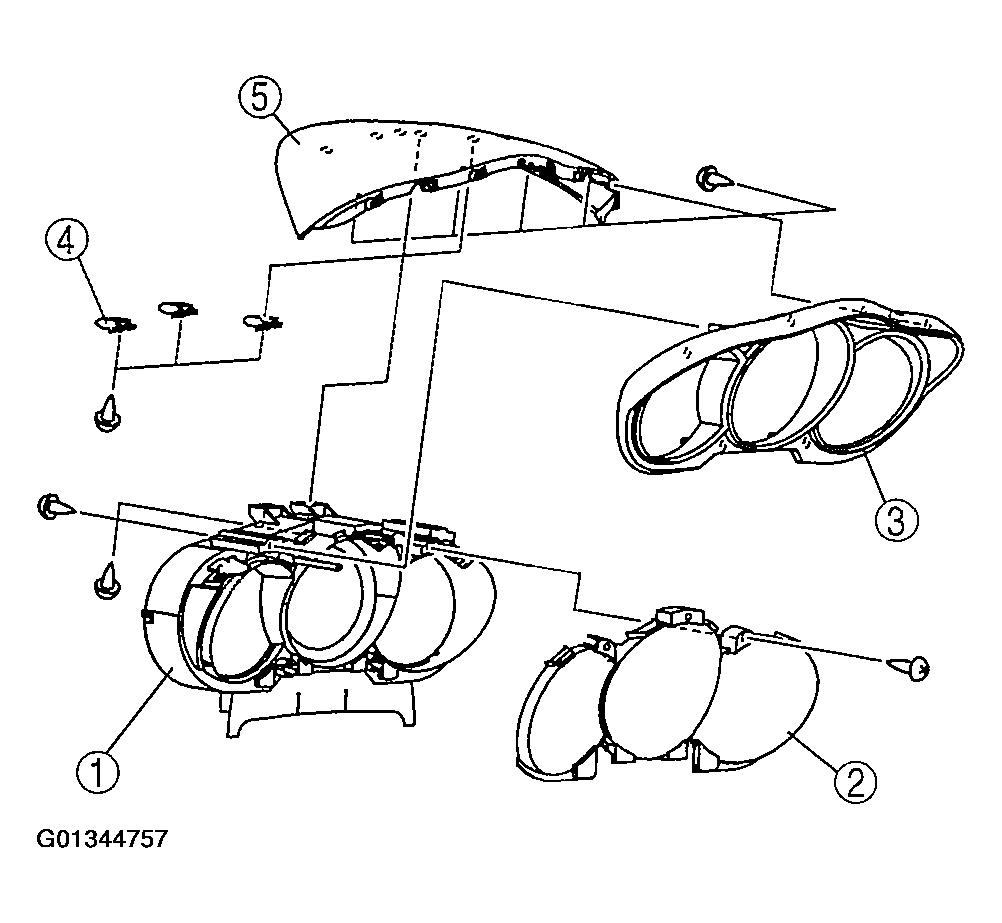

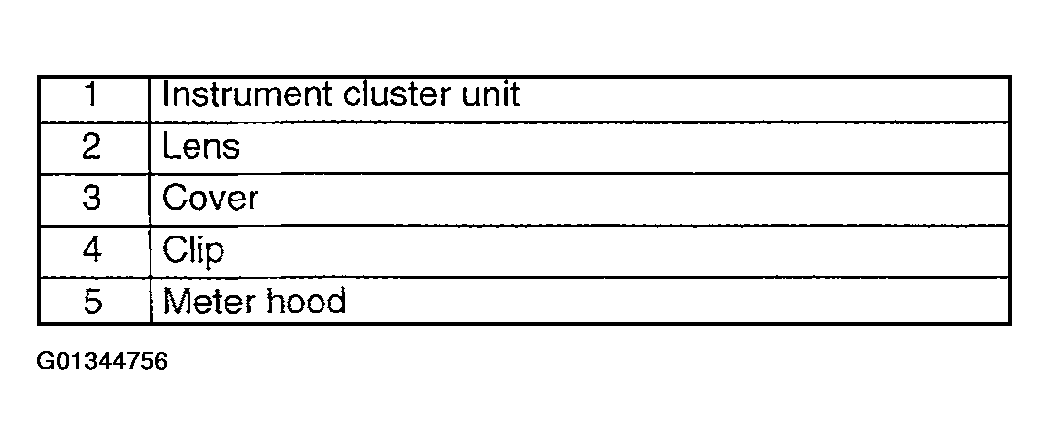

Fig 1: Removal Order Of Instrument Cluster
Courtesy of MAZDA MOTORS CORP.
Assemble in the reverse order of disassembly.

Fig 2: Removing/Installing Instrument Cluster
Courtesy of MAZDA MOTORS CORP.
