Selector Lever Component Removal/Installation: Notes

  1. Remove the battery cover.
  2. Disconnect the negative battery cable.
  3. Remove the battery, battery box and battery tray.
  4. Remove the air cleaner component. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [L3] .)
  5. Remove the console. (See CONSOLE REMOVAL/INSTALLATION .)
  6. Remove the heat insulator (front and center).
  7. Remove in the order indicated in the table.
  8. Install in the reverse order of removal.

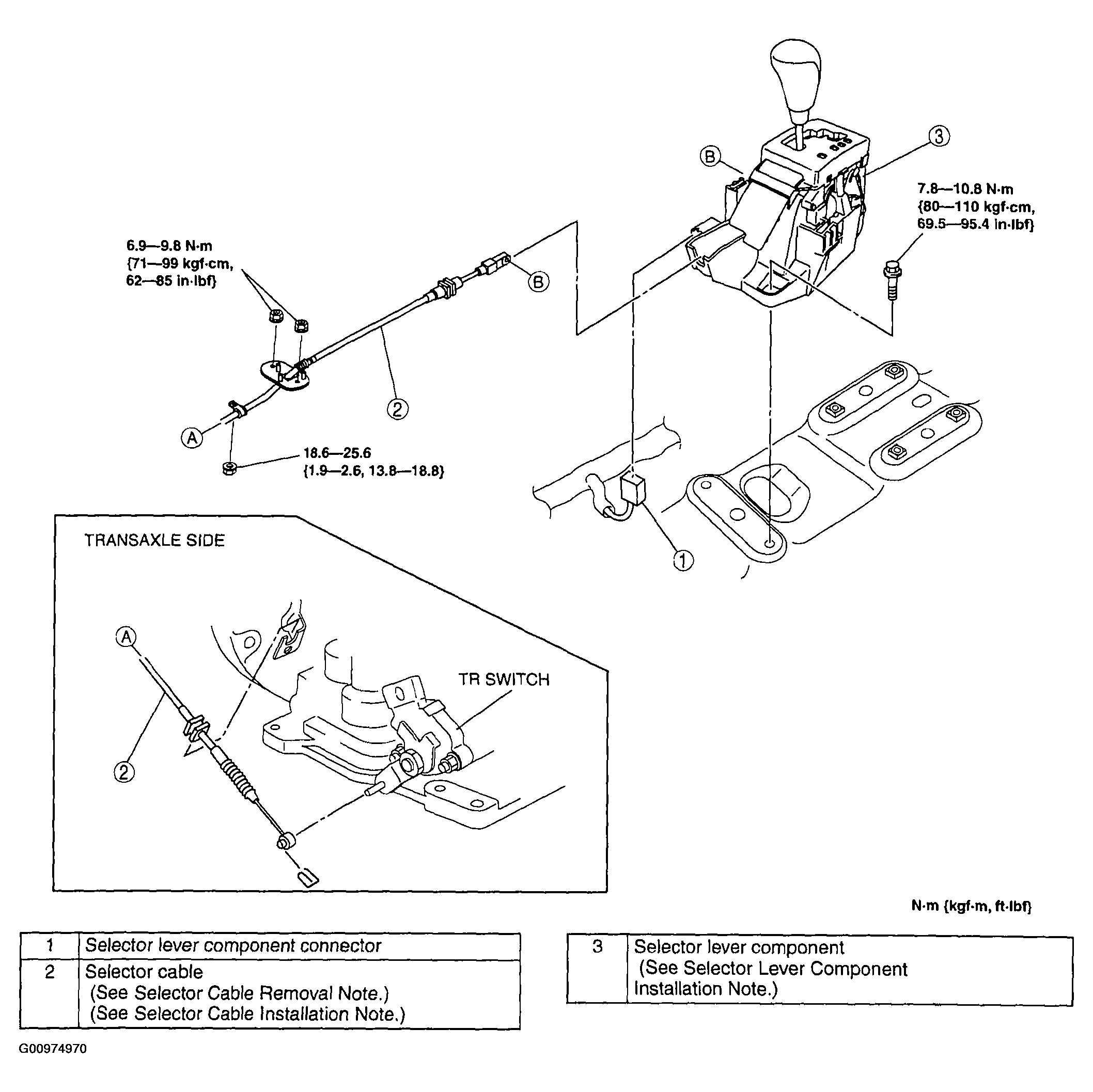

    Fig 1: Selector Lever Component With Torque Specifications
    G00974970Courtesy of MAZDA MOTORS CORP.
