Engine Control System (L3)
>>
Clutch Switch Inspection
>>
Continuity Inspection
>>
Specification
Continuity Inspection: Specification

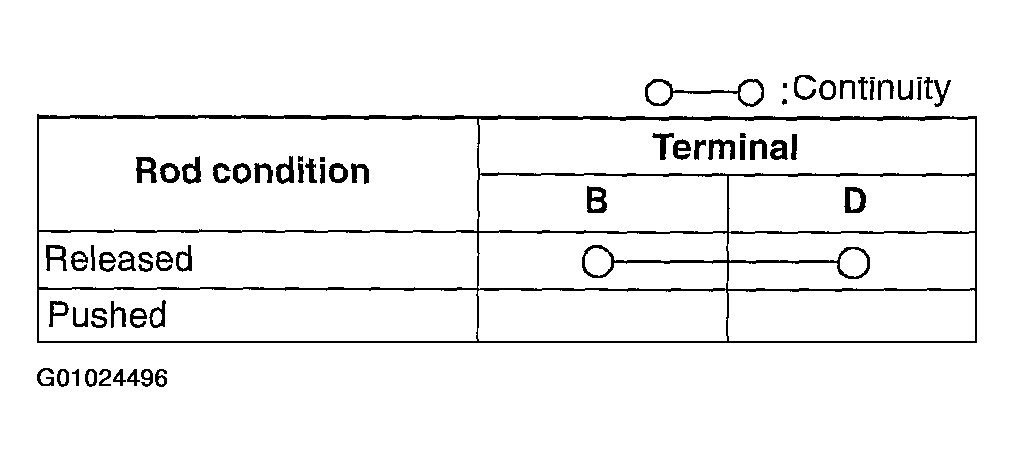

Fig 1: Continuity Specification Table
Courtesy of MAZDA MOTORS CORP.

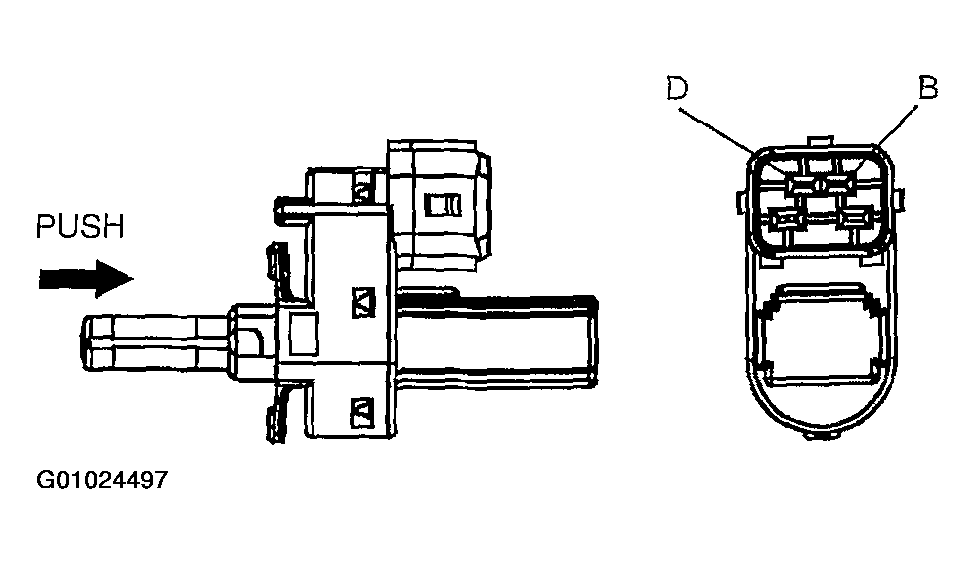

Fig 2: Locating Terminals Of Clutch Switch Connector
Courtesy of MAZDA MOTORS CORP.
