TCS Off Switch Inspection

  1. Remove the TCS OFF switch.
  2. Inspect for continuity between the TCS OFF switch terminals using an ohmmeter.
    • If not as specified, replace the TCS OFF switch.

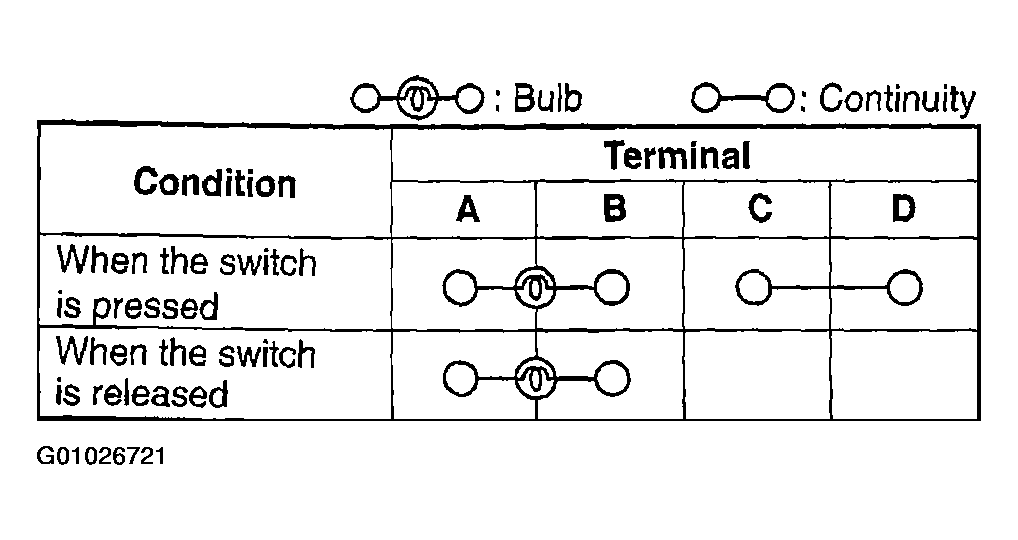

      Fig 1: TCS Off Switch Continuity
      G01026721Courtesy of MAZDA MOTORS CORP.

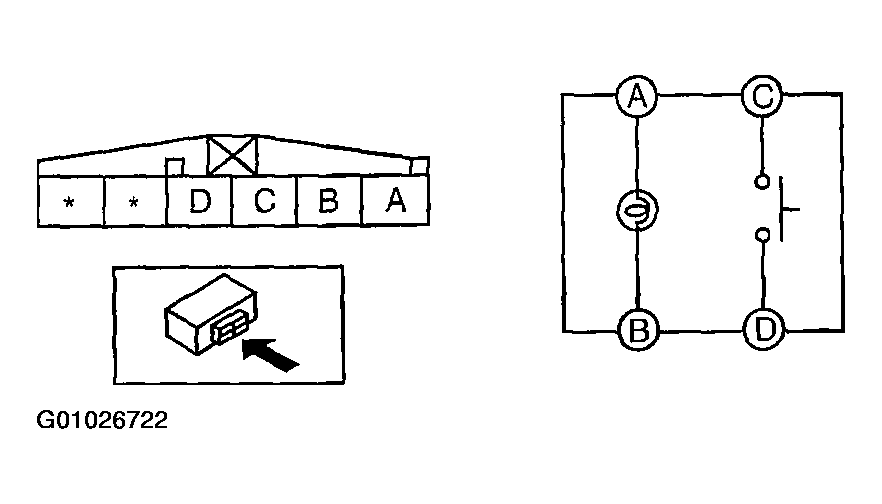

      Fig 2: Identifying TCS Off Switch Connector Terminals
      G01026722Courtesy of MAZDA MOTORS CORP.
