Pcm Inspection: Notes

Connect the WDS or equivalent to the DLC-2.
Turn the ignition switch to ON position.
Measure the PID value.
- If PID value is not within the specification, follow the instructions in Action column.

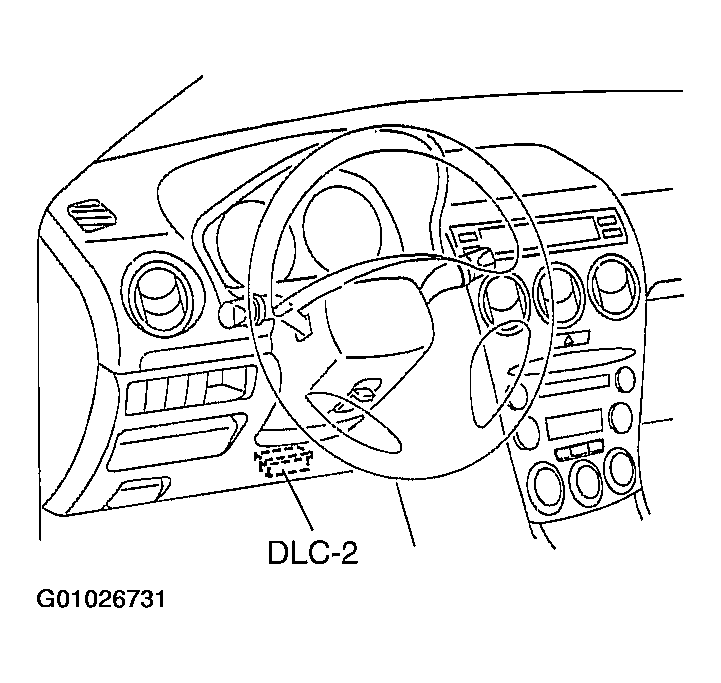

Fig 1: Locating DLC-2 Connector

Courtesy of MAZDA MOTORS CORP.

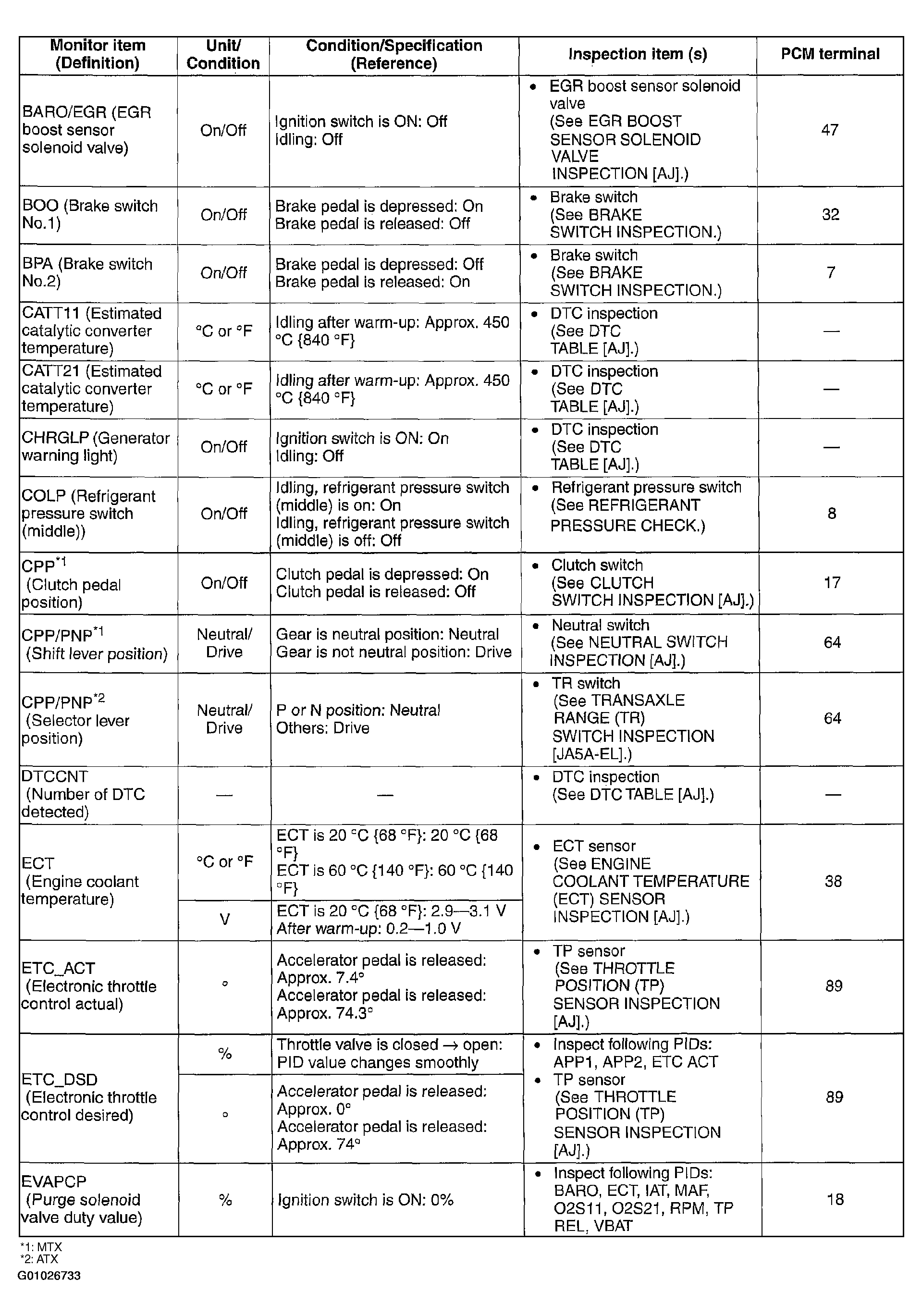

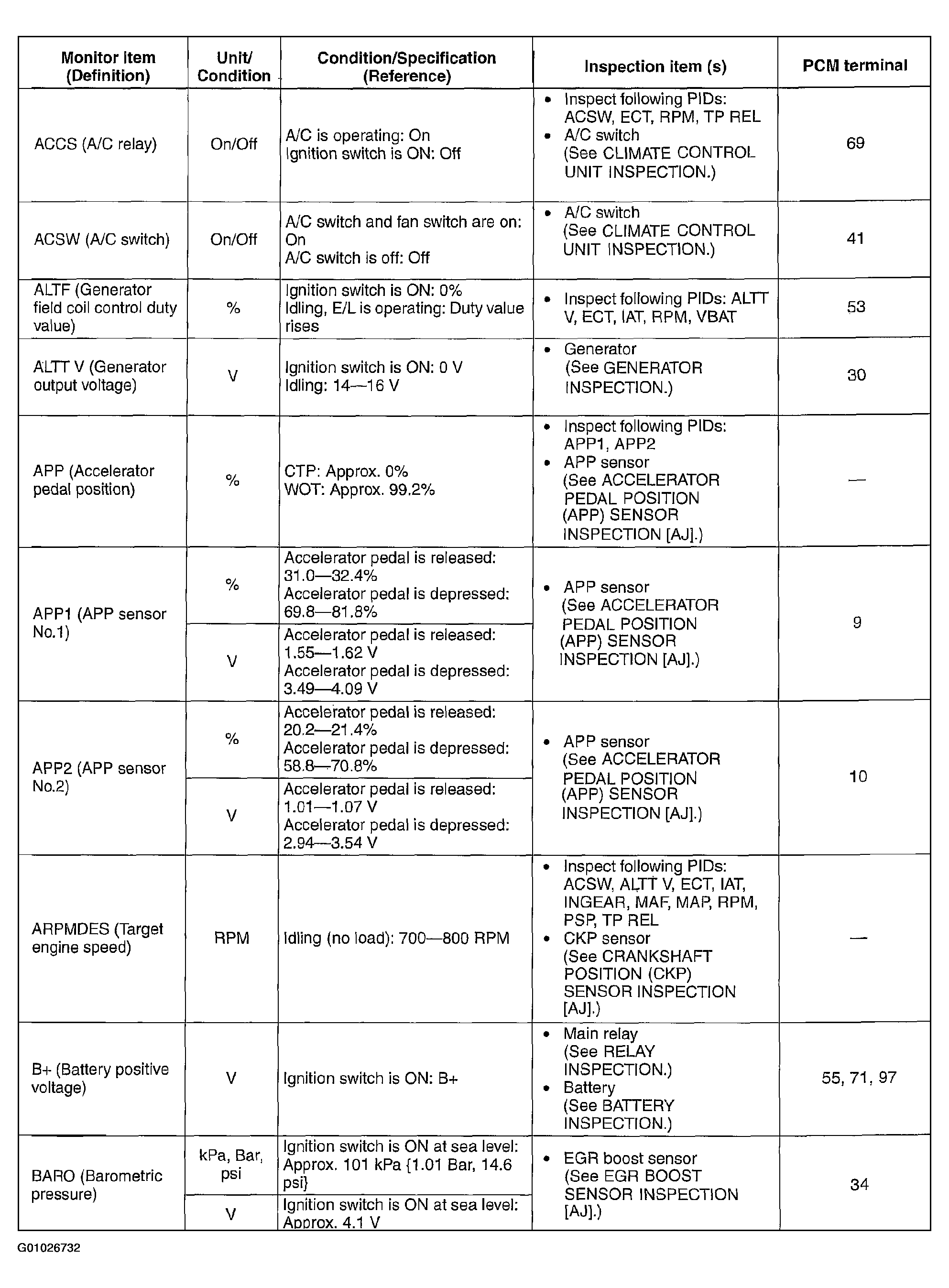

Fig 2: PID/DATA Monitor Reference Table (1 Of 7)

Courtesy of MAZDA MOTORS CORP.

Fig 3: PID/DATA Monitor Reference Table (2 Of 7)

Courtesy of MAZDA MOTORS CORP.

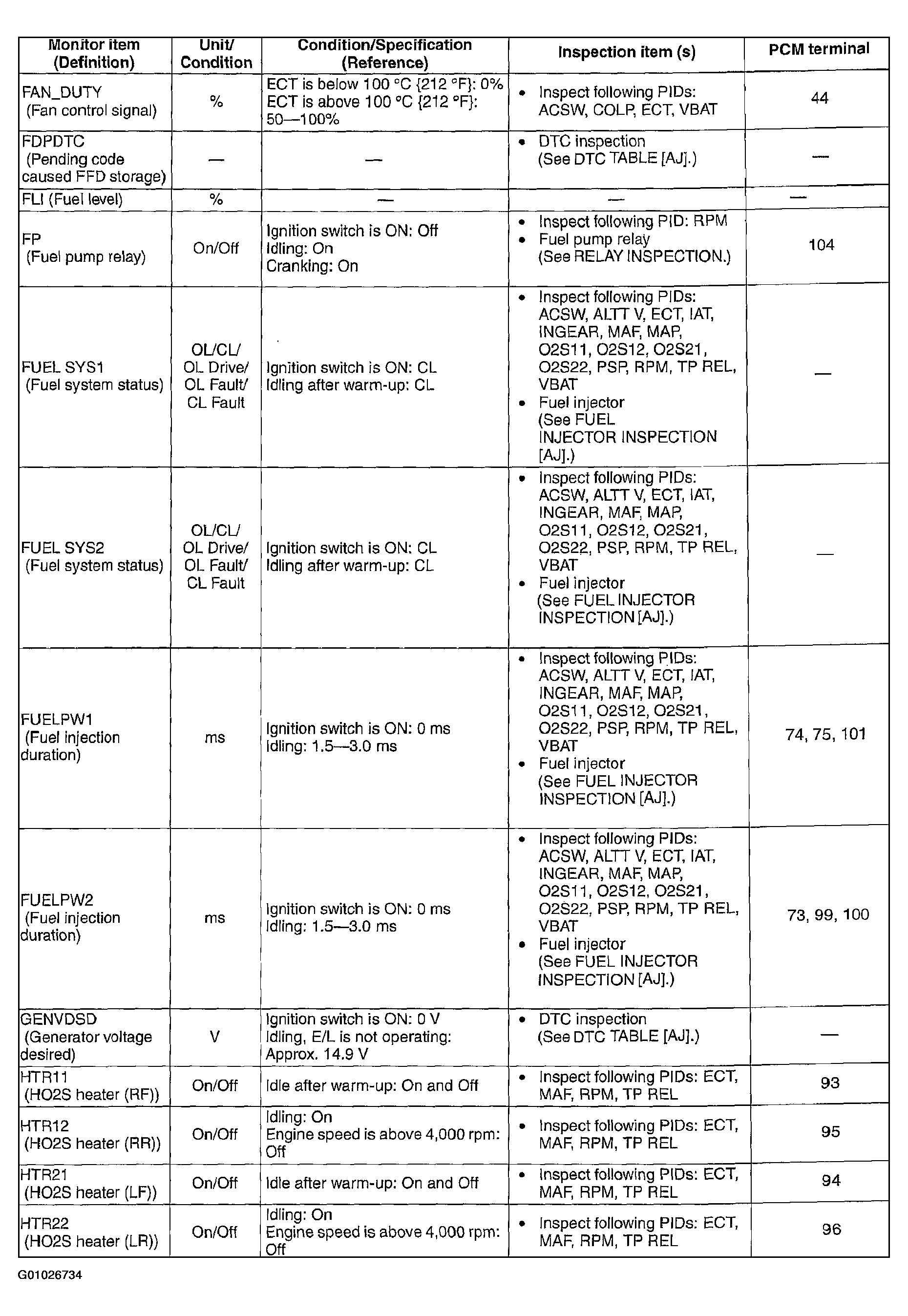

Fig 4: PID/DATA Monitor Reference Table (3 Of 7)

Courtesy of MAZDA MOTORS CORP.

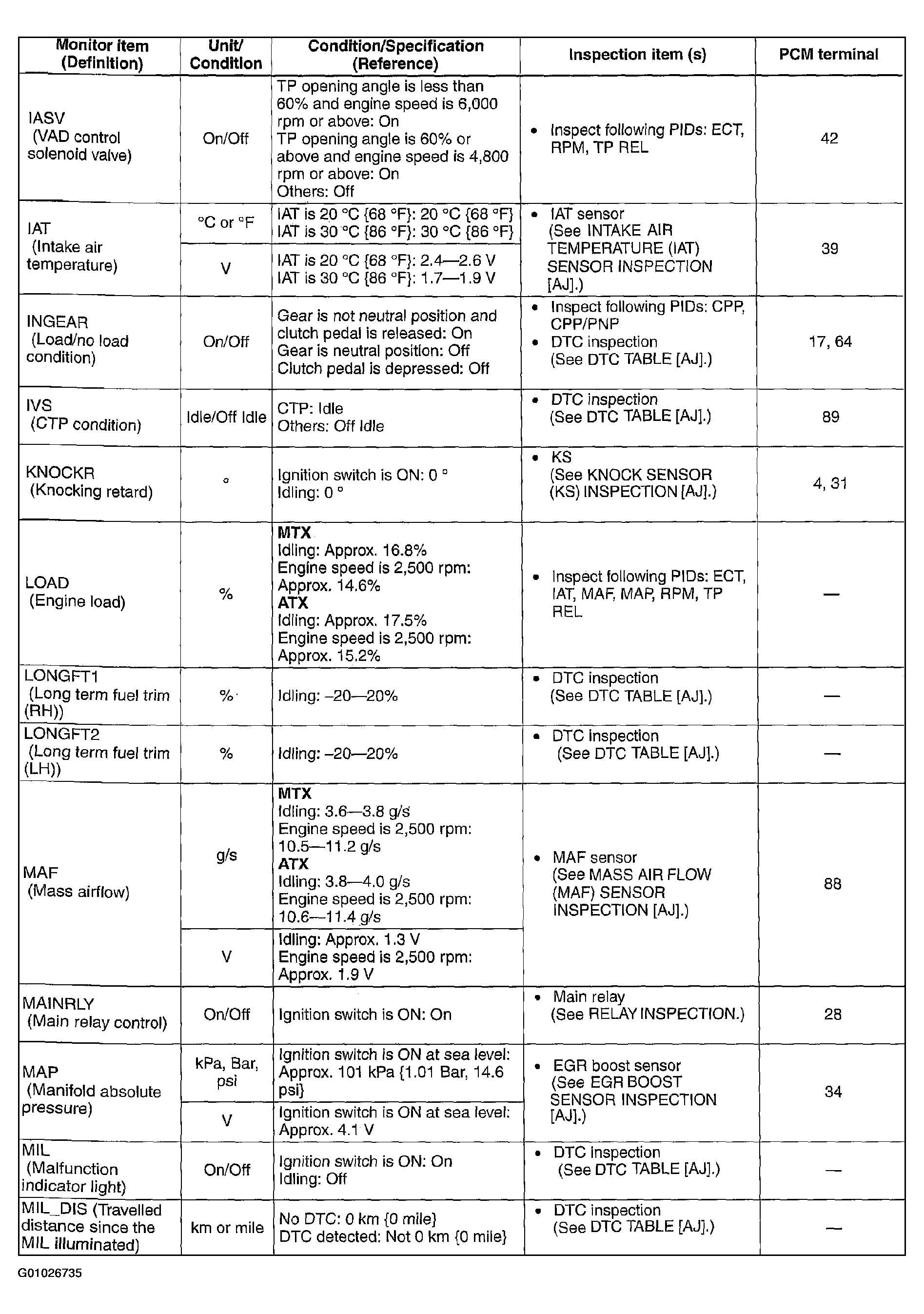

Fig 5: PID/DATA Monitor Reference Table (4 Of 7)

Courtesy of MAZDA MOTORS CORP.

Fig 6: PID/DATA Monitor Reference Table (5 Of 7)

Courtesy of MAZDA MOTORS CORP.

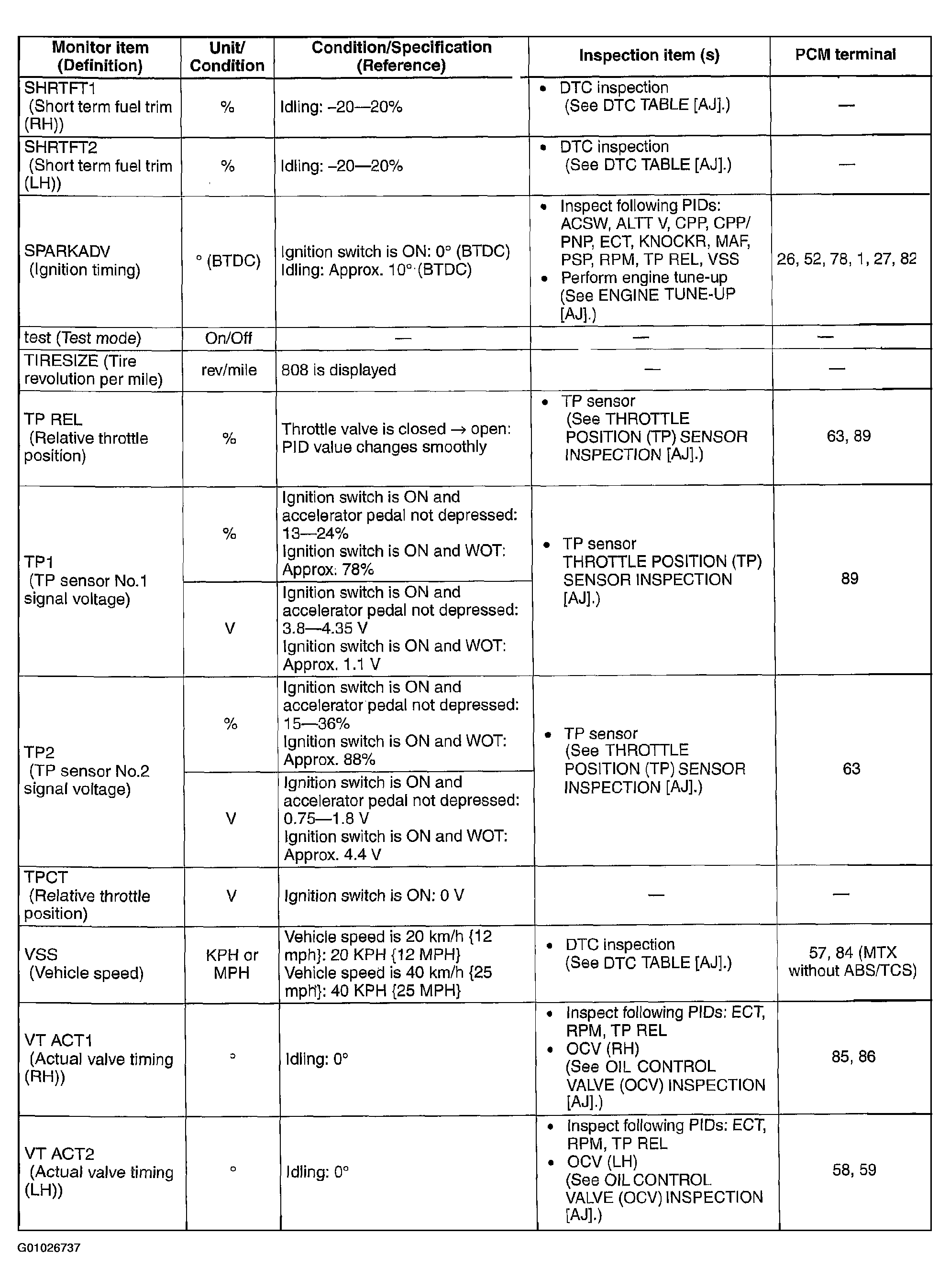

Fig 7: PID/DATA Monitor Reference Table (6 Of 7)

Courtesy of MAZDA MOTORS CORP.

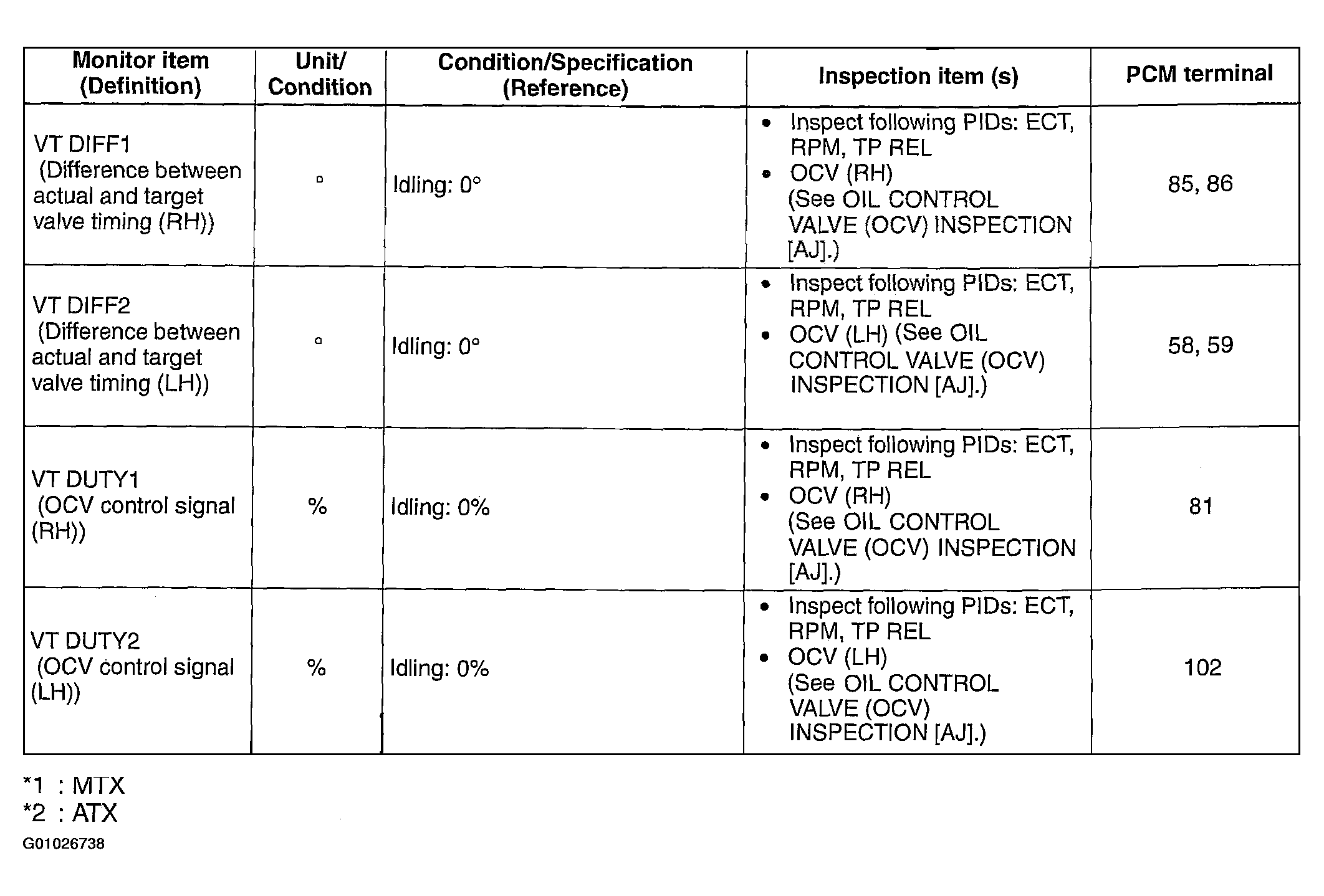

Fig 8: PID/DATA Monitor Reference Table (7 Of 7)

Courtesy of MAZDA MOTORS CORP.
