Tailgate Lock Remote Control Removal/Installation

Remove the tailgate access cover.
Open the tailgate lock rod retainer.
Disconnect the tailgate lock rods from the remote control.
Remove in order shown in figure.
1. Nuts
2. Handle
3. Remote control
  NOTE:
  - Prior to installation, remove the slack in the tailgate lock release links by pulling the tailgate lock release links to the center of the tailgate. Close the plastic clip over the thread of the tailgate latch release links.

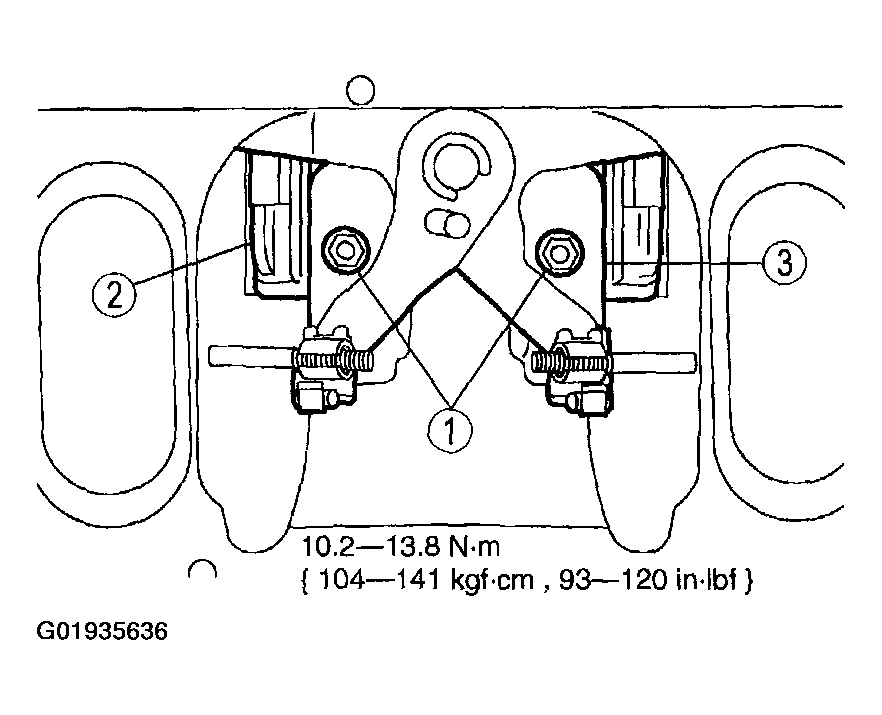

Fig 1: Removing/Installing Tailgate Lock Remote Control
Courtesy of MAZDA MOTORS CORP.
Install in reverse order of removal.
