Charging System Specifications
Charging System Specifications
Fig 1: Charging System Specifications (1 Of 2)
Courtesy of MAZDA MOTORS CORP.

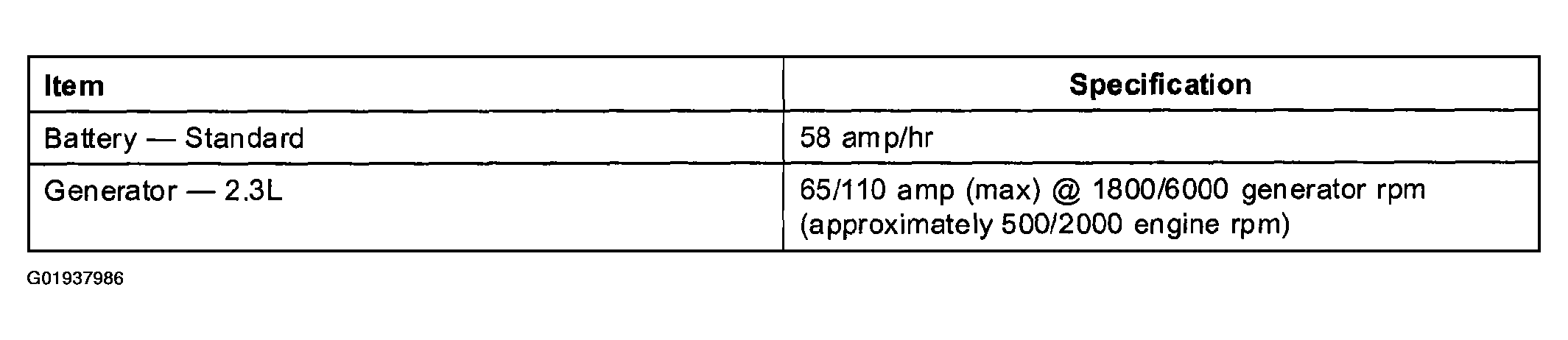

Fig 2: Charging System Specifications (2 Of 2)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
