Engine Ignition Specifications - 2.3L

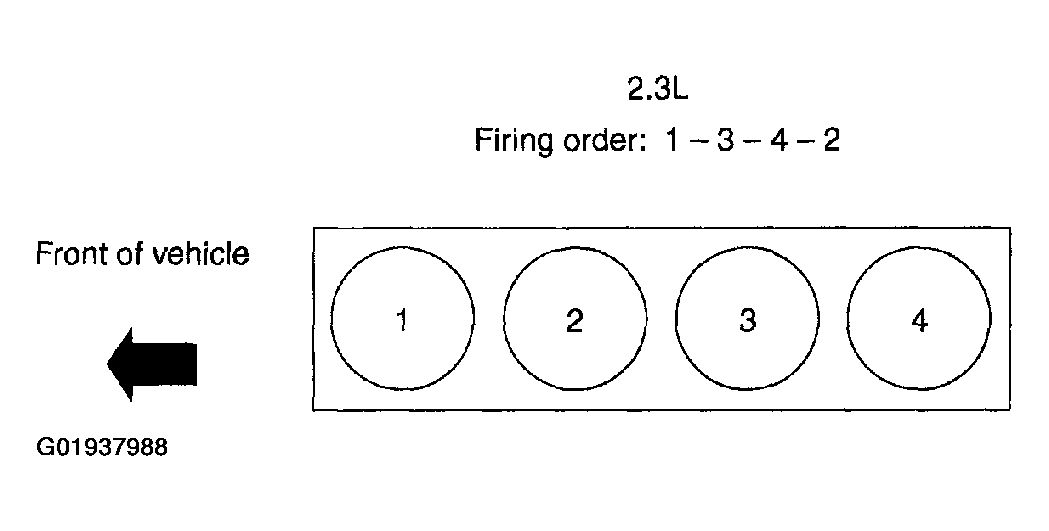

Fig 1: Firing Order - 2.3L

Courtesy of MAZDA MOTORS CORP.

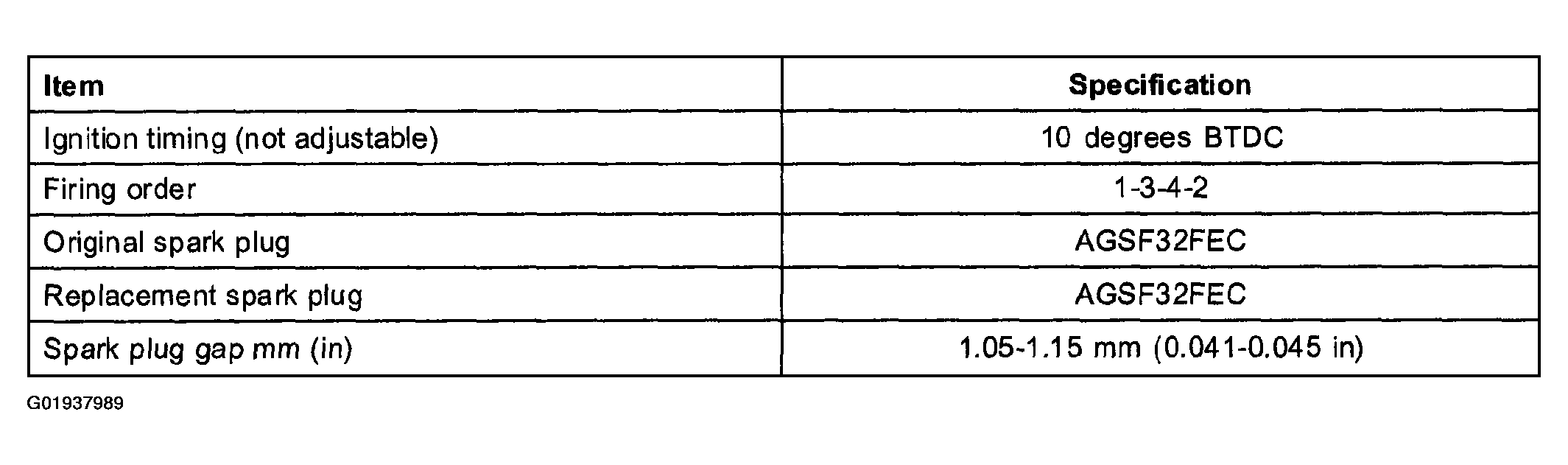

Fig 2: Engine Ignition Specifications - 2.3L

Courtesy of MAZDA MOTORS CORP.

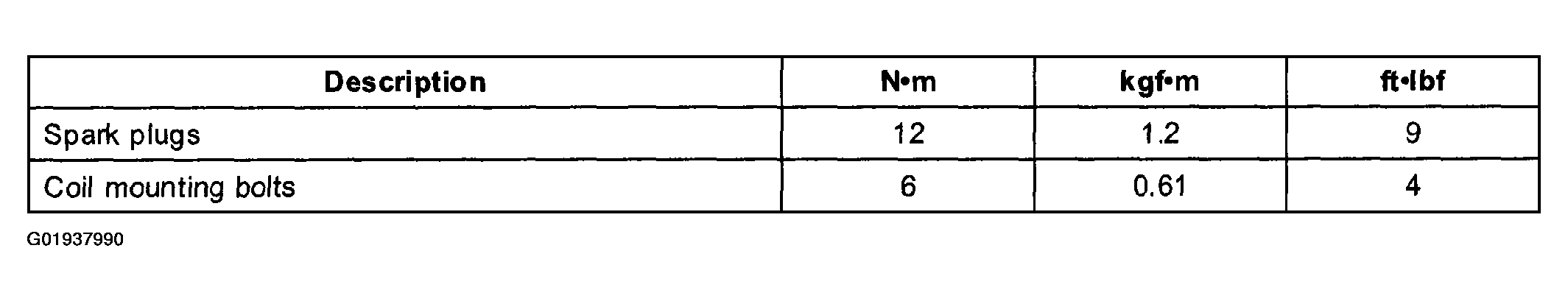

Fig 3: Ignition Torque Specifications

Courtesy of MAZDA MOTORS CORP.
