Engine Ignition Specifications -3.0L

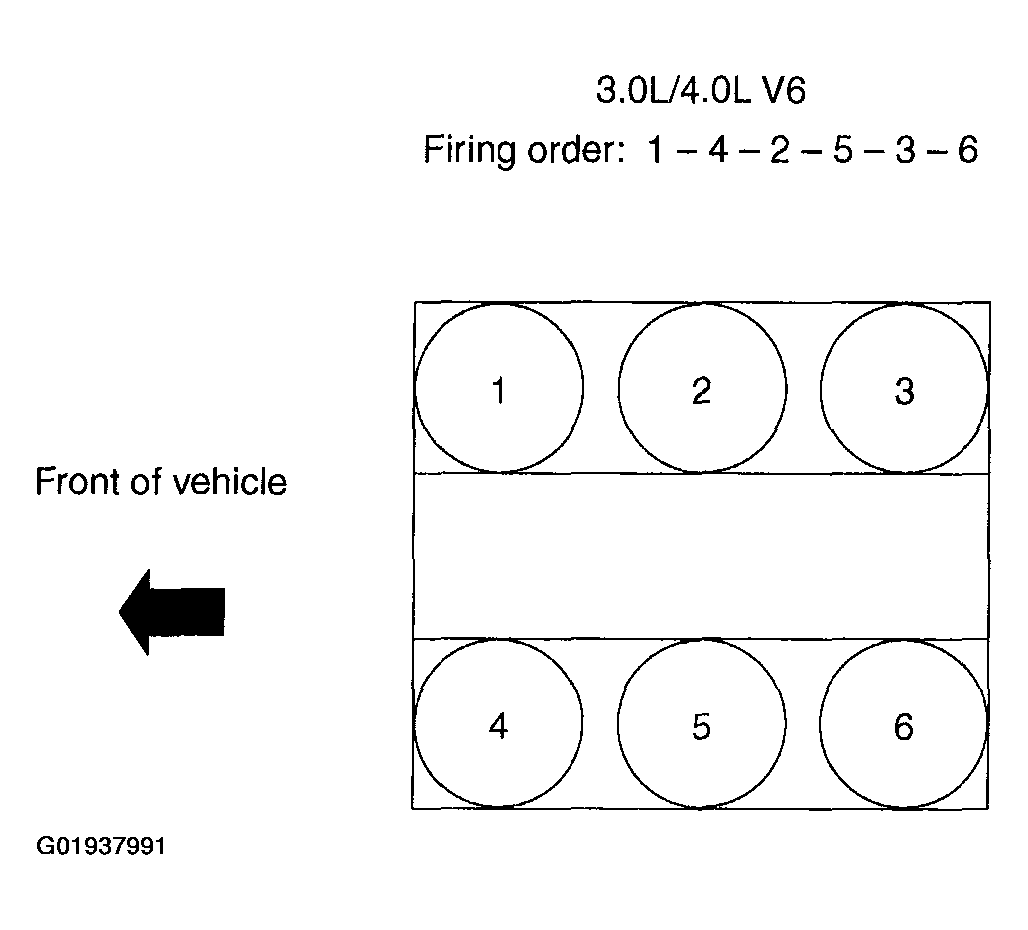

Fig 1: Firing Order - 3.0/4.0L V6

G01937991

Courtesy of MAZDA MOTORS CORP.

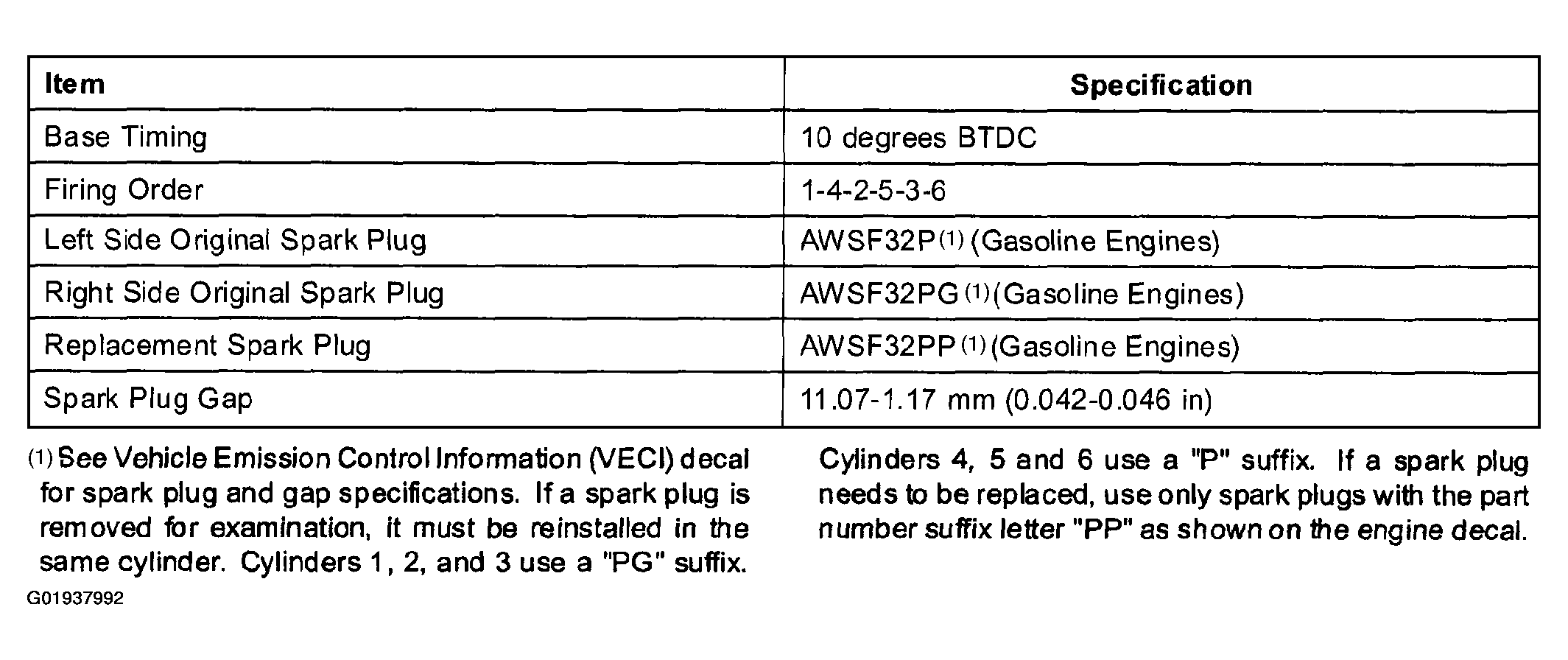

Fig 2: Engine Ignition Specifications -3.0L

G01937992

Courtesy of MAZDA MOTORS CORP.
