lemon-mirror
:
Home
>>
Mazda
>>
2004
>>
B2300 Base, Automatic
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Symptom Troubleshooting [Engine]
>>
General Test Index
>>
Notes
General Test Index: Notes

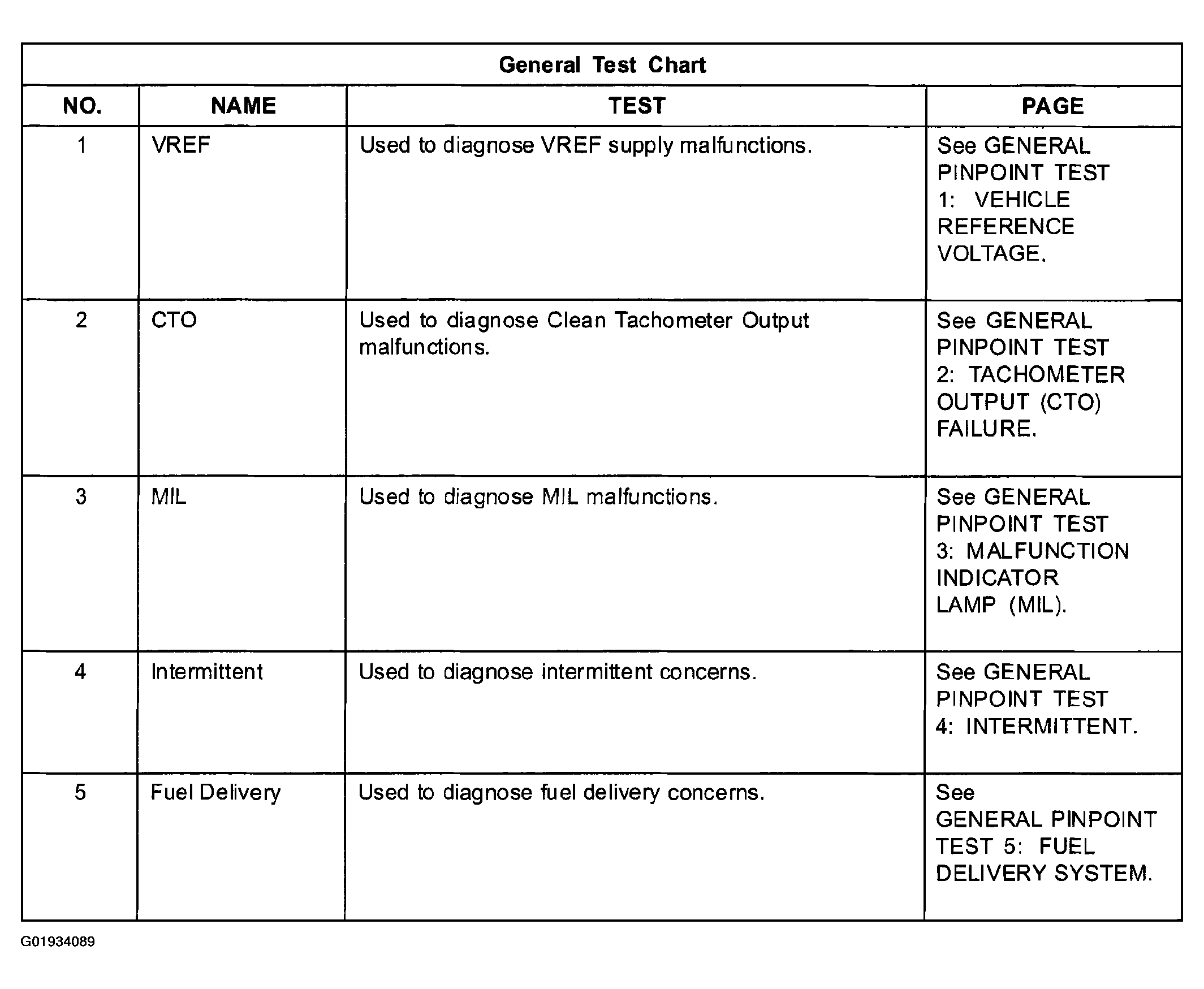

Fig 1: General Test Index - (1-5)
Courtesy of MAZDA MOTORS CORP.

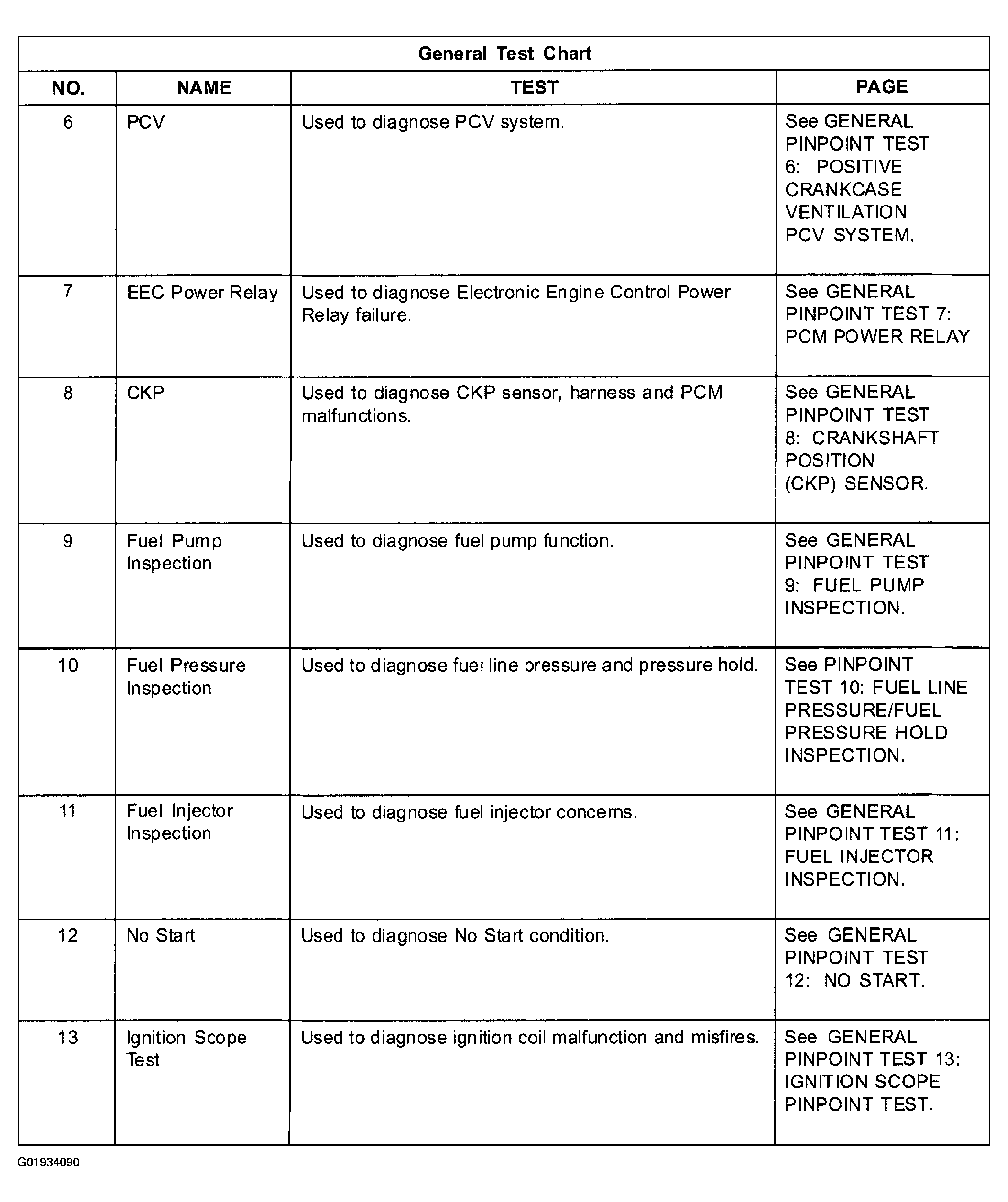

Fig 2: General Test Index - (6-13)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
