Pcm Quick Test: Notes

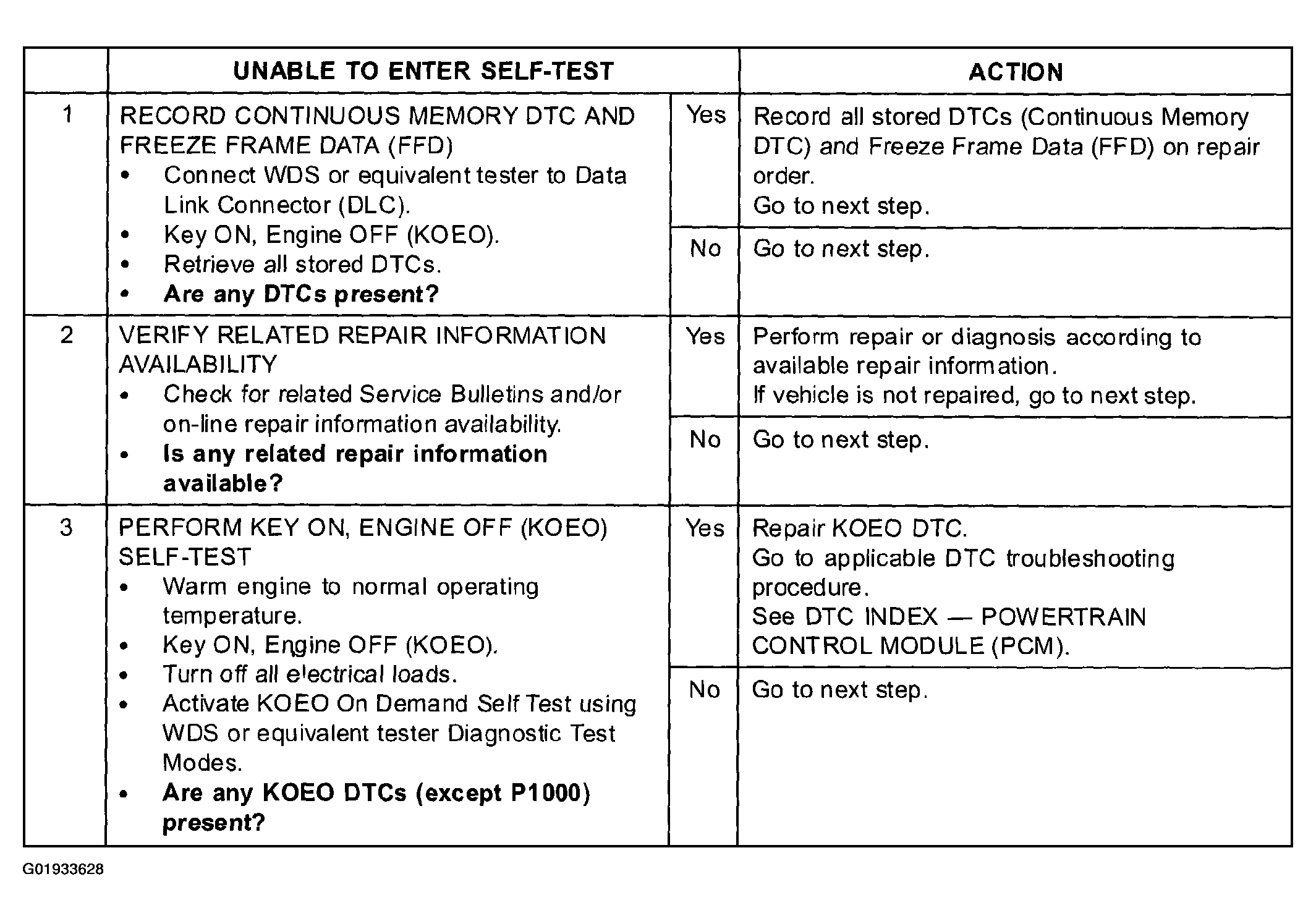

Fig 1: Powertrain Control Module Quick Test Table (Steps 1-3))
G01933628Courtesy of MAZDA MOTORS CORP.

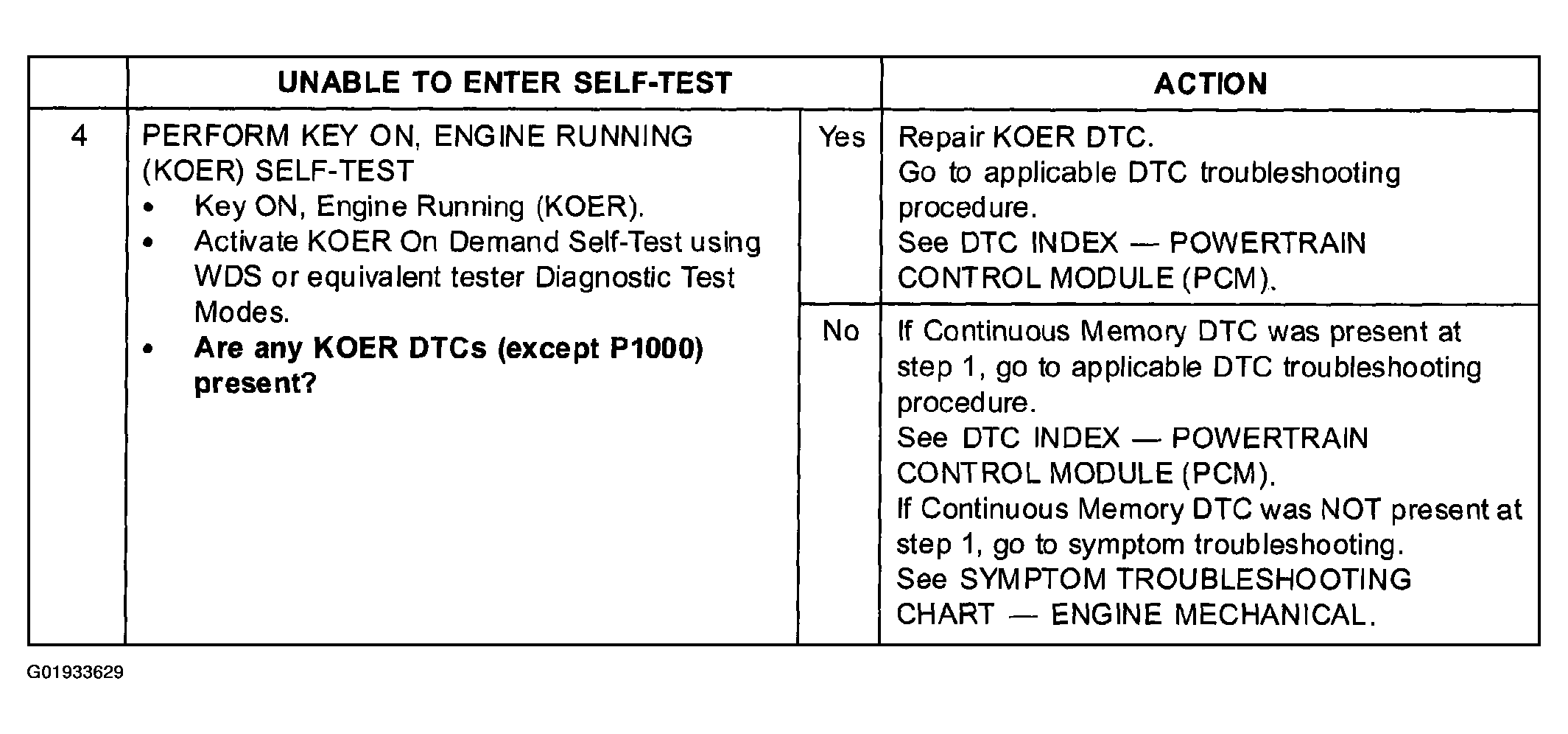

Fig 2: Powertrain Control Module Quick Test Table (Step 4)
G01933629Courtesy of MAZDA MOTORS CORP.
