Symptom Troubleshooting Chart Engine DRIVEABILITY: Backfires

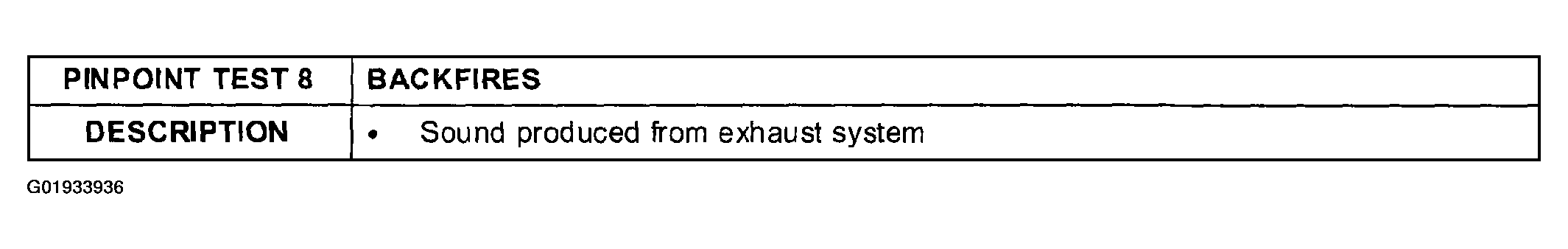

Fig 1: Pinpoint Test 8 - Backfires Description

Courtesy of MAZDA MOTORS CORP.

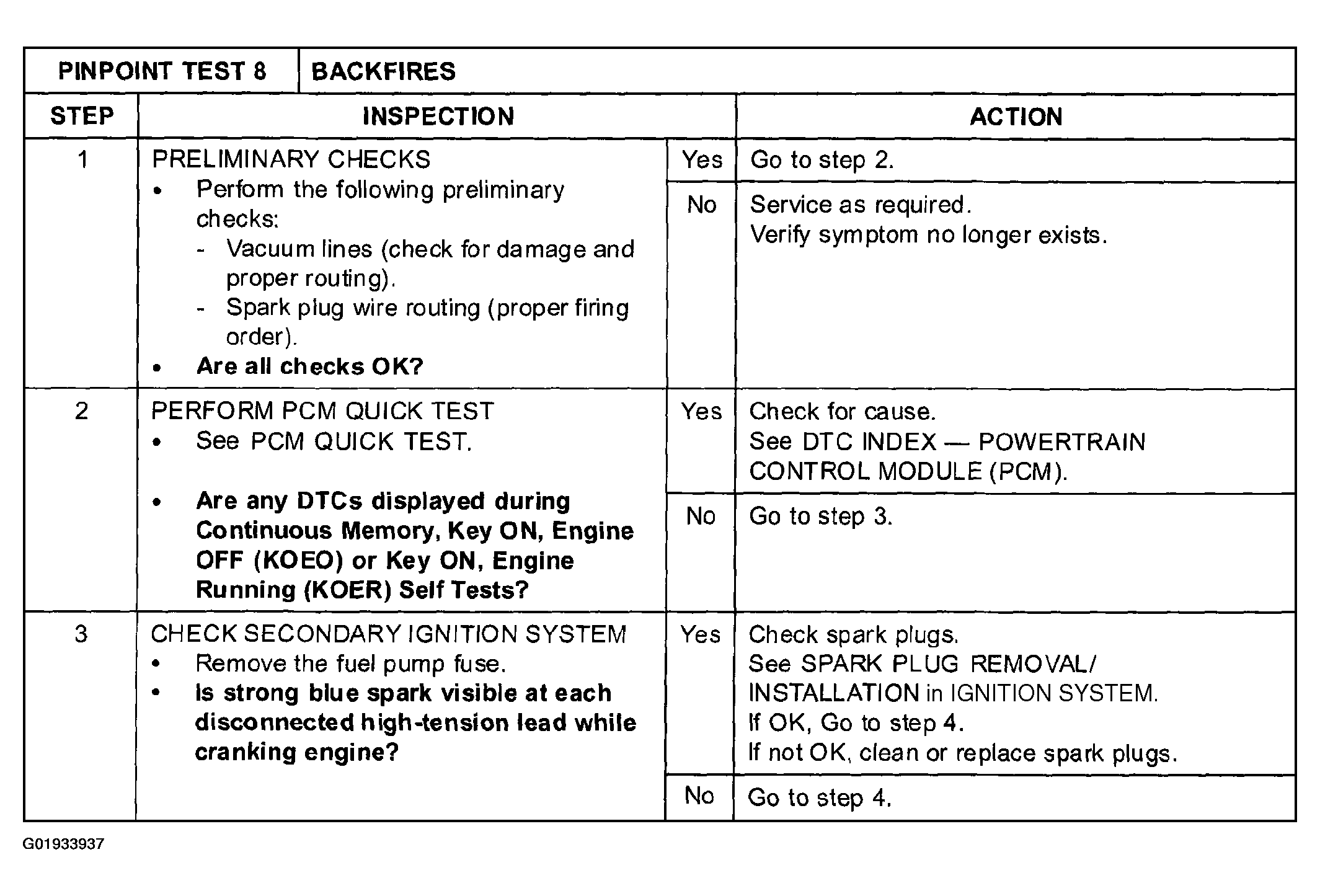

Fig 2: Pinpoint Test 8 - Backfires (Steps 1-3)

Courtesy of MAZDA MOTORS CORP.

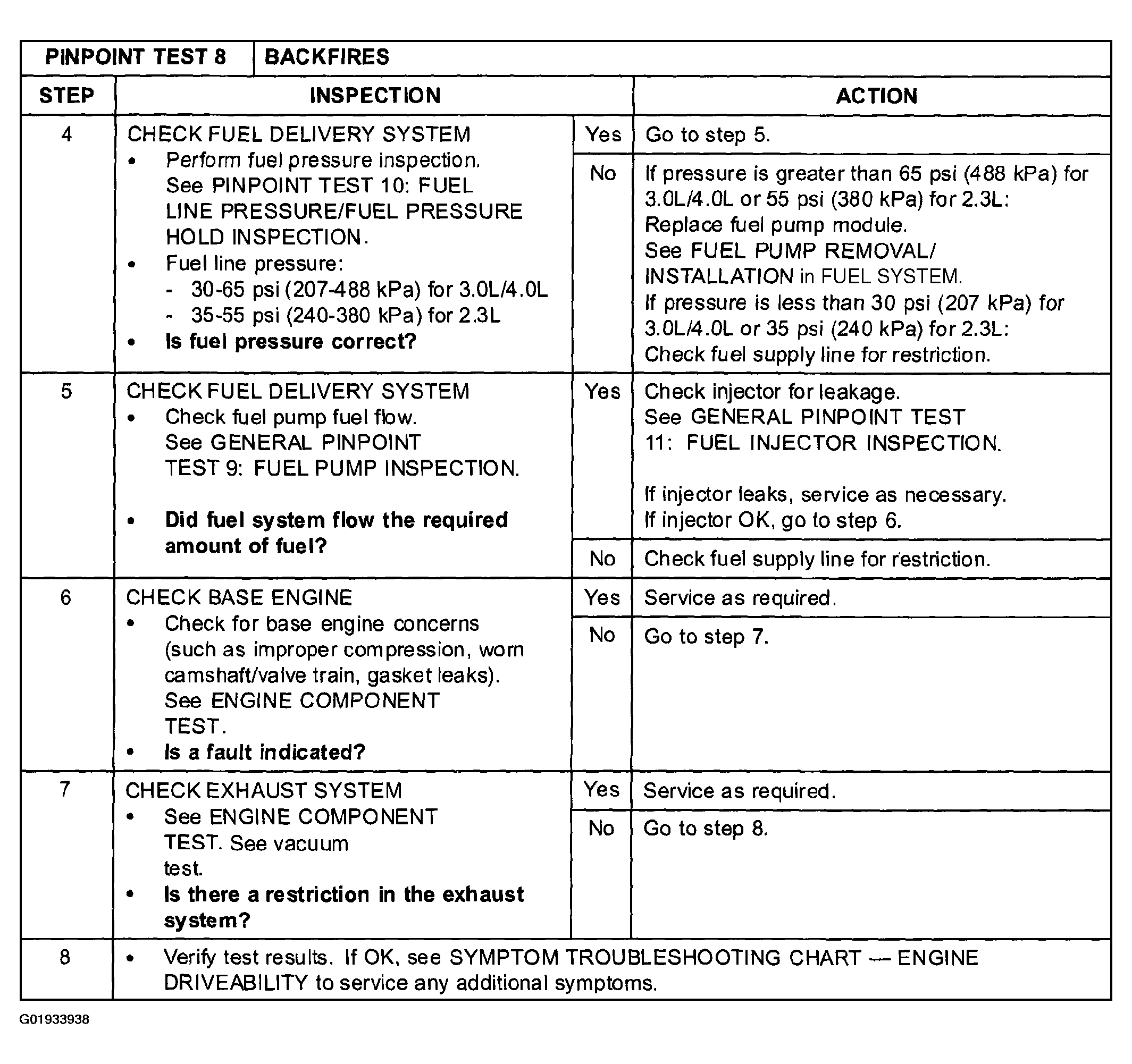

Fig 3: Pinpoint Test 8 - Backfires (Steps 4-8)

Courtesy of MAZDA MOTORS CORP.
