Starting Concerns

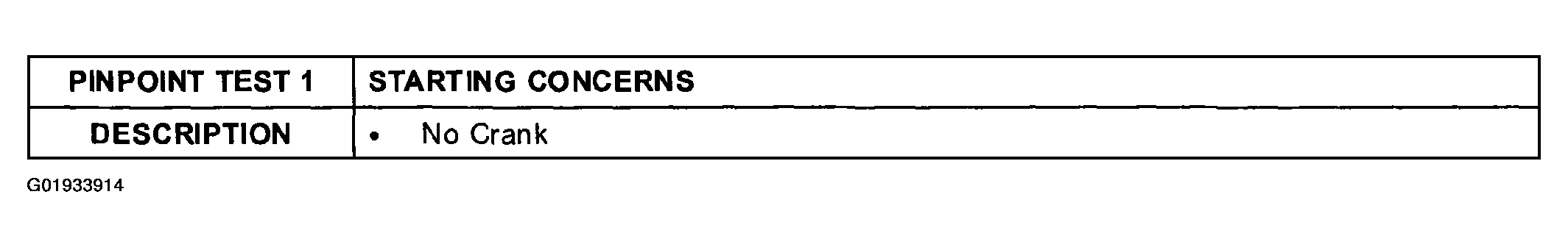

Fig 1: Pinpoint Test 1 - Starting Concerns Description
G01933914Courtesy of MAZDA MOTORS CORP.

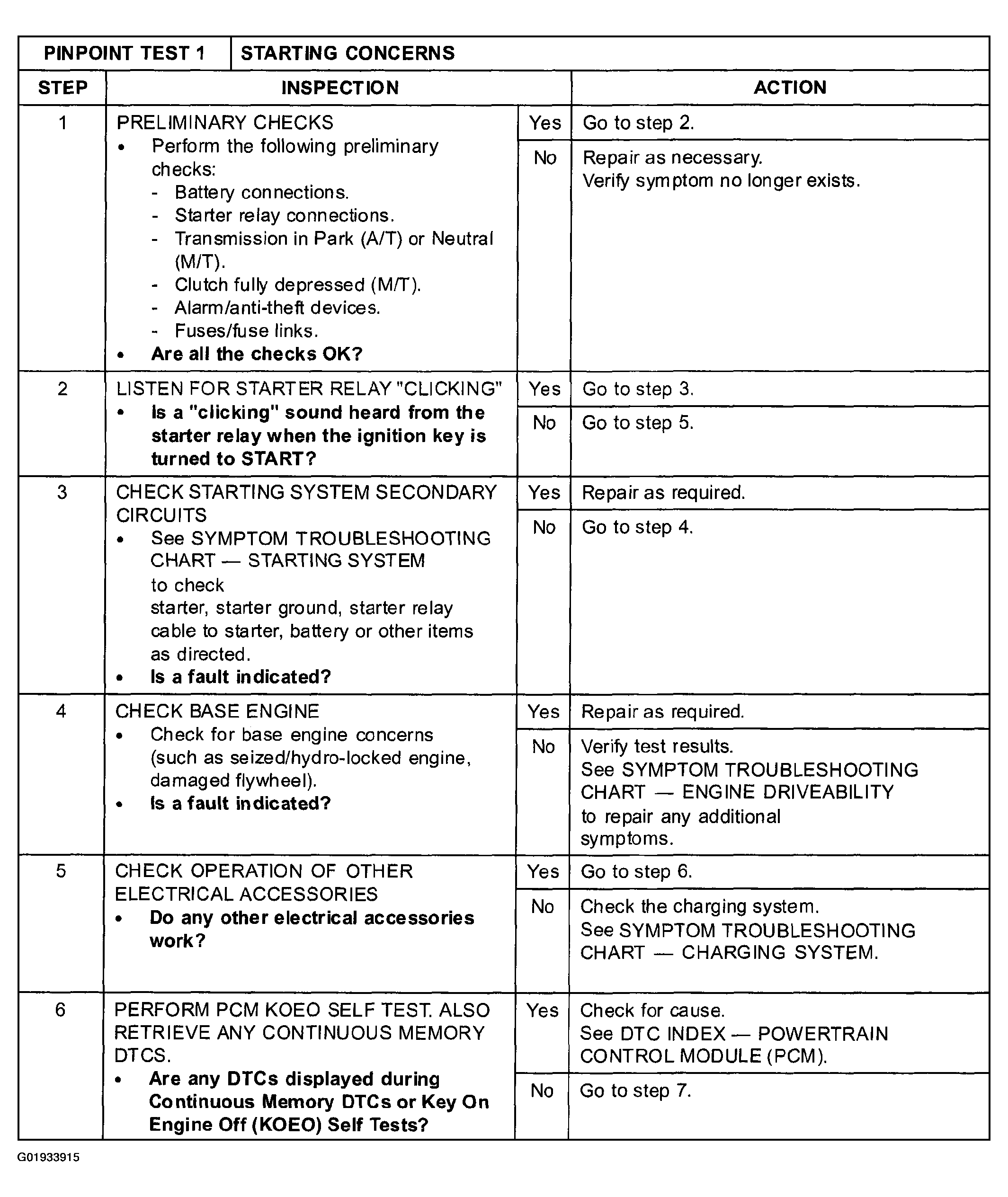

Fig 2: Pinpoint Test 1 - Starting Concerns (Steps 1-6)
G01933915Courtesy of MAZDA MOTORS CORP.

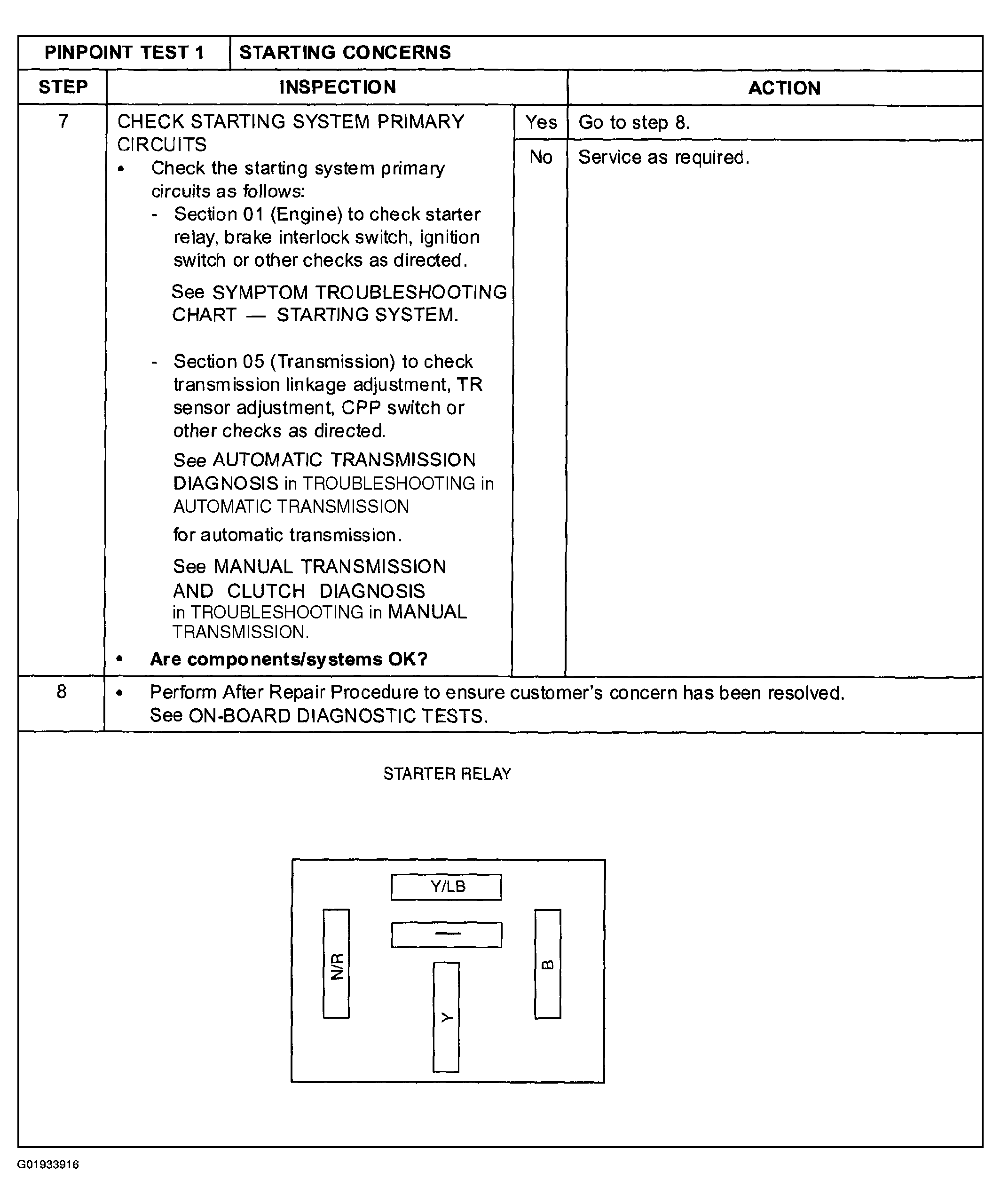

Fig 3: Pinpoint Test 1 - Starting Concerns (Steps 7-8)
G01933916Courtesy of MAZDA MOTORS CORP.
