Symptom Troubleshooting Chart-Charging System: Notes

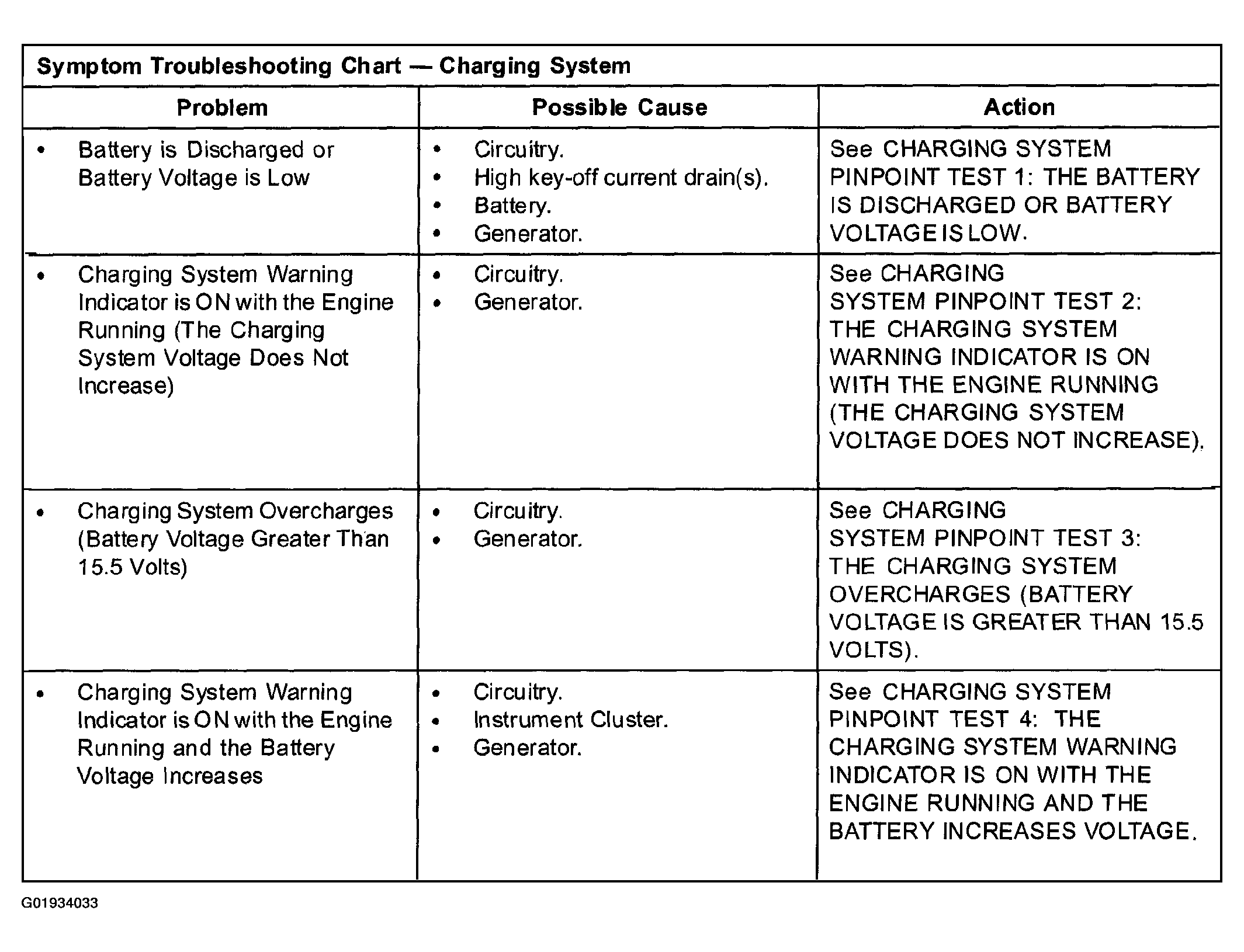

Fig 1: Symptom Troubleshooting Chart - Charging System (1 of 2)
G01934033Courtesy of MAZDA MOTORS CORP.

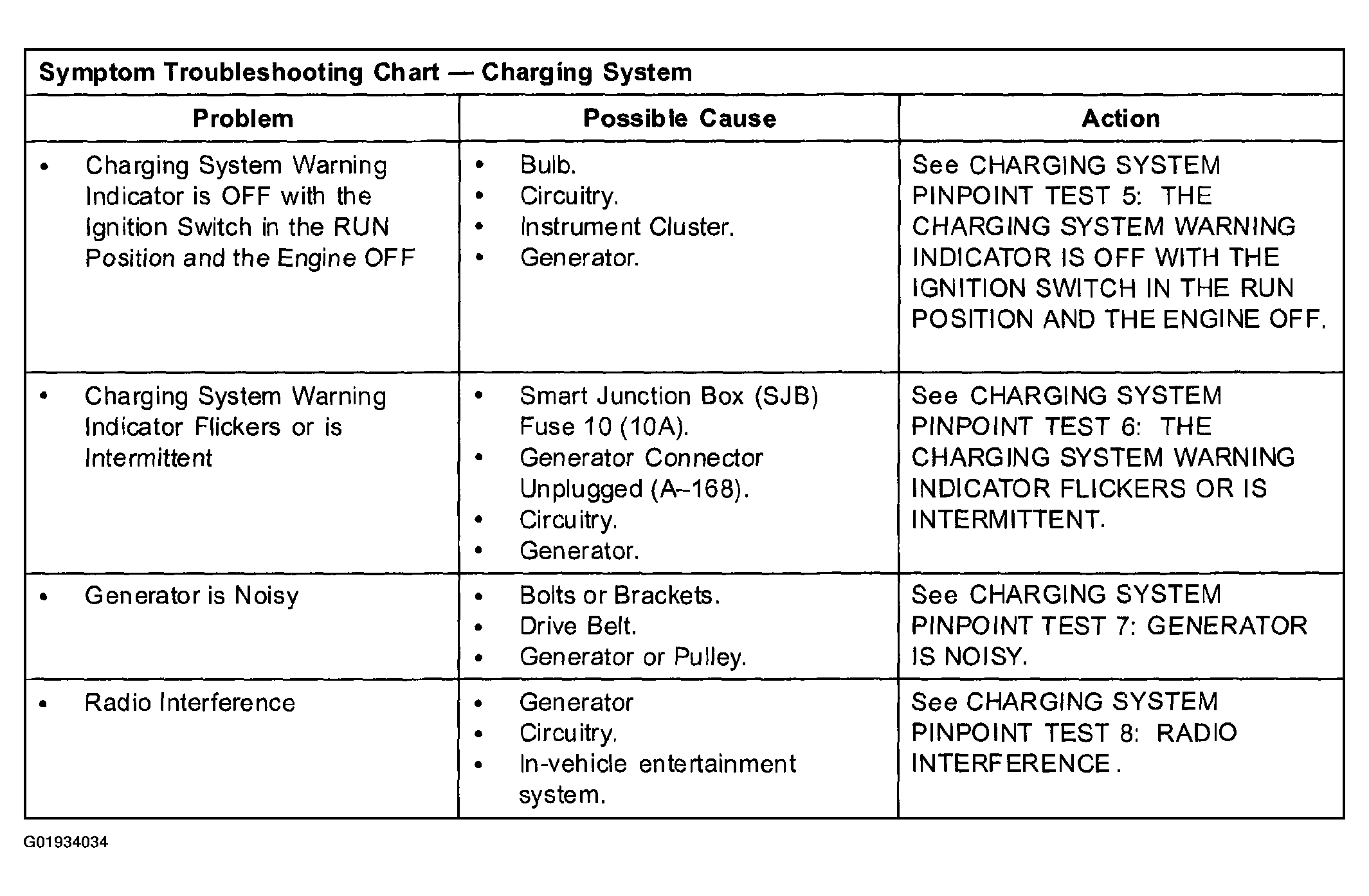

Fig 2: Symptom Troubleshooting Chart-Charging System (2 of 2)
G01934034Courtesy of MAZDA MOTORS CORP.
