General Specifications

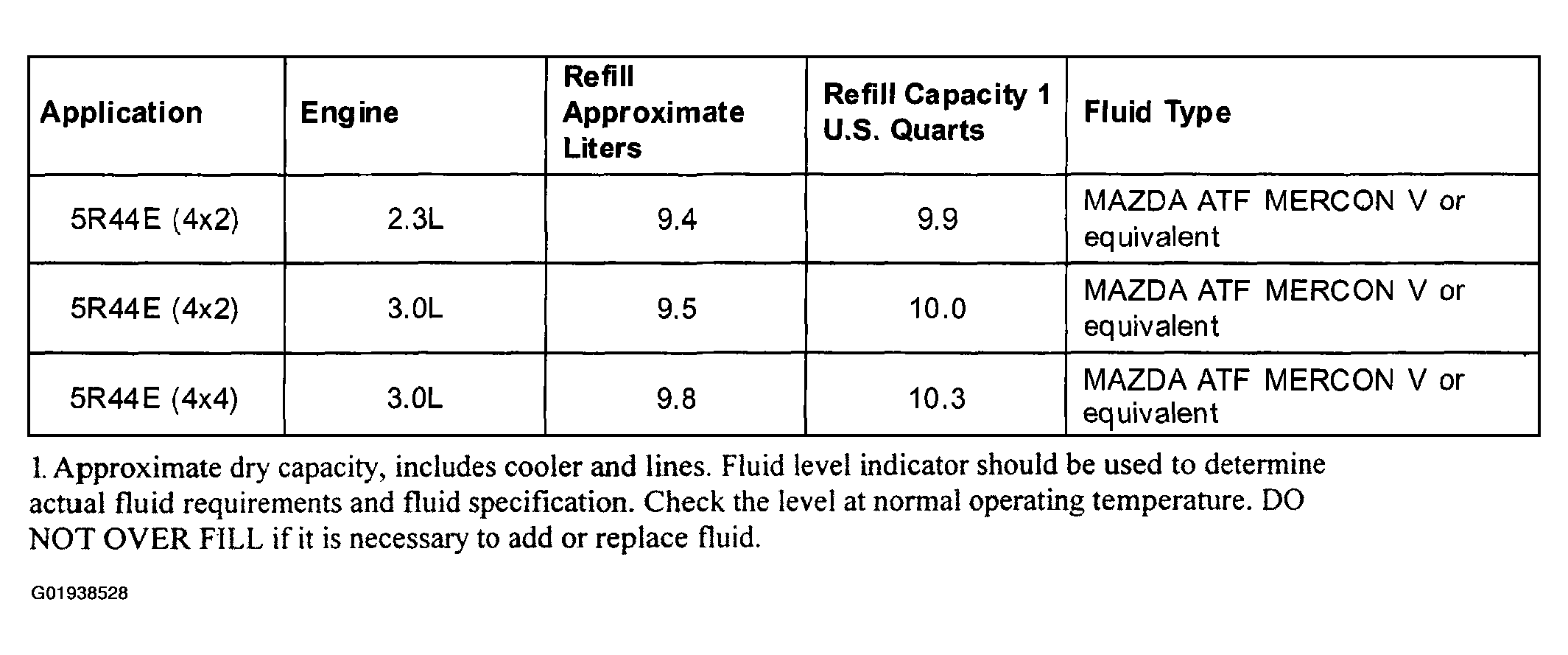

Fig 1: Automatic Transmission Specifications (1 Of 2)

Courtesy of MAZDA MOTORS CORP.

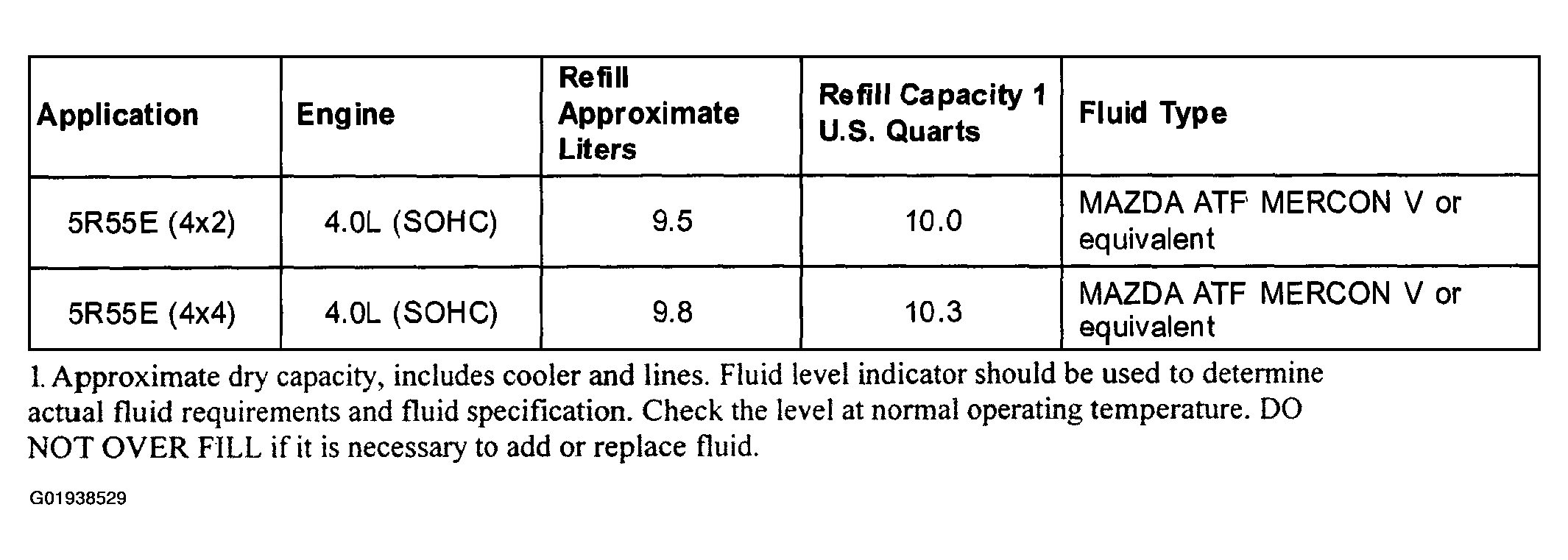

Fig 2: Automatic Transmission Specifications (2 Of 2)

Courtesy of MAZDA MOTORS CORP.

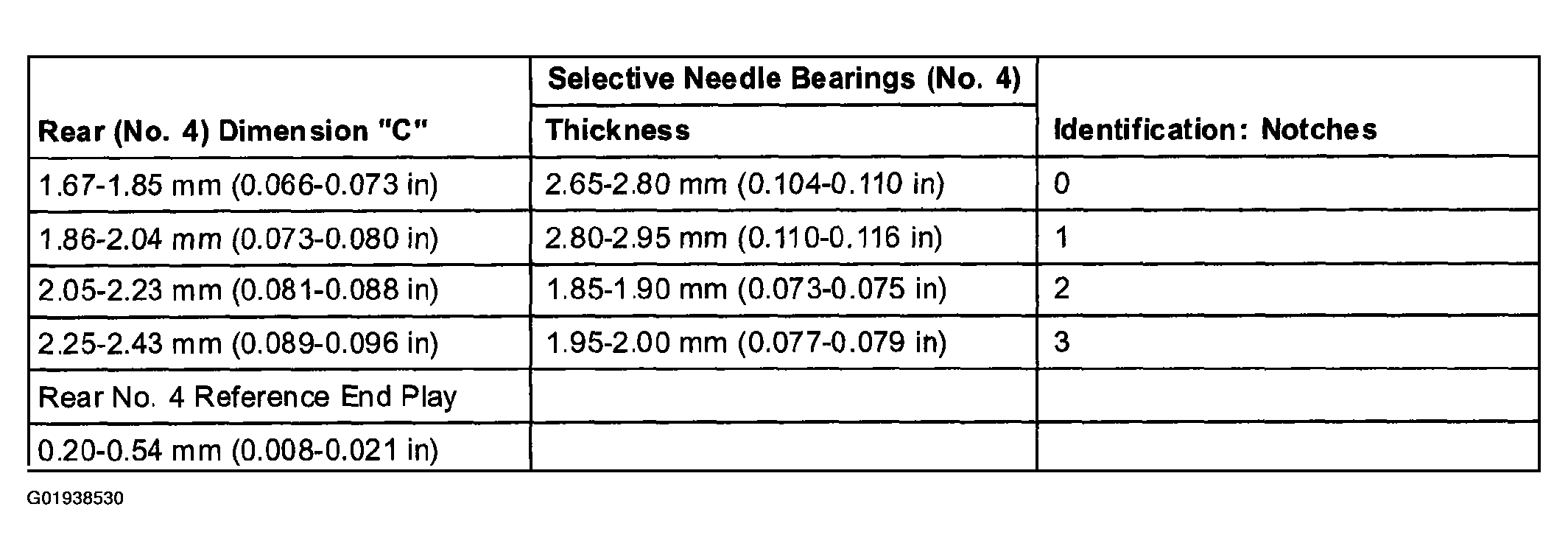

Fig 3: Needle Bearing Thickness Specifications - Dimension C

Courtesy of MAZDA MOTORS CORP.

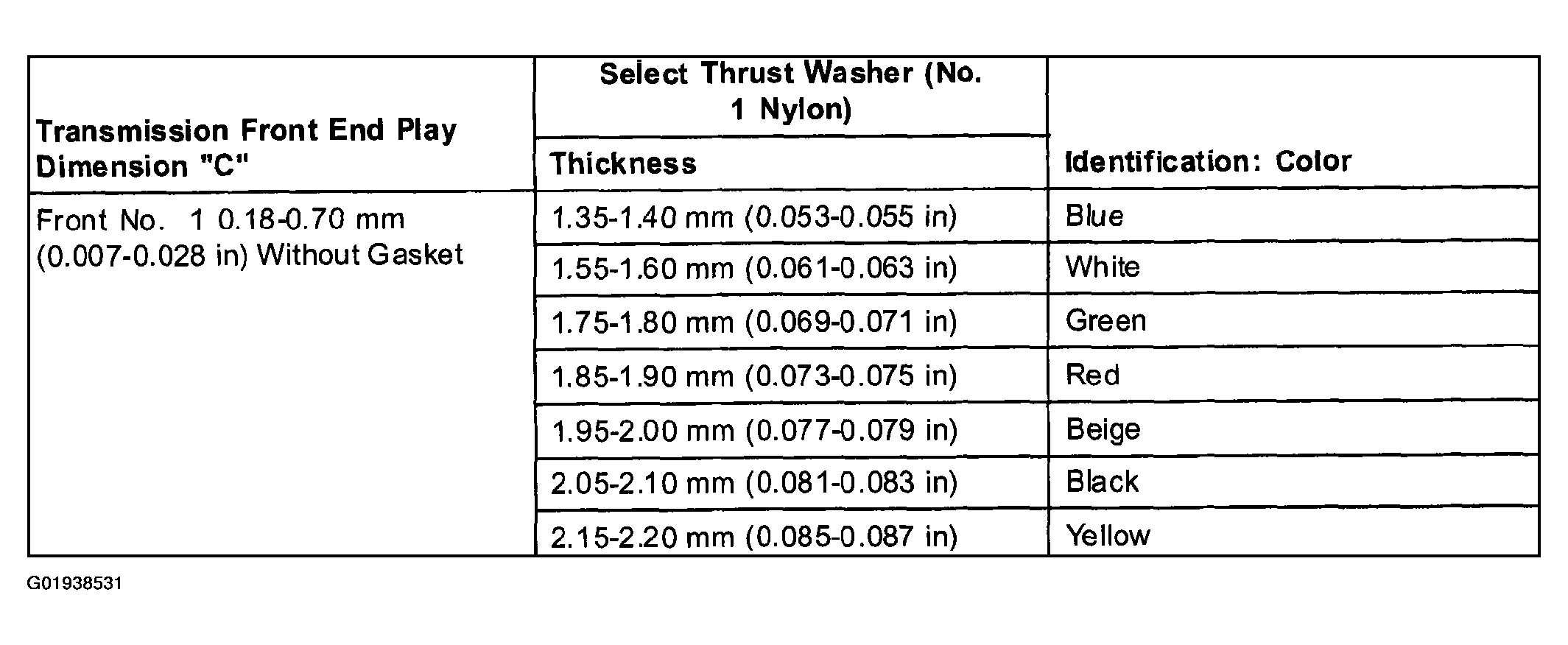

Fig 4: End Play Specifications (5R55E & 5R44E)

Courtesy of MAZDA MOTORS CORP.

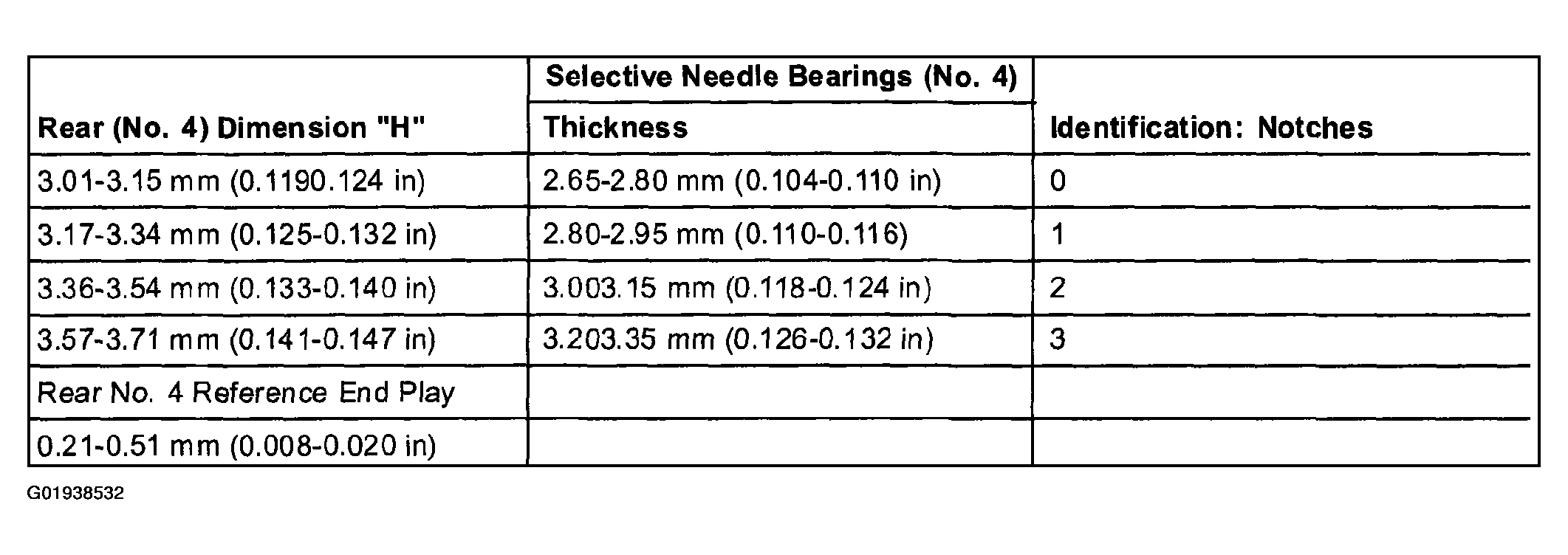

Fig 5: Needle Bearing Thickness Specifications - Dimension H

Courtesy of MAZDA MOTORS CORP.

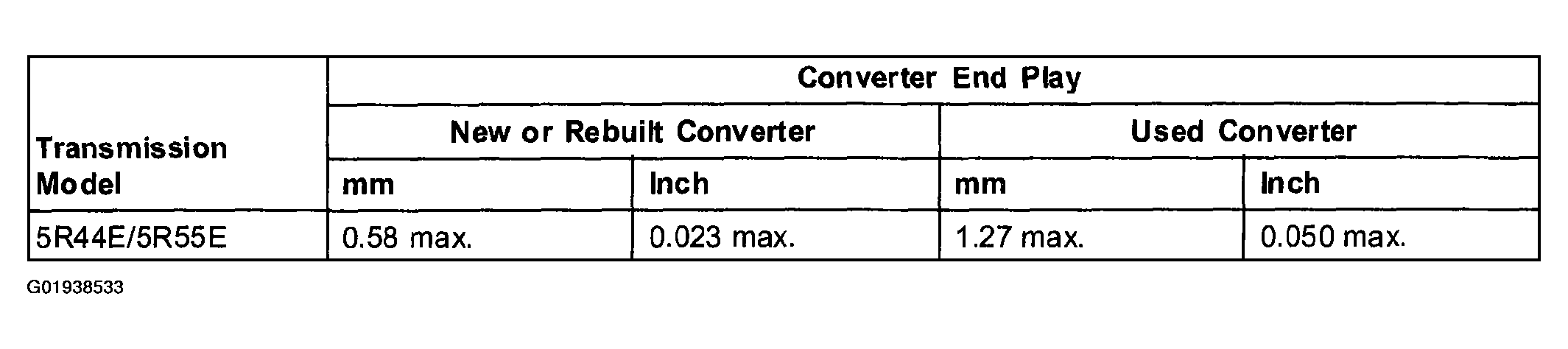

Fig 6: Torque Converter End Play Specifications (5R44E & 5R55E)

Courtesy of MAZDA MOTORS CORP.

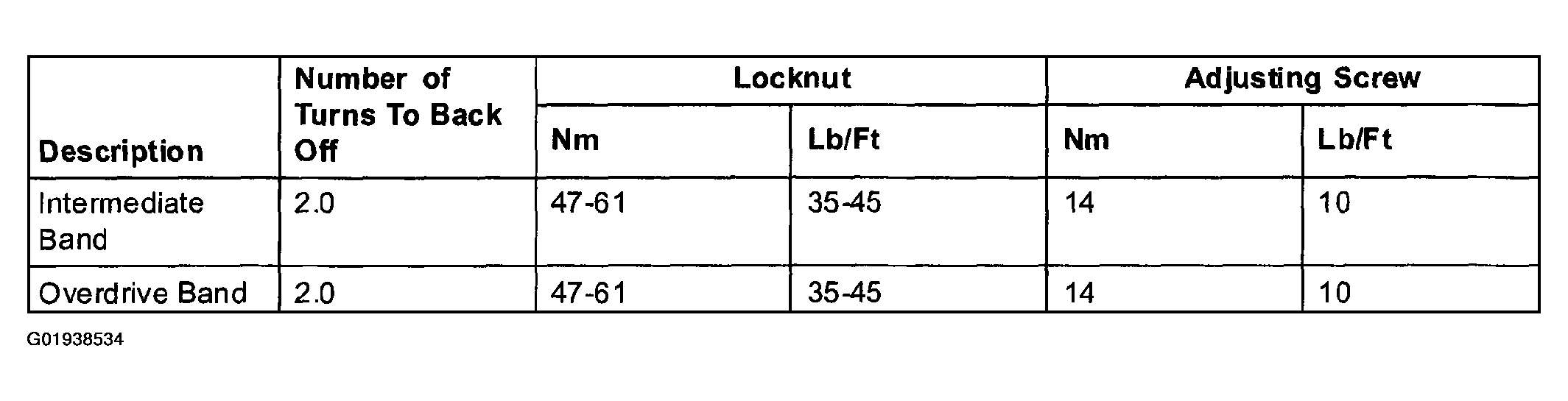

Fig 7: Band Adjustment & Torque Chart (5R44E & 5R55E)

Courtesy of MAZDA MOTORS CORP.

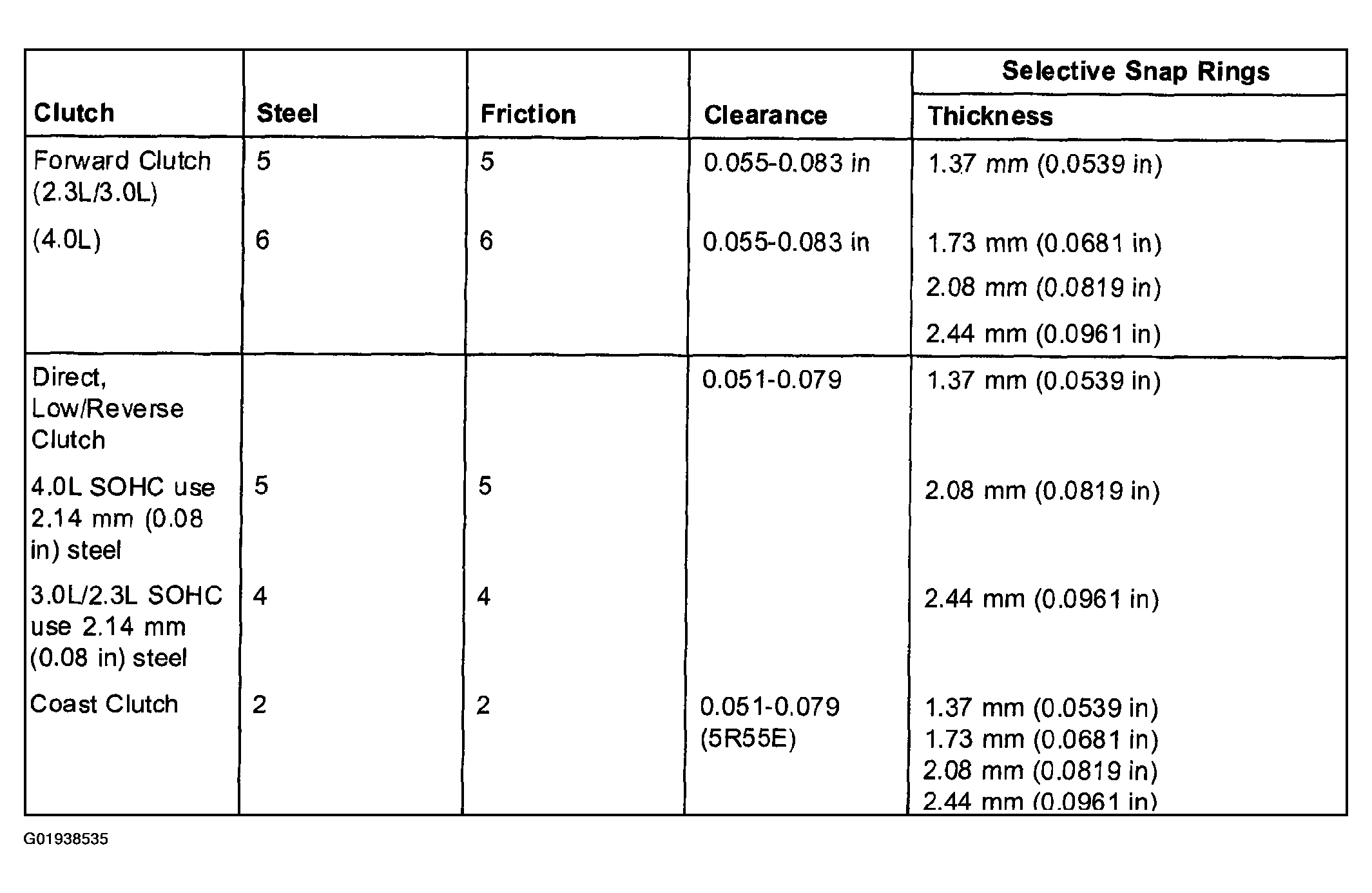

Fig 8: Clutch Plate Usage & Clearance Specifications (5R44E & 5R55E)

Courtesy of MAZDA MOTORS CORP.

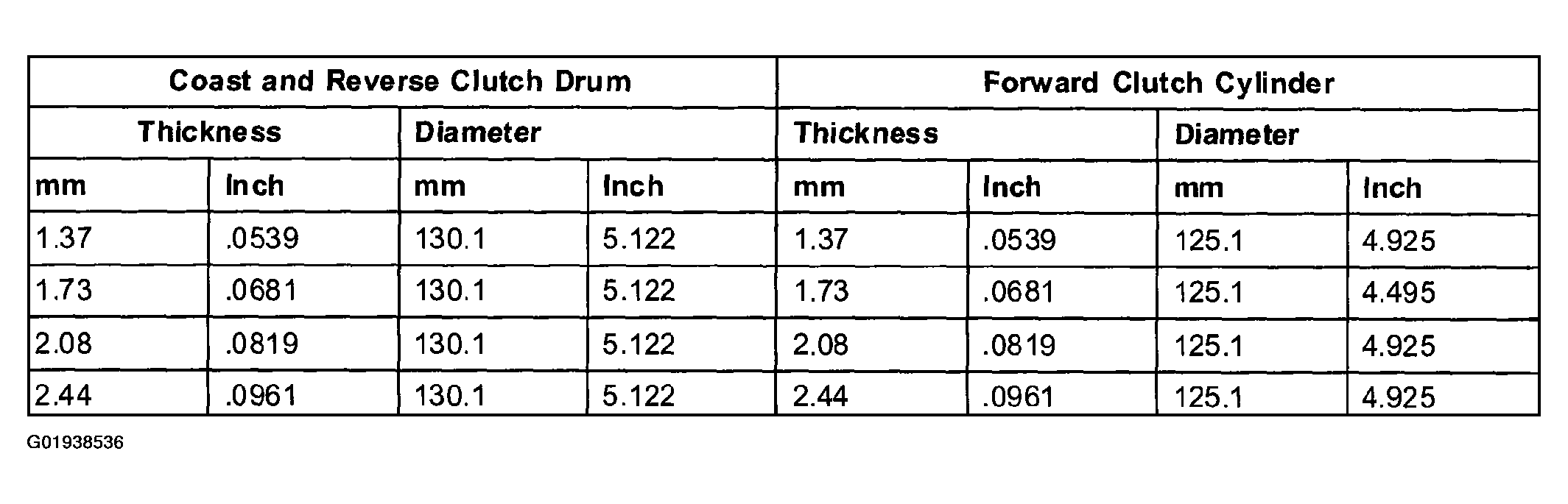

Fig 9: Selective Snap Rings (5R44E & 5R55E)

Courtesy of MAZDA MOTORS CORP.

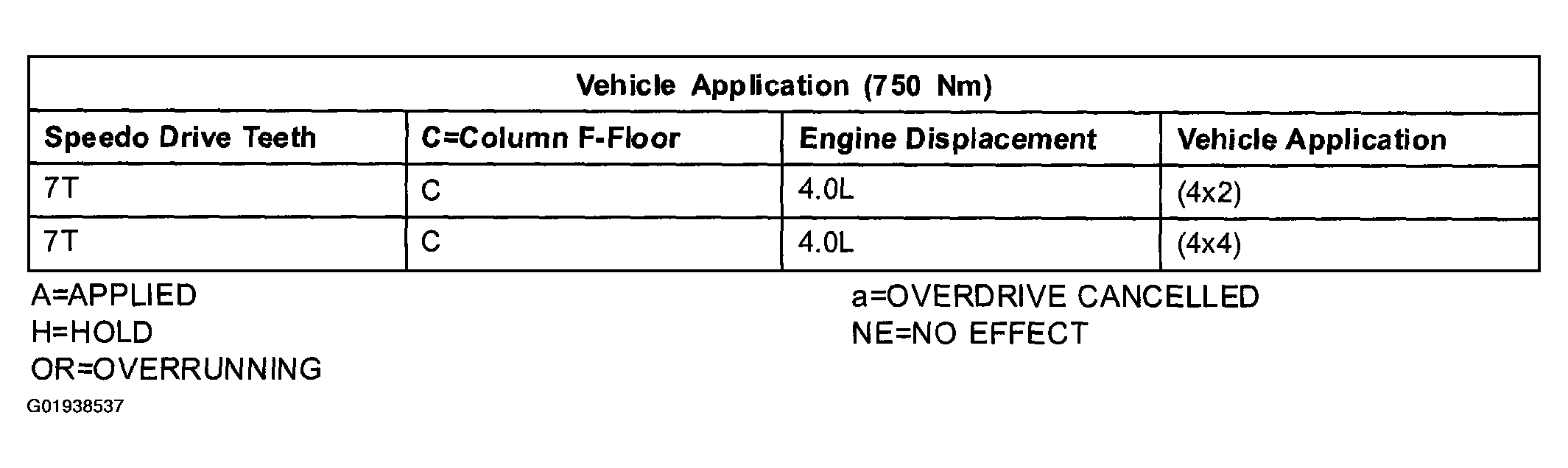

Fig 10: Service Identification Model Chart (5R44E & 5R55E)

Courtesy of MAZDA MOTORS CORP.

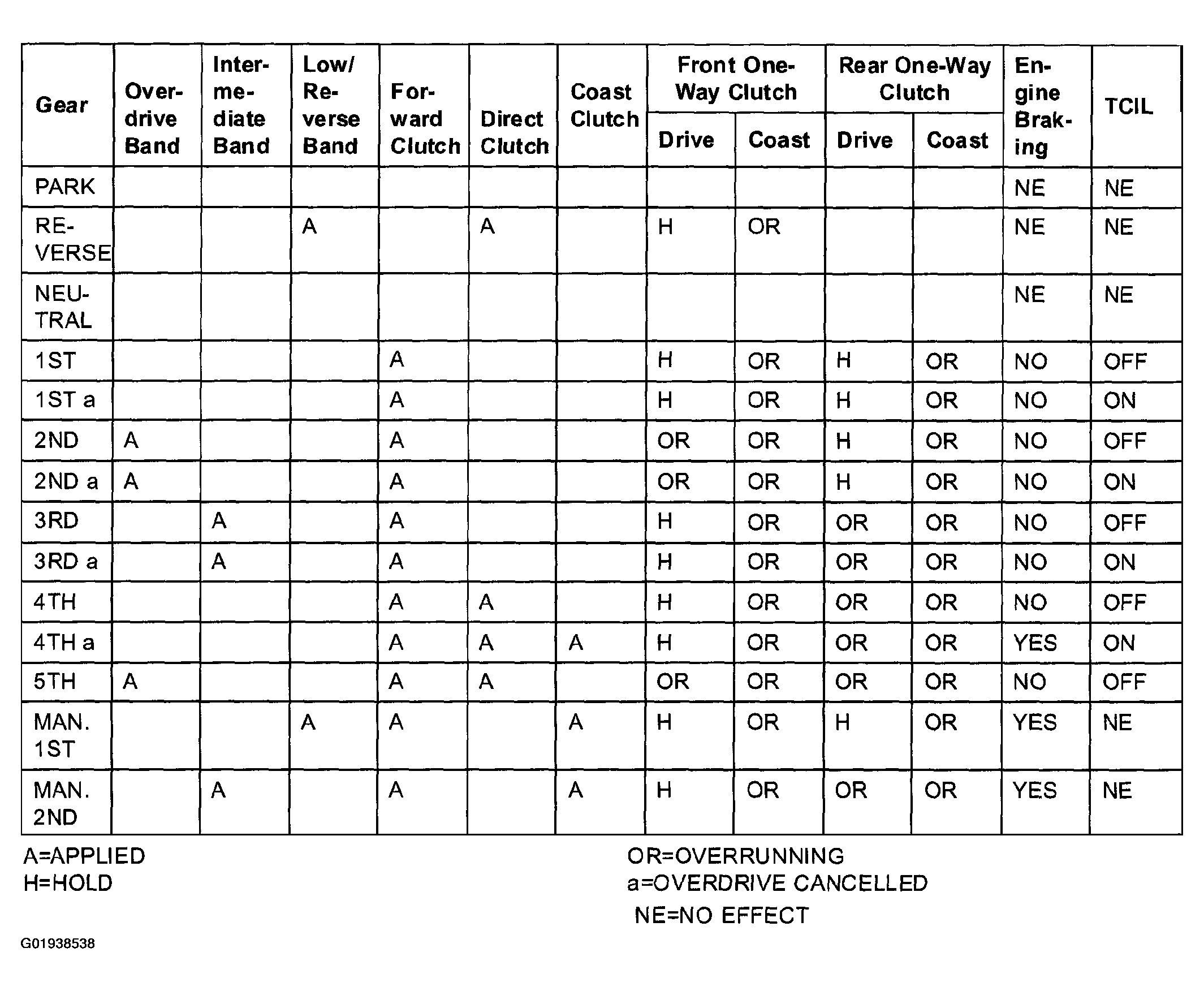

Fig 11: Band/Clutch Application Chart (5R44E & 5R55E)

Courtesy of MAZDA MOTORS CORP.
