Locknut Assembly Note

WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
  1. Tighten a new locknut with the torque recorded at the drive pinion preload adjustment using the SST.

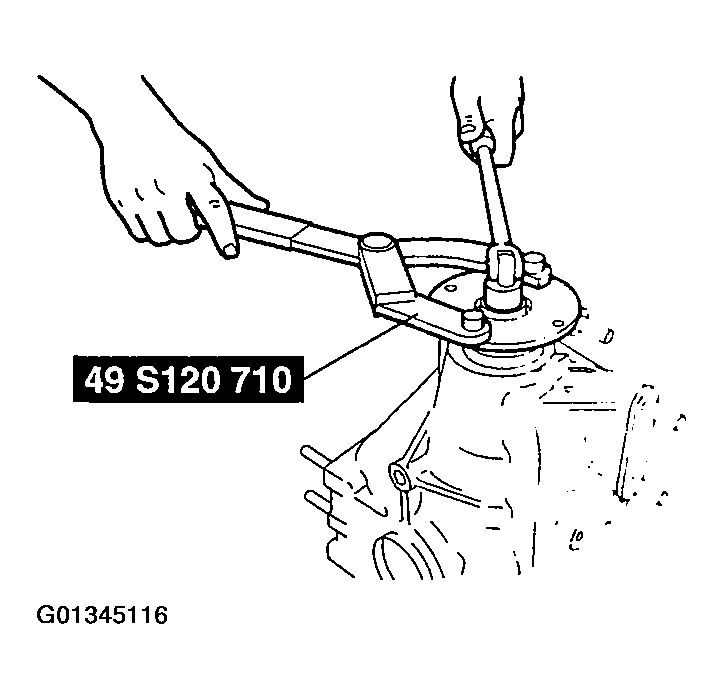

    Fig 1: Tightening Locknut
    G01345116Courtesy of MAZDA MOTORS CORP.
  2. Verify that the drive pinion preload is within the specification.
    • If not within the specification, perform the preload adjustment again.

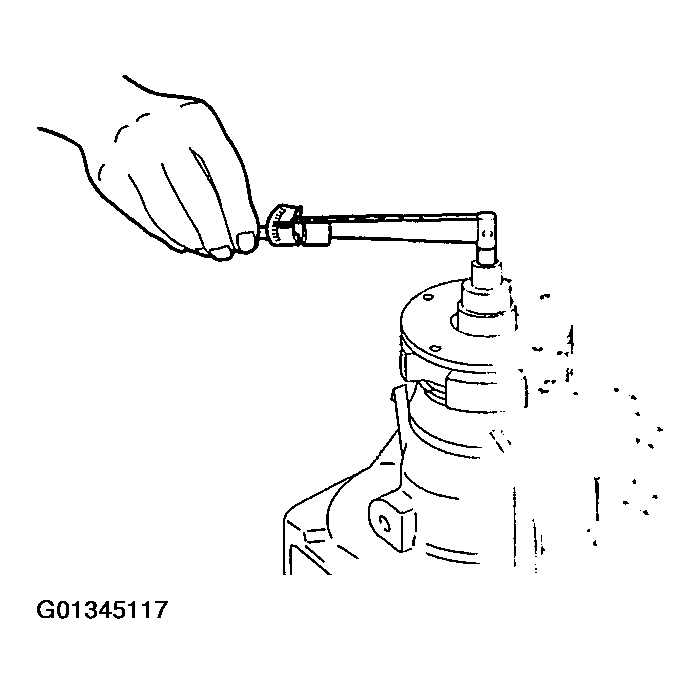

      • Fig 2: Checking Drive Pinion Preload
      G01345117Courtesy of MAZDA MOTORS CORP.

Drive pinion preload

1.3-1.7 N.m (14-17 kgf.cm, 12-15 in.lb)
