Locknut Disassembly Note

WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the locknut while fixing the companion flange using the SST.

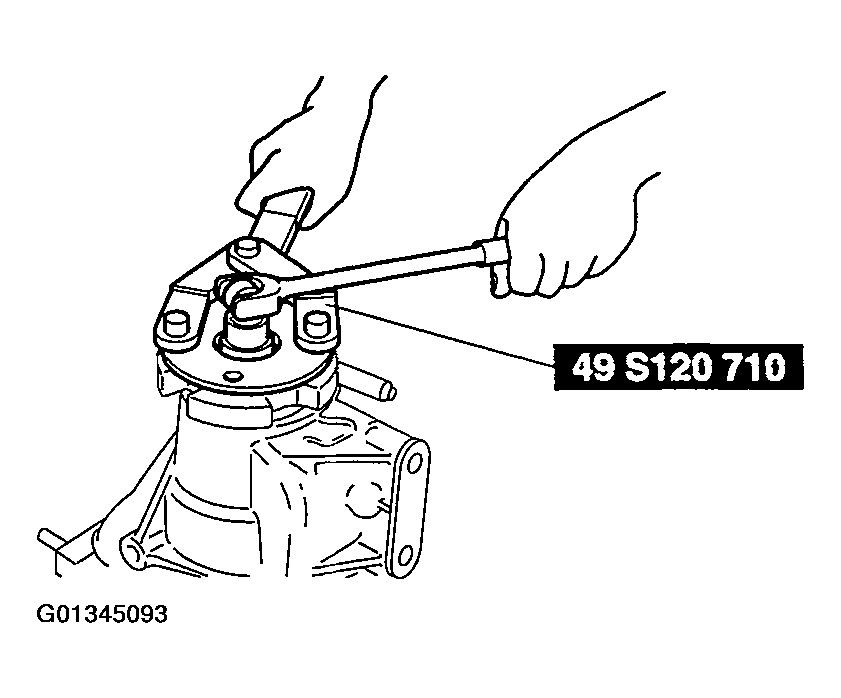

Fig 1: Removing Locknut
G01345093Courtesy of MAZDA MOTORS CORP.
