Transfer Case Shift Control Switch Removal / Installation

  1. Remove the mode select switch (MSS) knob.

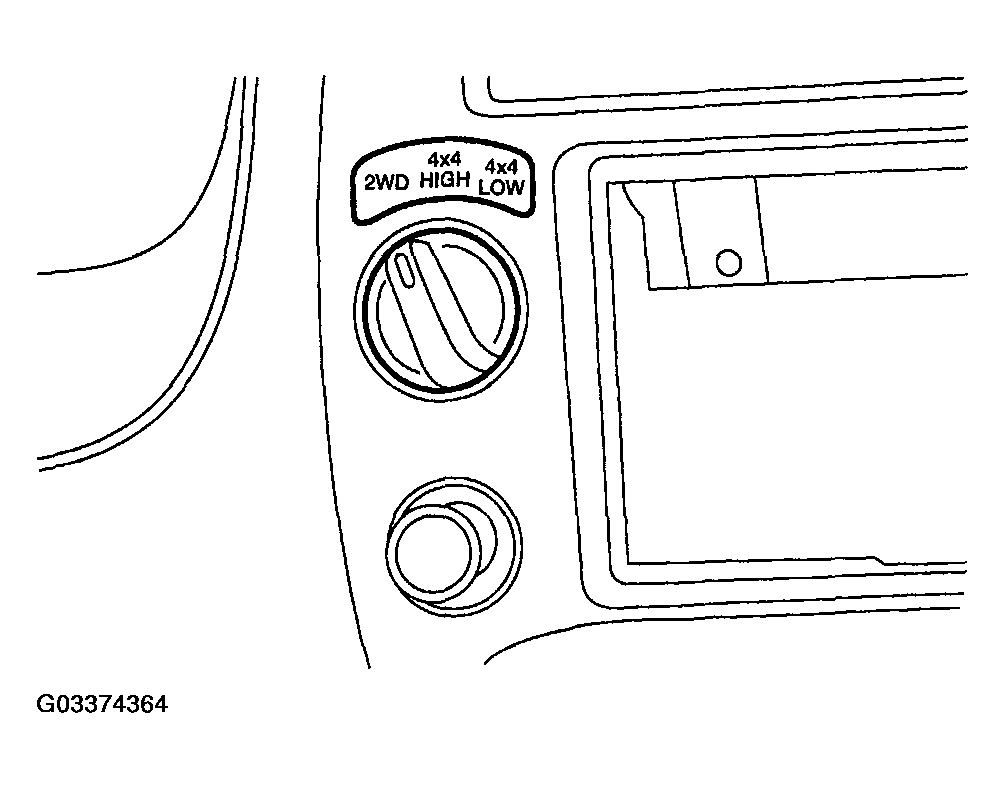

    Fig 1: Removing Mode Select Switch Knob
    G03374364Courtesy of MAZDA MOTORS CORP.
  2. Remove the audio unit .
  3. Remove the screws and pull out the instrument panel center finish panel out of the instrument panel.

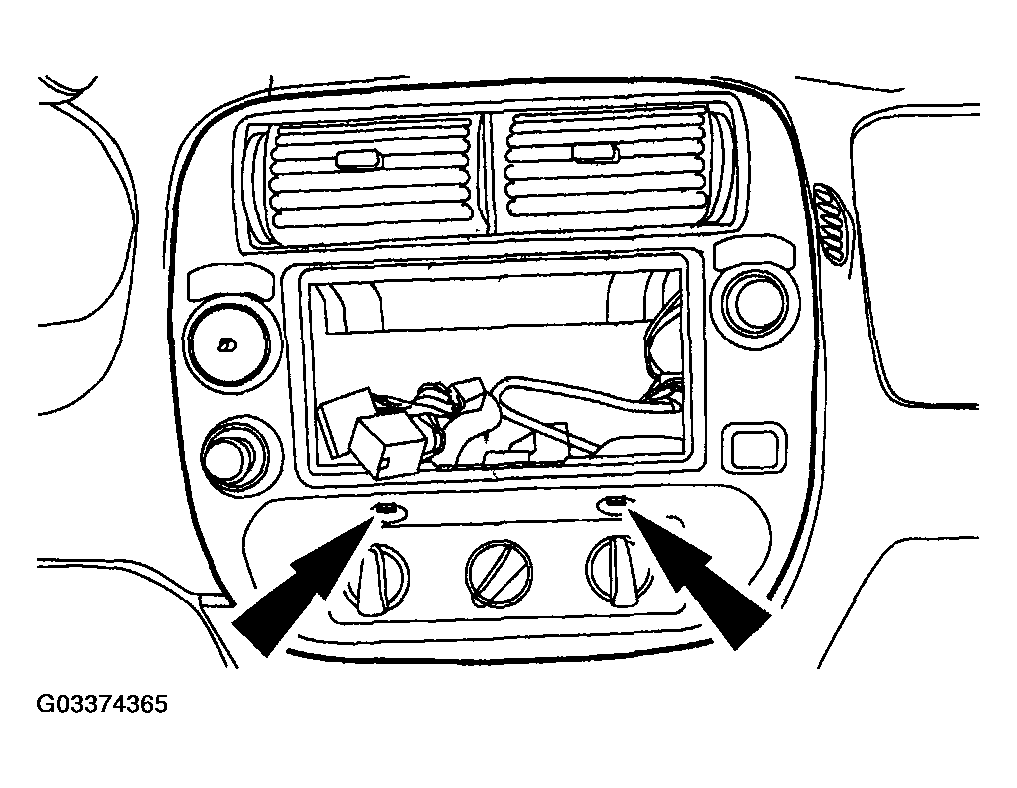

    Fig 2: Removing Screws
    G03374365Courtesy of MAZDA MOTORS CORP.
  4. Remove the two screws retaining the switch, and remove the switch.

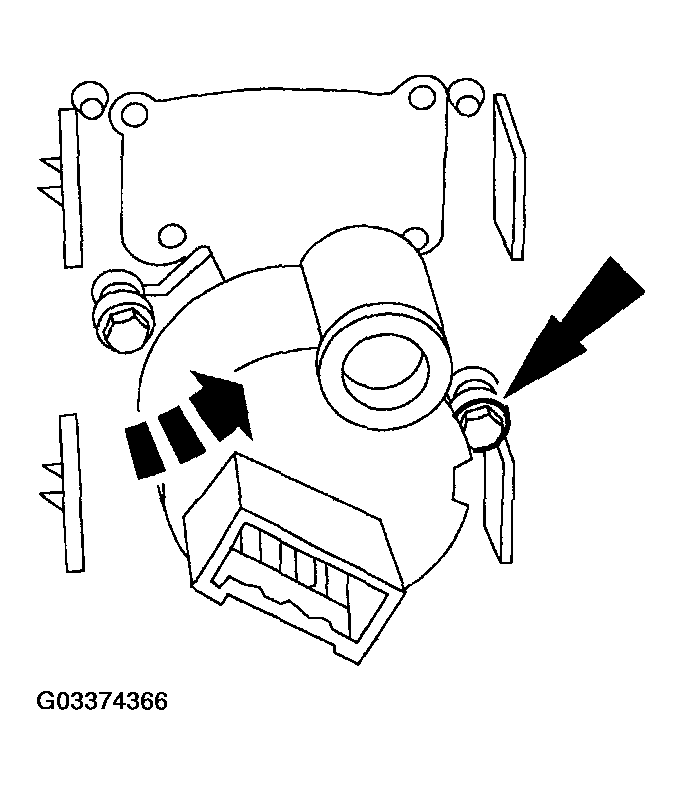

    Fig 3: Removing Switch
    G03374366Courtesy of MAZDA MOTORS CORP.
  5. Install in reverse order of removal.
