Door Lock Switch Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove the front door trim. (See FRONT DOOR TRIM REMOVAL/INSTALLATION .)
  3. Push out clip from behind the front door trim, and remove the switch panel.
  4. Remove the screws, and remove the door lock switch.

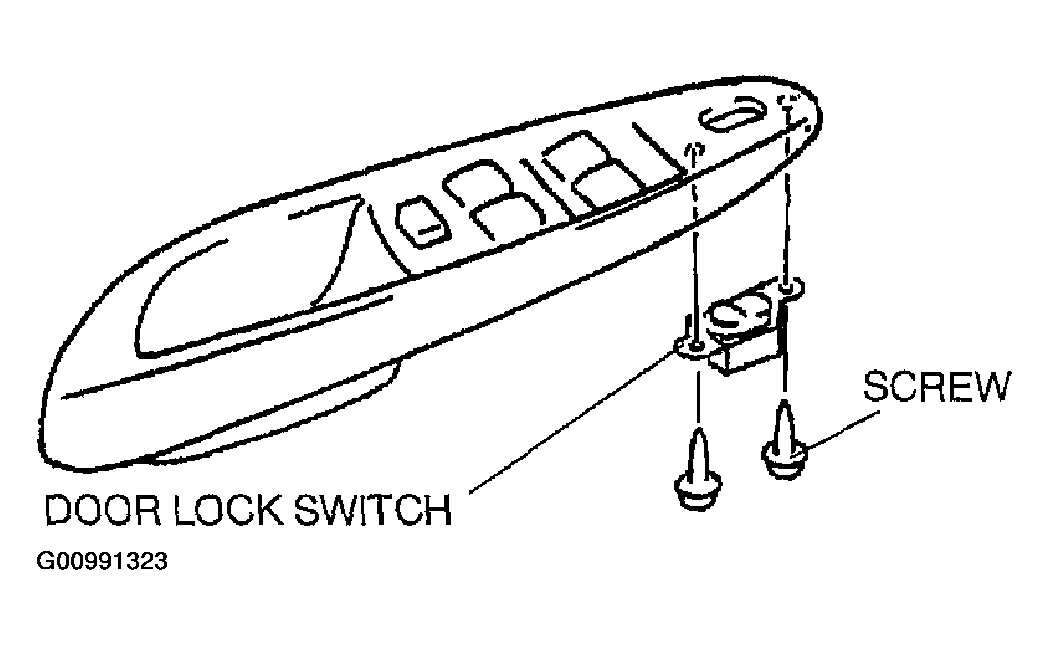

    Fig 1: Removing/Installing Door Lock Switch
    G00991323Courtesy of MAZDA MOTORS CORP.
  5. Install in the reverse order of removal.
