Home >> Mazda >> 2004 >> MPV ES >> Repair and Diagnosis >> Body & Frame >> Door Locks >> Security System And Locks System >> Keyless Control Module Disassembly/Assembly >> Bracket Disassembly Note

Bracket Disassembly Note

  1. To disassemble the bracket, push the stopper down with a small screwdriver.

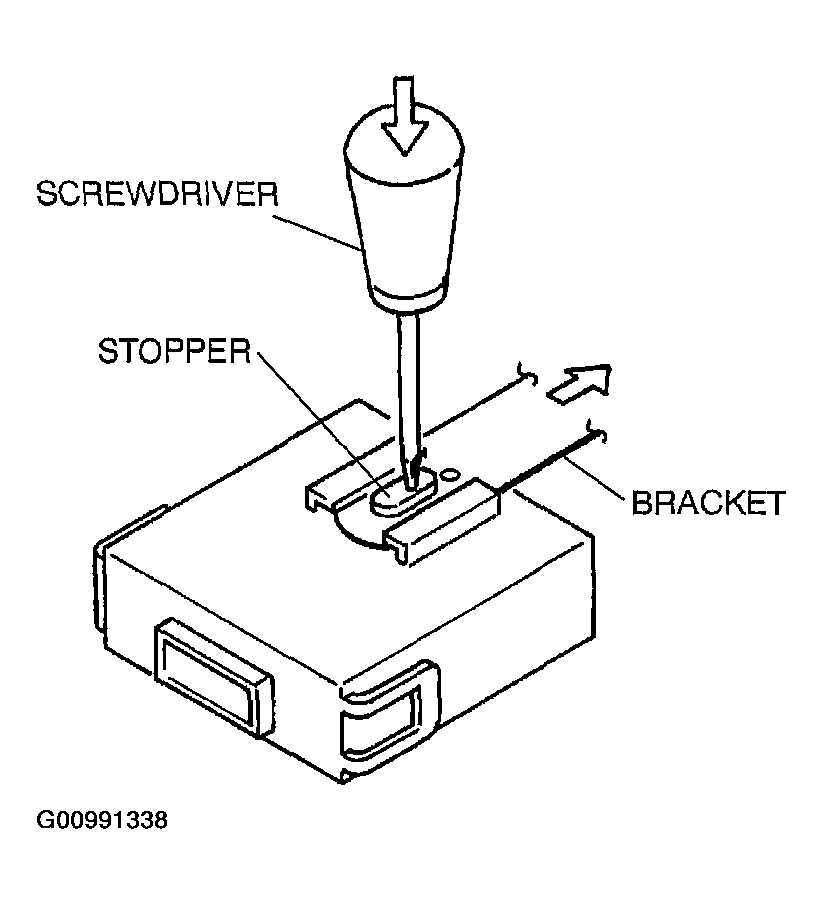

    Fig 1: Disassembling Bracket
    G00991338Courtesy of MAZDA MOTORS CORP.
