Keyless Control Module Disassembly/Assembly: Notes

  1. Disassemble in the order indicated in the figures.

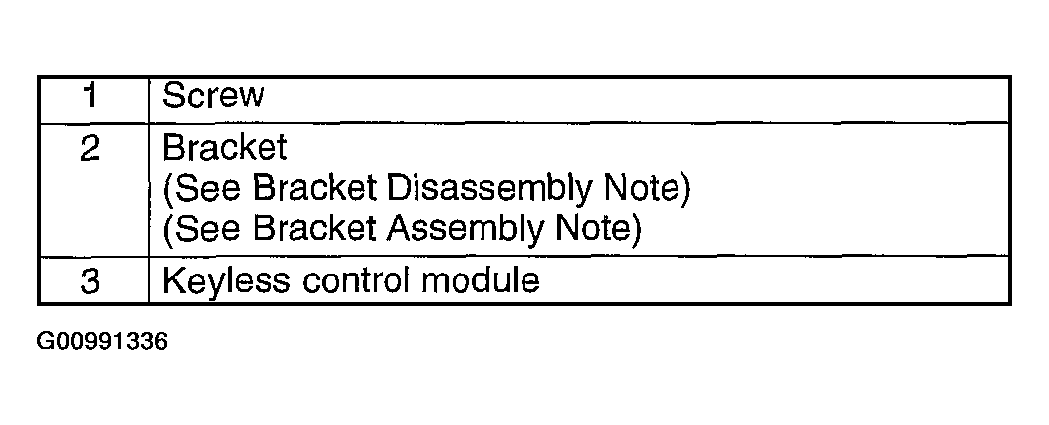

    Fig 1: Disassembling/Assembling Keyless Control Module (Legend)
    G00991336Courtesy of MAZDA MOTORS CORP.

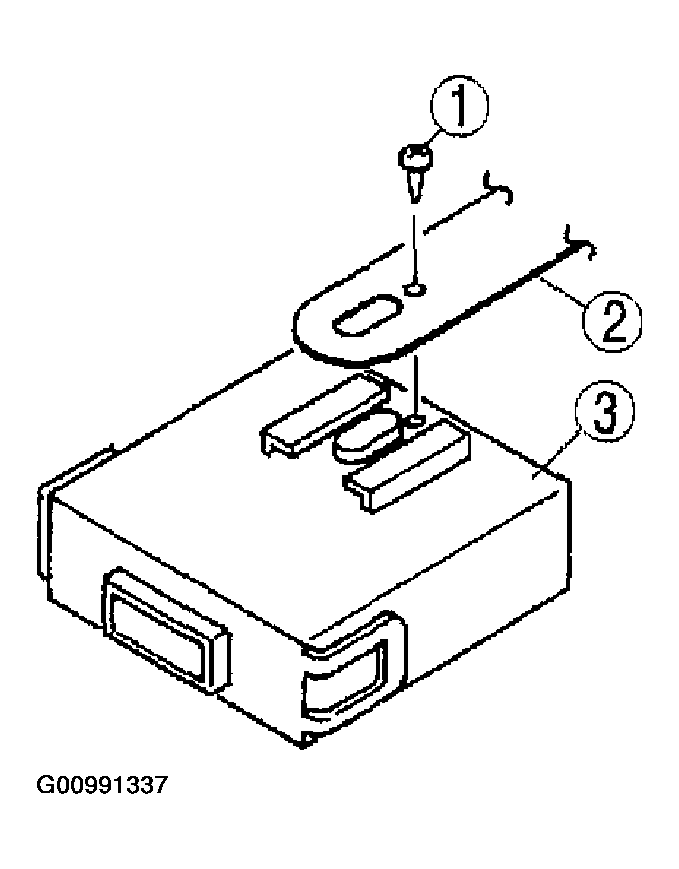

    Fig 2: Disassembling/Assembling Keyless Control Module
    G00991337Courtesy of MAZDA MOTORS CORP.
  2. Assemble in the reverse order of disassembly.
