Key Reminder Switch Inspection

  1. Disconnect the key reminder switch connector.
  2. Inspect for continuity between the key reminder switch terminals using an ohmmeter.
    • If not as specified, replace the key reminder switch.

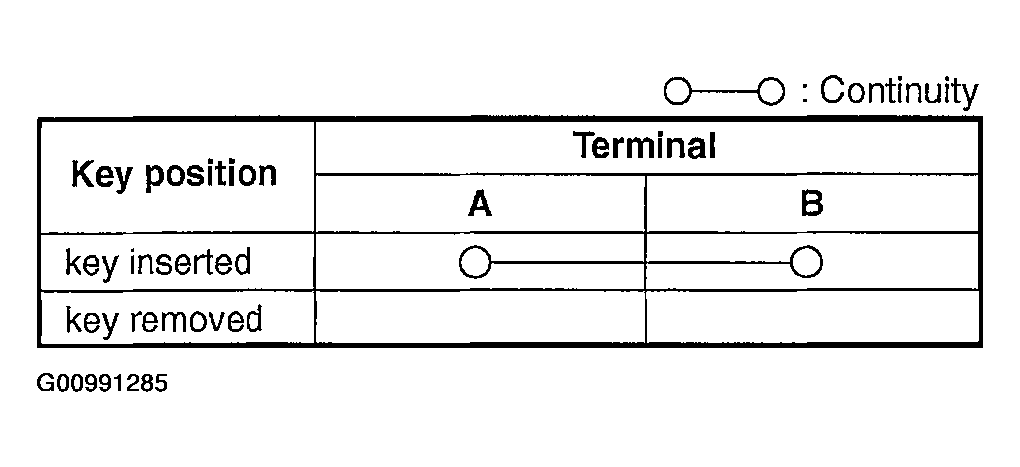

      Fig 1: Key Reminder Switch Continuity Specifications
      G00991285Courtesy of MAZDA MOTORS CORP.

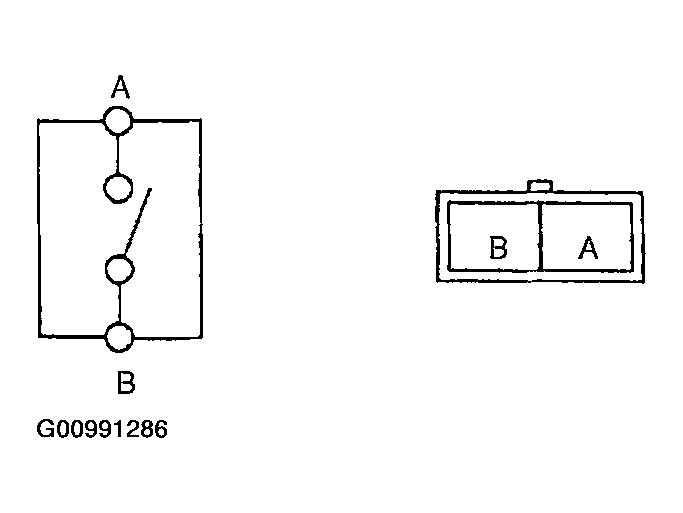

      Fig 2: Identifying Key Reminder Switch Terminals
      G00991286Courtesy of MAZDA MOTORS CORP.
