Second-Row Seat Disassembly/Assembly

  1. Disassemble in the order indicated in the figure.

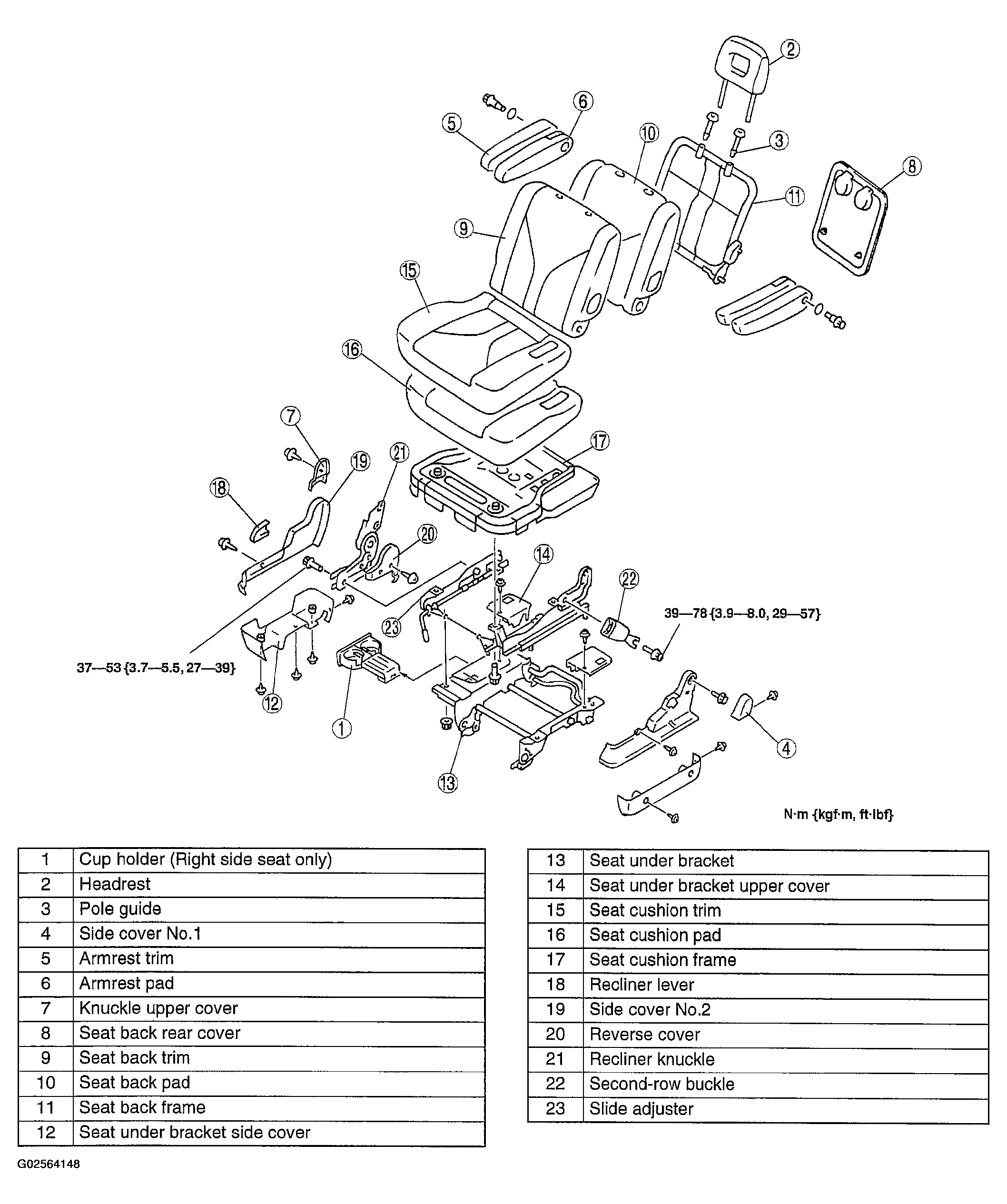

    Fig 1: Disassembling/Assembling Second-Row Seat
    G02564148Courtesy of MAZDA MOTORS CORP.
  2. Assemble in the reverse order of disassembly.
