Home >> Mazda >> 2004 >> MPV ES >> Repair and Diagnosis >> Body & Frame >> Windows >> Glass/Windows/Mirrors >> Base Removal

Base Removal

  1. Remove the rear view mirror.
  2. Wind each end of a wire around a bar.
    3. NOTE:
    • Use a long sawing action to spread the work over the whole length of the SST (piano wire) to prevent it from breaking.

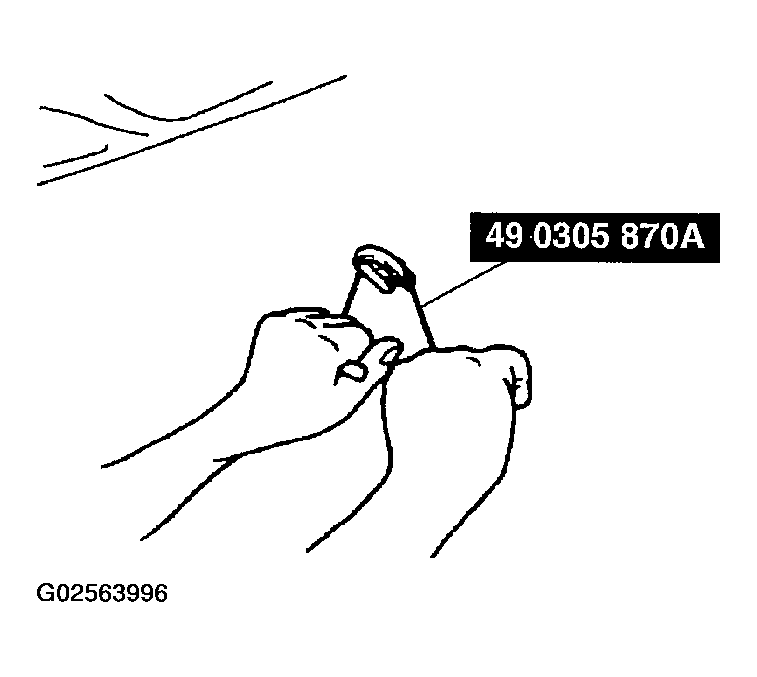

    Fig 1: Cutting Through Sealant To Remove Base
    G02563996Courtesy of MAZDA MOTORS CORP.
  3. Saw through the sealant to remove the base.
