Quarter Window Glass Removal

  1. Remove the C-pillar trim. (See C-PILLAR TRIM REMOVAL/INSTALLATION .)
  2. Remove the D-pillar trim. (See D-PILLAR TRIM REMOVAL/INSTALLATION .)

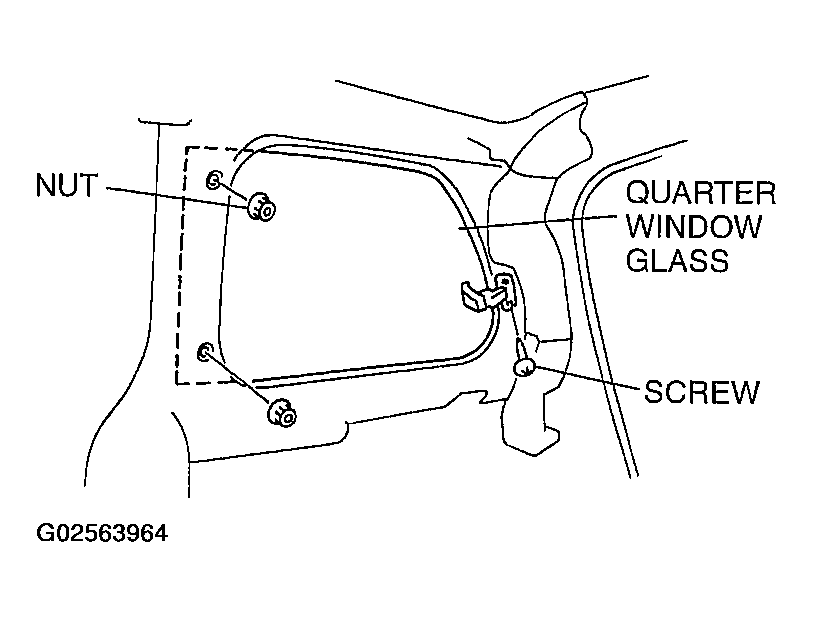

  3. Remove the screws and nuts, and remove the quarter window glass.
  4. Remove the screw, and remove the lock from the glass.
    5. NOTE:
    • The quarter window molding is a replacement part.
    Fig 1: Removing Quarter Window Molding From Quarter Window Glass
    G02563964Courtesy of MAZDA MOTORS CORP.
  5. Remove the quarter window molding from the quarter window glass.
