Instrument Cluster Disassembly/Assembly

CAUTION:
  • If the instrument cluster is dropped or the print plate is damaged, the system will not work properly and it may be the cause of trouble or malfunctions.
  1. Disassemble in the order indicated in the figure.

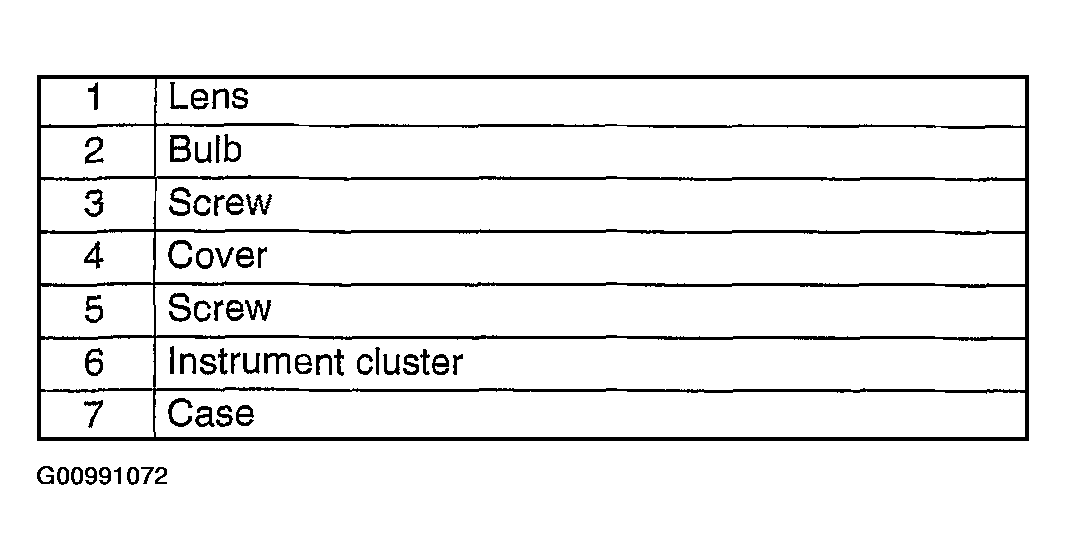

    Fig 1: Disassembling/Assembling Instrument Cluster (Legend)
    G00991072Courtesy of MAZDA MOTORS CORP.

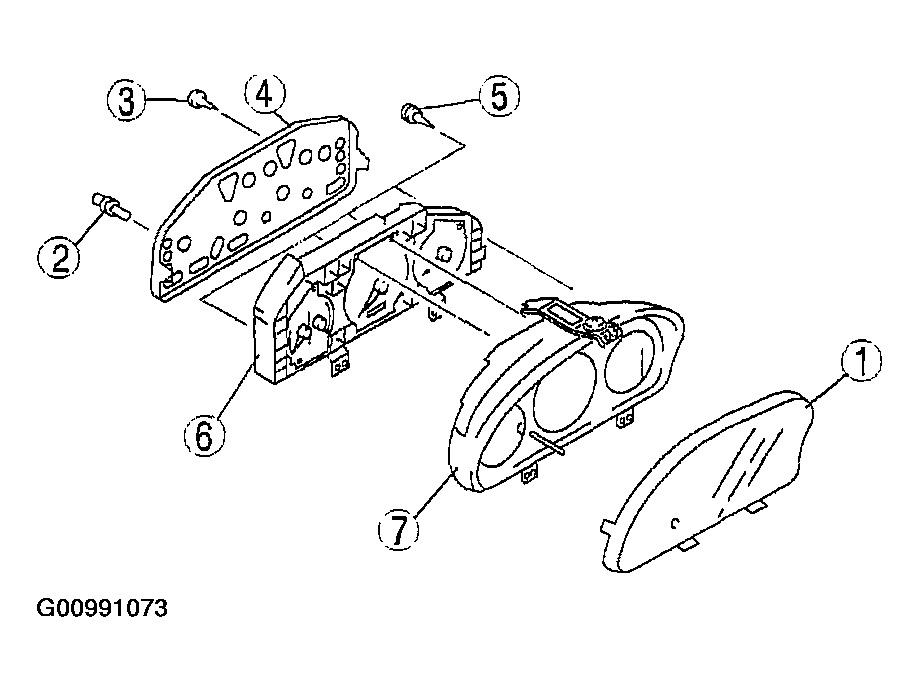

    Fig 2: Disassembling/Assembling Instrument Cluster
    G00991073Courtesy of MAZDA MOTORS CORP.
  2. Assemble in the reverse order of disassembly.
