Technical Data [Engine Mechanical)
>>
Engine Technical Data
Engine Technical Data

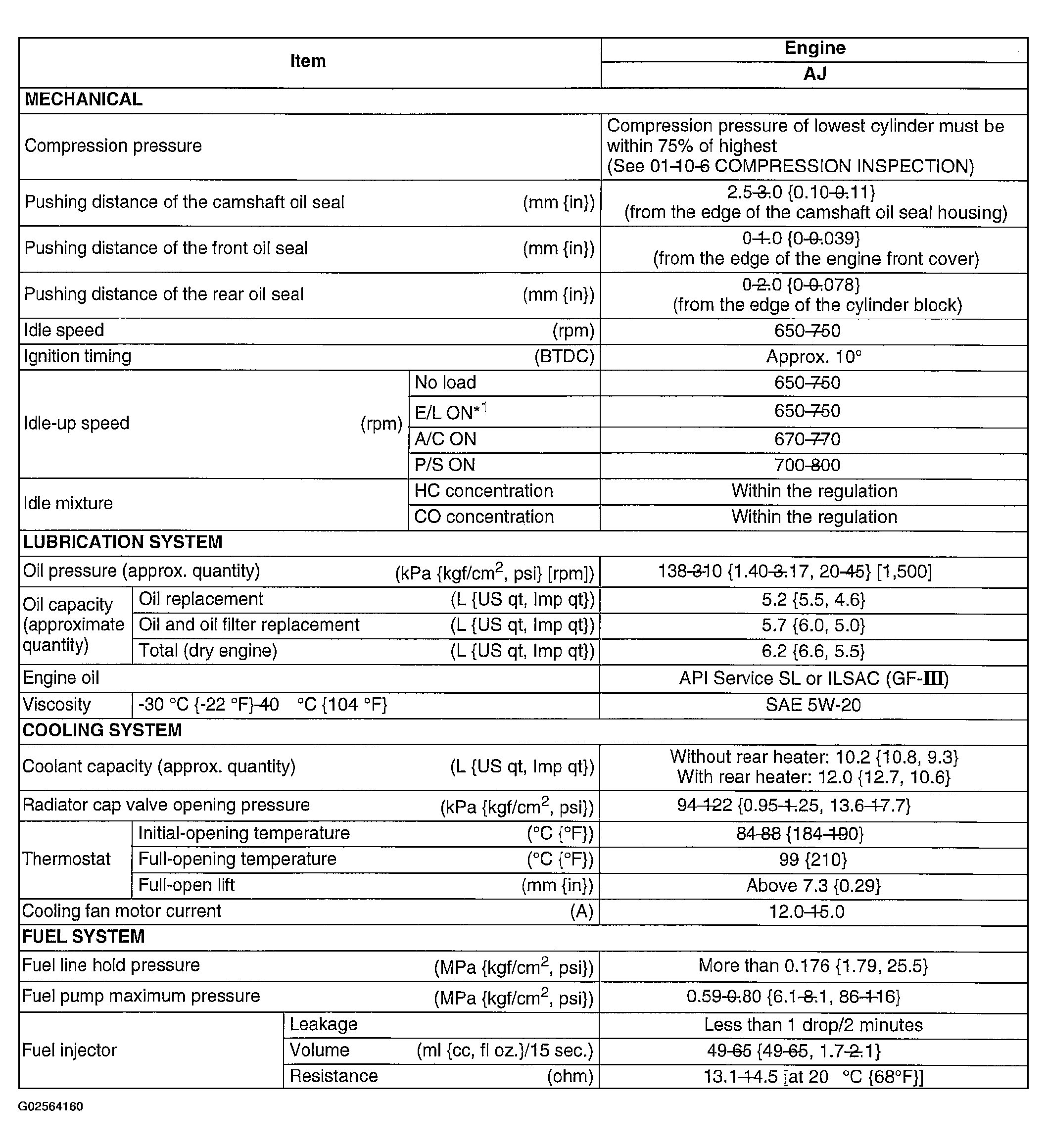

Fig 1: Engine Technical Data Table (1 Of 2)
Courtesy of MAZDA MOTORS CORP.

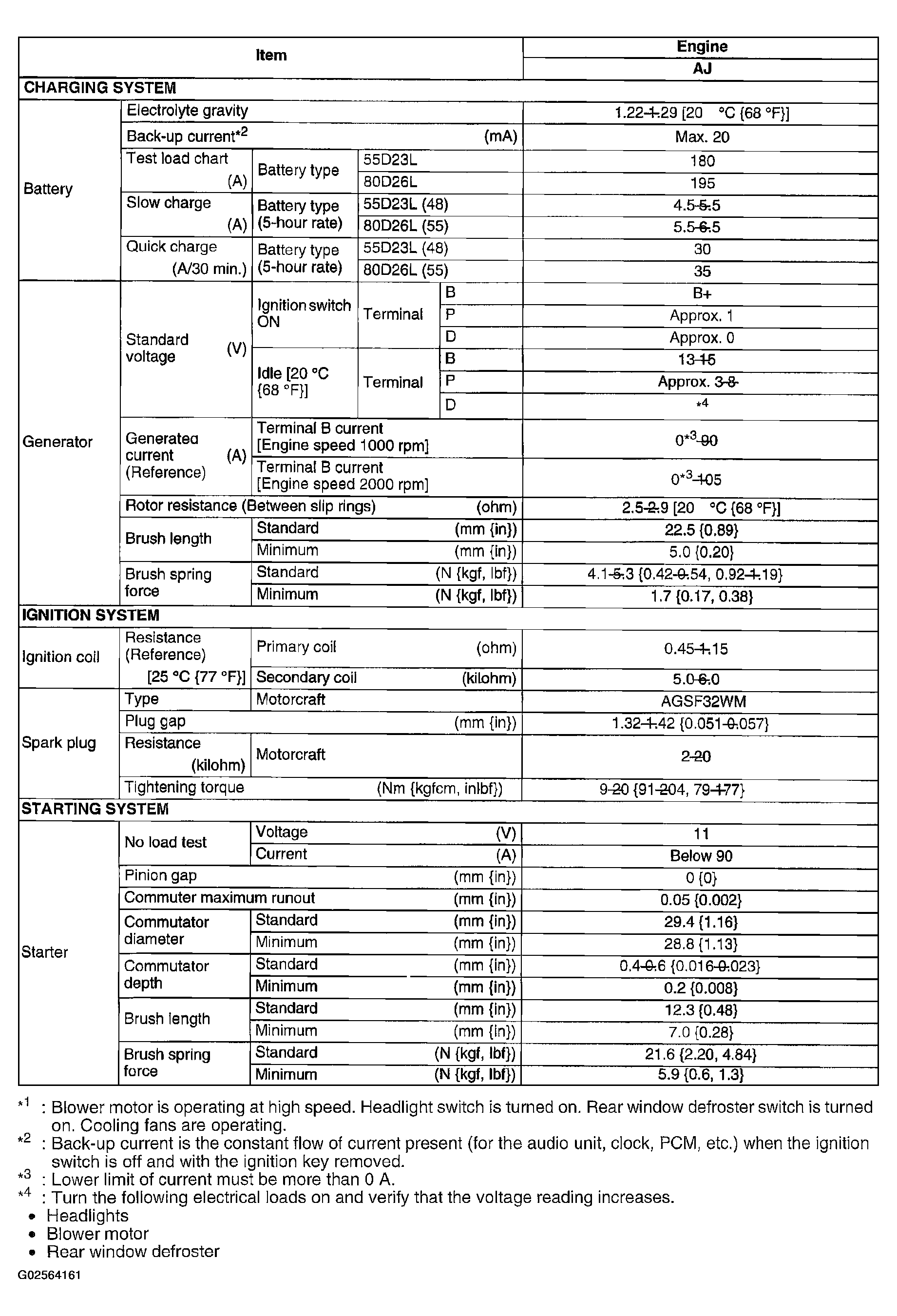

Fig 2: Engine Technical Data Table (2 Of 2)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
