Home >> Mazda >> 2004 >> MPV ES >> Repair and Diagnosis >> Engine Performance >> System >> On-Board Diagnostic [Engine Control System AJ] >> DTC P0480: Fan Control Module Circuit Malfunction >> Notes

DTC P0480: Fan Control Module Circuit Malfunction: Notes

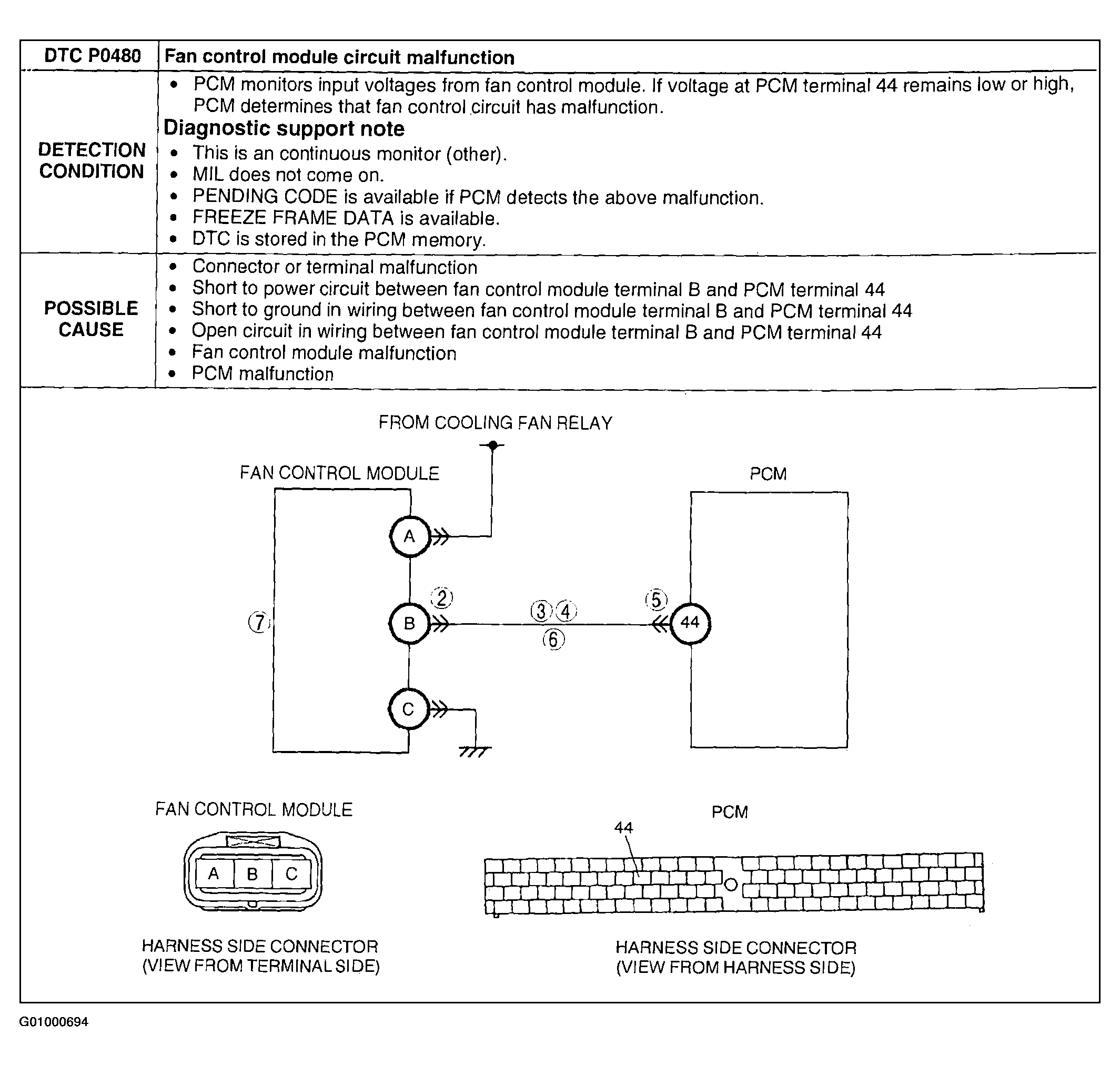

Fig 1: DTC P0480 Detection Condition & Possible Causes Chart

G01000694

Courtesy of MAZDA MOTORS CORP.
