Home >> Mazda >> 2004 >> MPV ES >> Repair and Diagnosis >> Engine Performance >> System >> On-Board Diagnostic [Engine Control System AJ] >> DTC Table

DTC Table

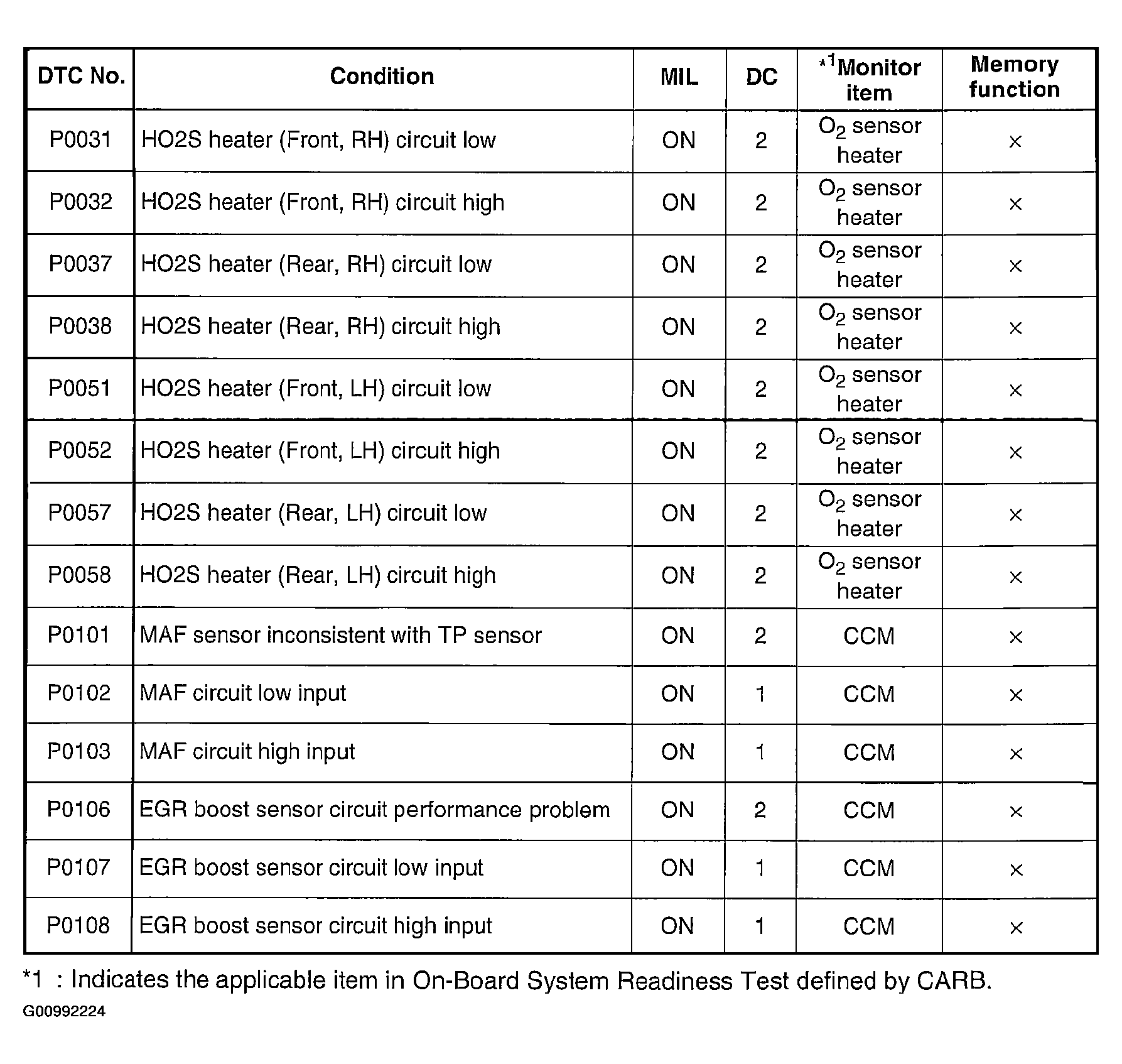

Fig 1: DTC Index Table (1 Of 5)
G00992224Courtesy of MAZDA MOTORS CORP.

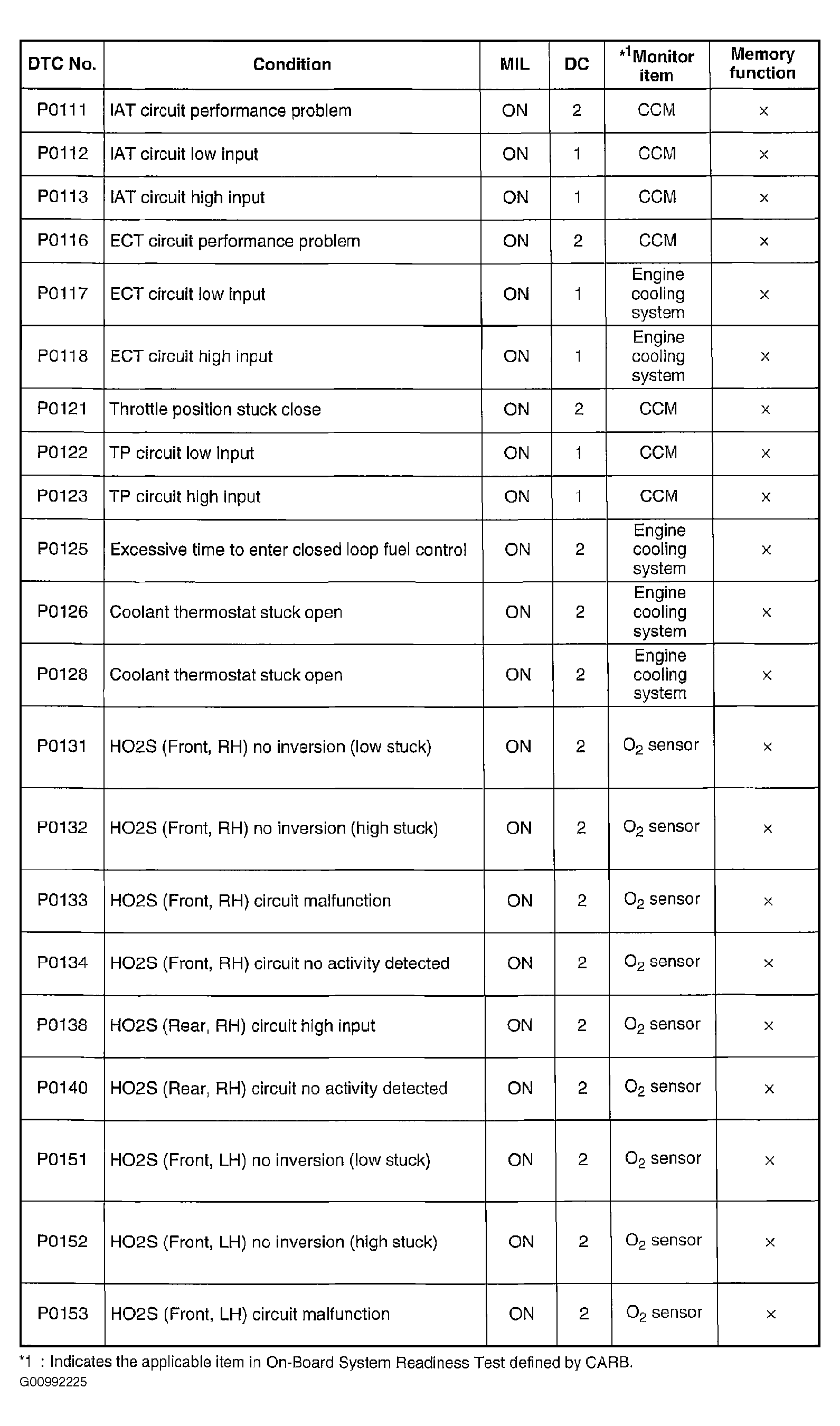

Fig 2: DTC Index Table (2 Of 5)
G00992225Courtesy of MAZDA MOTORS CORP.

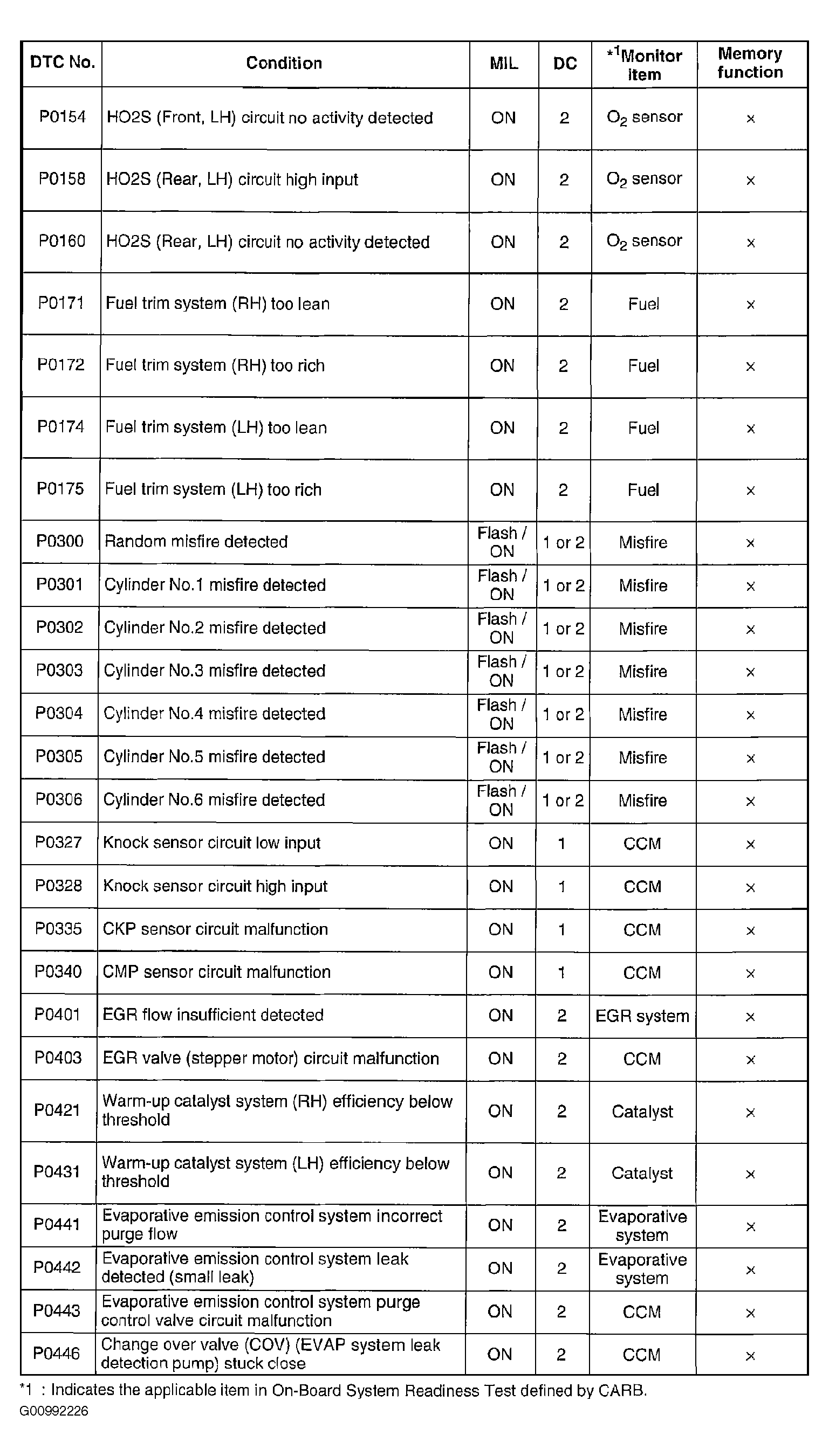

Fig 3: DTC Index Table (3 Of 5)
G00992226Courtesy of MAZDA MOTORS CORP.

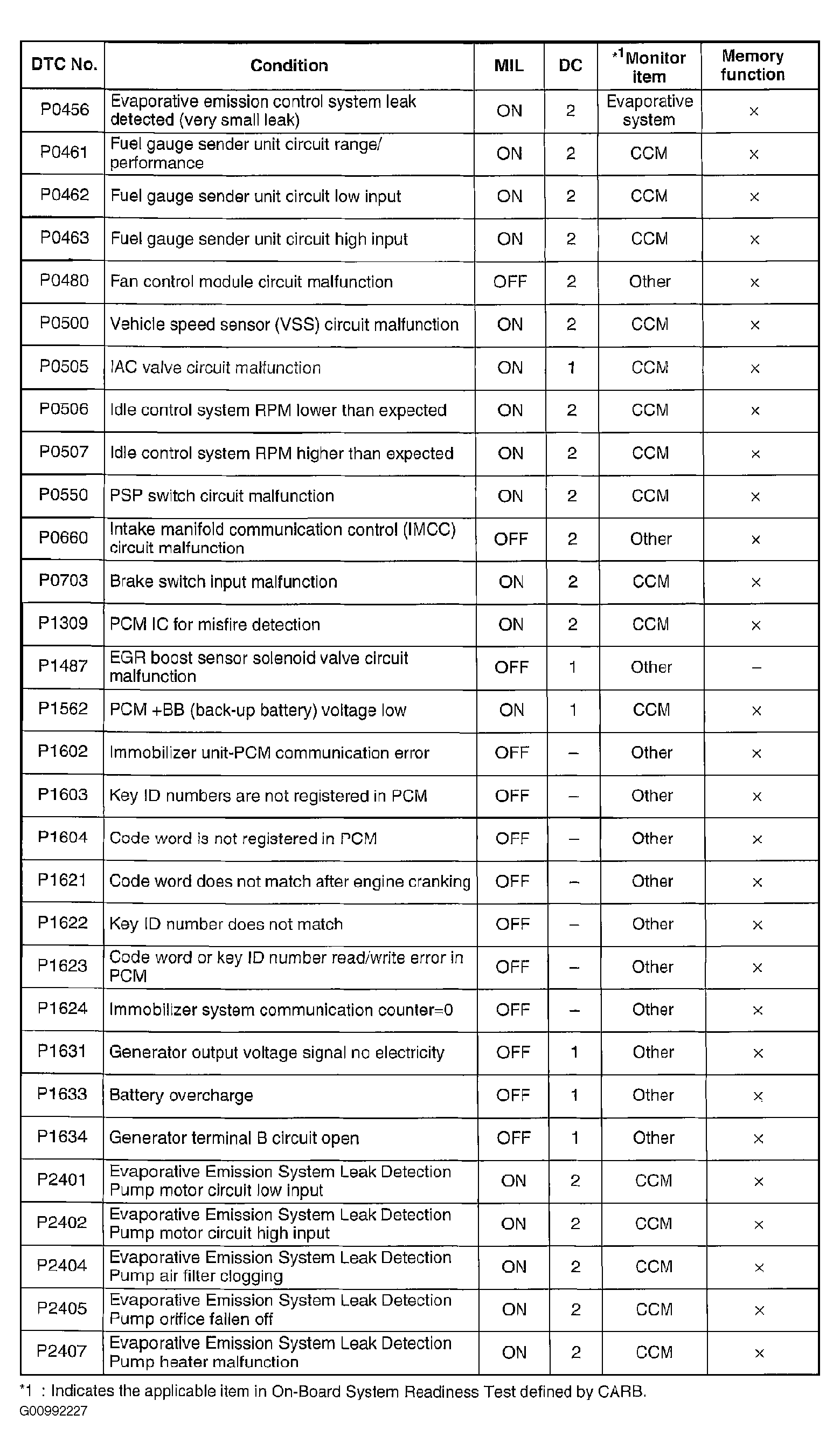

Fig 4: DTC Index Table (4 Of 5)
G00992227Courtesy of MAZDA MOTORS CORP.

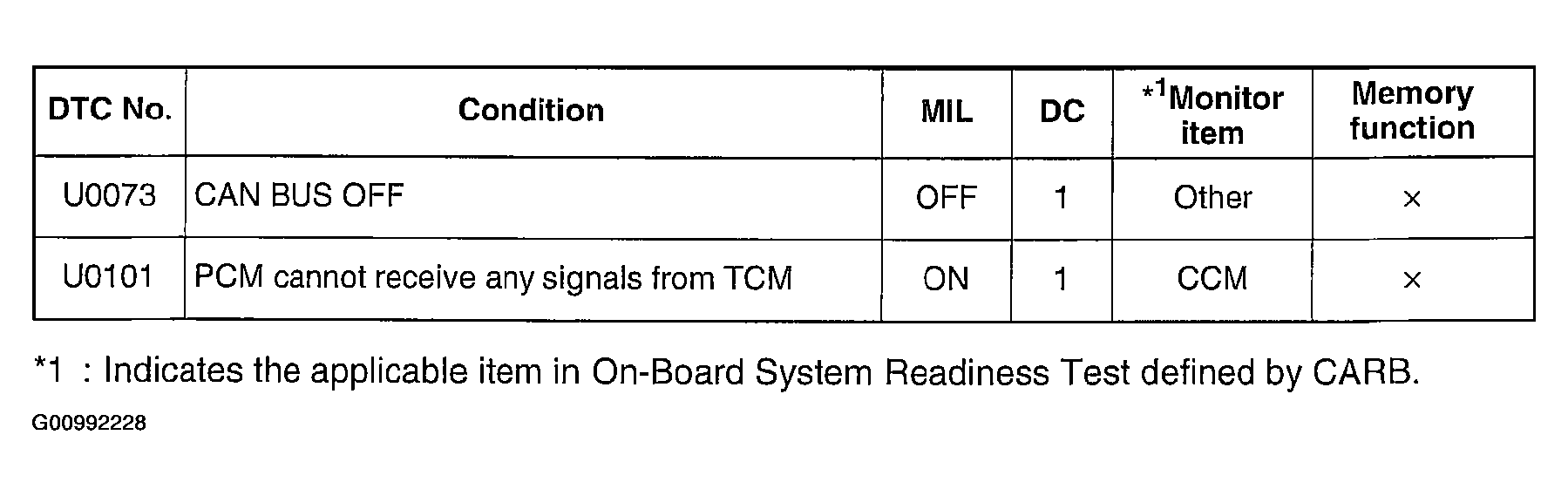

Fig 5: DTC Index Table (5 Of 5)
G00992228Courtesy of MAZDA MOTORS CORP.
