Symptom Troubleshooting [Engine Control System AJ]
>>
Control System Device And Control Relationship Chart
Control System Device And Control Relationship Chart

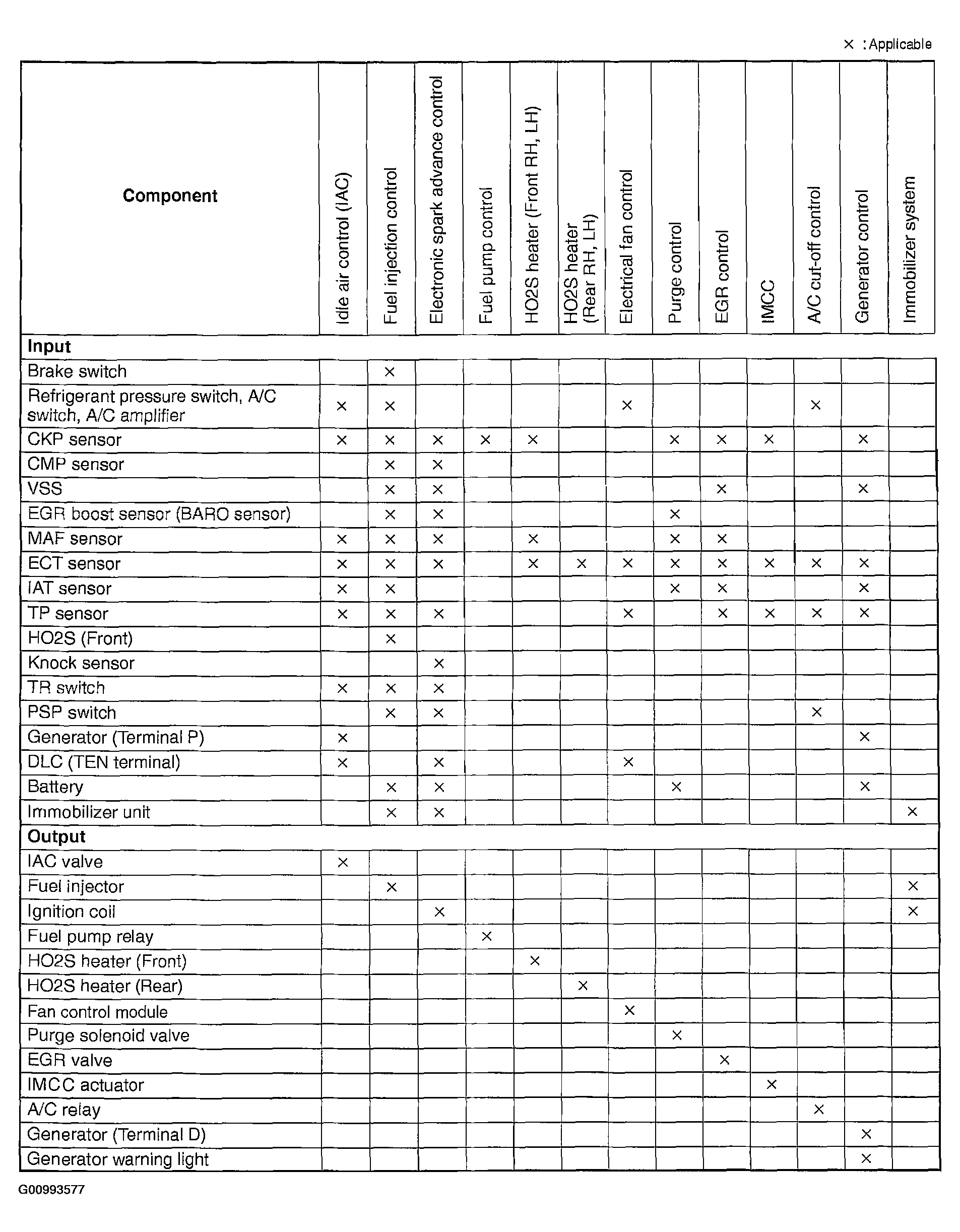

Fig 1: Control System Device And Control Relationship Chart
Courtesy of MAZDA MOTORS CORP.
